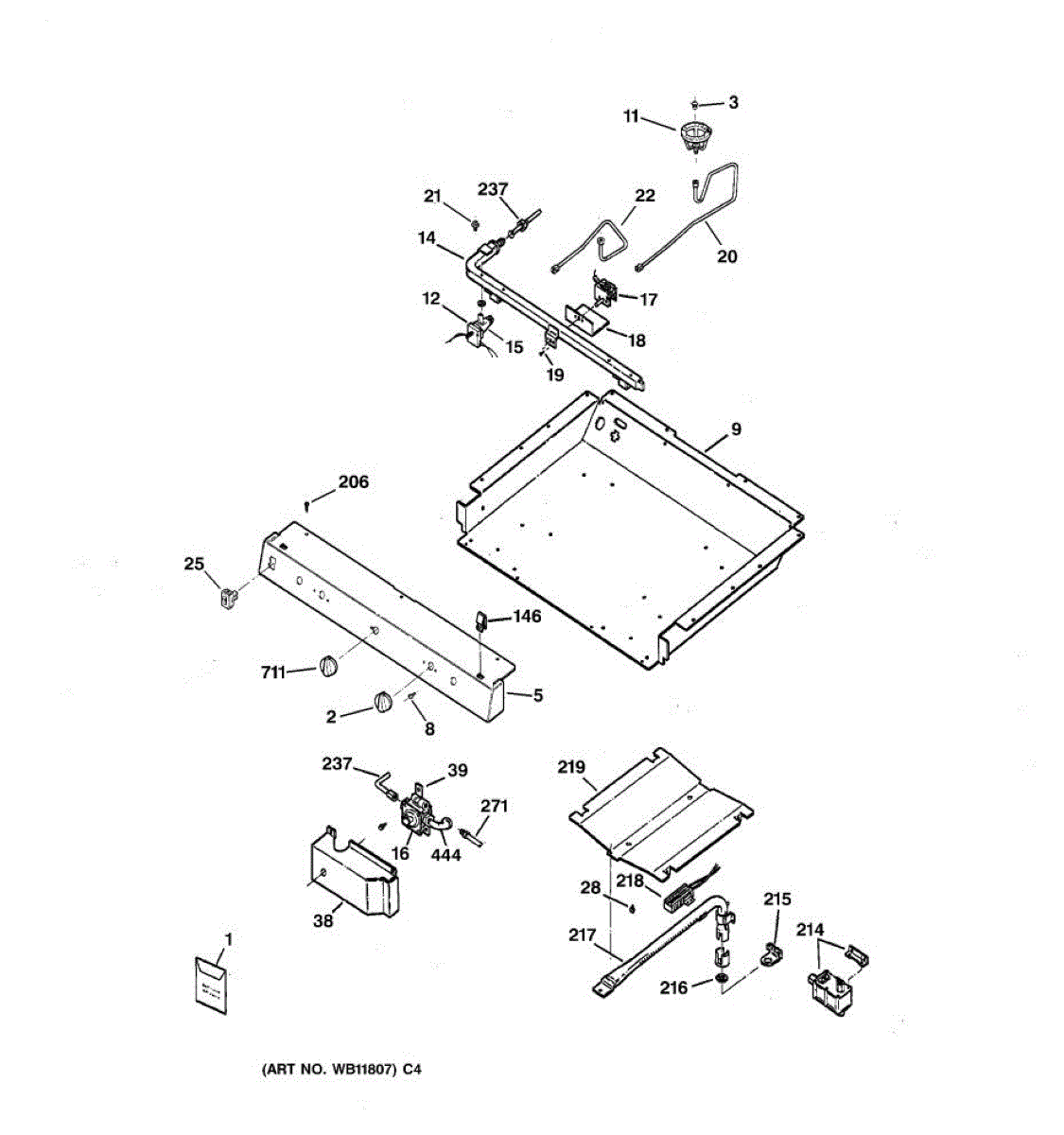

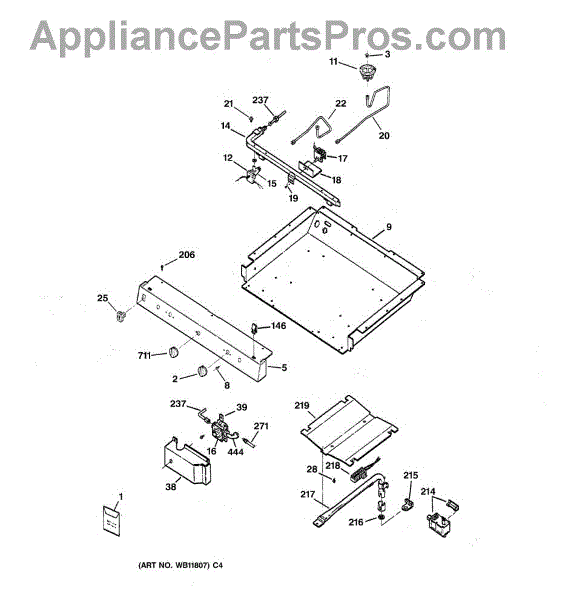

Parts for Ge JGBS22BEA2AD: 01 - Burner Parts

Anti-tip kit.

Replace a worn or missing knob and restore smooth, precise control of your cooktop. This black top burner control knob mounts on the surface burner valve stem, allowing reliable on/off operation and easy heat adjustment.

• Operates a surface/top burner by turning the control stem to set heat
• Ideal when the original knob is cracked, stripped, loose, hard to turn, or missing
• Restores proper feel and alignment when adjusting the burner
• Black finish matches the original appearance

• Allow the cooktop to cool and disconnect power before servicing
• Pull the old knob straight off the control/valve stem; align the new knob and press straight on
• Do not force—recheck stem orientation if the knob does not seat fully

Natural gas. Med 1.50mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 32 inch.

This valve switch includes a orange hub and sparks at the 11 o'clock position. For the gray hub valve switch order WB24K10003.

This surface burner valve regulates gas flow to a single top burner on your range, delivering smooth flame control. Replace a worn or leaking valve to resolve ignition problems and uneven flame performance.

• Regulates gas flow to the surface burner as you turn the knob
• Works with the igniter/orifice to light the burner
• Failure symptoms include: burner won't light or delayed ignition; flame won't adjust or is uneven
• Other signs: knob hard to turn or gas odor at the valve stem

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool.
• Remove the knob and access panel; note the valve's orientation and label igniter wire and gas tube locations.
• Transfer the orifice holder and any mounting hardware from the old valve if required.
• After reconnecting, restore gas and check all joints for leaks with a noncorrosive leak-detection solution before use.

The Oven Thermostat is an OEM part for GE ovens. This thermostat is a component in regulating the oven's heat, turning the heat on and off to maintain the desired temperature setting. With its precise calibration and durable construction, the oven thermostat is essential for achieving consistent cooking outcomes and preventing overheating, which could lead to burnt or undercooked food.

Causes of a bad oven thermostat include prolonged use, which can affect its sensitivity, and exposure to extreme temperatures, which may impact its accuracy.

Symptoms of a bad Oven Thermostat include:

• The oven not reaching the set temperature
• Oven temperature fluctuating too widely from the desired setting
• Food not cooking evenly or within expected time frames

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

Rear Burner Tube

Left rear

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

The Left Front Burner Tube is an OEM part for GE ranges and cooktops, specifically engineered to ensure the efficient and safe delivery of gas to the left front burner. This component plays a pivotal role in the appliance's cooking performance, allowing for precise flame control and even heat distribution. Designed to fit perfectly with GE models, this burner tube is crucial for maintaining optimal functionality and safety during cooking.

The causes of these issues can vary, including blockages within the tube, wear and tear over time, or damage that can occur from cleaning or accidental impacts. Regular inspection and cleaning can help prevent blockages, but if wear or damage is evident, replacement of the burner tube is necessary to maintain the range's performance and safety.

Symptoms of a malfunctioning Left Front Burner Tube include:

• Inconsistent flame size or strength on the left front burner
• Difficulty lighting the burner or it failing to light at all
• A noticeable gas odor when attempting to use the burner, indicating potential leaks

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Front Burner Tube is an OEM part for GE ranges and cooktops, specifically designed to deliver gas to the right front burner, ensuring efficient and even cooking. This component is essential for the proper operation of the gas burner, facilitating the precise control of flame size and temperature. The burner tube's role is crucial for achieving the desired cooking results, whether you're simmering, boiling, or frying.

The causes for these issues often include clogs from food spills or debris, corrosion over time, or physical damage to the tube that can affect gas flow. Regular cleaning and maintenance of the burner and its components can help prevent some of these issues, but wear and tear over time may necessitate the replacement of the burner tube.

Symptoms of a malfunctioning Right Front Burner Tube include:

• The right front burner producing a weak or uneven flame
• Difficulty lighting the right front burner
• The burner flame going out unexpectedly
• A noticeable gas smell when the burner is turned on, indicating a potential leak

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

This GE Oven Safety Valve is an OEM replacement part for GE ranges. The part's primary function is to prevent gas from releasing until the igniter has received enough voltage to ignite it safely. Not allowing any gas to exit before ignition helps avoid potential safety hazards from uncombusted gas.

Causes for failure could include wear and corrosion over many years of use. Repeated heating and cooling stresses may cause cracking or breaking in the valve's delicate regulating components. Mineral deposits or dirt buildup may also obstruct proper opening and closing.

Symptoms of a faulty safety valve would include:

• gas releasing or leaking even when the igniter is not lit
• the oven or burners not lighting at all when the valve is engaged

This GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.


This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Oven Bake Burner is an OEM part for GE gas ovens. It is responsible for providing the heat necessary for baking by distributing an even flame across the oven cavity. This burner tube measures approximately 20" in total length and 6" in height. This burner is compatible with both liquid propane (LP) and natural gas (NG) setups, with the settings determined by the regulator.

Causes of a bad oven bake burner can include wear and tear from frequent use, clogging from food debris or grease, or damage from exposure to high temperatures. A malfunctioning burner can lead to uneven cooking and longer baking times.

Symptoms of a bad Oven Bake Burner include:

• Uneven baking or cooking results
• Weak or no flame when the bake function is activated
• Delayed ignition or clicking sounds without ignition
• Unusual smells or visible damage to the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

The Thermostat Knob is an OEM part for GE ranges. This knob allows users to control the oven's temperature settings by turning the thermostat to the desired level.

Causes of a bad thermostat knob can include regular wear and tear, cracks or breaks from excessive force, and fading or illegibility of temperature markings over time.

Symptoms of a bad thermostat knob include:

• Difficulty turning the knob or it becoming loose
• Cracks or visible damage on the knob
• The knob not fitting securely onto the control shaft
• Inability to accurately set or read the temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
