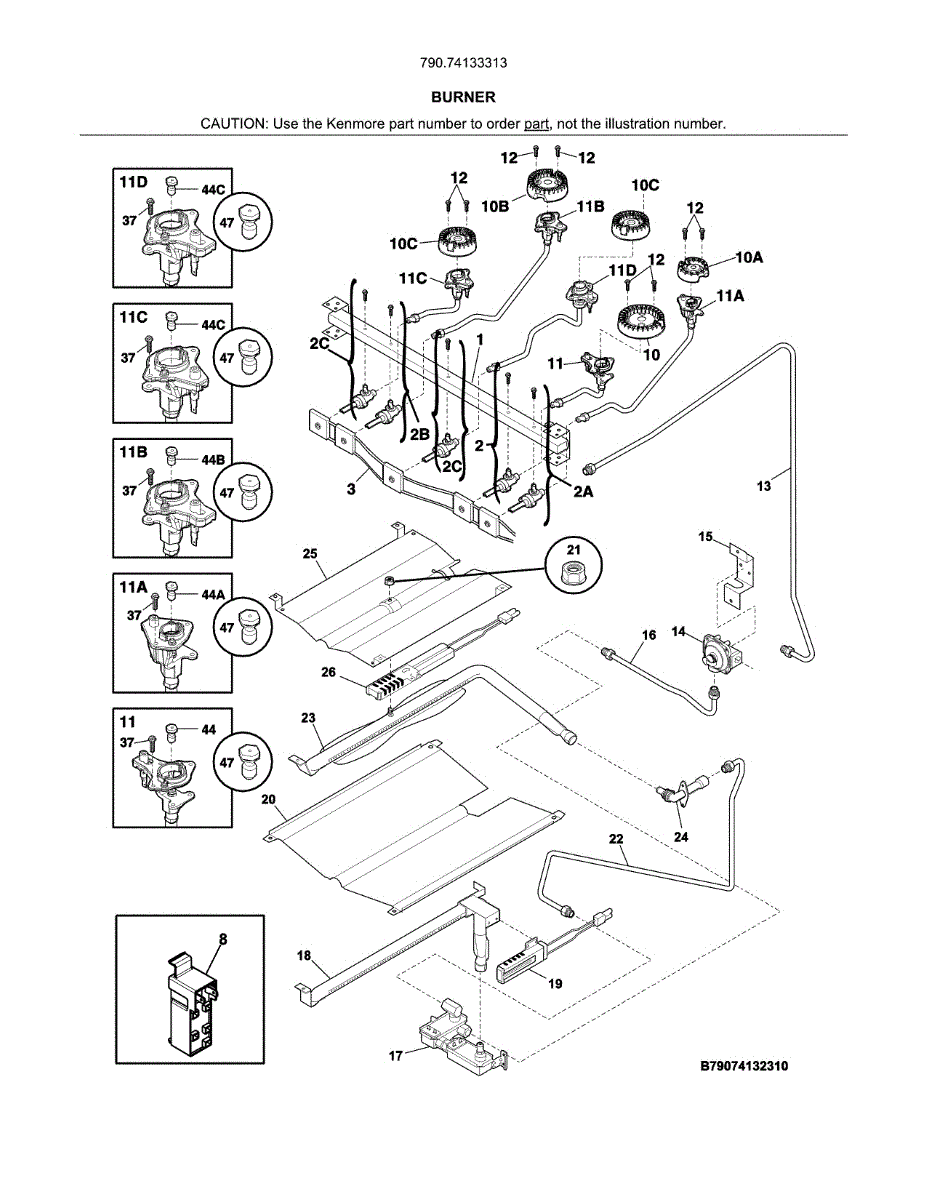

Parts for Kenmore 790.74133313 (79074133313, 790 74133313): Burner Parts

This is the gas manifold that distributes gas from the supply line to the individual surface burners on a gas range. It connects to each burner valve and ensures consistent gas flow across all burners. Replace this manifold if you notice gas leaks at the connections, uneven burner performance, or if the manifold tube is cracked or corroded.

Burner won't turn on or light? This gas valve controls gas flow to surface burners on your range. Common fix for non-functioning burners. Moderate DIY.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


Fix a burner that won't light or sparks without gas flow. This surface burner valve controls gas to one burner. Replace if knob turns but burner won't ignite.

This is a top burner gas valve that controls the flow of gas to a surface burner on a gas range. It connects to the burner control knob and regulates the flame from low to high settings. Replace this valve if a surface burner won't ignite, the flame is difficult to adjust, or you detect a gas smell even when the knob is in the off position.

Fix intermittent burner failures or electrical issues with this range wiring harness. Restores power flow when connections are loose, burnt, or broken.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Combined spark igniter and orifice holder for gas surface burners. Replace when the assembly is cracked, worn, or damaged to restore proper burner operation.

Replace a cracked, clogged, or damaged ignitor orifice assembly under your gas range cooktop. Routes gas to surface burner and houses spark electrode.

Replace your gas range's ignitor and orifice assembly if the parts are cracked, broken, or clogged. Includes spark electrode, gas orifice, and holder.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Routes gas from the inlet regulator to the burner manifold on your gas range. Replace if cracked, leaking, or damaged to restore safe fuel delivery.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Controls gas flow to your range oven burners. Replace if the valve is leaking, won't shut off completely, or has damaged threads or connections.

This is the bake burner tube located inside the bottom of the oven cavity in a gas range. It distributes gas evenly to produce a consistent flame for baking and roasting. Replace this burner tube if you notice uneven heating, weak or irregular flames, or visible damage such as corrosion or holes in the tube.

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

This is an orifice elbow fitting that connects to the broil burner assembly in a gas range. It directs and regulates the gas flow to the broil burner for proper ignition and flame output. Replace this part if the broil burner produces an uneven flame, fails to ignite consistently, or if the fitting is cracked or corroded and causing a gas leak.

Fixes uneven oven temperatures caused by poor airflow. This air deflector baffle restores proper heat distribution in your gas range for even baking.

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

This is a combined igniter and orifice holder assembly that mounts beneath a surface burner on a gas range. It positions the spark igniter and gas orifice correctly so the burner lights and produces a proper flame. Replace this assembly if a burner fails to ignite, clicks without lighting, or produces an uneven or weak flame.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
