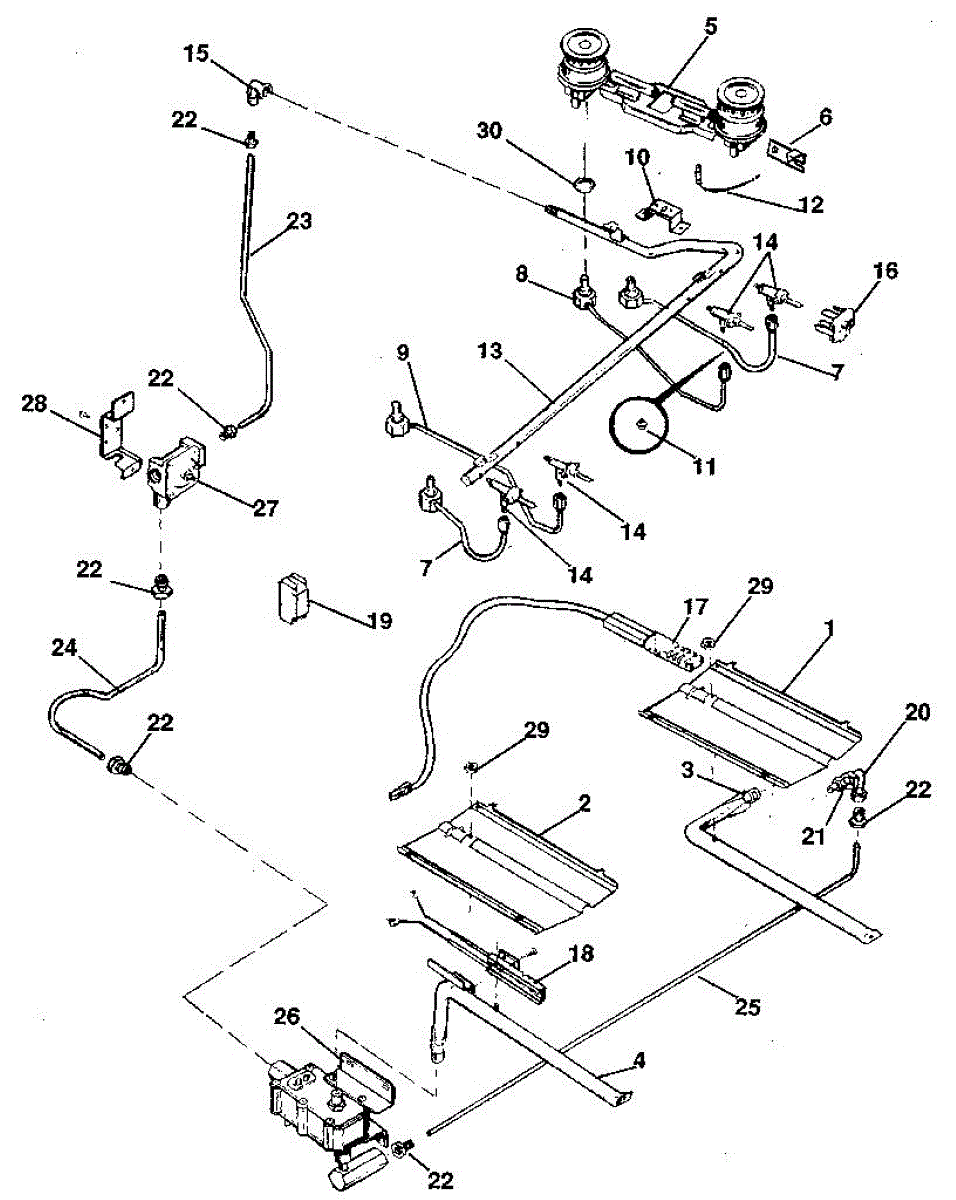

Parts for Kenmore 791.734898 (791734898, 791 734898): Burner Parts

Cable retainer for cooktop installation. Secures wiring harnesses in place. Replace if broken, cracked, or missing to properly organize internal cables.

This ferrule is a small compression fitting used to secure and seal a refrigerator water line connection, helping stop leaks and maintain proper flow to the ice maker or dispenser. It's a simple replacement to restore a tight water connection. What it does:

• Secures tubing to a compression or shutoff fitting to prevent leaks at the connection
• Restores a proper seal for water supply lines feeding the ice maker or dispenser
• Commonly used when a loose, dripping, or leaking water line is present
• Helps prevent water damage from failing or corroded fittings

• One ferrule

• Turn off the water supply and relieve line pressure before servicing
• Confirm tubing is cut square, fully inserted, and the ferrule is seated before tightening
• Tighten fittings per manufacturer guidance; avoid over-tightening which can damage tubing
• After installation, turn water back on and check carefully for leaks

This elbow is a threaded pipe fitting that redirects and secures a fluid line connection where space or alignment requires a 90° turn. It provides a compact, threaded junction to connect compatible appliance tubing or hose to a valve or port. What it does:

• Connects two threaded line ends at a 90° angle for tight routing in confined spaces
• Provides a sealed, threaded junction between a 1/2 in. NPT inlet and a 9/16-24 threaded outlet
• Helps stop leaks and maintains proper line alignment when the original elbow is worn or damaged
• Commonly used where a bent or cramped connection prevents a straight coupling

• One elbow fitting (1/2 in. NPT x 9/16-24)

• Turn off and depressurize the water supply (or system) before removing or installing fittings
• Start threads by hand to avoid cross-threading; tighten with appropriate wrench until snug
• Use plumber's tape or thread sealant only if specified by the appliance manufacturer

Oven won't heat, slow to reach temperature, or glows dull orange? This igniter fixes weak ignition. Moderate DIY repair with basic hand tools.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

Oven won't light even though igniter glows? Burner lights only when valve is tapped? Replace the dual gas safety valve. DIY install in under 1 hour.

The pressure regulator with bracket controls gas flow to the range burners and is typically located behind the range. Replace when burners won't light, flame is irregular, or you smell gas during operation.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

Range door latch shield that covers and protects the top latch mechanism. Replace if cracked, broken, or missing to restore proper door alignment.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Protective wire shield for gas range safety valve. Replaces cracked, damaged, or missing guards. Installs over valve wiring for safety and protection.

This adhesive identification label replaces a torn, faded or missing appliance sticker so model, serial or safety information is legible again. It helps you confirm appliance details for service, parts or safety checks. What it does:

• Restores readable model/serial and specification information that is printed on the original sticker
• Replaces damaged or faded identification and safety labels
• Makes it easier to verify the correct part or service information before repair
• Helps meet safety and inspection needs by restoring visible manufacturer info

• One adhesive identification label

• Clean and dry the mounting area before applying to ensure good adhesion
• Peel backing and press label firmly; hold for several seconds to set
• Avoid placing on textured or insulated foam surfaces where adhesion may be poor

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Sound dampening insulation for gas ranges. Installs inside the range cavity to reduce noise and provide thermal protection. Replace if worn, torn, or missing.
