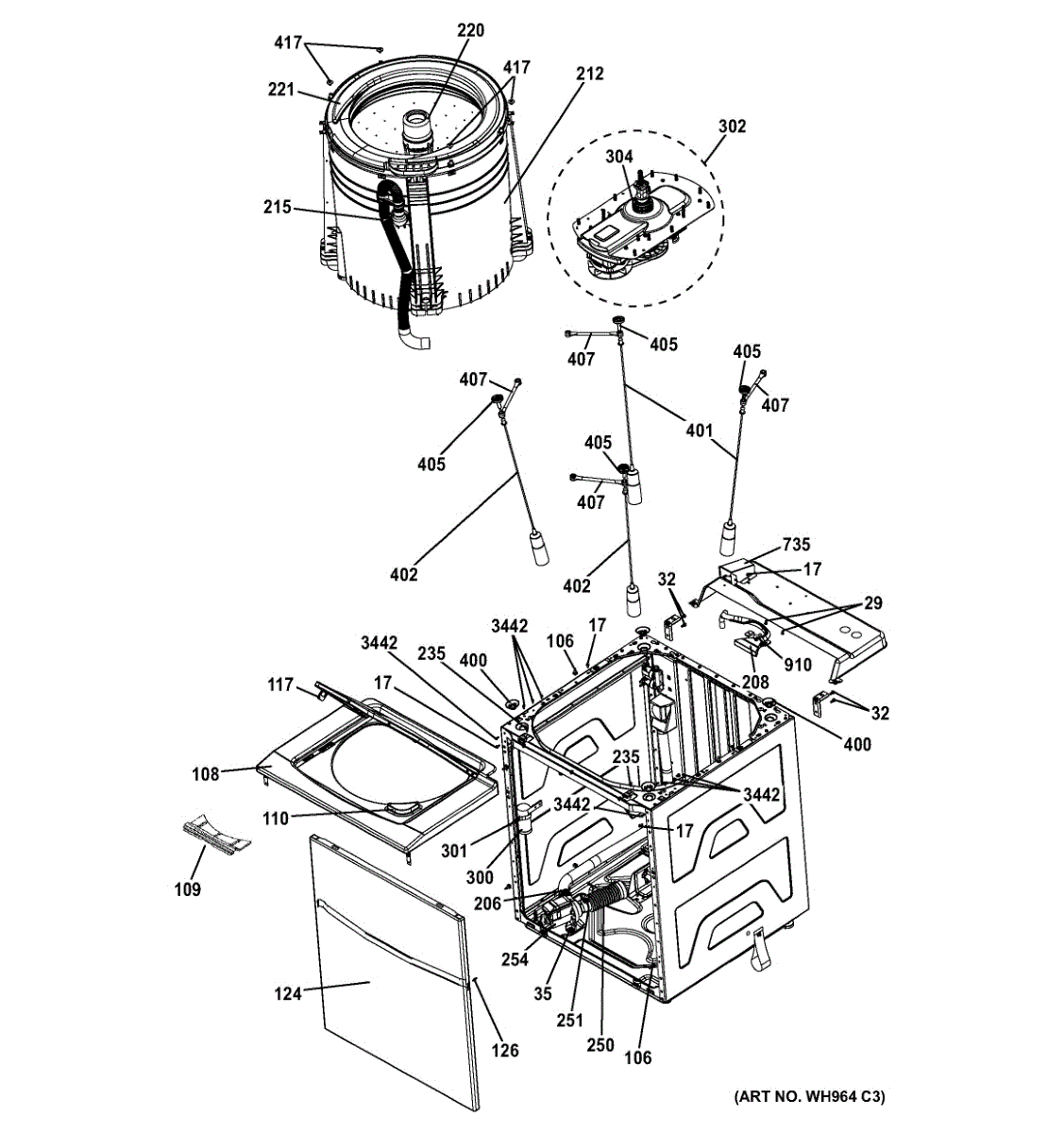

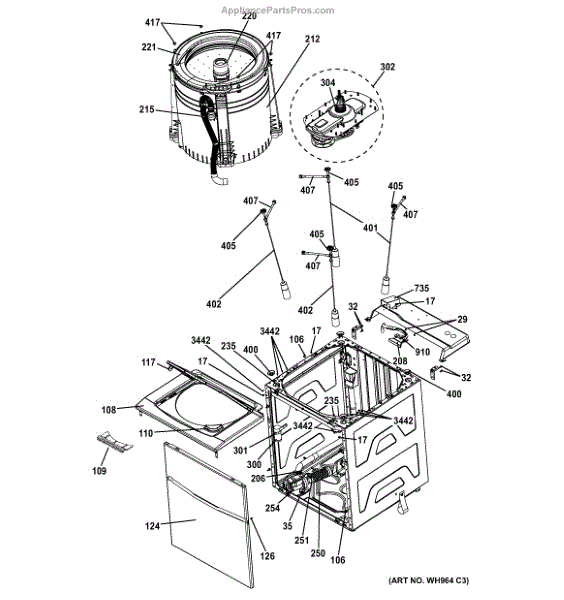

Parts for Kenmore 363.71542 (36371542, 363 71542): Cabinet (4) Parts

Size: 8 - 18 ab.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Mounting screw for laundry center units. Secures panels and components inside the cabinet. Replace if stripped, missing, or damaged during repairs.

Replacement hex washer head screw for laundry center panels and components. Needed when original fasteners are stripped, missing, or damaged during repair.

Replacement alignment pin for laundry center hinge or latch assemblies. Restores proper positioning of moving parts when original is broken, worn, or missing.

Top panel cover for laundry center units. Installs over the control area to provide a finished appearance. Replace if cracked, chipped, or missing.

Bracket assembly kit for laundry centers. Secures internal components in place. Replace if brackets are bent, cracked, or missing during repairs.

Fix bleach pooling or uneven dispensing in your laundry center. This funnel directs bleach into the wash tub, preventing spills and odor issues.

This lid actuator engages the washer's lid switch or lock when the lid closes, signaling the control that it's safe to run. Replacing a worn or broken actuator restores reliable lid detection for wash and spin cycles.

• Engages the lid switch/lock when the lid is closed
• Signals the control to allow the washer to start and spin
• A damaged or missing actuator can lead to "lid open" errors
• Common symptoms include won't start, won't spin, or lid lock light flashing

• Disconnect power before servicing
• Access the lid switch/lock area; remove the failed actuator
• Install the new actuator, aligning it to the original mounting points; reuse existing hardware
• Close up and test lid detection before running a full cycle

Replaces damaged or worn control panel face on laundry centers. Restores front appearance and provides secure mounting for controls. Needed when cracked or broken.

Retaining clamp secures hoses and tubes to prevent leaks and loose connections in your washer dryer combo. Replace if worn or damaged. Verify fit with model.

This is a water inlet assembly that directs water flow into the washer tub during the fill cycle. It connects to the water supply line and ensures proper water distribution inside the drum. Replace this part if you notice water leaking near the tub inlet, uneven filling, or water spraying in the wrong direction during a wash cycle.

Outer tub assembly for washer dryer combos. Houses the spin basket and holds water during wash cycles. Replace if cracked, leaking, or damaged.

Small drain fitting that routes overflow water away from your laundry center. Replace if cracked, broken, or leaking to prevent water damage and spills.

This is a small plastic cup that sits inside the washer's agitator or dispenser housing and holds liquid fabric softener, releasing it at the appropriate time during the rinse cycle. It is commonly found on laundry center combo units. Replace this part if fabric softener is not dispensing properly, the cup is cracked or missing, or you notice softener residue building up on clothes.

Note: Newly designed cover includes 4 new rod and spring assemblies. The tub dampening straps and clips are no longer used.

Internal drain hose routes wastewater through the washer drain path. Replace if cracked, kinked, or leaking to prevent water damage to floors and components.

Secures wiring and hoses in your laundry center to prevent rubbing and wear. Replace when broken or missing to maintain proper routing. Verify fit.

Fix a washer that won't drain or leaves standing water. This drain pump removes water from the drum during drain and spin cycles. Moderate DIY repair.

This washer motor run capacitor stores and releases electrical energy to help the drive motor start and run smoothly. Replacing a weak capacitor can help restore consistent agitation and spin and reduce motor humming or stalling under load.

• Provides the phase shift and torque assist the drive motor needs to start and stay running
• Can address: washer won't start, no agitate or spin, motor only hums/buzzes, or stops under load
• Visible clues of failure can include a swollen, cracked, or leaking capacitor case

• Unplug the appliance before servicing; capacitors can retain a charge even when power is off
• Discharge the capacitor safely before handling
• Note wire positions; move leads to the same terminals and secure the capacitor in the original bracket/orientation
• Inspect connectors and replace any burnt or loose terminals to ensure a tight fit

Secures the capacitor in your laundry center. Replace if clip is broken, cracked, or capacitor becomes loose. Verify fit with your model number.

Fixes loud spin cycle noise, leaking from bottom, or poor agitation. This transmission assembly drives wash and spin cycles. Moderately difficult repair.

Seals the gap between outer tub and wash basket to prevent leaks. Replace if water leaks from bottom during wash cycles. Confirm fit by model number.

Plastic socket that holds the suspension rod ball in your washer. Replace if worn, cracked, or deformed to restore proper tub support and alignment.

Rear suspension rod assembly that supports and stabilizes the washer tub from the back of the cabinet. Replace if worn, broken, or cracked to restore balance.

Front suspension rod assembly that supports and stabilizes the washer tub. Replace if rod is bent, damaged, or worn to restore proper tub alignment.

Plastic cup that holds the suspension rod at the tub connection point. Replace if cracked, worn, or broken to restore proper tub support and alignment.

Secures and stabilizes the drum inside your washer cabinet. Replace if cracked, stretched, broken, or missing to restore proper support and control.

These mounting screws secure various internal components within your washing machine. They hold parts like panels, brackets, and mechanisms in their proper positions during wash cycles. Replace if screws are missing, stripped, or causing rattling noises during operation.

Protective cover for the main wiring harness on laundry centers and washer-dryer combos. Replaces cracked, broken, or missing covers that expose wiring.

This SCR 8-18 AB 1/2 is a replacement silicon controlled rectifier that restores proper power control to the appliance's control circuitry, helping the unit switch and regulate current reliably. What it does:

• Controls current flow in the appliance's power/control circuit for timed or regulated output
• Replaces a failed or intermittent SCR to stop erratic cycling, no-power, or control malfunctions
• Commonly used where electronic switching or phase control is required
• Helps restore stable operation when heating or motor circuits fail to receive proper control signals

• One SCR 8-18 AB 1/2 replacement component

• Disconnect power to the appliance before inspecting or replacing electrical components
• Observe ESD precautions and handle the SCR by its body; avoid touching leads
• Verify wiring and mounting orientation match the original part before final assembly
