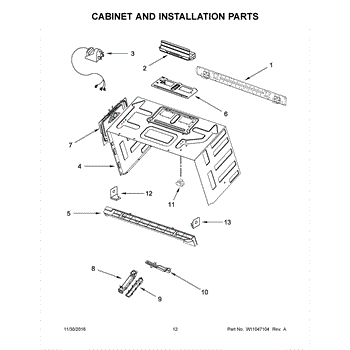

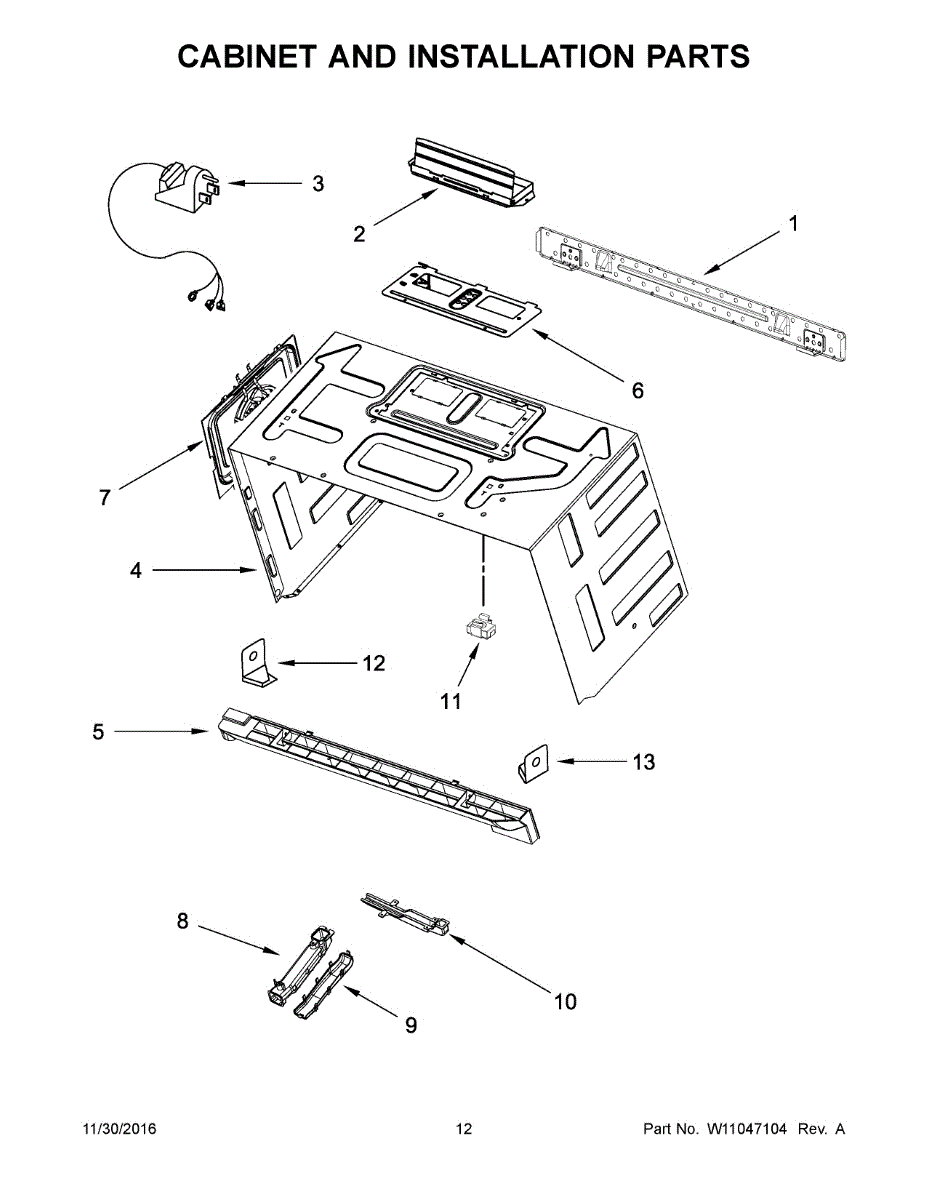

Parts for Kitchenaid KMHC319EBS0: 07 - Cabinet And Installation Parts

The Mounting Plate is an OEM part for Whirlpool microwaves. This part is designed to mount and stabilize the microwave over the range, ensuring it is safely anchored in its designated space. The mounting plate serves as an interface between the microwave and the wall or cabinet, distributing the weight evenly and providing a firm foundation for the appliance.

Causes of a bad Mounting Plate can stem from improper installation, which may lead to undue stress and eventual warping or weakening of the material.

Symptoms of a bad Mounting Plate include:

• Loose microwave unit
• Difficulty in aligning or installing the microwave
• Visible signs of wear, rust, or damage on the plate

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Air Damper is an OEM part for Whirlpool microwave/range hood combos. It is a crucial component that regulates the flow of air into the microwave cavity, helping to maintain proper temperature and airflow during operation.

Symptoms of a faulty Air Damper include:

• Overheating or uneven heating of food items
• Excessive noise or rattling sounds during operation
• Error codes related to temperature or airflow issues

Causes of a bad Air Damper can include wear and tear over time, physical damage or obstruction, or issues with the damper's motor or control system.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This is the appliance's main power cord. It delivers household electricity to the unit so it can operate safely and reliably.

• Supplies AC power from the wall outlet to the appliance's internal wiring
• A damaged or failed cord can cause no power, intermittent power, or tripped breakers
• Replacing a worn cord can restore consistent power and improve safety

• Unplug the appliance and turn off power at the breaker before service
• Route and secure the cord to prevent pinching or abrasion

This cabinet wrap is the outer covering that fits over the appliance cabinet to restore appearance and protect internal components. It replaces a damaged, dented, or worn outer panel for a clean, finished look. What it does:

• Provides an exterior cover for the appliance cabinet, concealing internal parts and insulation.
• Restores cosmetic appearance by covering dents, scratches, or rusted areas.
• Helps maintain proper airflow pathways and seals where applicable.
• Reduces exposure of internal components to dirt and moisture.

• One cabinet wrap (outer cabinet cover), as specified by the OEM part number.

• Installation may require removing panels, disconnecting power, and supporting the cabinet.
• Use appropriate hand tools; avoid sharp edges on the wrap and cabinet.
• Disconnect power to the appliance before beginning work to prevent electrical shock.

This vent grille covers the top-front exhaust opening on a microwave, helping direct airflow and restoring a clean, finished look. Replace a cracked or missing grille to keep ventilation unobstructed and the assembly secure. What it does:

• Covers and protects the upper ventilation opening
• Helps channel exhaust or recirculated air out of the unit
• Restores secure attachment when tabs or screw bosses are damaged
• Common symptoms: cracked or broken grille, loose fit, rattling, missing or visibly worn trim

• 1 vent grille

• Disconnect power to the microwave before servicing
• Remove the top-front mounting screws and slide out the old grille
• Position the new grille and reinstall the screws; do not overtighten
• Ensure the grille is fully seated and secure before restoring power

This replacement chamber is the microwave oven's interior cavity liner that provides the sealed cooking space and supports interior components for safe operation. It restores the oven's interior surface and helps maintain proper cooking performance. What it does:

• Forms the sealed interior cavity where food is heated
• Provides the mounting surface for the waveguide, light, and interior trim
• Protects insulation and outer cabinet from heat and debris
• Symptoms it can fix: visible interior damage, burnt or warped liner, smoke or sparks inside the oven

• One chamber

• Disconnect power and unplug the appliance before beginning service
• Remove door and exterior panels as needed to access the cavity; follow the service manual
• Handle carefully—edges may be sharp and trim pieces can be fragile

This replacement air duct routes exhaust air from the dryer blower to the vent outlet, helping restore proper airflow and reduce heat buildup. Use this genuine-style duct when the original is cracked, warped, or leaking. What it does:

• Channels exhaust air from the blower assembly to the vent outlet for efficient drying
• Replaces damaged, cracked, or distorted ducts that cause leaks or reduced airflow
• Helps address symptoms such as poor airflow, longer dry times, or unusual noises from the dryer
• Restores a sealed airflow path to reduce internal heat accumulation

• Disconnect power (and gas supply, if applicable) before beginning any repair
• Follow the dryer service manual for panel removal and reassembly; keep screws and fasteners organized
• Inspect adjacent seals and gaskets and replace if worn to ensure a proper fit
• Handle plastic duct parts carefully to avoid cracking; ensure clearance so the duct is not pinched during reassembly

The Nut is an OEM part for Whirlpool microwaves. It helps secure various parts within the microwave, ensuring proper assembly and function. It is used to fasten items, keeping them securely in place during use.

A bad microwave nut can occur due to wear and tear over time or accidental damage. If the nut becomes loose, stripped, or misplaced, it can lead to instability and compromise affected parts.

Symptoms of a bad microwave nut include:

• Loose or wobbly parts.
• Difficulty in operating the microwave.
• Unusual noises or vibrations during use.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Black (Qty of 1)

Color: Black

This wire harness assembly connects electrical components to restore reliable power and signal routing in your appliance. It replaces a damaged or worn wiring assembly to help bring controls and functions back to normal operation. What it does:

• Re-establishes electrical connections between components so controls, lights, or motors can operate
• Replaces broken, burned, or frayed wiring that can cause intermittent operation or failure
• Helps stop flickering displays, unresponsive controls, or components that won't power on
• Reduces risk of shorts from exposed wiring when installed correctly

• Disconnect power (unplug or shut off breaker) before starting any repair
• Take photos of original routing and connector locations to ensure correct reassembly
• Do not attempt repair with damaged insulation or exposed conductors — replace the entire harness
• Ensure all connectors are fully seated and secure; avoid pulling on wires when positioning

The Hardware Kit is an OEM part for Whirlpool microwaves. This kit includes essential mounting brackets, screws, and other fasteners required for the proper installation and secure mounting of the microwave, either over the range or within cabinetry.

Causes of a bad hardware kit can include wear and tear over time, exposure to moisture, or damage due to mishandling or incorrect installation.

Symptoms of a bad hardware kit include:

• Loose or unstable microwave installation
• Rattling or vibrating noises during operation
• Difficulty in mounting or securing the microwave
• Visible rust or damage to screws and brackets

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Upper Cabinet Template is an OEM part for Whirlpool microwaves. This template is used during the installation of the microwave to ensure correct placement and alignment within the upper cabinet, providing guidance for drilling holes and securing the microwave in place.

Causes of a bad or missing template can include misplacement, wear and tear from repeated use, or damage during the installation process.

Symptoms of a bad or missing upper cabinet template include:

• Difficulty aligning the microwave properly within the cabinet
• Incorrect placement of mounting holes
• The microwave not sitting securely or level
• Challenges during the installation process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This OEM microwave top mounting screw is for mounting microwave ovens to upper cabinets. Replace if you've lost one of the original mounting screws or they've become damaged. This gold screw made of heavy-duty metal can be installed with a screwdriver and socket set. Measuring approximately 3 inches in length, this top mounting screw is sold individually.

The mounting bracket assembly requires two mounting screws. Make sure to order the number needed for your microwave oven. Remember to unplug your microwave before installing the mounting bracket assembly. Tighten the mounting screw with the screwdriver, being careful not to overtighten it. This can strip the threads on the screw.

Choose this OEM replacement part to ensure a secure and safe installation. It's designed to fit microwaves from top brands such as Whirlpool, Roper, Estate, Inglis, Maytag, Amana, and KitchenAid.
