Parts for Dcs DD124: Cabinet Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Left side

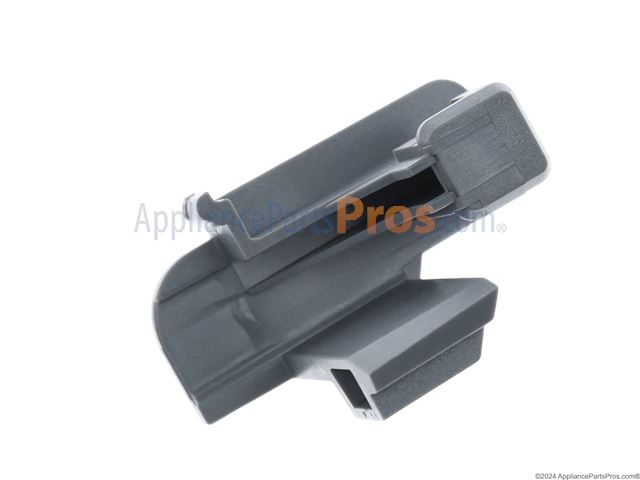

The Door Latch is an OEM part for Fisher & Paykel dishwashers. This latch securely fastens the left side of the dishwasher door closed during wash cycles.

Causes of a bad door latch can include wear and tear over time, impact damage, or issues with the latch mechanism itself.

Symptoms of a bad left door latch include:

• The door not closing tightly or securely
• Gaps appearing along the door seam
• Water leakage during wash cycles
• Difficulty fully closing or opening the door

This Latch Assembly is an OEM part for Fisher & Paykel dishwashers. It is an essential component that ensures the secure closure of the dishwasher door, maintaining the appliance's safety and efficiency during operation. Specifically designed for Fisher & Paykel dishwashers, this latch assembly guarantees a perfect fit and smooth functionality.

The latch assembly can become problematic due to regular wear, mechanical damage, or misalignment. A malfunctioning latch can prevent the dishwasher from operating correctly, as a secure door seal is crucial for the appliance's performance.

Symptoms of a failing latch assembly include:

• Difficulty in closing or opening the dishwasher door.
• The dishwasher door unexpectedly popping open during cycles.
• The dishwasher failing to start, indicating the door is not securely latched.
• Visible wear or damage to the latch mechanism.
• Leaks around the door, suggesting an improper seal.
• This OEM Fisher & Paykel part is also compatible with Bertazzoni, Dacor, and Viking brands.

A genuine replacement foot that restores stability and proper leveling for your appliance. Replaces worn or damaged feet to reduce wobble, prevent uneven operation, and protect floors from movement and scratches. What it does

• Provides a stable support point to keep the appliance level and steady during use
• Helps eliminate rocking or vibration that can cause noise or uneven function
• Protects flooring by creating a durable contact surface between appliance and floor
• Allows minor height adjustment (where applicable) to compensate for uneven floors

• Disconnect power and water (if applicable) and move the appliance to a safe, accessible location before starting
• Support the appliance to prevent tipping; use a helper or appropriate jack/blocks for heavy units
• Thread or press the foot into place per the original mounting method; hand-tighten and test level before final seating

A small replacement mounting tab that secures trim, panels or shelving edges and restores a flush fit and stable attachment. Replaces a broken or missing top tab to stop rattling and keep parts aligned. What it does

• Secures the top edge of a trim, panel or shelf by providing a mounting point or snap-in retention.
• Stops movement, vibration or rattling caused by a cracked or missing tab.
• Helps restore correct alignment so doors, panels or trim sit flush and operate smoothly.
• Works as a direct-fit replacement when the existing tab is damaged or worn.

• One tab top mounting tab (single piece)

• Disconnect power or unplug the appliance before making repairs for safety.
• Typically installs by snapping or sliding into position; basic hand tools (screwdriver, pliers) may be required.
• Avoid forcing or overtightening to prevent cracking adjacent trim or panels.
• Inspect surrounding clips, screws and trim for additional damage and replace as needed.

Note: Drain Hose Extension Kit will extend the drain hoses by 11’ 10”.

This drain hose joiner connects two sections of dishwasher drain tubing to restore a continuous drain path and stop leaks. It's a simple replacement part that helps get your dishwasher draining normally again. What it does:

• Joins two drain hoses securely so water flows from the dishwasher to the household drain
• Reduces leaks at a broken or separated hose connection
• Addresses symptoms like water pooling under the dishwasher, slow draining, or visible leaks near the hose
• Works where a damaged or split hose end needs a reliable connector

• Disconnect power and water supply before starting any repair
• Inspect hose ends for damage; trim to clean, square cuts for best seal if needed
• Securely clamp both hose ends to the joiner using appropriate hose clamps

This drain hose joiner connects two sections of dishwasher drain tubing to restore a continuous drain path and stop leaks. It's a simple replacement part that helps get your dishwasher draining normally again. What it does:

• Joins two drain hoses securely so water flows from the dishwasher to the household drain
• Reduces leaks at a broken or separated hose connection
• Addresses symptoms like water pooling under the dishwasher, slow draining, or visible leaks near the hose
• Works where a damaged or split hose end needs a reliable connector

• Disconnect power and water supply before starting any repair
• Inspect hose ends for damage; trim to clean, square cuts for best seal if needed
• Securely clamp both hose ends to the joiner using appropriate hose clamps

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This Herbie-type E hose clamp secures flexible appliance hoses to fittings to help prevent leaks and keep water lines in place. Simple, durable design for a clean, reliable hose connection. What it does:

• Holds appliance hose firmly on barbs and fittings to reduce slipping and leakage
• Commonly used on drain, vent or water lines where a low-profile clamp is needed
• Helps stop intermittent drips or puddling caused by a loose hose connection
• Provides a retained clamping force that resists vibration and normal use

• One Herbie-type E hose clamp

• Disconnect power and water supply before servicing the appliance
• Use pliers to compress and fit the clamp; ensure it sits squarely over the hose barb
• Avoid twisting the hose when installing; trim damaged hose ends and replace if necessary
• Inspect clamp for corrosion or damage and replace if it does not spring back or hold securely

This rod link support secures the linkage rod that helps stabilize and guide moving parts, restoring proper alignment and quiet operation. It's a direct-fit replacement used where the rod connection needs a stable mounting point. What it does:

• Holds and guides the linkage rod to maintain correct movement and positioning
• Prevents rod wobble, rubbing, or misalignment that can cause noise or binding
• Helps restore smooth operation of connected components
• Reduces strain on adjoining parts by providing a stable support point

• One rod link support

• Disconnect power (and water, if applicable) before starting any repair
• Hand-start screws to avoid cross-threading, then tighten to manufacturer torque if specified
• Test the moving part through a full cycle after installation to confirm alignment and quiet operation

Double inlet valve assembly that controls incoming water flow to the appliance's fill system. Replacing this assembly restores proper filling and shutoff to resolve slow fills, no-fill conditions, or continuous/refilling problems. What it does:

• Directs and regulates water entering the appliance during fill cycles.
• Opens to allow water in when the control calls for a fill and closes to stop flow.
• Commonly replaced when the appliance fails to fill, fills slowly, or keeps running water.
• Can prevent overfilling or leakage caused by a valve that sticks open.

• Turn off power and shut off the water supply before beginning any work.
• Disconnect water lines and electrical connectors carefully; label wires if needed for reassembly.
• Inspect hoses and fittings for damage; replace any corroded or cracked components.
• After installation, restore water and power, run a short fill cycle, and check all connections for leaks.

This clip link support is a small mounting clip used to secure linkages and cables inside the appliance, keeping moving parts aligned and preventing binding. It helps restore proper motion and reduces noise from loose linkages. What it does:

• Secures a linkage or cable to the cabinet or component bracket to maintain correct alignment
• Prevents linkages from shifting, which can cause sticking, binding, or improper operation
• Helps reduce rattling or knocking noises caused by loose or disconnected links
• Restores intended movement of door/valve/actuator linkages when the original clip is worn or broken

• One clip link support

• High-level replacement; remove power before accessing internal components
• Inspect surrounding linkage and fasteners for wear while installing the clip
• Use care not to damage nearby wires, hoses, or components when snapping the clip in place

A replacement support drain hose that secures and positions the appliance drain hose to prevent kinks and improper routing. Keeps the drain line stable so wastewater flows freely and reduces strain on connections. What it does

• Holds the appliance drain hose in the correct position to prevent kinks and pinching
• Helps maintain proper drainage and reduces the chance of standing water or slow drains
• Reduces stress on hose connections to help prevent leaks at fittings
• Useful when the original support is broken, cracked, or missing

• One support drain hose

• Always disconnect power and shut off water supply before beginning work
• Reuse original clamps or install new clamps as required; secure hose firmly but do not overtighten
• After installation, run a short cycle and inspect for proper drainage and any leaks

This hose inlet (Wirsbo) provides the water connection interface for the appliance, restoring a secure feed from your home supply. It's a direct plumbing inlet piece designed for reliable water delivery. What it does:

• Reconnects the incoming water line to the appliance inlet
• Provides a leak-resistant interface when installed with proper seals
• Useful when original inlet is cracked, corroded, or leaking
• Helps stop intermittent filling problems caused by damaged inlet fittings

• Turn off the water supply and unplug the appliance before starting work
• Inspect and replace any worn gaskets or O-rings; use manufacturer-approved seals
• Tighten fittings to manufacturer torque guidance; avoid overtightening plastic threads

The Tub Release Kit is an OEM replacement part for Fisher & Paykel dishwashers. It contains the tub release latch mechanism responsible for securely locking the dishwasher tub in place during wash cycles.

Symptoms of a faulty tub release kit include:

• The tub not latching into position properly or staying locked in place
• Leaks around the tub door seal
• The tub releasing unexpectedly during operation

Causes of a failed tub release kit include worn or damaged latch components from heavy use over the years. Mineral deposits can leave latches difficult to engage.

This joiner drain hose connects two drain lines or links a drain outlet to the household drain, restoring a sealed path for wastewater. It's used where a double or joined drain connection is required to prevent leaks and ensure proper draining. What it does

• Joins two drain hoses or connects a drain outlet to the household drain to create a continuous, leak-resistant path
• Helps prevent wastewater spills or backflow at a hose connection point
• Used when replacing a damaged or worn joining hose section or converting a single-hose run to a double/run-through configuration
• Compatible with compatible washer/dishwasher drain plumbing that accepts this joiner style

• One joiner drain hose

• Turn off and unplug the appliance and shut off water supply before servicing
• Confirm hose ends, diameter, and orientation match the appliance and home drain fittings before installation
• Use appropriate clamps or fasteners; ensure all connections are secure to avoid leaks

This replacement joiner drain hose connects dishwasher drain lines to the home drain or disposer, restoring proper wastewater flow and helping prevent leaks caused by brittle or damaged tubing. Simple, direct replacement for the original joiner hose. What it does:

• Links the appliance drain outlet to a house drain or garbage disposer to route wastewater away.
• Replaces cracked, split or collapsed joiner tubing that can cause leaks or poor drainage.
• Helps stop symptoms such as water pooling beneath the appliance, slow draining, or visible leaking at the hose connection.
• Designed to match OEM routing and connection points for a like-for-like drain path.

• Disconnect power and water supply before servicing.
• Remove existing clamps and fittings, then slide hose into place and secure with appropriate clamps; do not reuse corroded clamps.
• Ensure hose routing avoids kinks, sharp bends, and contact with hot engine parts; maintain proper high-loop or air-gap per local code.
• Run a short test cycle and check for leaks at both connections before returning the appliance to service.

This integrated install kit enables a built-in installation by providing the hardware needed to mount and align a custom cabinet or décor panel to the appliance. It helps achieve a secure, flush fit for integrated installations. What it does:

• Provides the mounting hardware and brackets used when fitting a custom cabinet or panel to the appliance
• Helps align and secure the door or panel so it sits flush with surrounding cabinetry
• Replaces missing or damaged installation hardware that can cause loose panels or poor fit
• Commonly used during new installs, cabinet refits, or when converting to an integrated appearance

• Always disconnect power to the appliance before beginning installation
• Follow the appliance's installation instructions for panel adjustments, weight limits, and mounting sequence
• Use appropriate tools and fasteners; do not overtighten to avoid damaging panel or appliance
