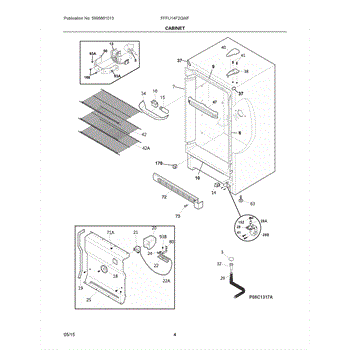

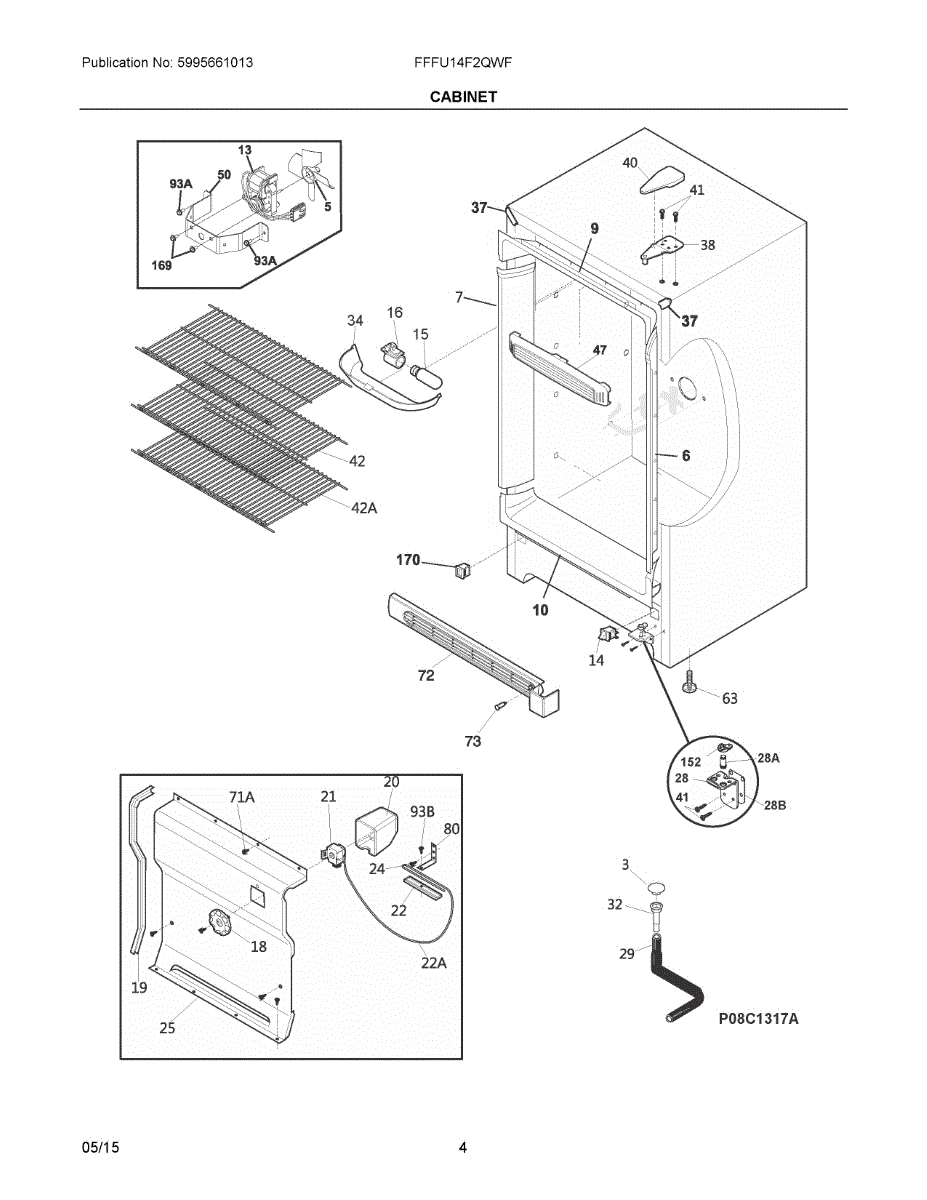

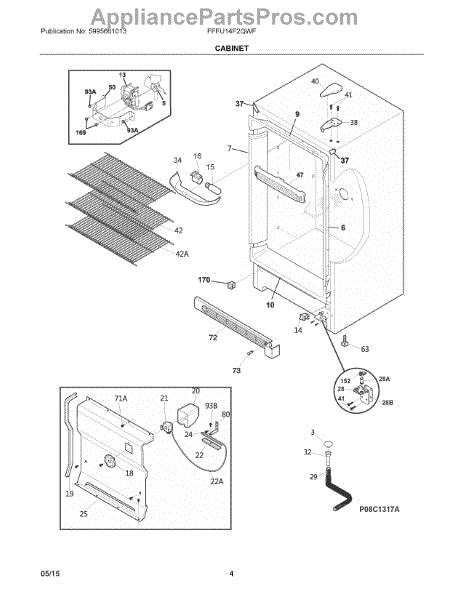

Parts for Electrolux FFFU14F2QWF: 03 - Cabinet Parts

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

This replacement fan circulates air through the appliance to maintain proper airflow and stable temperatures. Installing a new fan restores efficient performance and can reduce noise, vibration, and uneven airflow or cooling. What it does:

• Circulates air to support proper airflow and temperature control
• Helps cool internal components and distribute air evenly
• Common symptoms include the fan not spinning, intermittent operation, loud or rubbing noises, excessive vibration, or weak airflow
• Visible wear or damage to the fan vanes or hub can indicate the need for replacement

• One fan, as shown

• Disconnect power before servicing; allow moving parts to stop completely
• Access the fan location and note the original orientation for correct airflow
• Transfer any clips, spacers, or fasteners from the original part as needed
• After installation, hand-spin to ensure free movement and clearance; restore power and test for smooth operation

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This light socket securely holds the appliance bulb and provides the electrical connection to illuminate the compartment when the door is opened. Replacing a faulty socket restores interior lighting so you can easily see contents.

• Provides the electrical connection and physical mounting for the light bulb
• Common failure symptoms: light won't turn on, flickers, or only works when the bulb is jiggled
• Show signs of heat discoloration, loose terminals, or intermittent contact

• Unplug the appliance before service; power is off
• Allow the bulb and surrounding area to cool before handling
• Handle wiring carefully; transfer conductors to the new socket one at a time to maintain correct connections
• Do not exceed the bulb type/wattage specified on the appliance rating label

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Evaporator Cover Gasket seals the perimeter of the freezer's evaporator cover to prevent air leaks that can lead to frost, moisture, and temperature swings. Replacing a worn gasket helps restore proper airflow and consistent cooling.

• Seals the evaporator cover to the liner to maintain directed airflow and contain cold air
• Helps prevent frost or ice buildup around the cover and on nearby air passages
• Can help address symptoms like temperature inconsistencies, poor cooling, or excess moisture caused by air leaks
• Replaces a torn, flattened, or missing gasket to ensure a tight cover fit

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the evaporator cover to access the gasket
• Clean mating surfaces; press the new gasket fully into place with no gaps or twists
• Ensure air vents are unobstructed, reinstall the cover securely, then restore power

This replacement cover is an access panel trim piece that protects internal components and gives the appliance a finished appearance. It restores a secure, clean-looking exterior where the original cover is cracked or missing. What it does

• Covers and protects control or component openings from dust, debris, and accidental contact
• Keeps wiring and fasteners concealed for a neater appearance
• Prevents rattling or vibration caused by a damaged or loose trim piece
• Commonly replaced when the cover is cracked, broken, warped, or missing

• One cover

• Disconnect power to the appliance before starting any work
• Remove adjacent trim or fasteners as needed to access mounting points; retain hardware for reassembly
• Align tabs or screw holes and secure without over-tightening to avoid cracking the plastic

The Temperature Control Thermostat is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that regulates the temperature within the refrigerator and freezer compartments, ensuring optimal cooling and food preservation.

Symptoms of a need to replace the temperature control thermostat:

• Inability to maintain consistent temperatures in the refrigerator or freezer
• Excessive cooling or warming, leading to food spoilage
• Complete failure of the refrigerator to cool or maintain any cooling at all

Causes of a faulty temperature control thermostat can include general wear and tear over time, electrical malfunctions or wiring issues, exposure to moisture or condensation, or physical damage from impact or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This door closing ramp provides the angled surface a hinge cam or glide rides on so the door opens smoothly and pulls itself shut. Replacing a worn ramp restores proper alignment and consistent, reliable closure. What it does

• Creates the sloped track for the mating hinge cam/glide
• Helps the door self-close and seal correctly
• Reduces friction, grinding, or clicking at the hinge area
• Common symptoms: door won't stay closed, pops open, sags, or makes noise when opening/closing

• Includes 1 ramp

• Disconnect power and remove items from the door before service
• Support the door; remove hinge hardware as needed to access the ramp
• Note the ramp's orientation and reuse original fasteners
• After installation, verify door alignment and gasket seal

This door hinge supports and pivots the appliance door so it opens and closes smoothly. Replacing a worn or bent hinge restores alignment and sealing, helping prevent air leaks, frost buildup, and temperature fluctuations.

• Provides the pivot point and supports the door's weight during opening and closing
• Maintains door alignment to ensure a proper gasket seal
• Replaces hinges that are bent, cracked, or excessively worn
• Common symptoms: door sags or binds, won't close fully, uneven gasket contact, squeaking or clicking noises

• Disconnect power and support the door before loosening hinge screws
• Note the position of any shims/spacers and transfer them in the same order
• Tighten mounting screws securely; check that the door swings freely
• Adjust door position if mounting slots allow

This replacement door stop pin secures the door stop to the hinge, controlling the door's opening angle to prevent over-swing. Restores smooth, controlled door movement and protects the hinge and cabinet from damage.

• Attaches the door stop to the hinge bracket
• Limits door swing to prevent overextension
• Helps maintain door alignment and consistent closing
• Common symptoms: door swings too far, loose/dangling stop, clicking at the hinge, missing or sheared pin

• Disconnect power; remove items from the door to reduce weight
• Support the door before servicing the hinge
• Remove hinge cover/retainer as needed, extract old pin, align stop and hinge, seat the new pin fully
• Reinstall hardware and verify door stop operation before restoring power

This drain hose routes wastewater from the appliance to the household drain so your unit can empty reliably. It replaces a damaged or clogged hose to help stop backups and leaks when installed correctly. What it does

• Carries wash and condensation water from the appliance to the drain line.
• Restores normal draining when the original hose is cracked, split, or clogged.
• Helps prevent water pooling inside or beneath the appliance when properly connected.
• Works with household drain fittings—ensure proper routing and secure clamps.

• Disconnect power and turn off water supply before servicing.
• Route hose without sharp bends or kinks; secure with clamps at both connections.
• Inspect hose ends and replace clamps if corroded; test for leaks after installation.

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

A replacement interior light shield that protects the refrigerator light and helps diffuse illumination for even lighting throughout the fresh-food compartment. Restores proper light coverage after a cracked or missing lens. What it does:

• Covers and protects the fridge light bulb from spills, debris and accidental contact
• Diffuses light for more even interior illumination
• Prevents direct glare from the bulb to make contents easier to see
• Commonly replaced when cracked, broken, yellowed, or missing

• Remove power to the appliance before starting—unplug or switch off the breaker
• Typically snaps or screws into place; handle gently to avoid cracking the new lens
• Use a soft cloth and mild cleaner; avoid abrasive pads or harsh solvents
• Inspect the housing and replace hardware as needed

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

This hinge cover protects and finishes the appliance's door hinge, restoring a clean appearance and helping keep the hinge area clear of dirt and debris. A simple cosmetic and protective replacement. What it does

• Covers and shields the door hinge to protect it from dust, grease and debris.
• Restores the appliance's finished appearance when the original cover is cracked, broken, or missing.
• Helps reduce the chance of exposed sharp edges from a damaged hinge area.
• A damaged or missing cover can contribute to visible hinge hardware and may make the door look misaligned.

• Support the door before removing any hinge hardware to prevent the door from shifting or falling.
• Handle edges carefully and wear gloves to avoid cuts from metal parts.
• Reinstall original mounting screws or clips; do not overtighten plastic components.

Specs: Hex head ,1/4-20 x 5/8

The Freezer Shelf is an OEM part for Frigidaire refrigerators. It provides storage and organization within the freezer compartment. This shelf can be positioned at different heights to accommodate varying package sizes.

Symptoms of a bad freezer shelf include:

• Cracks or damage allowing stored items to fall through
• Difficulty removing or repositioning the shelf
• Warping or bending under weight

Causes of a bad shelf can include wear and tear over time from repeated loading and unloading of items, as well as potential stresses or shocks from accidental impacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This freezer shelf creates a sturdy, level surface for storing frozen foods. Replacing a bent or missing shelf restores usable capacity and helps keep items organized, stable, and easy to access.

• Provides a flat storage surface inside the freezer compartment
• Replaces a shelf that is bent, broken, rusted, or missing
• Helps keep packages level to prevent tipping and spills
• Restores intended storage capacity and organization

• Unplug the appliance before servicing
• Wear cut-resistant gloves; edges and liners can be sharp
• Match the position/orientation to your model, then slide into the side supports/slots until fully seated
• Verify a secure, level fit before loading food

This trivet is a small cooktop support that stabilizes cookware and keeps pots and pans properly positioned over the burner for even heating and safer cooking. It restores proper support for a wobbly or damaged cooking surface. What it does:

• Provides a stable surface to center cookware over the burner and prevent tipping
• Maintains correct spacing between cookware and the burner for even heat distribution
• Replaces a cracked, chipped, warped, or missing trivet that causes wobble or poor contact
• Helps protect the cooktop surface and heating elements from direct contact with cookware

• One replacement trivet

• Turn off the appliance and allow all surfaces to cool completely before handling
• Remove the old trivet (no special tools usually required) and seat the new trivet in the same location/slot
• Inspect surrounding mounts and supports for damage and replace as needed

This mounting bracket secures internal components and panels to restore proper alignment and reduce vibration. It provides a direct replacement for worn or damaged support hardware so assemblies stay firmly in place. What it does:

• Secures appliance panels or internal components to the cabinet or frame
• Keeps parts aligned to prevent rattling, vibration, or movement during operation
• Restores proper fit where a bent, broken, or missing bracket causes loose assemblies
• Helps maintain safe, stable operation by holding parts in their designed position

• One mounting bracket

• Designed to replace the factory bracket in the same mounting location; verify fit before installation
• Use appropriate fasteners and torque to avoid striping or damage to mounting points
• Disconnect power and empty unit if needed before accessing internal areas

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw fastens appliance panels and components to restore a secure fit and reduce vibration or rattling. Use when original hardware is missing, loose, or stripped to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets, and trim to prevent movement and rattling.
• Replaces missing or damaged hardware that can cause loose or misaligned parts.
• Helps maintain proper component alignment for reliable operation.
• Small but essential fastener for safe, stable assembly.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten, which can strip threads or crack panels.
• Keep removed hardware organized to ensure correct reinstallation.

This replacement grill restores the appliance's exterior finish and protects underlying components while allowing proper airflow. It's a direct-fit cosmetic and venting trim piece that helps stop debris entry and hides internal hardware. What it does

• Covers and protects internal components behind the opening to prevent debris buildup
• Maintains proper airflow through the vented area to support normal operation
• Restores the appliance's finished appearance if the original grill is cracked, warped, or missing
• Reduces rattling or vibration caused by a loose or damaged grill

• Disconnect power to the appliance before beginning any work
• Remove mounting screws or clips holding the old grill and save hardware if reusable
• Align new grill carefully and reinstall fasteners to avoid overtightening or cracking the trim

This panel-mounted signal light is the small indicator lamp that illuminates when a function is active. It restores clear visual status on the control panel so you can tell at a glance when the appliance is operating. What it does:

• Lights to indicate when a feature, cycle, or function is on (model-dependent)
• Restores visible status feedback on the console or control panel
• Helps alert you if a function remains active after use
• Addresses issues such as no light, constant-on light, flickering, or a damaged lens

• 1 signal light

• Disconnect power at the breaker before servicing
• Access the control panel/console; remove knobs and screws as needed
• Note wire positions or take a photo; transfer wires to the new light
• Secure the light in the panel, reassemble, restore power, and test

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Hinge Bearing is an OEM part for Frigidaire refrigerators. As a pivot point that supports opening and closing of the refrigerator door, the bearing assembly is crucial for smooth and balanced door movement. Repeated use over time subjects these small ball bearings to wear and tear.

Causes of a bad hinge bearing can include regular wear from years of use, improper loading or stress placed on the door, or damage from over-tightening or mishandling during repairs.

Symptoms of a bad hinge bearing include:

• Squeaking or grinding noises coming from the hinge area
• Resistance or difficulty when opening/closing the fridge door
• Looseness, wobbling, or imbalance of the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production when the valve is faulty or worn. What it does:

• Opens and shuts to allow water into the ice maker and dispenser when activated
• Common symptom: no water to dispenser or ice maker
• Common symptom: reduced or intermittent water flow from dispenser
• Common symptom: ice maker not filling or producing smaller/soft ice
• Can cause visible leaks at the valve or connections when failing

• One water inlet valve assembly

• Turn off water supply and unplug appliance before beginning work
• Relieve any pressure in the water line and have towels handy for minor spills
• Verify inlet/outlet hose orientation and tighten all fittings to OEM torque; use replacement gaskets if supplied

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
