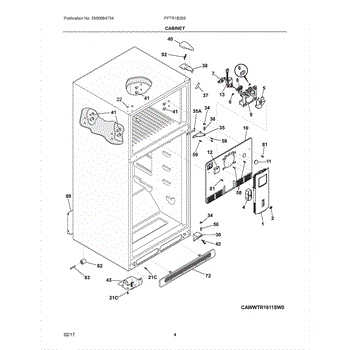

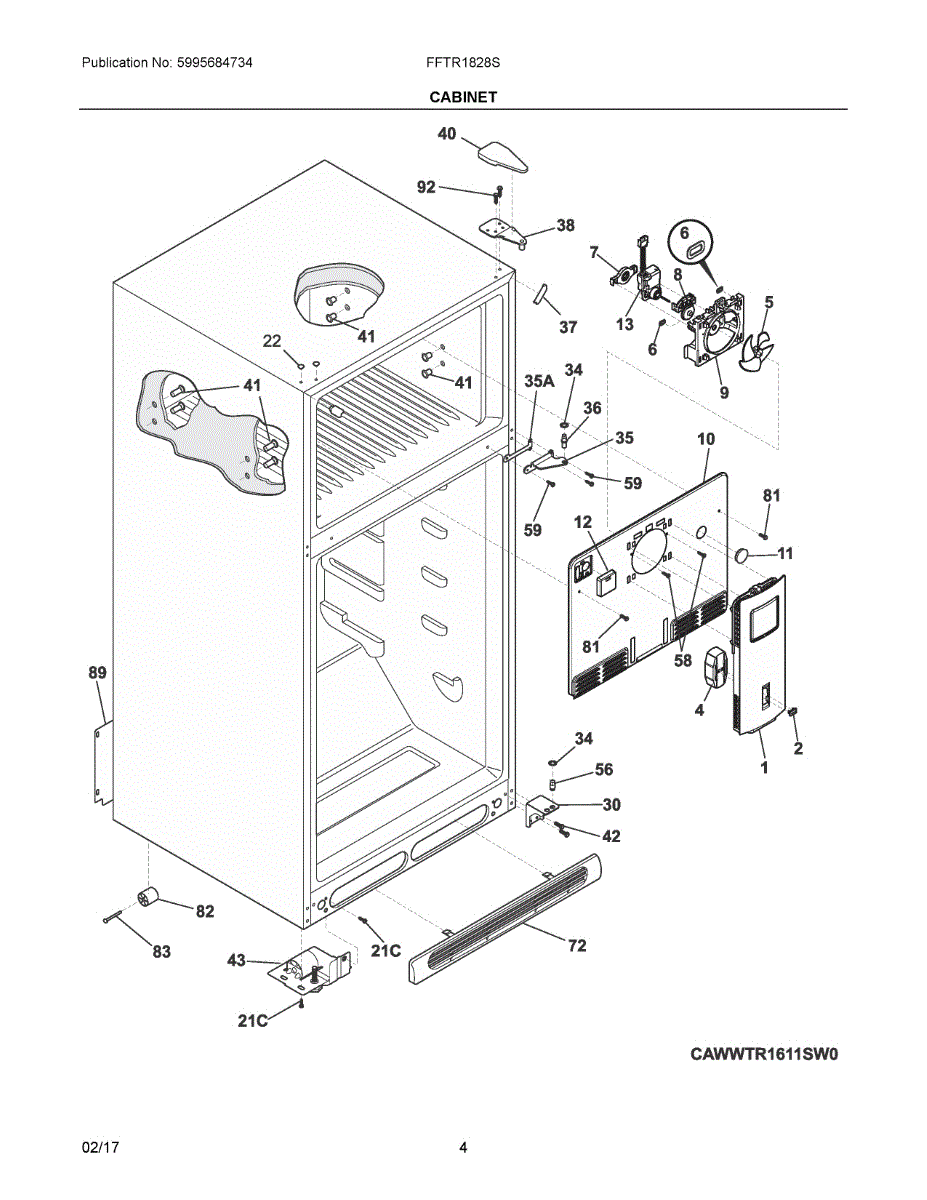

Parts for Frigidaire FFTR1828SP4A: 03 - Cabinet Parts

This replacement cover restores a clean, finished look and protects the designated compartment in your refrigerator. Replacing a cracked or missing cover helps keep internal components shielded and secure so the unit operates as intended. What it does

• Shields internal components and wiring from damage and debris
• Helps maintain proper airflow or routing where used as a duct/guard
• Restores secure fit when the original cover is cracked, warped, or missing
• Common symptoms: broken tabs, cracks, rattling/vibration, loose or missing cover

• 1 cover

• Disconnect power; turn off water supply if working near water/ice components
• Remove any screws or release tabs; retain and reuse original fasteners
• Align tabs and seat fully before tightening; do not overtighten to avoid cracking
• Plastics can be brittle when cold—allow the part/area to warm to room temperature

This freezer temperature control assembly regulates cooling by monitoring cabinet temperature and switching the cooling system on and off to match your setting. Replace it if temperatures drift, the unit short-cycles or runs constantly, or the control stops responding. What it does:

• Senses freezer temperature and commands the cooling system to maintain your selected set point
• Provides user adjustment of freezer temperature via the control mechanism
• Helps restore consistent, reliable freezing performance
• Common failure symptoms include too warm or too cold temperatures, continuous running or no run, and an unresponsive temperature dial

• 1 freezer temperature control assembly

• Disconnect power before servicing
• Access the control housing; note wire/harness positions and component orientation for reassembly
• Transfer any reusable mounting parts from the original control as needed; secure wiring away from moving parts
• Set the control to a mid-range setting and allow up to 24 hours for temperatures to stabilize after replacement

Fan cover & damper protects the evaporator fan and directs cold-air flow between compartments to help maintain proper cooling. Replace this assembly if the cover is cracked or the damper fails to open or close smoothly. What it does:

• Protects the evaporator fan from contact and debris that can impede operation
• Damper flap regulates airflow between freezer and fresh-food sections for balanced temperatures
• Restores proper airflow when a broken cover or stuck damper causes uneven cooling or reduced circulation
• Helps prevent excess frost by allowing correct air distribution across the evaporator

• Disconnect power to the appliance before starting any repair
• Access requires removal of interior panels or liners; keep track of screws and clips
• Defrost and dry the area if ice or frost is present before installing the new part

The Evaporator Motor Fan Blade is an OEM replacement part for Frigidaire refrigerators. Located inside the refrigerator cavity, the evaporator fan motor and blades work together to circulate cold air throughout the interior. This circulation is crucial for maintaining consistent cooling performance.

Causes of a bad evaporator fan blade can include corrosion or buildup due to humidity, cracks or breaks from harsh vibrations during operation, or imbalance affecting the fan motor.

Symptoms of a bad evaporator fan blade include:

• Warm or lukewarm air inside the refrigerator or freezer sections
• Inconsistent temperatures
• The evaporator fan motor making noises or not spinning smoothly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This OEM ring is a small hardware component used within the appliance assembly to secure or support a mating part, helping restore proper fit, alignment, and dependable operation when the original ring is worn, damaged, or missing.

• Holds a component in position within the assembly to prevent unwanted movement
• Helps maintain alignment and reduce wobble, vibration, or rubbing
• Common signs of a failing ring include looseness, rattling noises, or parts drifting out of place
• Replacing a damaged ring can restore smooth, consistent operation of the related mechanism

• Disconnect power (and shut off gas/water if applicable) before servicing
• Carefully remove the old ring and seat the new ring fully in its groove or mounting point
• After installation, verify the related part is properly retained and moves or operates freely as intended

This refrigerator grommet is a small sealing/cushioning insert used where a tube, wire, or component passes through the cabinet or mounts to a panel. It helps keep the opening sealed and protected for reliable operation.

• Seals and cushions an opening or mounting point in the refrigerator cabinet
• Helps prevent water leaks and warm-air infiltration that can lead to frost or moisture
• Reduces chafing, vibration, and wear on tubing or wiring
• Replace if the grommet is cracked, hardened, misshapen, or missing

• Unplug the refrigerator and, if applicable, shut off the water supply
• Access the grommet location by removing any cover or panel as needed
• Remove the old grommet, clean the opening, and press the new grommet fully into place; route the line/wire without kinks
• Restore power (and water, if used) and check for proper sealing and operation

This evaporator fan motor grommet cushions the freezer fan motor where it mounts to the bracket, isolating vibration and reducing rattling. Replacing a worn grommet helps keep the motor stable and the fan blade centered for smooth, quiet airflow.

• Isolates motor vibration from the mounting bracket to help reduce noise
• Maintains proper motor alignment to prevent the fan blade from rubbing the shroud
• Helps minimize vibration that can loosen hardware over time
• Common symptoms include rattling/buzzing from the freezer area or a scraping fan sound

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer drawers/shelves and the rear panel to access the evaporator fan assembly
• Seat the new grommet fully in the bracket and secure the motor; do not overtighten
• The fan blade spins freely with no contact before reassembly and testing

Shroud bracket that secures the appliance shroud or cover to the cabinet, restoring proper alignment and helping reduce vibration and noise. Use this bracket to replace a cracked or bent mounting tab for a stable shroud fit. What it does:

• Secures the shroud/cover to the appliance cabinet so panels stay aligned.
• Prevents excessive vibration and rattling caused by a loose or damaged shroud.
• Keeps airflow or component clearance stable by holding the shroud in the correct position.
• Often replaced when the shroud is loose, cracked, bent, or makes noise during operation.

• Always disconnect power (and water if applicable) before starting repairs.
• Removal of exterior panels may be required; keep track of screws and fasteners.
• Basic hand tools (screwdriver, nut driver) are typically all that's needed.
• Use caution around sharp sheet-metal edges.

This replacement outer cover restores the appliance's exterior appearance and protects underlying components from dirt and damage. It provides a clean finished look where the original cover is cracked, warped, or missing. What it does:

• Covers and protects internal parts behind the trim area
• Restores the appliance's finished appearance after damage or wear
• Helps prevent dirt and debris from reaching internal components
• Matches the original shape for a secure fit and proper alignment

• One outer cover

• Designed to snap or fasten into existing mounting points; reuse original screws or clips unless damaged
• Turn off power to the appliance before attempting removal or installation to avoid injury
• Inspect adjacent trim and fasteners; replace any broken clips to ensure a secure fit

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

This refrigerator cover shields and supports a specific compartment or component inside the unit. Replacing a cracked or missing cover helps maintain proper protection, fit, and airflow for reliable everyday use.

• Shields internal components from direct contact and debris
• Helps channel airflow within the compartment for consistent cooling
• Restores secure mounting when original cover is broken or tabs are worn
• Common symptoms: visible cracks, broken/missing tabs, rattling/vibration, missing cover

• Disconnect power and wear cut-resistant gloves before servicing
• Remove shelves/bins to access the cover; keep track of screws/clips for reuse
• Align tabs and seat fully before tightening hardware; do not overtighten
• Verify door closes freely and nothing rubs after reassembly

This evaporator fan motor drives the freezer fan that moves cold air across the evaporator and throughout the compartments. Replacing a failed motor restores proper airflow for steadier temperatures, faster cooling, and fewer warm spots.

• Circulates air over the evaporator coils and through the freezer and fresh-food sections to maintain even cooling
• Helps reduce temperature swings by keeping air moving across the coils
• Failure may present as little or no airflow from vents, refrigerator warm while freezer is cold, or frost/ice accumulating behind the rear freezer panel
• Noisy, grinding, or intermittent fan operation can also indicate a worn motor

• Disconnect power and wear cut-resistant gloves before servicing
• Access from the freezer: remove shelves/bins and the rear evaporator cover to reach the fan assembly
• Transfer the existing fan blade, bracket, and grommets from the original motor; ensure correct blade orientation and free spin
• Seat the wiring connector fully and route wires clear of the fan before reassembly

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White. Used for the upper hinge holes.

The Lower Hinge Bracket is an OEM part for Frigidaire refrigerators. This bracket supports the refrigerator door, allowing it to pivot smoothly while opening and closing. It ensures that the door remains aligned and operates correctly.

You should replace the lower hinge bracket if it becomes damaged or worn out. Common causes of a bad hinge bracket include wear and tear from frequent use, rust or corrosion, or damage from accidental impacts.

Symptoms of a bad lower hinge bracket include:

• Difficulty in opening or closing the refrigerator door
• The door not aligning properly with the refrigerator body
• Unusual noises when the door is in motion
• Visible damage or rust on the bracket

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Hinge Washer is an OEM part for Frigidaire refrigerators. The washer acts as a protective barrier that reduces friction and wear on the hinge and frame, facilitating a quieter operation and extending the lifespan of the door mechanism.

Over time, hinge washers can become worn or damaged due to the constant opening and closing of the refrigerator door.

Symptoms of a bad Door Hinge Washer include:

• The refrigerator door is difficult to open or close
• Squeaking or grinding noises when the door is moved
• Looseness or sagging of the door, indicating misalignment
• Excessive wear on the hinge or the area of the frame where the hinge is attached

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This center hinge bracket mounts to the refrigerator cabinet at the middle hinge location. It provides a secure mounting point for the hinge, keeping the door aligned for smooth operation and a reliable gasket seal.

• Secures the middle hinge to the cabinet to support the door
• Helps maintain alignment for smooth opening/closing and proper gasket contact
• Common fix for a sagging, rubbing, or misaligned door
• Replaces a bent, cracked, or worn bracket

• Disconnect power and support the door before loosening center hinge fasteners
• Remove the old bracket and transfer the hinge and any spacers/washers to the new bracket if applicable
• Install the new bracket, align the door, then tighten screws securely
• Verify smooth swing and full gasket contact; readjust if needed

This center hinge spacer sits on the refrigerator's center hinge pin to keep the door properly spaced and pivoting smoothly. Replacing a worn spacer helps restore even door alignment and a reliable gasket seal for easier opening and closing. What it does

• Maintains the correct gap between the door and center hinge to prevent metal-to-metal wear
• Supports smooth, quiet door movement on the hinge pin
• Helps keep the door level so the gasket seals evenly
• Worn or missing spacers can lead to door sagging, rubbing/squeaking, or doors that don't close cleanly

• One center hinge spacer

• Disconnect power and remove items from the door; support the door before loosening hinge hardware
• Lift the door off the center hinge pin and remove the old spacer
• Place the new spacer on the hinge pin, reinstall the door, and check alignment and seal
• Re-tighten hinge fasteners and verify the door opens/closes smoothly

This center hinge pin supports the refrigerator door at the middle hinge and serves as the pivot point. Replacing a worn pin restores smooth door movement and helps the door align and seal properly.

• Acts as the pivot shaft for the door on the center hinge bracket
• Helps maintain correct door height and alignment for consistent sealing
• Wear or damage may show as door sagging, rubbing, squeaking, or not sealing/closing reliably
• Can reduce wobble or looseness felt at the center hinge

• Unplug the refrigerator and remove items from the door before service
• Support the door, remove hinge cover and screws, then lift the door off the center hinge
• Replace the pin in the center hinge/bracket, transferring any original spacers/washers as found
• Reinstall and level the door; verify the gasket seals evenly all around

This cabinet corner trim is a direct-replacement trim piece that restores a finished edge and protects the appliance cabinet corner from chips, dings, and moisture. It improves appearance and keeps the cabinet edge sealed. What it does:

• Covers and protects the exposed cabinet corner to prevent further chipping or damage
• Restores a clean, finished look where the original corner trim is cracked, broken, or missing
• Helps reduce gaps that can collect dirt or moisture along the cabinet edge
• Fits into the cabinet trim profile to hold adjacent trim pieces in place when intact

• Disconnect power to the appliance before starting work if trim removal requires access behind panels.
• Remove the damaged trim carefully — some styles snap off, others are secured with clips or screws; keep hardware if reusable.
• Align the replacement trim with the cabinet edge and press or fasten into place until seated; avoid forcing plastic to prevent cracking.

The Upper Hinge is an OEM part for Frigidaire refrigerators. It is responsible for securing the top of the refrigerator door to the cabinet, allowing the door to open and close smoothly and securely. This hinge ensures proper alignment and functionality of the refrigerator door.

Causes of a bad upper hinge can include wear and tear over time, damage from excessive force or impact, or corrosion due to moisture exposure. A faulty upper hinge can lead to issues with door alignment and sealing.

Symptoms of a bad upper hinge include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Replacement screw that secures panels, brackets and small assemblies in Frigidaire appliances. Restores original fit and helps stop loose panels, rattling or misaligned parts where this specific fastener is required. What it does:

• Fastens trim, control panels, brackets or small appliance assemblies to restore proper alignment.
• Replaces missing or worn screws that can cause vibration, rattling, loose panels or gaps.
• Provides the correct fit and holding force where the OEM-specified screw is required.

• Always disconnect power (and water, if applicable) before servicing the appliance.
• Use the correct screwdriver or driver bit; start threads by hand to avoid cross-threading.
• Tighten snugly but avoid overtightening to prevent stripped threads or damaged components.
• If threads are damaged or the screw will not engage, stop and inspect the mounting hole or insert before proceeding.

Fixed rollers with leveling screw for the left hand side. For right side, order part 241889001.

The Lower Hinge Pin is an OEM replacement part for Frigidaire refrigerators. It serves as a pivot point to properly hang the refrigerator doors in place. This hinge pin supports the stable mounting of doors while allowing for smooth opening and closing.

Causes of a bad lower hinge pin can include wear from extended use, damage due to excess weight loads, or corrosion interfering with motion.

Symptoms of a bad lower hinge pin include:

• Doors not sitting securely when closed or hanging loosely
• Difficulty smoothly opening or closing the refrigerator door
• Noises or squeaking emanating from door hinge areas
• Gaps appearing around door seals

This Frigidaire refrigerator part is compatible with models by Electrolux, Gibson, Kelvinator, and some Kenmore.

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Kickplate Grille is an OEM part for Frigidaire refrigerators. It is a decorative and functional panel located at the base of the refrigerator, designed to provide ventilation and airflow access to the compressor and condenser coils behind it.

Causes of a damaged Kickplate Grille can include dents or physical impacts from objects striking the base, discoloration or warping from heat exposure, and general wear over time.

Symptoms that may indicate a need to replace the Kickplate Grille include:

• Visible cracks, dents, or other damage
• Restricted or blocked airflow, leading to poor ventilation
• Difficulty removing or reinstalling the grille panel properly
• Discoloration or fading that clashes with the appliance's aesthetic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

The Access Cover is an OEM replacement part for Frigidaire refrigerators. It serves as a protective barrier, covering the internal cooling system and wiring components.

Causes of a faulty access cover can include normal wear from frequent technician access. Exposure to temperature fluctuations may cause seal deterioration over time.

Symptoms of an inadequate access cover include:

• Cracks, breaks, or loose/unsecured fitment to refrigerator framework
• Cold air leaks entering the cabinet from poor access cover seal
• Improper or inefficient refrigeration system performance
• Inability to perform repairs that require access cover removal

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerators.

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

Fixed rollers with leveling screw for the right hand side. For left hand, order part 241889002.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This seal kit replaces worn sealing material in your appliance to restore a tight, reliable barrier. A fresh seal helps stop leaks and drafts, reduces noise, and supports proper temperature and moisture control.

• Creates a secure seal between mating surfaces or components
• Helps prevent air or water leaks around the sealed area
• Can reduce vibration noise from gaps or loose fits
• Supports stable temperatures and overall efficiency
• Common signs include visible gaps, cracking, flattening, or persistent leakage

• Disconnect power (and water or gas, if applicable) before servicing
• Remove the old seal and thoroughly clean mating surfaces of residue
• Test-fit for length/orientation; trim only if instructed by the manufacturer
• Press into place evenly; if adhesive-backed or cement is used, allow proper set time before use and check for leaks

Color: White

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
