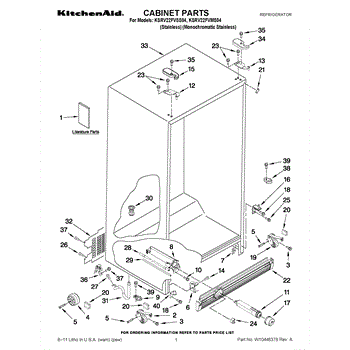

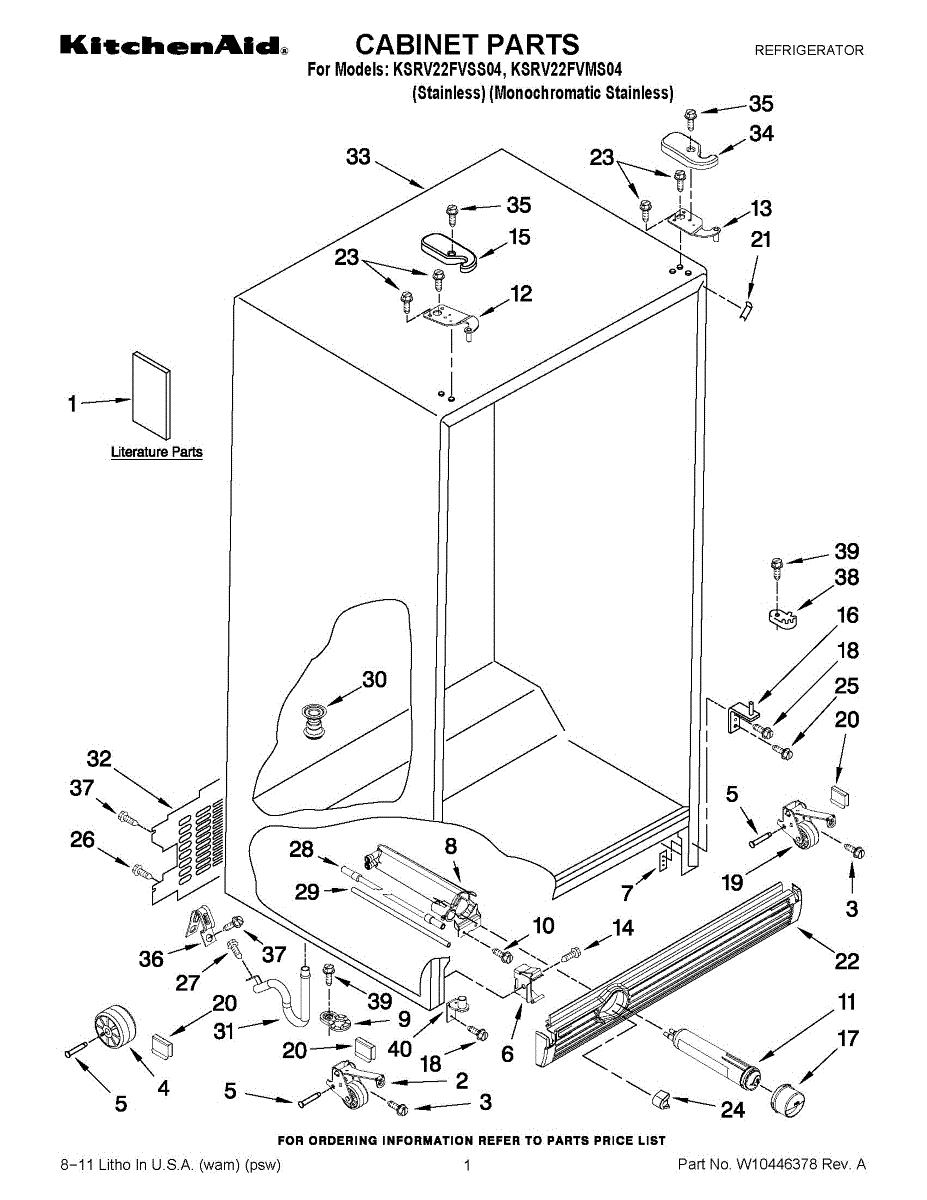

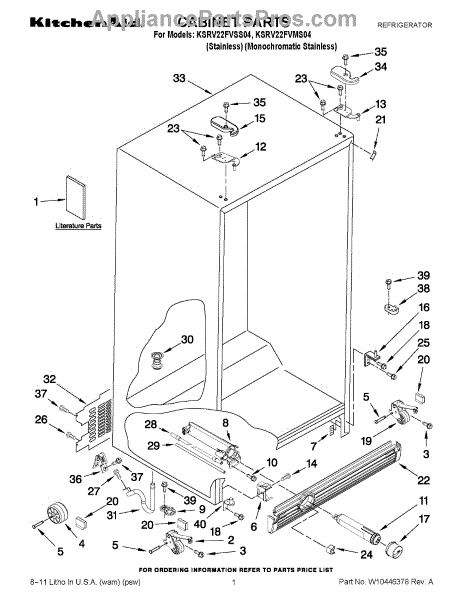

Parts for Kitchenaid KSRV22FVMS04: 01 - Cabinet Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Note: Left Hand Roller

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This bottom hinge plate mounts at the base of the refrigerator cabinet to anchor the lower door hinge. Replacing a worn or bent plate restores smooth door swing and a reliable seal for consistent cooling performance.

• Anchors the lower door hinge to the cabinet frame
• Supports door weight and helps maintain proper alignment
• Promotes smooth door operation and consistent gasket contact
• If bent or worn, can cause door sagging, rubbing, or poor sealing

• Disconnect power; turn off water supply if applicable
• Support or remove the door before loosening hinge fasteners
• Reuse existing screws/hinge components; install the plate flush and tighten securely
• Adjust hinge as needed

The Water Filter Housing is an OEM replacement part for Whirlpool refrigerators. This component is crucial for housing and securing the water filter within your refrigerator. It ensures that the water filtration system operates efficiently, providing clean, purified water and ice by effectively removing contaminants, impurities, and unwanted tastes or odors from your water supply.

Causes of damage to the water filter housing often include normal wear and tear, excessive force when installing or removing the water filter, or accidental damage during routine refrigerator maintenance

Symptoms of a bad Water Filter Housing include:

• Water leakage around the filter area
• Difficulty in installing or removing the water filter
• Unusual noises from the filter area
• Poor water quality or insufficient water flow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cam-door is the small pivoting cam that helps a washer/dryer or laundry door latch and swing smoothly. Replacing a worn or broken cam restores proper door movement and helps the door close and seal reliably. What it does:

• Acts as the pivot/latch cam that guides the appliance door during opening and closing.
• Helps the door engage the latch and maintain correct alignment.
• Commonly used to stop a door from hanging, binding, or failing to stay closed.
• Can reduce door noise or catching caused by a damaged cam.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Support the door or cabinet panel during removal to prevent dropping or damage.
• Remove the door or access panel and replace the cam using basic hand tools; keep track of fasteners.
• After reassembly, check door operation and latch engagement before returning the appliance to service.

A single-purpose threaded screw used to secure components and panels on compatible appliances. Simple, durable hardware that restores proper fit and reduces vibration or loose parts when a missing or damaged screw is the issue. What it does:

• Fastens panels, brackets, or small components using a 10-32 thread pattern
• Helps stop rattling, loose trim, or misaligned parts caused by a missing or stripped screw
• Restores secure connections after disassembly for repair or maintenance
• Matches OEM thread form for correct fit where specified

• Screw

• Disconnect power and unplug the appliance before service
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and avoid cross-threading; do not overtighten
• Replace only with the exact OEM part number to ensure proper fit and function

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Screw: 8-16 x 3/8 inch.

Color: Black

The Water Filter Cap is an OEM replacement part for Whirlpool refrigerators. This component is a decorative cover that fits over the water filter, providing a neat and finished appearance to the filter housing area.

Color: Grey

Over time, the water filter cap can become damaged due to accidental impact, routine handling, or regular wear and tear.

Symptoms of a faulty water filter cap include:

• Difficulty in securely fitting the cap onto the water filter
• Cracks, discoloration, or missing pieces
• An unsightly internal refrigerator appearance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cap is an OEM part for Whirlpool refrigerators. This cap is designed to securely seal the water filter compartment in your refrigerator, ensuring that the filter remains in place and functions effectively to provide clean, fresh-tasting water and ice.

Symptoms of a failing water filter cap include:

• Water leakage around the filter area
• Difficulty in removing or securing the cap, which may indicate a poor fit
• Cracks or damage to the cap that can compromise the water filtration system's integrity

Causes of water filter cap issues typically involve regular wear and tear from replacing the water filter, accidental damage during filter changes, or manufacturing defects that could affect fit and function.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Note: Right Hand Roller

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

Color: Black.

Color: Black.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Color: Black

This replacement screw secures panels, brackets, or trim on compatible Whirlpool appliances to restore proper fit and reduce rattles and movement. Use it when a fastener is missing, loose, or stripped. What it does:

• Secures appliance panels, trim pieces, brackets, or small components in place
• Restores proper fit to eliminate rattling, gaps, or shifting parts
• Replaces missing, worn, or damaged screws that compromise mounting
• Matches OEM form and function when the correct screw is specified for the repair

• Turn off power to the appliance before working near controls, heating elements, or wiring
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten
• Keep removed screws in a container to ensure none are lost during reassembly

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Water Tube is an OEM component specifically designed for Whirlpool refrigerators. This 1/4" diameter water tube provides a pathway for water to flow through the refrigerator's internal components during operations like ice production.

Causes of a bad water tube can include cracks or defects from manufacturing, damage from impact or abrasion during shipping or installation, or wear over time from cycles of use.

Symptoms of a bad water tube include:

• Water leaks or drips inside the refrigerator
• Insufficient or slow water flow to components
• Abnormal sounds from water not flowing smoothly
• Failure of components dependent on water flow like the ice maker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore refrigerator models.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator unit cover mounts over the interior control/air distribution housing. It restores a clean, finished look and protects internal components by enclosing the area as designed. What it does:

• Provides a protective, finished cover for the control/diffuser housing
• Helps keep the airflow path properly enclosed inside the compartment
• Replace if the cover is cracked, warped, loose, or missing
• Common signs include rattling, visible gaps, or exposed components

• One unit cover

• Unplug the refrigerator before servicing
• Remove shelves or bins for access as needed
• Release tabs or remove screws to take off the old cover; retain hardware for reuse
• Align and secure the new cover; do not overtighten fasteners, then restore power

Color: Black

Color: Apollo gray.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
