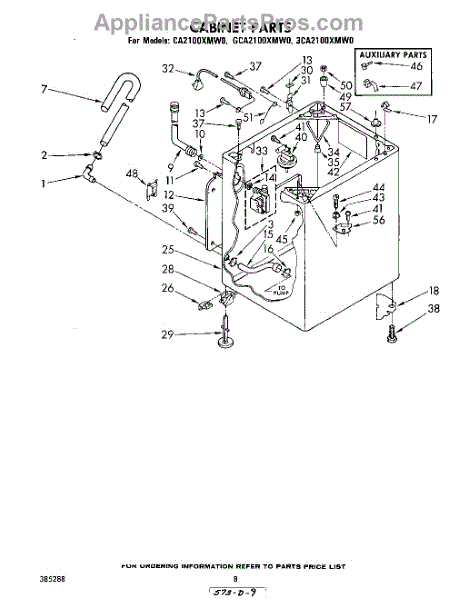

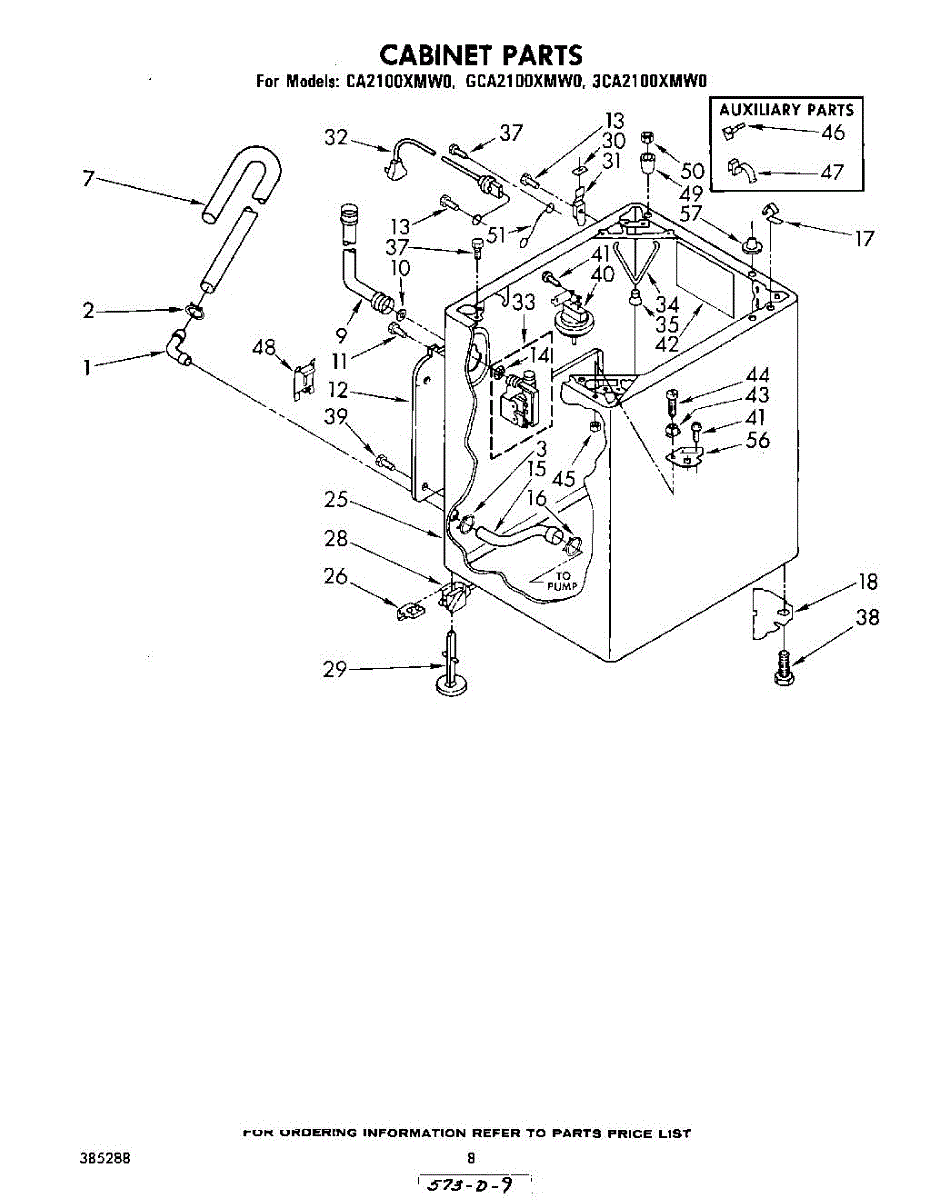

Parts for Whirlpool 3CA2100XMW0: 06 - Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This connector hose links appliance plumbing components to restore a sealed water path and proper flow. It replaces a damaged or leaking hose section so the appliance can refill and drain as intended. What it does:

• Re-establishes a sealed hose connection between intake/drain plumbing points
• Prevents leaks caused by cracked, split, or worn hose fittings
• Helps restore normal water fill or drain behavior when the original connector fails
• Compatible with the factory connection points shown in the OEM parts diagram

• Turn off power and shut off the water supply before starting work
• Inspect adjacent clamps and fittings; replace any damaged hardware for a secure seal
• Use proper hose clamps and ensure connections are tight but not over-torqued

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Flexible drain hose with gooseneck that routes wastewater from the appliance to the household drain. Replaces damaged or clogged discharge tubing to restore normal draining and reduce the risk of leaks. What it does:

• Channels wastewater from the pump to the home drain via a gooseneck discharge connection.
• Restores proper draining when original discharge tubing is cracked, split, or clogged.
• Helps maintain the gooseneck high loop to reduce backflow/siphoning when installed correctly.
• Common symptoms it addresses: standing water in the tub, slow draining, or leaks at the hose connection.

• Disconnect power and water supply before starting any repair.
• Route the hose to match the original gooseneck/high-loop routing; avoid kinks and sharp bends.
• Secure both ends with appropriate hose clamps or factory clips and check for tight, leak-free connections.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

Size: 10-24 x 3/8 inch.

Specs: 10-16 x 1/2 inch.

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small retaining clip secures a lever mechanism inside the appliance, keeping the linkage aligned so the control operates smoothly. Replacing a bent or missing clip helps restore proper engagement and prevents the mechanism from popping loose. What it does:

• Locks the lever mechanism to its bracket or shaft
• Maintains alignment of moving linkage for consistent operation
• Replaces missing, bent, or broken retainer
• Common symptoms: loose/wobbly lever, mechanism slips out, control doesn't engage reliably

• Clip only

• Disconnect power before servicing
• Access the mechanism per your model's service information and relieve any spring/linkage tension
• Note the original orientation; use needle-nose pliers to seat the new clip fully in the groove
• Test the mechanism for smooth operation before reassembly

This rear foot assembly supports the back of the appliance and helps keep it level. Replacing a worn or missing foot restores stability, reduces vibration, and helps prevent the unit from rocking or "walking."

• Supports the rear of the cabinet and maintains proper height
• Provides a stable contact point with the floor for accurate leveling
• Helps reduce vibration, rattling, and movement during operation
• Common signs of failure: rocking/wobbling, excessive vibration, noise from the base, or a visibly worn/missing foot

• Disconnect power before servicing; if applicable, shut off water supply
• Protect the floor and carefully tilt or lay the appliance back with assistance
• Remove the old rear foot and install the new assembly per your model's instructions
• Set the unit back in place, level it, and verify stability

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Made by Whirlpool. Fits most Whirlpool, Kenmore, Estate and Roper belt driven washing machines.

This genuine OEM spring provides the tension needed for the appliance door to open and close smoothly and stay properly seated. It restores reliable door operation and reduces sagging or unlatched door issues. What it does:

• Applies tension to the door hinge/assembly so the door stays closed and aligns properly.
• Helps the door open and close smoothly without slamming or dragging.
• Reduces wandering, sagging, or a door that won't latch securely.
• Can eliminate popping or squeaking noises tied to a worn or stretched spring.

• One replacement door-tension spring.

• Disconnect power (and water if applicable) before starting any repair.
• Springs are under tension — use caution and appropriate tools/gloves to avoid injury.
• Inspect hinge/retainer hardware and replace any damaged clips or anchors during installation.

Specs: 10-16 x 1/2 inch.

This front foot assembly is the adjustable leveling leg located at the front of the appliance. It supports and stabilizes the cabinet so it sits square and level, helping prevent rocking, vibration, and poor door alignment.

• Provides front support and height adjustment to level the unit
• Helps reduce rocking, vibration, and rattling during operation
• Replaces a worn, broken, missing, or stripped front foot
• Helps ensure doors or drawers align and close properly when leveled

• Disconnect power and, if applicable, shut off water/gas before servicing
• Protect flooring; carefully tip or brace the appliance to access the front foot
• Unthread the old foot; thread in the new foot and adjust until level side-to-side and front-to-back
• Verify stability, then restore utilities and recheck for level

Specs: 10-16 x 1/2 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Used from harness to top.
