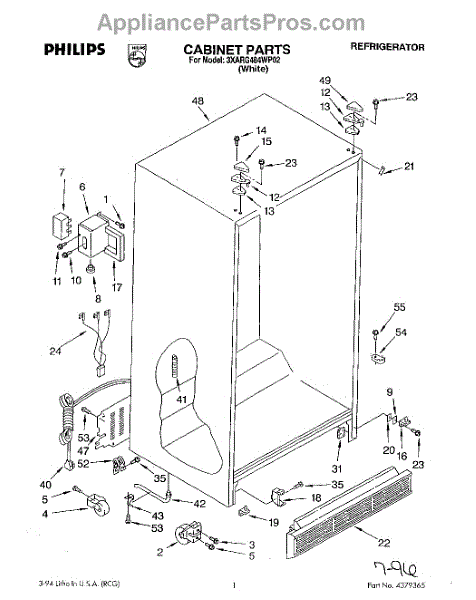

Parts for Whirlpool 3XARG484WP02: 01 - Cabinet Parts

Size: 8-32 x 1/2 inch.

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet roller assembly supports the refrigerator at the base and lets you roll the unit forward for cleaning or service. Replace a cracked or seized roller to restore smooth movement and a stable, level stance. What it does:

• Supports the refrigerator cabinet and helps maintain proper leveling
• Allows the unit to roll for easier cleaning and servicing
• Replaces worn, cracked, or seized rollers and damaged brackets
• Helps resolve wobbling, uneven stance, scraping noises, or difficulty moving the fridge

• One complete cabinet roller assembly

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a second person or an appliance dolly to safely tilt or move the unit
• Remove mounting fasteners, swap the assembly in the original position, and reuse hardware if applicable
• After installation, level the refrigerator and verify doors close and seal properly

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

Top

White. For almond order WP1129262.

Includes right and left side.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

Includes right and left side.

Black

Color: Black. Measures about 33 inches wide by 5 inches high. White and Almond are no longer available.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Size: 8 x 1/2 ab.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain fitting extension connects to the ice machine's drain outlet to extend the connection point for proper hose attachment. It helps ensure a secure, leak-resistant drain path so meltwater can exit the unit correctly.

• Extends the factory drain fitting to improve hose reach and connection
• Maintains a tight, stable drain hookup to help prevent leaks
• Designed for ice machines that use a gravity or pump-assisted drain path

• Disconnect power and shut off water before servicing
• Place a towel or pan to catch residual water
• Ensure the drain hose seats fully and clamp is secure per your model's instructions
• Check for leaks by running a short test after reassembly

White.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
