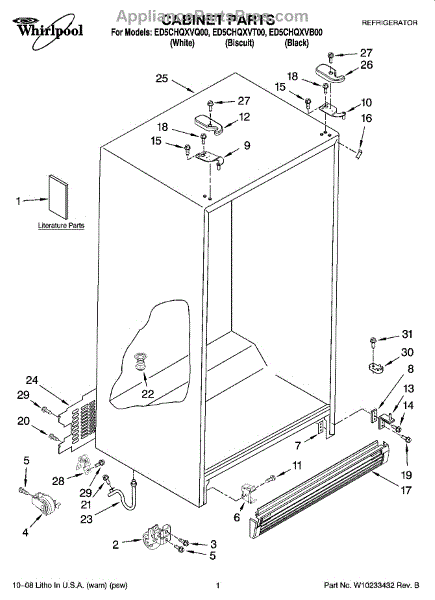

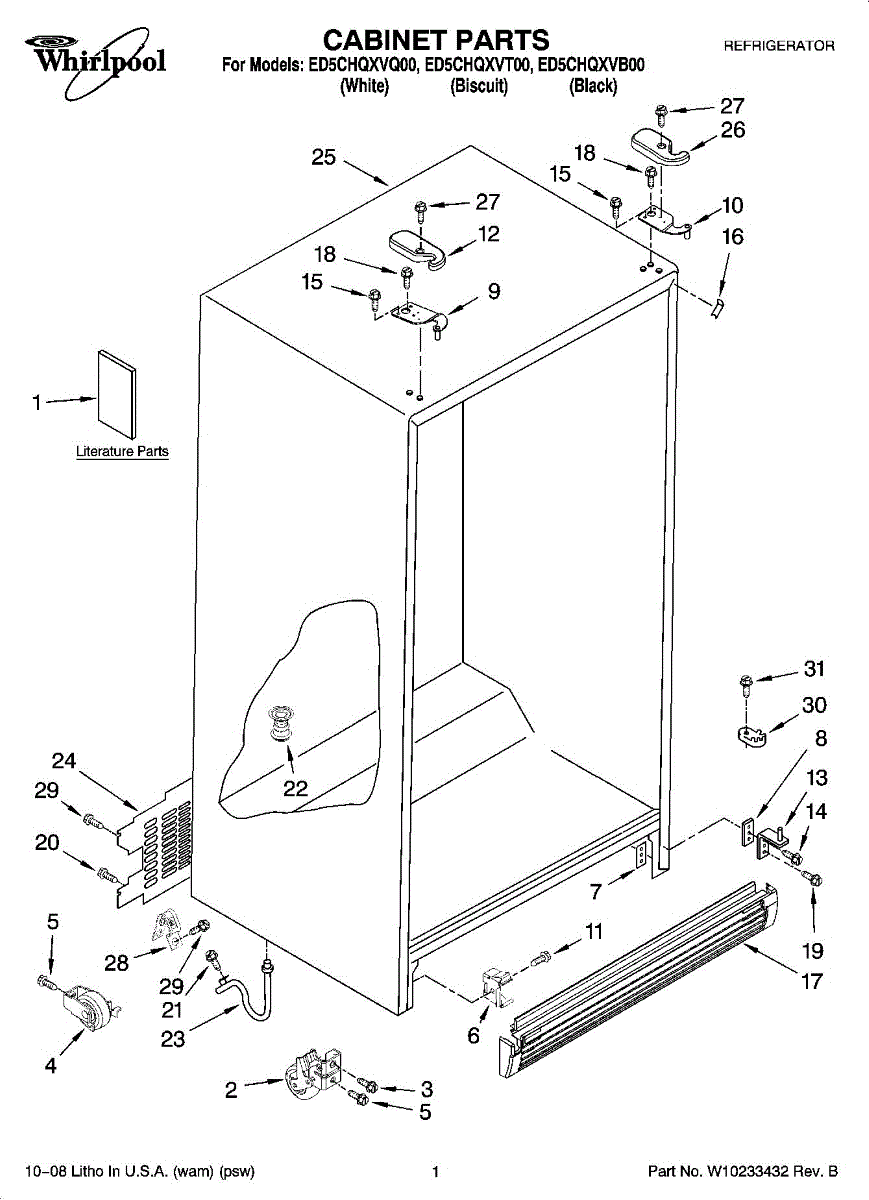

Parts for Whirlpool ED5CHQXVB00: 01 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw for securing components inside your refrigerator. Needed when original screws are stripped, lost, or corroded during repairs.

Supports your refrigerator at the base and lets you roll it forward for cleaning. Replace this roller assembly if cracked, broken, or seized to restore smooth movement.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Secures the bottom grille to your refrigerator frame. Replace if the original clip is cracked, broken, or missing and the grille won't stay in place.

Bottom hinge plate anchors your refrigerator's lower door hinge. Replace when door sags, won't close properly, or plate shows wear. Verify fit by model.

Levels and aligns refrigerator doors for proper sealing. Replace when door sits unevenly, rubs cabinet, or won't close flush. Verify fit with model number.

Top hinge for refrigerator fresh food or freezer cabinet doors. Replaces broken, cracked, or missing hinges. Essential hardware for door alignment.

Refrigerator top hinge and pin that mounts to the cabinet and supports the door. Replace if broken, cracked, or worn to restore proper door alignment.

Screw: 8-16 x 3/8 inch.

Color: Biscuit

White plastic hinge cover for refrigerator doors. Replaces cracked, broken, or missing hinge covers. Installs over door hinge mechanism for clean look.

Black plastic hinge cover for side-by-side refrigerators. Replaces cracked, broken, or missing hinge covers on the refrigerator door assembly.

This Door Hinge Kit is an OEM replacement part for Whirlpool refrigerators. It includes the left and right lower door hinges. These hinges are crucial components that allow the refrigerator doors to swing open and close both smoothly and securely.  This kit includes both the freezer and refrigerator door hinges.

Symptoms of bad door hinges can include:

• The door not sealing properly when closed
• Difficulty opening or closing the door
• Excessive noise emanating from the hinge area
• Door alignment issues where it does not sit flush

Causes of failure typically involve hinge components wearing down over extended use. Hinges may also become loose, misaligned, or damaged due to impact over time.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Refrigerator mounting screw secures panels, brackets, and trim pieces. Replace missing, stripped, or damaged screws to restore proper fit and alignment.

Color: Biscuit

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

Decorative grille that installs on top of your refrigerator above the freezer compartment. Covers internal fans and vents. Replace if cracked or damaged.

Black lower front grille extension that restores your refrigerator's finished appearance. Replaces cracked, faded, or missing trim at the base.

Black lower front grille extension that restores your refrigerator's finished appearance. Replaces cracked, faded, or missing trim at the base.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Mounting screw secures panels, brackets, and trim on refrigerators and washers. Replace when fasteners are missing, loose, stripped, or damaged.

Mounting screw for various appliances. Replaces lost, stripped, or damaged screws that secure panels, brackets, or internal components. Essential hardware.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Directs defrost water to the drain line in your refrigerator. Replace if cracked, broken, or leaking to prevent water buildup inside the unit.

Directs defrost water from the evaporator to the drain pan. Replaces cracked, broken, or deformed drain tubes causing leaks or ice buildup issues.

Rear access cover panel for refrigerators. Shields compressor and electrical components from dust and debris. Replace if cracked, damaged, or worn.

Color: Biscuit

Black plastic hinge cover cap for side-by-side refrigerators. Replaces cracked, broken, or missing hinge covers that expose internal hardware.

White plastic hinge cover for refrigerator doors. Replaces cracked, broken, or missing hinge covers that expose door hardware. Snaps into place.

Replacement mounting screw secures panels, brackets, and trim to the appliance frame. Needed when original screw is stripped, missing, or damaged.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replaces worn or broken door cam in your refrigerator. Lifts door during opening/closing to reduce hinge stress. Install if cam is cracked or damaged.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
