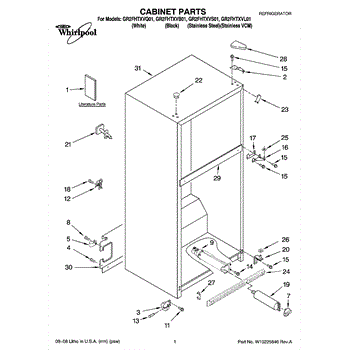

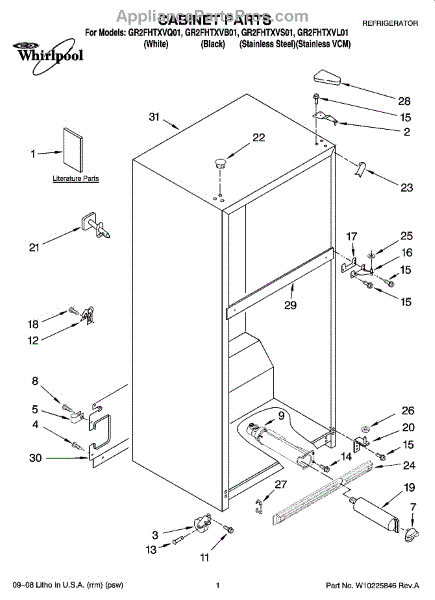

Parts for Whirlpool GR2FHTXVQ01: 01 - Cabinet Parts

Reduces contaminants like chlorine and lead for clean drinking water and ice. Replace every 6 months for optimal performance. Confirm fit with model.

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

Front cabinet roller wheel for refrigerators. Mounts under the cabinet to allow smooth rolling and positioning. Replace if cracked, broken, or worn out.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

White plastic cap that secures the water filter in place. Replace if cracked, broken, or missing to properly hold your refrigerator's filter cartridge.

Cap that attaches to your refrigerator's water filter cartridge for easy installation and removal. Replace if cracked, broken, or missing from filter.

Size; 8-18 x 1/2 inch.

Secures the water filter and maintains watertight seals to prevent leaks. Replace if cracked or leaking at tube connections to restore water flow.

This washer tub mounting bolt secures the tub assembly to its support points. Replacing worn or missing hardware helps keep the tub aligned and stable through wash and spin, reducing vibration and noise. What it does:

• Anchors the tub assembly to its mounting bracket or frame
• Helps maintain alignment under load and during high-speed spin
• Replace if the bolt is stripped, rounded, rusted, or missing
• Symptoms can include excessive vibration/banging, tub shifting or scraping, and rattling hardware

• 1 mounting bolt

• Disconnect power and water before servicing; wear appropriate PPE
• Support the tub to relieve stress on the mounting points before removal
• Start threads by hand to avoid cross-threading; tighten bolts evenly across all mount points
• Do not overtighten; follow for torque guidance

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Center hinge spacer maintains proper door alignment and spacing. Replace if your refrigerator door sags or seal fails. Confirm fit with your model.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Reduces contaminants like chlorine and lead for clean drinking water and ice. Replace every 6 months for optimal performance. Confirm fit with model.

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Color: white.

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Black hinge cover that conceals and protects the door hinge area. Replace if cracked, broken, or missing to restore a clean, finished look.

Replace a cracked, broken, or missing hinge cover on your refrigerator. Snaps over the hinge assembly to conceal hardware and restore a clean finish.
