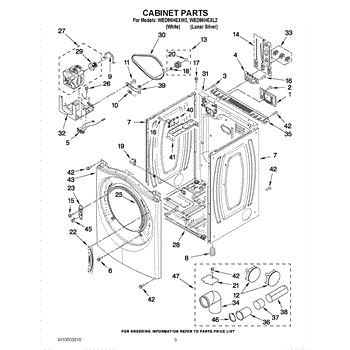

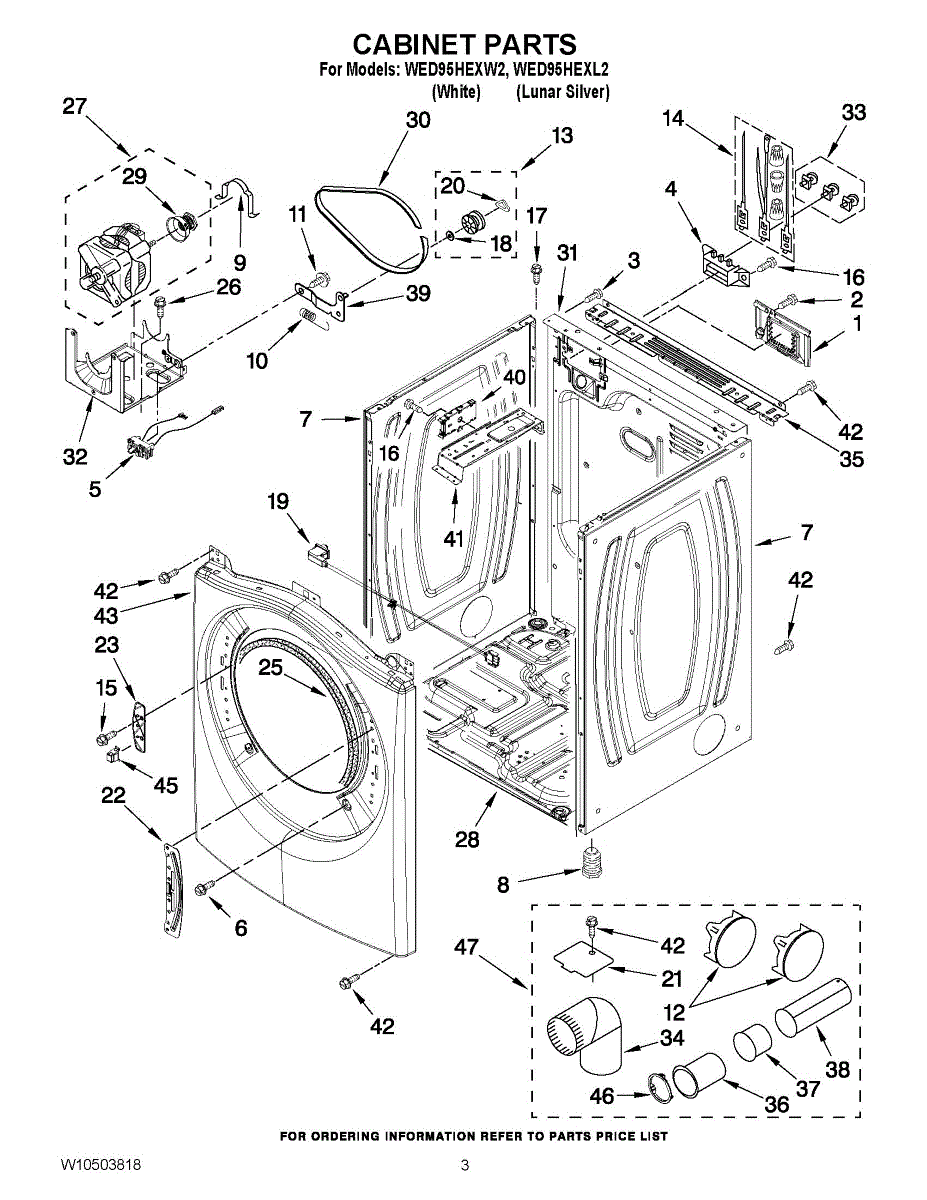

Parts for Whirlpool WED95HEXL2: 02 - Cabinet Parts

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

10 - 16 x 1/2

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This broken belt switch is a dryer safety switch that senses drive belt tension and opens the motor circuit if the belt breaks or slips off. Replacing a failed switch can resolve a no-start or no-tumble condition. What it does:

• Monitors drive belt tension via the idler assembly
• Interrupts power to the motor when the belt is broken or not tensioned
• Helps prevent heating without airflow when the belt has failed
• Symptoms can include: dryer won't start, drum won't turn, or the dryer stops as soon as the Start button is released

• 1 switch

• Disconnect power; for gas models, shut off the gas supply
• Access the switch near the idler pulley by removing the lower/front panel per your model
• Transfer wires from the old switch to the new one; mount securely with the actuator aligned to the idler arm
• Run a brief test cycle

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Color: White

Color: Silver

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

The Idler Pulley is an OEM replacement part for Whirlpool dryers. This essential component plays a crucial role in the drum drive system, helping to guide and maintain proper tension on the dryer belt.

Causes of a faulty idler pulley in a dryer can include normal wear and tear over time, improper belt tensioning leading to bearing failure, or physical damage from impact or debris buildup.

Symptoms of needing to replace the idler pulley include:

• Squeaking or grinding noises from the driveability area
• The dryer drum not spinning or rotating properly
• Excessive vibration or shaking during the dryer cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

This genuine mounting screw secures panels and components so assemblies stay aligned and rattle-free. Designed to replace worn or missing fasteners and restore proper fit and function. What it does:

• Secures panels, brackets or trim to prevent movement and vibration
• Restores proper alignment of assemblies that feel loose or shift
• Helps eliminate rattling, squeaks, or parts that fall away during use
• Matches OEM thread and head type for correct fit

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Replace any additional damaged or missing fasteners for best results
• Disconnect power or follow appliance-specific safety steps before working near wiring or energized components

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This replacement washer is a small hardware component used in appliance assemblies to provide a stable bearing surface and proper spacing. Replacing a worn or missing washer helps maintain alignment, reduce vibration, and protect mating parts from damage.

• Distributes load under a nut, bolt, pin, or shaft to protect mating surfaces
• Maintains correct spacing and alignment within stacked components
• Helps reduce friction, vibration, and noise in moving assemblies
• Worn or missing washers can contribute to looseness, wobble, rattling, or premature wear

• Disconnect power and shut off gas/water before servicing
• Note the original order and orientation of parts during disassembly
• Inspect fasteners, shafts, and bushings; replace any that show wear or damage
• Tighten fasteners securely per the service manual; do not overtighten

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

This strike is the latch receiver the door or lid engages when closed. Replacing a worn or broken strike restores a secure close and ensures the control correctly senses a closed door so cycles can run. What it does:

• Provides the fixed catch point for the latch mechanism
• Keeps the door/lid closed and properly aligned during operation
• Works with the interlock/switch to signal that the door/lid is closed
• Common symptoms: door won't latch or pops open, "door/lid open" message, cycle won't start, visible damage to the strike

• 1 strike

• Disconnect electrical power to the appliance; shut off water if applicable
• Open the door/lid and remove the original strike (typically secured by screws or retaining tabs)
• Position and secure the new strike, reusing original hardware; tighten snugly without over-tightening
• Close and open the door/lid to confirm smooth latch engagement and alignment; adjust if needed

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

The Whirlpool Motor Pulley is an OEM part for Whirlpool clothes dryers. It is the component located on the dryer drum motor that transmits power to spin the dryer cylinder and tumble clothes during operation. It allows the belt to grip effectively for transmission of torque from the motor.

Symptoms of a bad Motor Pulley include:

• The dryer drum failing to spin and tumble clothes during cycles
• Abnormal squealing, grinding or belt slipping noises from inside the dryer
• Minimal air flow and prolonged drying times

Causes of failure can include cracks or deterioration of the pulley edge from prolonged use, the belt wearing grooves into the pulley, or loose mounting bolts allowing wobbling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

This rear bracket secures the dryer's rear panel and helps align internal components for stable operation. It restores proper fit and support when the original bracket is bent, broken, or missing. What it does:

• Secures and positions the dryer's rear panel to the cabinet frame
• Supports internal components and helps maintain proper panel alignment
• Prevents rattling, vibration, and panel separation during operation
• Helps ensure consistent airflow path by keeping the rear housing properly positioned

• Disconnect power (and gas, if applicable) before servicing the dryer
• Access typically requires removing the rear panel; keep fasteners organized for reassembly
• Inspect adjacent mounting points and replace any damaged screws or clips

This exhaust pipe routes exhaust air from the appliance to the home vent, restoring proper airflow for safe, efficient operation. Use when the original pipe is cracked, bent, or leaking. What it does:

• Channels exhaust gases and lint from the appliance to the external vent
• Prevents exhaust leaks that can cause poor drying or cooking performance
• Helps maintain correct airflow to reduce overheating and moisture buildup
• Fits where a damaged or corroded exhaust connection needs replacement

• One exhaust pipe

• Disconnect power (and gas if applicable) before servicing; follow appliance safety procedures
• Inspect surrounding seals and clamps; replace clamps or ducting if damaged
• Secure pipe with OEM-recommended fasteners and ensure vent path is clear

This exhaust pipe directs heated air from the dryer drum to the household vent, restoring proper airflow for efficient drying and reduced lint buildup. It's a direct-fit replacement designed to match the OEM airflow path. What it does:

• Channels dryer exhaust from the appliance to the external vent to maintain proper airflow.
• Helps prevent lint accumulation in the cabinet by providing a sealed exhaust path.
• Can reduce long dry times and overheating caused by restricted or damaged venting.
• Addresses symptoms such as poor drying performance, hot dryer cabinet, or noticeable burning/overheating smells near the dryer vent area.

• One exhaust pipe.

• Disconnect power (and gas, if applicable) before starting work; the appliance is fully de-energized.
• Wear gloves to avoid sharp edges; remove old pipe and clean vent connections before installing the replacement.
• Secure with appropriate clamps or fasteners and ensure a continuous, unobstructed path to the exterior vent.
• After installation, run a short cycle to check for leaks.

This exhaust pipe vents hot, moist air from the dryer to the home venting system, helping the appliance dry clothes efficiently and reduce indoor humidity. Replace a damaged or restricted pipe to restore proper airflow. What it does:

• Channels dryer exhaust air safely from the appliance to the exterior vent
• Helps prevent overheating and long dry times caused by restricted airflow
• Reduces lint buildup in the appliance by providing a clear vent path
• Commonly replaced when cracked, crushed, kinked, or badly corroded

• Disconnect power to electric dryers; shut off gas supply and disconnect for gas dryers before servicing
• Inspect existing vent path for additional damage or lint buildup and clean before installing
• Position pipe without sharp bends or kinks and secure with appropriate clamps or fasteners

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Control Board is an OEM replacement part for Whirlpool dryers. As the central processing component, it works to operate all dryer functions through programmed instructions. The circuit board receives inputs to control temperature settings, cycle selections, sensors, and more.

Causes of a bad control board can include moisture damage corroding circuitry, component failures due to power surges, or normal component wear over time.

Symptoms of a bad control board include:

• Inability to select or change dryer settings/cycles
• Dryer not heating properly or venting air as expected
• Cycles failing to complete or restarting unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal components to the appliance cabinet, keeping parts aligned and stable for reliable operation. It's a simple replacement that restores proper support where the original bracket is bent, cracked, or missing. What it does:

• Provides a solid attachment point for internal panels, assemblies or hardware
• Restores alignment to components that shift or sag when a bracket fails
• Helps eliminate rattling or abnormal movement caused by a broken bracket
• Works as a direct-fit replacement when the original bracket is damaged

• One mounting bracket

• Intended for users comfortable with basic disassembly; unplug power and shut off water before starting
• Keep track of removed fasteners and any shims or spacers for proper reassembly
• Inspect surrounding parts for damage and replace any worn fasteners to ensure secure mounting

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool Dryer Door Catch is an OEM part for Whirlpool dryers. It secures the dryer door closed during operation, ensuring the safety and proper functioning of the appliance. This component engages with the door latch to hold the door shut, allowing the dryer to operate without interruption.

Causes of a bad dryer door catch can include normal wear and tear from frequent use, accidental damage, or deformation of the catch or latch that prevents proper engagement. Over time, the door catch can become loose or break, necessitating replacement to maintain the dryer's performance and safety.

Symptoms of a bad dryer door catch include:

• The dryer door not staying closed during cycles
• Difficulty closing the door securely
• The dryer stopping mid-cycle due to the door opening

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A duct collar that connects and secures the dryer's exhaust duct to the appliance, helping channel hot, moist air safely out of the dryer. Replaces a damaged or loose collar to restore a tight vent connection. What it does

• Provides a secure connection point between the dryer and the exhaust duct to help direct airflow out of the appliance.
• Helps reduce vent leaks that can cause poor drying performance or excess lint buildup in the cabinet/closet.
• Restores proper duct alignment to reduce rattling or vibration from a loose duct connection.
• Used when the existing collar is cracked, bent, corroded, or no longer holds the duct firmly.

• One duct collar.

• Always disconnect electrical power before servicing the dryer.
• Clean lint from the vent path before installing the new collar to ensure good airflow and reduce fire risk.
• Installation typically requires basic hand tools and a clamp or screws to secure the duct; follow the dryer's service instructions.

WPL VENT KIT, 4-WAY ULT

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
