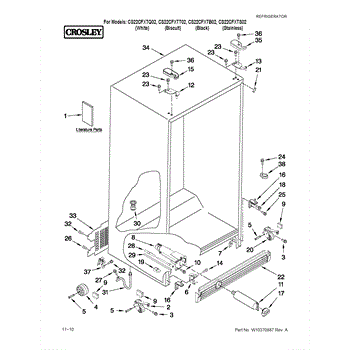

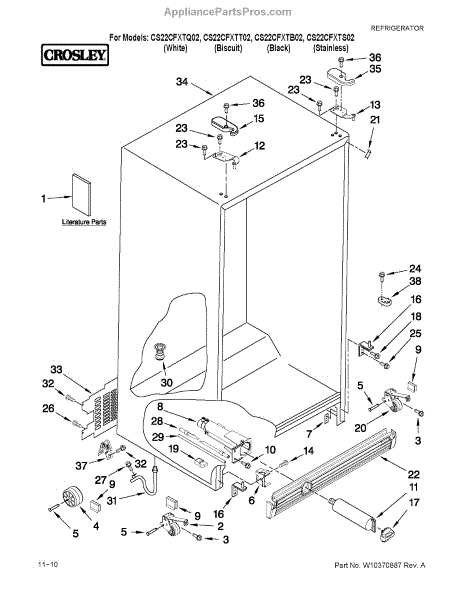

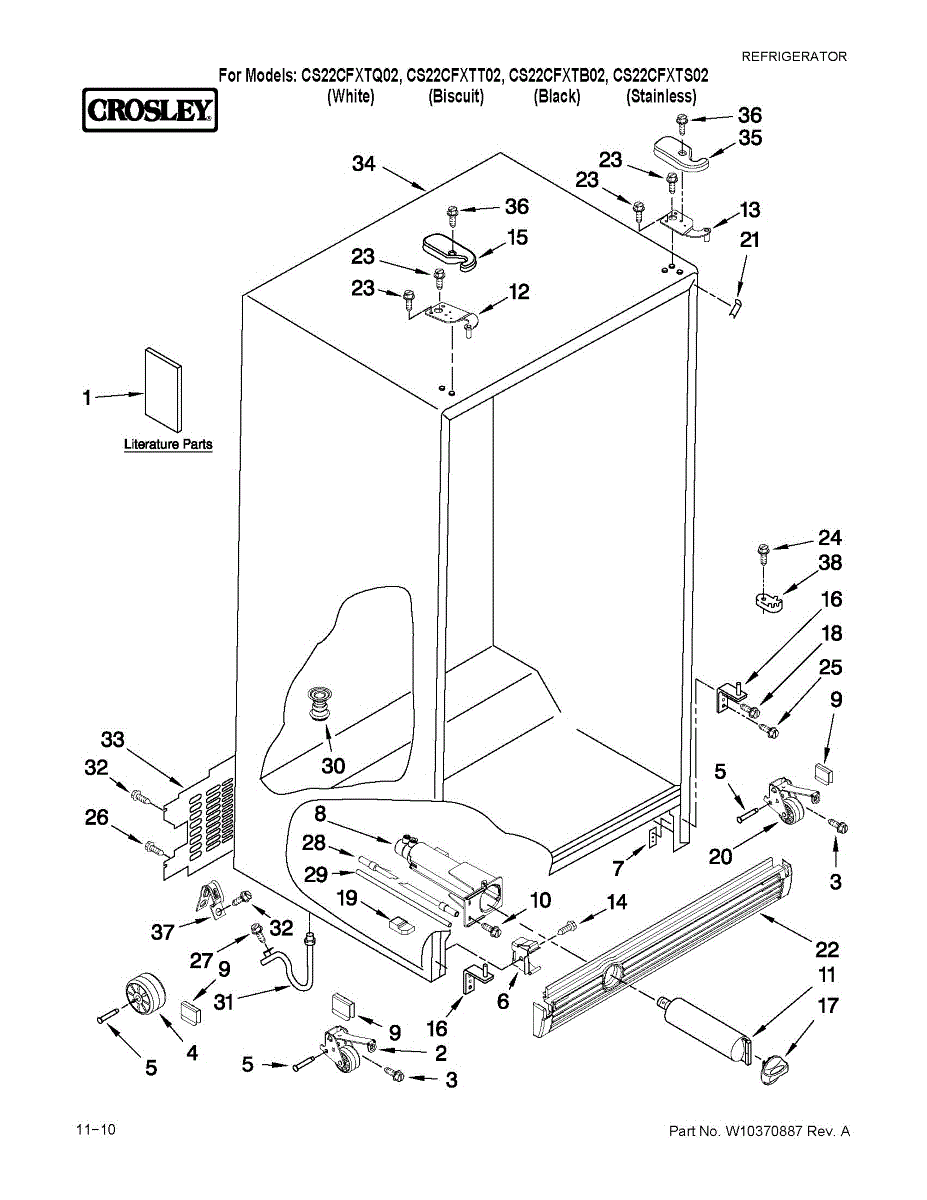

Parts for Crosley CS22CFXTB02: Cabinet Parts

Note: Left Hand Roller

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This bottom hinge plate mounts at the base of the refrigerator cabinet to anchor the lower door hinge. Replacing a worn or bent plate restores smooth door swing and a reliable seal for consistent cooling performance.

• Anchors the lower door hinge to the cabinet frame
• Supports door weight and helps maintain proper alignment
• Promotes smooth door operation and consistent gasket contact
• If bent or worn, can cause door sagging, rubbing, or poor sealing

• Disconnect power; turn off water supply if applicable
• Support or remove the door before loosening hinge fasteners
• Reuse existing screws/hinge components; install the plate flush and tighten securely
• Adjust hinge as needed

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It is designed to encase and support the water filter, ensuring it remains securely in place and functions effectively to filter out contaminants from the refrigerator’s water supply.

Symptoms of a bad Water Filter Housing include:

• Leaking water around the filter area.
• Difficulty in installing or removing the water filter.
• Unfiltered water bypassing the filter due to cracks or breaks in the housing.

Causes of a bad water filter housing can include cracking due to material fatigue, damage from improper filter installation or removal, or wear and tear from frequent filter changes.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Color: Biscuit

Color: White

Color: Black

White. For black order WP2186494B. For biscuit order WP2186494T.

Color: biscuit. It measures about 2-1/2 inches in diameter. For black order WP2186494B. For white order WP2186494W.

The Water Filter Cap is an OEM part for Whirlpool refrigerators. It secures the water filter in place, ensuring a proper seal and preventing leaks. This cap also facilitates the easy replacement of the water filter by providing a handle to twist the filter in and out.

You should replace the water filter cap if it becomes damaged or worn out. Causes of a bad water filter cap can include repeated use, cracking from excessive force, or wear and tear from regular filter replacements.

Symptoms of a bad water filter cap include:

• Leaking water from the filter area
• Difficulty in securing the water filter
• The cap being cracked or visibly damaged
• The filter not staying in place properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right Hand Roller

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

This grille is a cosmetic cover that attaches to the appliance to finish the opening and help protect internal areas. Replacing a damaged or missing grille restores a clean appearance and a secure, proper fit. What it does:

• Attaches at the designated location to provide a finished look
• Helps shield underlying components and keep debris out
• Designed to fit securely using existing clips or screws
• Common symptoms: cracked or warped plastic, broken tabs, loose fit, or missing piece

• 1 grille

• Disconnect power to the appliance (and shut off utilities if applicable) before servicing
• Remove any retaining screws or clips; gently release locking tabs to avoid damage
• Transfer reusable mounting hardware from the old grille if required
• Align and secure the grille; do not overtighten fasteners

This grille is a cosmetic cover that attaches to the appliance to finish the opening and help protect internal areas. Replacing a damaged or missing grille restores a clean appearance and a secure, proper fit. What it does:

• Attaches at the designated location to provide a finished look
• Helps shield underlying components and keep debris out
• Designed to fit securely using existing clips or screws
• Common symptoms: cracked or warped plastic, broken tabs, loose fit, or missing piece

• 1 grille

• Disconnect power to the appliance (and shut off utilities if applicable) before servicing
• Remove any retaining screws or clips; gently release locking tabs to avoid damage
• Transfer reusable mounting hardware from the old grille if required
• Align and secure the grille; do not overtighten fasteners

This grille is a cosmetic cover that attaches to the appliance to finish the opening and help protect internal areas. Replacing a damaged or missing grille restores a clean appearance and a secure, proper fit. What it does:

• Attaches at the designated location to provide a finished look
• Helps shield underlying components and keep debris out
• Designed to fit securely using existing clips or screws
• Common symptoms: cracked or warped plastic, broken tabs, loose fit, or missing piece

• 1 grille

• Disconnect power to the appliance (and shut off utilities if applicable) before servicing
• Remove any retaining screws or clips; gently release locking tabs to avoid damage
• Transfer reusable mounting hardware from the old grille if required
• Align and secure the grille; do not overtighten fasteners

This replacement screw secures panels, brackets, or trim on compatible Whirlpool appliances to restore proper fit and reduce rattles and movement. Use it when a fastener is missing, loose, or stripped. What it does:

• Secures appliance panels, trim pieces, brackets, or small components in place
• Restores proper fit to eliminate rattling, gaps, or shifting parts
• Replaces missing, worn, or damaged screws that compromise mounting
• Matches OEM form and function when the correct screw is specified for the repair

• Turn off power to the appliance before working near controls, heating elements, or wiring
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten
• Keep removed screws in a container to ensure none are lost during reassembly

This replacement water tube connects at the filter outlet and carries filtered water to the refrigerator's water system. Replacing a cracked or leaking tube restores reliable, leak-free water flow to the dispenser and ice maker.

• Routes water from the filter housing outlet to downstream components
• Can restore water dispenser flow or ice maker fill when the tube is kinked or damaged
• Helps maintain proper water pressure through the line after replacement

• Disconnect power and shut off the water supply before servicing
• Depressurize the line by dispensing water; place a towel or pan to catch residual water
• Note the original routing; fully seat the tube into quick-connect fittings until it bottoms and tugs secure
• Restore water and power; check all connections for leaks and flush several cups of water

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator unit cover mounts over the interior control/air distribution housing. It restores a clean, finished look and protects internal components by enclosing the area as designed. What it does:

• Provides a protective, finished cover for the control/diffuser housing
• Helps keep the airflow path properly enclosed inside the compartment
• Replace if the cover is cracked, warped, loose, or missing
• Common signs include rattling, visible gaps, or exposed components

• One unit cover

• Unplug the refrigerator before servicing
• Remove shelves or bins for access as needed
• Release tabs or remove screws to take off the old cover; retain hardware for reuse
• Align and secure the new cover; do not overtighten fasteners, then restore power

Color: Biscuit

Color: Black

Color: White

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
