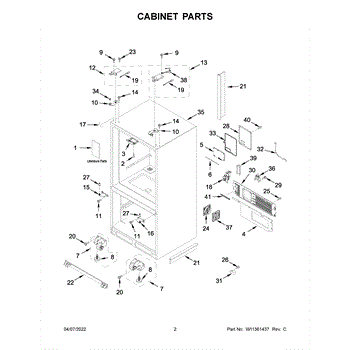

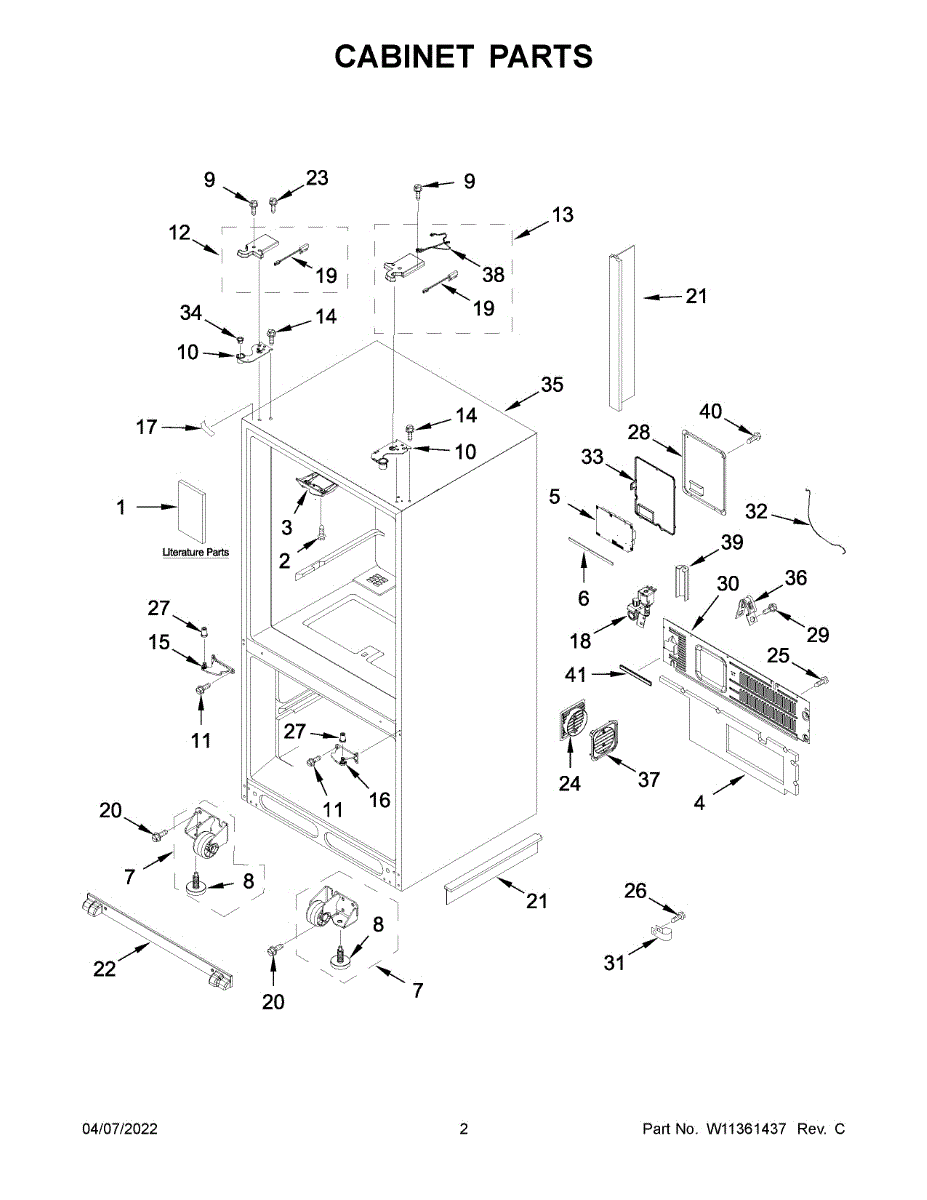

Parts for Kitchenaid KRFC704FSS02: Cabinet Parts

This pivot block is a small mounting support that holds a pivot or hinge shaft in place, restoring proper alignment and smooth movement for the moving assembly. It's a direct-replacement mechanical support piece. What it does:

• Supports and stabilizes a pivoting shaft or hinge so the assembly moves smoothly
• Prevents excessive play or misalignment that can cause rubbing, grinding, or uneven motion
• Helps reduce vibration and noise coming from a loose or worn pivot point
• Restores proper component positioning so doors, drums, or linkages close and operate correctly

• One pivot block

• Disconnect power to the appliance before starting any repair
• Access may require removing a panel or trim; keep track of fasteners and fastener locations
• Use basic hand tools; avoid forcing parts—replace any damaged clips or fasteners
• Check adjacent parts (shaft, bushing, or bracket) for wear

The UI Control Board is an OEM part for Whirlpool fridge displays. It processes inputs from touch buttons to manage temperature zones, lighting, and dispenser functions.

Causes of failure relate to damage from prolonged exposure to ambient temperatures inside fridges. Regular thermal stresses can degrade sensitive electronic connections.

Symptoms of a bad UI control board include:

• Non-functional touchpad buttons
• Inability to select temperatures or modes
• Faulty or blank control screen
• LED lights or dispensers stopped working

This OEM replacement is compatible also with Maytag, KitchenAid, Jenn-Air and Kenmore fridges.

This cabinet roller replaces a worn or broken roller that helps a drawer or cabinet glide smoothly. Restores proper tracking and reduces sticking or grinding for easy opening and closing. What it does:

• Supports and guides the drawer/cabinet along its track for smooth movement
• Replaces damaged or worn rollers that cause sticking, binding, or uneven travel
• Reduces noise from grinding or scraping when opening or closing
• Helps prevent drawer misalignment and uneven wear on the track

• Inspect the track and mounting clips for damage; replace any broken components
• Remove power to nearby appliances and work with the drawer empty
• Use basic hand tools; avoid forcing parts—ensure the roller is seated fully in its bracket

This cabinet roller replaces a worn or broken roller to restore smooth opening and closing of the appliance drawer or cabinet. It reduces noise and sticking for improved everyday use. What it does:

• Replaces a damaged or worn cabinet/drawer roller to restore smooth gliding motion
• Reduces squeaking, sticking, or uneven travel when opening or closing the drawer
• Supports proper alignment of the drawer or rack during operation
• Helps prevent further wear to tracks and mounting hardware by restoring correct movement

• Disconnect power to the appliance before beginning any repair
• Remove the drawer or access panel to reach the roller; keep fasteners organized
• Inspect the track and mounting clip for damage; replace damaged hardware if found
• Reassemble and test drawer travel; no special tools typically required, but a screwdriver or pliers may help

This adjustable leveler threads into the base of your appliance to set height and keep it stable. Replacing a worn or missing leg helps reduce wobble and vibration and restores proper leveling for smooth, reliable operation. What it does:

• Threads into the cabinet base to fine-tune height and level front-to-back and side-to-side
• Helps reduce rocking, vibration, and rattling noises during use
• Can improve alignment and closure on units that are out of level
• Common failure signs include a cracked foot, stripped threads, or a missing leg

• One leveler

• Disconnect power; turn off water supply if applicable before moving the appliance
• Use a helper and protect flooring when tilting or positioning the unit
• Start threads by hand to avoid cross-threading; finish adjustment with a wrench as needed
• Level all corners until stable; recheck after loading or repositioning the appliance

This door hinge secures and allows smooth pivoting of a refrigerator or freezer door so it opens and closes correctly, helping maintain a proper seal and consistent cooling performance. What it does

• Supports the door weight and provides a stable pivot point for opening and closing
• Keeps the door aligned to ensure the gasket seals properly and reduce cold-air loss
• Helps prevent door sag, rubbing, and uneven wear that can cause noise or poor sealing
• Replaces a worn, bent, or damaged hinge to restore proper door movement

• One door hinge

• Installation requires removing the door or supporting it to avoid damage
• Use proper tools and torque; tighten fasteners securely but avoid over-torquing
• Disconnect power to the appliance before working if panels or wiring must be removed
• If the hinge mounts use separate screws or bushings, transfer existing hardware unless OEM kit specifies otherwise

This cover is an access panel that protects internal appliance components and helps keep dust, lint, and debris out while maintaining the appliance's finished appearance. It provides a safe, stable mounting surface for nearby parts. What it does:

• Covers and protects internal components from debris and accidental contact
• Helps maintain proper airflow paths and prevents lint buildup in service areas
• Preserves the appliance's exterior finish and appearance
• Provides a location for mounting adjacent parts or fasteners

• One cover

• Disconnect power (and gas, if applicable) before starting any repair
• Use appropriate hand tools and retain all fasteners for reassembly
• Handle edges carefully; wear gloves to avoid cuts
• Follow the appliance's service manual for correct removal and torque specs

This replacement screw fastens appliance components to restore secure connections and reduce vibration or rattling. Use it when panels, brackets, or assemblies are loose or moving. What it does:

• Secures panels, brackets, and small appliance parts to prevent movement
• Restores proper alignment for doors and trim that shift from loose hardware
• Helps eliminate vibration noise caused by loose fasteners
• Works with assemblies that use standard machine/sheet-metal screws

• Disconnect power or gas supply before servicing the appliance
• Use the correct driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or damage parts
• Inspect surrounding components and replace any damaged clips or hardware as needed

This door hinge assembly secures and guides the appliance door, restoring proper door alignment and smooth opening and closing. It's a direct-fit replacement that helps stop sagging, rubbing, or difficulty latching. What it does:

• Supports the door on its pivot so the door opens and closes smoothly.
• Restores proper door alignment to improve sealing and prevent gaps.
• Stops door sag, dragging on the cabinet, or uneven closing.
• Works as a direct replacement for the original hinge design.

• Disconnect power to the appliance before starting and follow the manufacturer's safety instructions.
• Use appropriate tools; some models require removing the door or adjusting mounting screws during installation.
• Handle the door carefully to avoid dropping or damaging the hinges or door surface.

Color: Black

Color: Black


This door hinge is a direct-fit replacement that helps the refrigerator door open and close smoothly and keeps the door aligned to seal properly. Restores proper door movement and helps prevent gaps that can cause cooling loss. What it does:

• Provides the pivot point for the refrigerator door, enabling smooth opening and closing
• Maintains door alignment to help the gasket seal evenly and preserve internal temperature
• Replaces worn, bent, or broken hinges that cause sagging, scraping, or noisy operation
• Helps prevent uneven wear on the door and stops abnormal rubbing against the cabinet

• One replacement door hinge

• Designed to mount in the original hinge location; hardware may be required if original fasteners are damaged
• Power off the appliance and remove contents from the door area as needed for safe access
• Support the door during removal/installation to avoid damage or personal injury

The Valve is an OEM part for Whirlpool side-by-side refrigerators. Located within the refrigerator's water line, this valve controls the flow of water to the icemaker and dispenser functions.

Symptoms of a bad valve can include irregular or absent water flow from the dispenser or failures filling the icemaker properly. Mineral buildup over time may obstruct internal valve ports.

Causes of a bad valve include:

• Failure of ice production or water dispensing abilities
• Dripping or spraying of water from the valve area
• Inability to control water pressure or regulation

This Whirlpool valve replacement is compatible with select KitchenAid, Jenn-Air, and Kenmore side-by-side refrigerator models

This door switch completes the circuit that tells the appliance the door is closed so cycles can start or continue. It replaces a worn or non-responsive door switch to restore reliable door-sensing operation. What it does

• Detects when the door is closed and signals the control to start or resume a cycle.
• Stops operation or prevents cycle start when the door is open or the switch fails.
• Commonly replaces a switch that is stuck, intermittent, or not registering door closure.
• Helps resolve symptoms like appliances not starting, stopping mid-cycle, or failing to latch electronically.

• One door switch (single push-button style), exact OEM configuration as shown.

• Disconnect power (unplug or shut off breaker) before accessing the switch.
• Access may require removing a panel or inner door assembly.
• Handle connectors carefully; remove and reconnect wiring harnesses by the plug, not the wires.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This replacement divider restores organization inside the refrigerator drawer so groceries stay separated and upright for easier access. It's a simple, low-profile plastic divider that helps prevent items from shifting during normal use. What it does

• Separates and organizes items inside a refrigerator or freezer drawer
• Keeps produce, deli items, or packaged goods from sliding together
• Helps maintain tidy storage for easier access and loading
• Fits into existing drawer tracks or slots to hold position during normal use

• Remove the drawer before installing to access the divider slots more easily
• Slide the divider into the matching tracks or slots until it seats securely
• Do not force or bend the part; verify orientation matches the opposite side or clips
• For safety, work with dry hands and stable drawer positioning; unplug appliance only if instructed by appliance-specific service manual

This front grille restores the exterior lower trim on compatible Whirlpool refrigerators, improving appearance and protecting internal components. It replaces a cracked or broken grille so your appliance looks finished and grille openings stay clear. What it does

• Covers and protects the refrigerator toe/vent area from debris and damage
• Restores finished appearance when the original grille is cracked, broken, or missing
• Helps maintain proper venting path by keeping the grille opening intact
• Common symptom: visible cracks, loose fit, or a missing lower trim piece

• One front grille

• Disconnect power to the appliance before starting any repair
• Typically installs with clips or screws—do not force the grille into place
• Keep hardware from the original part; replace any broken clips with OEM equivalents

This replacement vent directs airflow from the appliance's blower to the outside or into the vent duct, helping maintain proper exhaust and drying performance. Fits where the OEM vent assembly is required for safe, efficient operation. What it does:

• Channels exhaust air from the appliance to the duct system to prevent backflow and moisture buildup.
• Restores proper ventilation when a cracked, damaged, or missing vent causes poor airflow or noisy operation.
• Helps reduce lint and debris escape into the cabinet area by providing the correct outlet path.
• Supports normal drying/heating performance by maintaining intended airflow routing.

• 1 vent

• Turn off and unplug the appliance (or shut off power at the breaker) before beginning any work.
• Remove any surrounding panels or access covers to reach the vent; follow manufacturer service instructions for disassembly.
• Inspect mating ductwork and seals; replace damaged ducts or use approved clamps/adhesive to ensure an airtight connection.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The Hinge Bushing is an OEM component specifically designed for Whirlpool refrigerator doors. It is a circular bearing and support component that promotes smooth door swinging. The bushing fits within hinges to reduce friction and prevent premature wear.

Causes of compromised hinge bushings can be years of door opening compressing the bushing material. Exposure to moisture also contributes to cracked, pitted or damaged bushings failing to guide doors effortlessly.

Symptoms of failing hinge bushings include:

• Stiff or resistant door movement requiring extra effort
• Noisy hinges or grinding sounds due to metal-on-metal contact
• Misaligned or sagging doors unable to fully latch or seal
• Premature wear of connecting hinge parts forcing early replacement

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber grommet cushions and protects a mounting or wiring pass-through, helping reduce vibration and prevent chafing where parts or wires pass through a panel. It's a simple replacement that restores a secure, quiet fit. What it does:

• Provides a protective barrier around openings to prevent wire and component abrasion
• Cushions panels or components to reduce noise and vibration
• Helps maintain proper alignment of mounted parts
• Commonly replaced when torn, flattened, or allowing rubbing/metal-to-metal contact

• One rubber grommet as shown

• High-level replacement — access to the panel or opening is required
• Inspect surrounding fasteners and wiring for damage while replacing
• Use basic hand tools; avoid stretching the grommet excessively during installation
• Disconnect power to the appliance before working in areas with wiring or motors
