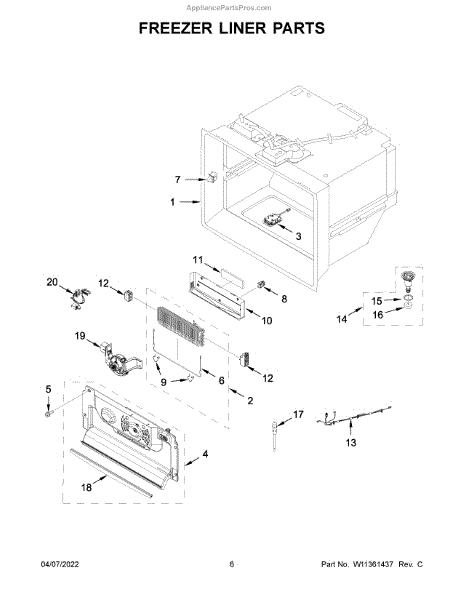

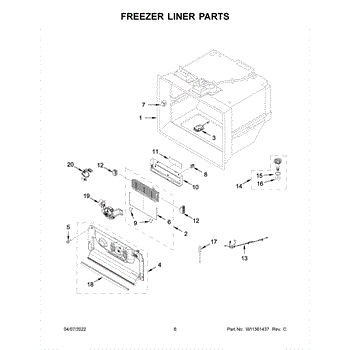

Parts for Kitchenaid KRFC704FSS02: Freezer Liner Parts

Parts for Kitchenaid KRFC704FSS02: Freezer Liner Parts

Location on Diagram
Part Description
Price & Availability
2
By: Whirlpool
Part Number: W11099748

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to cool your fridge. Moderate DIY repair for most bottom-mount models.

More
$167.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Product photo
By: Whirlpool
Part Number: W11700340

This heater is the dryer heating assembly that produces the hot air needed to dry clothes. Replaces a worn or failed heater so your dryer can reach operating temperatures and dry loads efficiently. What it does:

  • Generates heat for the dryer drum so clothing dries during normal cycles
  • Commonly replaced when the dryer runs but produces little or no heat
  • Addresses long dry times or loads that remain damp after a full cycle
  • Works with the dryer's thermal cutoff/thermostats to regulate temperature
What's included: One heater assembly Install notes:
  • Disconnect power to the appliance before beginning service to avoid shock
  • Handle the element carefully; avoid bending the heating coils or damaging terminals
  • Verify related thermal fuses/thermostats and venting if the dryer still heats poorly after replacement
  • Test operation after install and restore all safety panels

More
$55.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
By: Whirlpool
Part Number: W11291142

Fix a refrigerator that won't turn off its light or runs constantly with this door switch. Detects door position to control interior lighting and cooling.

More
$24.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
By: Whirlpool
Part Number: W10683507
$16.00

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: W10886209
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Whirlpool
Part Number: W10683540
$13.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12A
By: Whirlpool
Part Number: W10668198
$32.51

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W10668201
$30.05

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
By: Whirlpool
Part Number: W11614809

Fix intermittent power or control issues in your refrigerator with this wire harness assembly. Replaces damaged wiring causing electrical problems.

More
$112.45

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: W10503218

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

  • Puddling or spilled water inside refrigerator interiors
  • Uncontrolled leaks potentially damaging other components
  • Restricted airflow if funnel clogs from sediment buildup
  • Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$11.65

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
By: Whirlpool
Part Number: W10770923
$14.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
20
By: Whirlpool
Part Number: W10911358

This main wire harness routes power and control signals between the appliance's electrical components to restore reliable connections and proper operation. Replaces a damaged or broken harness to help eliminate intermittent power and control issues. What it does:

  • Connects controls, switches, motors and sensors to the appliance's electrical system
  • Restores circuit continuity when original wiring is cut, burned or has failed connectors
  • Helps stop intermittent power, no-starts, or erratic control behavior caused by damaged wiring
  • Prevents loose or corroded connections that can lead to arcing or component malfunctions
What's included: One complete wire harness as shown Install notes:
  • Disconnect power (unplug or shut off breaker) before starting any repair
  • Verify harness routing and connector match before final installation
  • Inspect mating connectors and terminals for damage; replace if corroded or bent

More
$52.25

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
