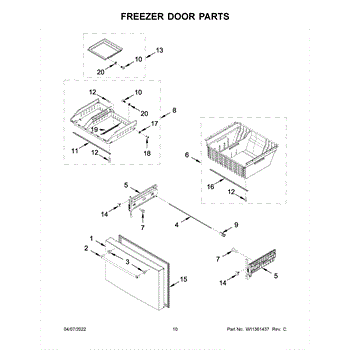

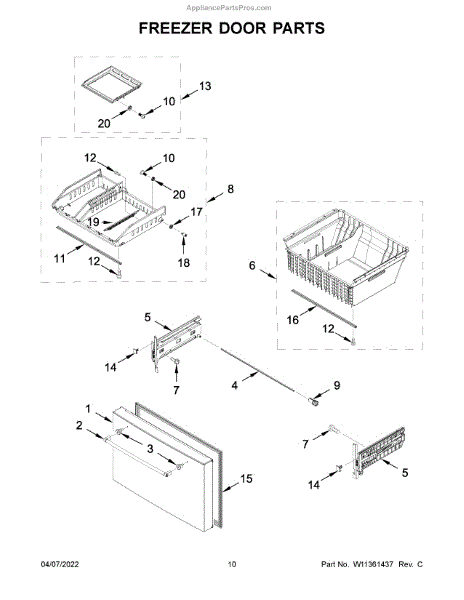

Parts for Kitchenaid KRFC704FSS02: Freezer Door Parts

This replacement screw fastens appliance panels and components securely. Replace a missing, stripped, or corroded original to restore a tight fit and help prevent rattling, vibration, and gradual loosening of assemblies.

• Secures panels, brackets, and internal assemblies to the frame
• Replaces damaged or missing hardware to maintain proper fit
• Helps reduce vibration, noise, and movement caused by loose parts
• Supports correct alignment at the original mounting points

• Disconnect power and shut off water or gas before service.
• Match the original screw's location and length; replace one at a time if needed.
• Use the correct driver/bit and avoid overtightening to prevent stripping plastic or metal.
• Reuse any washers or clips only if in good condition.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

This is a replacement mounting/support bracket that secures internal appliance components and restores proper alignment for panels and assemblies. Replaces a worn or damaged bracket to reduce movement and restore stable operation. What it does:

• Provides a secure anchor point for panels, trim, or internal assemblies
• Prevents sagging, rattling, and misalignment caused by a broken or weakened bracket
• Helps maintain proper spacing and fit between parts to reduce noise and wear
• Commonly replaced when visible cracking, bent metal, or loose attachment is present

• One mounting/support bracket

• Disconnect power to the appliance before attempting any repair
• Verify bracket orientation and fit against the appliance before fastening
• Use appropriate hand tools and retain all fasteners; do not overtighten

This mounting bracket secures internal components and panels to restore proper alignment and stability. It replaces a worn or broken support bracket to reduce vibration and keep parts seated correctly. What it does:

• Secures internal panels or components to the appliance frame to maintain proper alignment
• Prevents rattling and vibration caused by loose or damaged supports
• Helps keep connected parts seated so controls and panels operate smoothly
• Supports proper fit of adjacent components after repair

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools to remove fasteners and transfer the bracket to the replacement
• Keep hardware organized and reuse only undamaged fasteners; replace stripped or damaged screws
• Secure fasteners evenly to avoid stress on surrounding parts

The Freezer Drawer Gear Clip is an OEM part for Whirlpool refrigerators. It is designed to secure the gear mechanism that allows the freezer drawer to slide in and out smoothly. This clip ensures that the drawer operates efficiently, providing easy access to the freezer compartment.

Causes of a bad gear clip can include wear and tear from regular use, damage due to overloading the drawer, or breakage from accidental impact. A faulty gear clip can impair the drawer’s movement and make it difficult to open or close properly.

Symptoms of a bad refrigerator freezer drawer gear clip include:

• The freezer drawer not sliding smoothly
• Difficulty in opening or closing the drawer
• The drawer coming off its track
•  Unusual noises during the drawer’s operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Single

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.

This stop pan is the molded under-tub drip tray that catches and directs small leaks away from the appliance to help protect floors and cabinet interiors. It's a simple replacement that restores the appliance's built-in leak control pathway. What it does:

• Fits under the tub to collect and channel incidental water from seals or fittings
• Helps prevent water from pooling under the appliance and reaching floors
• Commonly replaced when cracked, warped, or when leaks are visible beneath the appliance
• Compatible with appliances that use a molded under-tub drip tray design

• One stop pan

• Disconnect power and water supply before beginning any service
• Remove access panels or kickplate to reach the old pan; support the appliance as needed
• Compare the new pan to the old part before final installation

This stop pan is a small replacement part that secures the appliance drain/drip pan and helps keep it seated to reduce movement and leakage risk. It restores the pan's intended fit so the appliance can drain and sit properly. What it does

• Holds the drain/drip pan in position to prevent shifting during operation
• Helps maintain a proper seal and alignment to reduce risk of water contacting chassis parts
• Addresses symptoms like a rattling or loose pan and intermittent water contact under the appliance
• Works as a direct-fit replacement when the original stop is cracked, worn, or missing

• One stop pan

• Unplug the appliance or disconnect power before starting any work
• Remove panels as needed to access the drain/drip pan; basic hand tools are typically required
• Inspect surrounding clips and fasteners and replace if damaged
