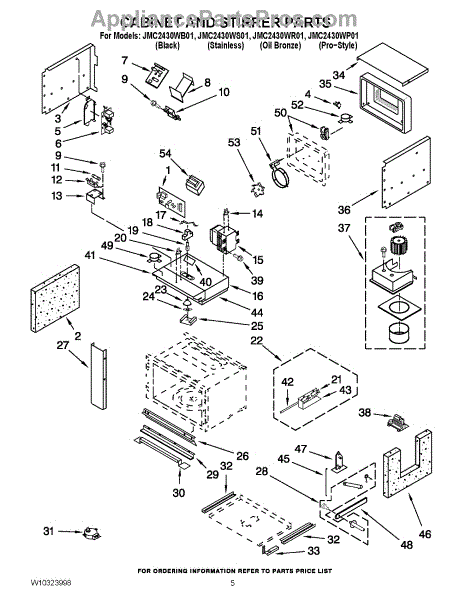

Parts for Maytag JMC2430WP01: 04 - Cabinet And Stirrer Parts

This electronic control board is the main control assembly that manages a range of timed functions and signals for the appliance, restoring responsive cycle selection and electronic operation when the original board fails. What it does:

• Controls cycle timing, user-command processing, and electronic function sequencing
• Sends signals to components to start/stop operations
• Helps translate user input from the console into appliance actions
• Commonly used when controls are unresponsive, display errors, or cycles don't start/complete

• Disconnect power to the appliance before service to avoid shock or damage
• Handle the board carefully; avoid static discharge and rough handling of connectors
• Basic panel removal and connector reconnection are typically required.

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This temperature sensor monitors refrigerator temperature and sends readings to the control board so the appliance can regulate cooling. Replacing a failing sensor restores accurate temperature feedback for reliable cooling performance. What it does

• Measures internal temperature and reports it to the refrigerator control board
• Helps the system cycle the compressor and fans correctly for stable temperatures
• Commonly linked to symptoms like poor cooling, frequent compressor run, or temperature-related error codes
• Works as the sensing element for automatic defrost and temperature-control routines

• One temperature sensor (thermistor) with attached lead

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring gently; secure the lead per factory routing to avoid contact with moving parts
• May require basic hand tools and access to the evaporator/thermostat area

The Magnetron is an OEM replacement part for Whirlpool microwaves. It is the main electronic component responsible for generating microwave energy for cooking and heating foods.

Causes of a bad magnetron can include electrical issues such as power surges, overheating due to blocked ventilation, or internal component wear and tear over time.

Symptoms of a bad magnetron include:

• The microwave not heating food
• Unusual buzzing or humming noises during operation
• A burning smell coming from the microwave
• The microwave shutting down or failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

The Halogen Bulb is an OEM replacement part is for Whirlpool range and oven models. This bulb provides concentrated light for the oven cavity, allowing users to clearly see food and monitor cooking progress.

Causes of a bad halogen bulb can include natural burnout over the lifecycle of the bulb from prolonged and frequent use of the oven light, or damage to the bulb from accidental impact or breakage during cleaning.

Symptoms of a bad halogen bulb include:

• Dim or no light emitted from the oven cavity
• Flickering or intermittent light function
• Premature burnout of the bulb filament

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This interlock is the door switch bracket used in select microwaves. It aligns and supports the door-switch mechanism so the oven runs only when the door is fully closed, restoring safe, consistent door-sensing and start/stop performance.

• Holds and aligns the door switches and latch levers inside the cabinet
• Ensures the microwave stops when the door opens and runs only when fully closed
• Common fixes: won't start unless the door is pressed, stops when the door is moved, or shows a door-related door message
• Replaces cracked, warped, or loose interlock brackets that cause intermittent operation

• Disconnect power before servicing; microwaves contain high-voltage capacitors
• Access is typically behind the control panel; note each switch's orientation and wiring before transfer
• Transfer existing switches and hardware to the new bracket as configured for your model
• Use caution around sharp cabinet edges

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This lower dishwasher spray arm circulates and directs pressurized water throughout the dishwasher basin to help clean dishes and cookware more evenly. Replacing a worn or damaged spray arm restores spray coverage and reduces spotting. What it does:

• Rotates and distributes water from the lower wash pump to reach bottom and mid-level racks
• Helps remove food soils and rinse away detergent residue for better cleaning results
• Worn, cracked, or clogged spray arms can cause poor cleaning, uneven results, or loud operation
• Compatible with standard lower spray arm mounts and spray patterns for many Whirlpool-style dishwashers

• One lower spray arm

• Disconnect power and water supply before starting any repair
• Remove the lower rack to access and replace the spray arm; hand-tighten retaining nut or clip per OEM guidance
• Inspect for retained debris or mineral buildup in the spray holes and clean before installation
• Do not overtighten plastic fasteners; test a short cycle to ensure proper rotation and no leaks

The Turntable Motor is an OEM part for Whirlpool microwave ovens. It is responsible for rotating the turntable or carousel tray inside the microwave, ensuring even heating and cooking of food.

Causes of a bad Turntable Motor can include wear and tear over time, lack of proper lubrication, or issues with the motor's bearings or electrical connections.

Symptoms of a bad Turntable Motor may include:

• The turntable not rotating or spinning erratically
• Loud grinding or squeaking noises during operation
• Potential uneven heating or hot/cold spots in food

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support is a replacement mounting bracket that stabilizes and secures internal components to prevent movement and wear. It restores proper alignment and reduces vibration and noise caused by a damaged or missing support. What it does

• Provides structural support for internal appliance assemblies to keep parts aligned.
• Reduces vibration and rattling that can occur when a support is cracked or broken.
• Prevents sagging or shifting of panels and components that may lead to further wear.
• Helps maintain normal operation by keeping moving parts properly positioned.

• Disconnect power (and water if applicable) before beginning any repair.
• Remove any panels or components blocking access.
• Verify bracket orientation and mounting hole alignment before tightening fasteners.
• Use appropriate hand tools and avoid overtightening to prevent damage; replace any fasteners that are worn or damaged.

This replacement door hinge restores smooth, stable door movement and proper alignment. Replacing a worn hinge helps the door open and close correctly so the appliance seals as designed and operates safely.

• Provides the pivot point for opening and closing the door
• Helps maintain door alignment for a consistent, reliable seal
• Replaces a bent, loose, or worn hinge that affects door operation
• Common symptoms: door sags, won't close fully, pops open, binds, or squeaks

• Disconnect power; turn off gas or water supply before servicing
• Support the door during removal and installation to prevent damage or injury
• Compare the new hinge to the original and transfer any reusable hardware
• After installation, check door alignment and closure; adjust per your model's service instructions

The Fan Motor is an OEM part compatible with Whirlpool microwave ovens. It is a crucial component responsible for circulating air and ventilating the interior of the microwave during operation. The fan motor ensures proper air flow, which helps regulate temperature and prevent overheating.

Symptoms of a bad Fan Motor include:

• Inadequate ventilation or poor air circulation within the microwave
• Overheating issues or unusual odors during use
• Excessive noise or rattling sounds coming from the fan area
• Complete failure of the fan to operate or turn on

Causes of a bad fan motor can range from bearing failure due to wear and tear over time, to physical damage from impact or debris buildup. Electrical issues, such as voltage fluctuations or component failures, can also contribute to the malfunction of the fan motor.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

The Inverter is an OEM replacment part for Whirlpool microwaves. It regulates the magnitude and duration of electromagnetic waves generated during cooking functions.

Causes of a faulty inverter can include general wear from prolonged use or damage from power surges entering the microwave.

Symptoms include:

• Inconsistent or incomplete heating of foods
• Sparking or burning smells emanating from within
• Control panel errors or failure to properly sense wattage settings

This OEM Whirlpool replacement ensures precise electromagnetic wave output. Compatible with KitchenAid, Maytag, Jenn-Air, and select other branded microwaves, the inverter restores consistent cooking performance.

This release rod links the push-button to the latch mechanism so the microwave door opens when pressed. Replacing a bent or broken rod restores smooth, consistent door release and proper latch operation.

• Transfers motion from the door-open button to the latch levers to release the door catch
• Helps ensure the door opens promptly when the button is pressed
• Common symptoms: button does nothing or feels loose, door hard to open, intermittent opening
• Often fails due to wear, misalignment, or a dislodged linkage

• Disconnect power; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Remove the upper grille and control panel to access the latch/button linkage
• Note the rod's routing and any clips; transfer reusable hardware and match original orientation
• After reassembly, verify door switch alignment and test for smooth opening before use

This door interlock assembly mounts behind the microwave's front panel and aligns the latch and safety switches. Replacing a worn interlock restores reliable door detection so the microwave only starts when the door is fully closed.

• Holds and actuates the internal door safety switches
• Maintains precise latch alignment to prevent false "door open" signals
• Ensures the microwave will not run with the door open for safety
• Common symptoms: won't start, requires pressing on the door to run, stops when the door is jostled, intermittent "door" message

• Disconnect power before servicing; microwaves contain a high-voltage capacitor that can retain a charge.
• Access typically requires removing the outer cabinet and control panel.
• Position switches correctly in the holder per your service manual and verify smooth latch engagement.
• After reassembly, the unit only operates with the door fully closed.

This tension spring restores proper movement and tension for the appliance component it secures, helping the part operate smoothly and reliably. It's a simple replacement that fixes common issues caused by worn or broken springs. What it does:

• Provides tension to hold or return a moving component to its correct position
• Helps stop sagging, slipping, or loose operation of doors, latches, or levers
• Can reduce rattling or unusual noises caused by a failed spring
• Restores normal mechanical action when the original spring is stretched or broken

• Disconnect power to the appliance before starting any repair
• Springs can be under tension—use appropriate tools and wear eye/hand protection
• Compare the new spring to the old one for length, coil size, and end fittings before installation

This support is a replacement mounting bracket that secures internal components and restores proper alignment and stability. It helps reduce vibration and prevents loose or sagging parts for safer, quieter operation. What it does:

• Provides a rigid mounting point to hold internal assemblies in place
• Restores correct alignment when panels or components sit unevenly
• Reduces vibration or rattling caused by a broken or missing support
• Helps prevent additional wear on adjoining parts by keeping components stable

• One support mounting bracket

• Recommended for repair by someone comfortable with appliance disassembly
• Disconnect power (and water, if applicable) before starting any repair
• Keep track of mounting hardware and gaskets removed during replacement
• Inspect adjacent parts for wear when installing this support and replace as needed

This oven temperature sensor monitors the oven cavity temperature and sends readings to the control board so your range can maintain accurate cooking temperatures. Replacing a faulty sensor restores proper temperature sensing for reliable bake and roast results. What it does:

• Measures internal oven temperature and reports it to the control board
• Helps maintain set cooking temperatures for even baking and roasting
• Common repair for ovens that run too hot, too cool, or display temperature errors
• Works with electronic controls to enable accurate temperature cycles

• One temperature sensor

• Disconnect power to the appliance before beginning any repair
• Sensor typically mounts inside the oven cavity and connects to a plug or harness; confirm connector location before removing
• Handle sensor carefully to avoid bending or damaging the probe

This convection fan motor assembly circulates air inside the microwave's convection oven cavity to promote even cooking and browning. It replaces a failed fan motor to restore proper airflow for convection cooking performance. What it does:

• Circulates heated air across the oven cavity for more even baking and roasting
• Aids in consistent temperature distribution during convection cycles
• Stops or reduces overheating by moving hot air away from internal components
• Common symptoms: no convection airflow, uneven cooking/browning, humming or grinding noise from fan area

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle sharp sheet-metal edges and the assembly carefully to avoid cuts
• Verify connector orientation and secure wiring; do not force connectors

This temperature sensor monitors oven cavity temperature and sends readings to the range control so your oven can regulate bake and broil cycles more accurately. Replaces a failing sensor to restore reliable temperature sensing. What it does:

• Detects oven cavity temperature and reports it to the control board
• Helps the range maintain set cooking temperatures during bake/broil cycles
• Common symptom: oven runs too hot, too cold, or cooks unevenly
• Can cause temperature-related error codes or prevent proper preheating

• Disconnect power to the appliance before starting any repair
• Handle the sensor and its wiring harness carefully to avoid damage
• Install the sensor in the original location and orientation for proper readings

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

This transformer converts incoming mains power to the low-voltage supply your appliance's control board needs, restoring reliable control and display operation. It's a direct-replacement component for worn or failed transformers. What it does:

• Provides the low-voltage power feed used by the control board and user interface
• Stops intermittent or complete loss of display or control responsiveness
• Prevents erratic cycling or failure to start when the control supply is interrupted
• Helps eliminate buzzing or overheating caused by a failing transformer

• One replacement transformer (exact part number required for compatibility)

• Disconnect all power at the breaker or unplug the appliance before servicing
• Note or photograph original wiring and connector locations for correct reassembly
• Handle with care; avoid touching terminals while energized and secure all covers
• Replace with the exact OEM part number to ensure correct voltage and fit
