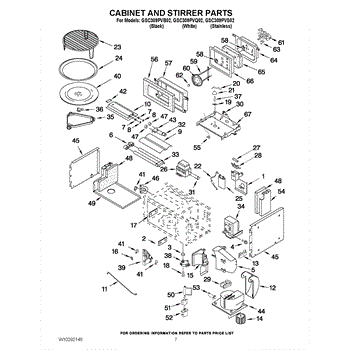

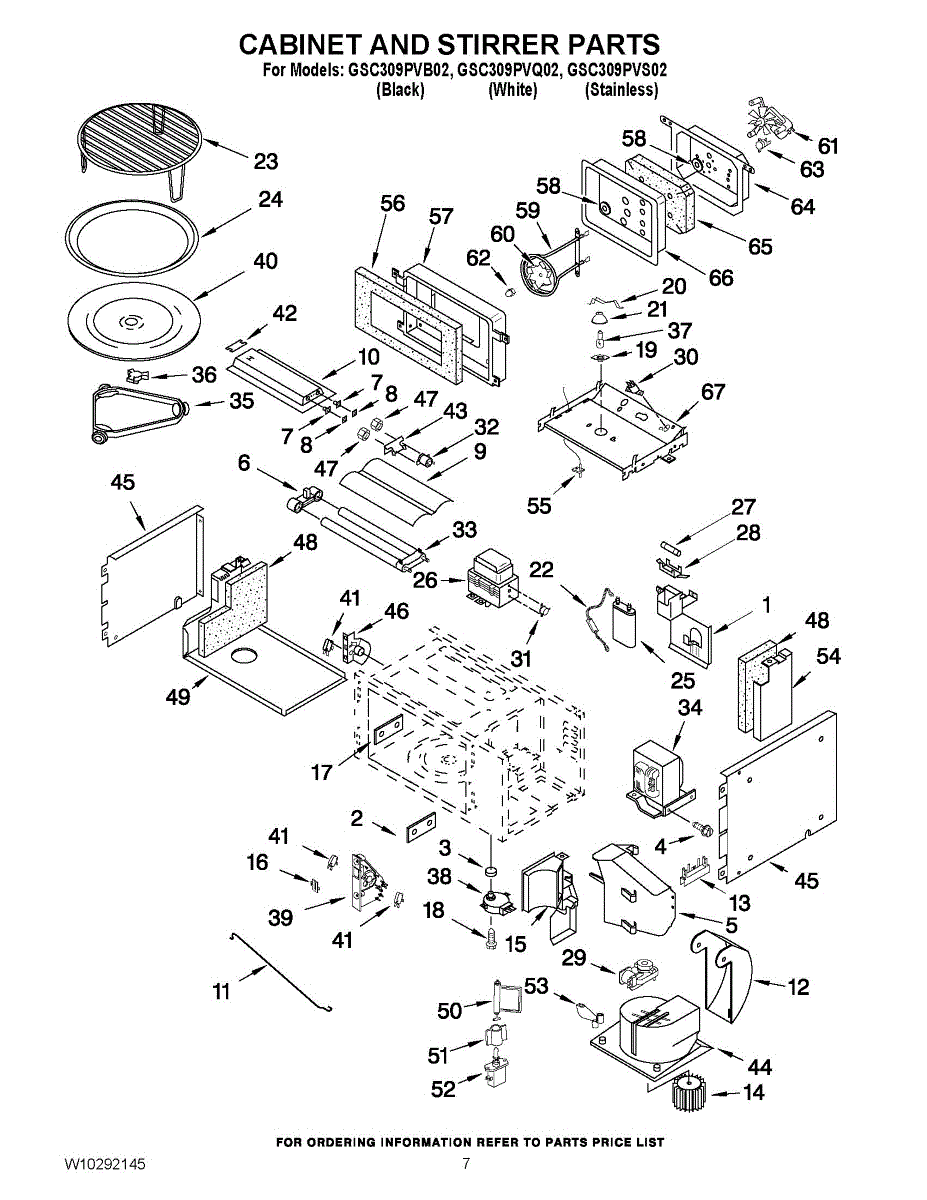

Parts for Whirlpool GSC309PVB02: 06 - Cabinet And Stirrer Parts

The Microwave Door Torsion Spring is an OEM replacement part for Whirlpool microwaves. As a crucial closure component, it works to securely close and maintain a firm seal on the microwave door.

Causes of a bad torsion spring can include wear from opening the door repeatedly, stress fractures from over-tightening brackets, or damage inhibiting proper closure tension.

Symptoms of a bad torsion spring include:

• The door not closing or sealing fully
• Uneven pressure allows leaks around the perimeter
• Unable to maintain a locked position during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

NOTE: For black, white, and biscuit models. Yellow color tip. Right-hand side. For the left-hand side order WP4451008.

***FOR KEMC308KSS** STAINLESS MODELS, USE PART # WP4452396 FOR RIGHT SIDE AND PART # WP4452395 FOR LEFT SIDE***


This replacement screw is a general-purpose fastener used to secure exterior panels, trim, or internal components on compatible Whirlpool appliances. It restores proper fit and reduces rattles or loose parts for a safer, more reliable appliance. What it does:

• Secures panels, trim pieces, or mounting brackets to keep components in place
• Prevents vibration-related noise and movement caused by missing or loose fasteners
• Helps maintain alignment of control panels and exterior housings
• Replaces stripped, corroded, or lost screws to restore original fit

• Use the correct screwdriver or bit to avoid stripping the head
• Match screw length and thread engagement with the original for a secure fit
• Tighten to snug only; over-tightening can strip threads or crack panels
• Disconnect power before performing repairs on electrical components

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

The Diode is an OEM part for Whirlpool microwaves. This part convers AC power to DC power to ensure proper operation of the magnetron, which generates the microwaves for cooking.

Causes of a bad diode can include electrical surges, wear and tear over time, or damage due to excessive heat.

Symptoms of a bad diode include:

• The microwave not heating or only heating intermittently
• Unusual noises such as buzzing or humming during operation
• The microwave running but not producing heat
• Visible damage or burn marks on the diode

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This removable cooking rack is designed for use during convection or combination cycles in compatible microwave ovens. It elevates food for proper airflow and browning, restoring full cooking capacity when the original rack is missing or damaged.

• Provides a stable, elevated surface for cookware in convection and combo-cook modes
• Improves air circulation for more even baking/roasting during convection cycles
• Replaces a lost, bent, or pitted rack that can lead to arcing or uneven results
• Supports two-level cooking when permitted by your model's instructions

• Allow the oven to cool before handling; remove the old rack and clean the support areas
• Seat the rack on the designated guides/hooks and ensure it is level and not touching cavity walls
• Use only as directed in your owner's manual; improper placement or cycle selection can cause arcing/sparking

This capacitor is a replacement motor start/run capacitor that helps the appliance motor start and run smoothly, restoring reliable operation and reducing motor strain. Designed as a direct-fit electrical component for affected Whirlpool units. What it does:

• Provides the necessary phase shift/starting boost to the motor so it can start and maintain proper speed
• Replaces a failed or weak capacitor that may cause a motor to hum, stall, struggle to start, or run intermittently
• Helps prevent excessive motor heat and excessive wear caused by poor starting performance
• Restores correct electrical characteristics when the original capacitor has degraded

• Always disconnect the appliance from power before accessing electrical components
• Discharge the capacitor before handling to avoid shock; use insulated tools and follow safety procedures
• Note and reconnect wiring exactly as found; take a photo before removal if needed

This microwave magnetron is the RF power tube that creates the microwaves that heat food. Replace it to restore normal heating when the oven runs but food stays cold or warms inconsistently.

• Generates microwave energy from the high-voltage system to cook food
• Common fix for: runs but doesn't heat
• Can help resolve loud humming/buzzing from the high-voltage section

• Unplug the appliance; the high-voltage capacitor can retain a dangerous charge—discharge it properly before service
• Install in the same orientation; tighten mounting screws evenly and reconnect leads securely; avoid touching the ceramic antenna—handle by the frame
• After reassembly, test with a microwave-safe water load; never operate the oven empty

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This Is A Blower Motor !!!! For Turntable Motor Use W10642989!!!!

This fixed thermostat protects the appliance by opening the circuit when excessive heat is detected. Replacing a failed or weak thermostat restores reliable over-temperature protection and helps prevent heat-related shutdowns.

• Opens the circuit if the protected area overheats to help prevent damage to components
• Helps with symptoms like unexpected shutdowns during operation or no power after overheating
• Can be the cause when the unit only runs again after cooling down
• Helps maintain safe operating temperatures around heat-sensitive parts

• Disconnect power before servicing; some appliances contain high-voltage components
• Access location varies by model; note wire positions before removal and transfer one lead at a time
• Reuse existing mounting hardware; ensure firm terminal connections and correct orientation
• After replacement, confirm proper airflow/venting and normal operation

Replacement transformer that supplies the appliance's low-voltage control power so control boards and components can operate reliably. Use this transformer when the original fails to provide stable power to controls or relays. What it does:

• Converts incoming household/mains voltage into lower control voltage for the appliance's electronics.
• Provides power to control boards, timers, relays and low-voltage solenoids so operational circuits can run.
• Failing transformer can cause dead or unresponsive control panels, intermittent operation, or functions that stop working.
• Serves as a direct replacement to restore control-circuit power when the original transformer is faulty.

• One replacement transformer (quantity: 1)

• Always disconnect power to the appliance at the breaker or unplug before servicing.
• Note or photograph wiring and connector locations before removing the old transformer; reconnect exactly as found.
• Use existing mounting hardware or matched fasteners; avoid forcing connectors or bending terminals.

Per Whirlpool Kit no longer comes with the coupler. This is the Ring only. If coupler is needed order part WP8183788

This turntable coupler connects the microwave's motor shaft to the glass tray so the turntable rotates evenly for consistent cooking. It restores proper tray rotation when the turntable no longer spins. What it does:

• Transfers motor rotation to the glass turntable so food rotates during cooking
• Stops slipping or intermittent turning caused by a worn or broken coupler
• Eliminates grinding or clicking noises from a damaged drive connection
• Helps ensure even heating by maintaining steady tray movement

• One turntable coupler

• Disconnect power before servicing the appliance to avoid shock
• Remove the glass tray and roller ring to access the motor shaft; align and press the coupler onto the shaft until fully seated
• Inspect the roller ring and glass tray for damage while replacing the coupler
• Test operation after reassembly; if the coupler slips or won't seat, do not force it—verify correct orientation and condition of adjoining parts

The Microwave Light Bulb is an OEM part for Whirlpool microwaves. It illuminates the interior of the microwave, allowing you to monitor the cooking process and ensuring visibility while using the appliance.

You should replace this light bulb if it burns out or becomes damaged. Causes of a bad light bulb can include natural burnout over time, electrical surges, or damage from accidental impact.

Symptoms of a bad light bulb include:

• The microwave interior remaining dark during operation
• Flickering light inside the microwave
• The light not turning on at all when the door is opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This microwave turntable motor drives the glass tray to rotate food for more even heating. Replacing the motor restores smooth, consistent rotation and dependable cooking performance.

• Drives the turntable during cook/defrost cycles for more uniform heating
• Turntable won't turn or only turns intermittently
• Jerky movement or tray requires a push to start
• Humming, grinding, or clicking from beneath the tray area

• Disconnect power by unplugging the microwave or switching off the breaker before servicing; microwaves contain high-voltage components that can retain a charge
• Remove the glass tray and support ring before accessing the motor
• Access is typically from the bottom panel; note wire connections and motor orientation before removal
• After installation, ensure the coupler engages properly and the tray spins freely

Switch kit contains 3 switches, all should be changed.

Switch kit contains 3 switches, all should be changed.

The Turntable Tray is an OEM part for Whirlpool microwaves. This circular plastic tray sits atop the cavity within the microwave. The turntable tray is responsible for smoothly rotating food items during cooking cycles to ensure even heating exposure. It prevents hot and cold spots that can ruin prepared meals. The tray measures approximately 16 inches in diameter.

Causes relate to extended use over time, warping from high heat exposure, or accumulating residue that impedes free movement.

Symptoms of a worn turntable tray include:

• Inconsistent cooking results with some portions remaining underdone
• Squeaking or scraping noises emitting from below during operation
• The tray no longer spinning smoothly on its post seal track

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Switch kit contains 3 switches, all should be changed.

Switch kit contains 3 switches, all should be changed.

This is the left side insulation. For right side use 4375410.

This is the right side insulation. For left side use 4375409.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.
