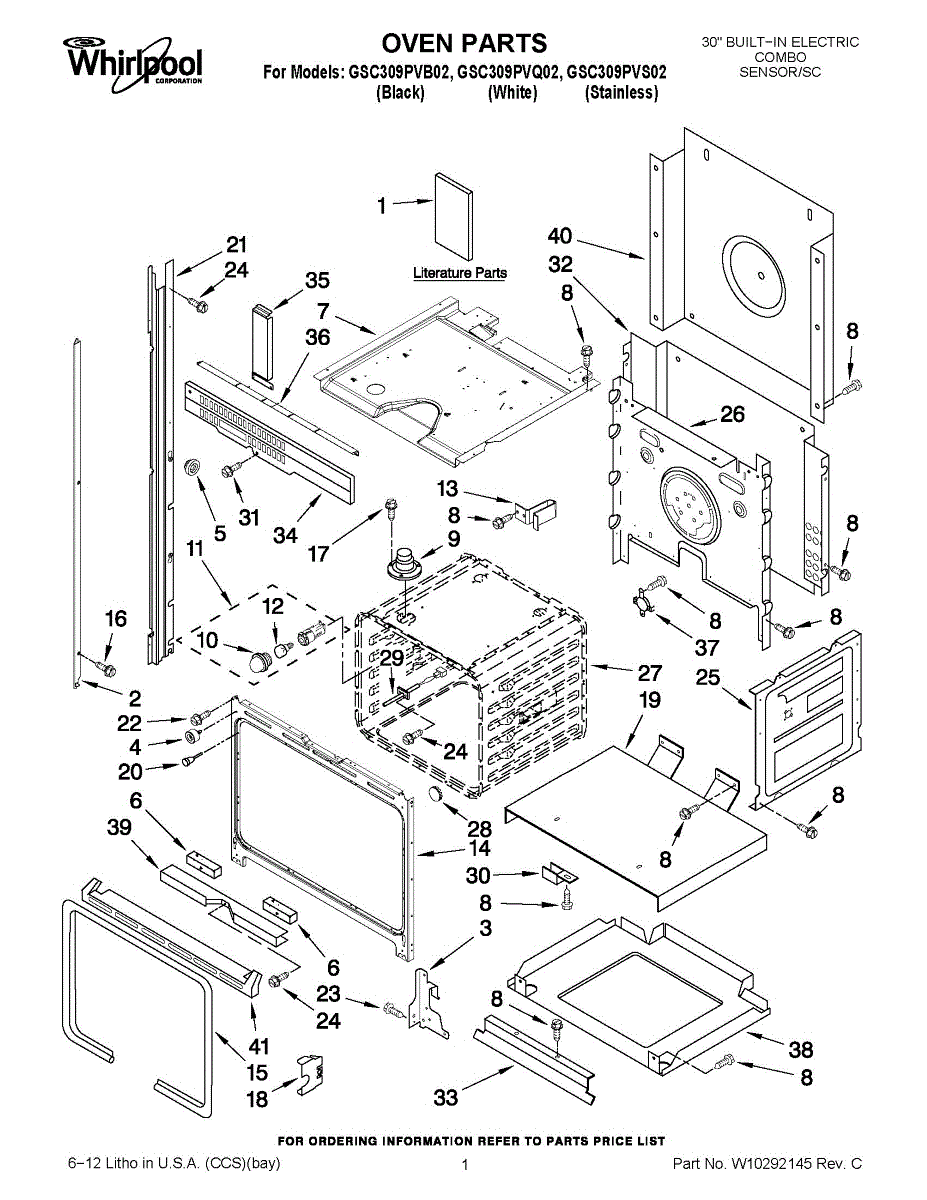

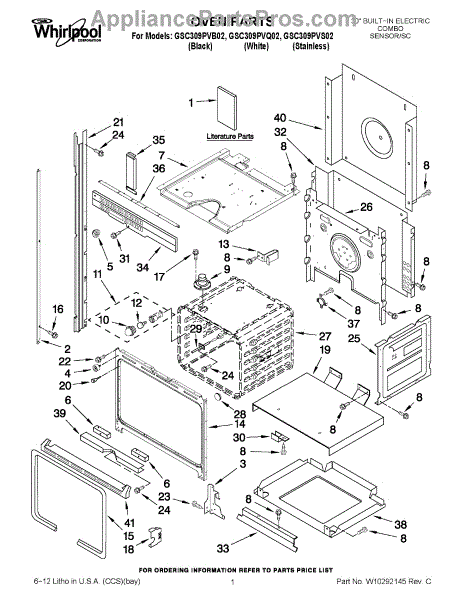

Parts for Whirlpool GSC309PVB02: 01 - Oven Parts

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Right side hinge receiver for door hinge. For left side hinge receiver use WP4455605.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This clear interior light lens protects and diffuses the refrigerator light, restoring even illumination inside the fresh-food compartment. Replace a cracked, yellowed, or missing lens to improve visibility and protect the bulb from spills. What it does

• Covers and shields the interior light bulb from splashes and debris
• Diffuses light for more even illumination throughout the compartment
• Helps prevent direct contact with the bulb, reducing breakage risk
• Common symptoms: cracked or discolored lens, uneven or glaring light, or a missing lens

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the lens gently—it is a molded plastic part that can crack if dropped
• Inspect the bulb and socket while the lens is removed; replace any damaged components
• No special tools typically required; your model's service instructions for safe removal/replacement steps

The Oven Light is an OEM part for Whirlpool ovens. It provides interior lighting, allowing you to monitor your food as it cooks without having to open the oven door. This light bulb is designed to withstand the high temperatures inside the oven, ensuring consistent and reliable illumination.

Causes of a bad oven light can include burning out from prolonged use, damage to the bulb or filament, or electrical issues with the light socket. When the oven light fails, it can make it challenging to check on your cooking progress.

Symptoms of a bad oven light include:

• No light inside the oven when the door is opened or during cooking
• Flickering or dim light
• Light turning on and off intermittently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the bulb only order WPW10169757

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

The Oven Gasket is an OEM component specifically designed for Whirlpool ranges. This gasket measuring 75.40 inches seals the oven door, preventing heat from escaping and maintaining optimal cooking temperatures inside the oven cavity.

Causes of a bad gasket include warping, cracks or tears that compromise the seal overtime due to repeated exposure to high heat.

Symptoms of a bad gasket include:

• Inefficient or uneven cooking
• Lower than expected oven temperatures
• Escaping heat from around the oven door
• A worn/damaged appearance

This Whirlpool OEM replacement gasket is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Screw for side trim.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Mounting bracket for bottom trim.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Size: 8-18 x 3/8 inch.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Right and left hand side.

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. This component is responsible for monitoring the oven's internal temperature, sending data to the control board to maintain the desired cooking temperature. It ensures accurate temperature readings, which are essential for baking, roasting, and other cooking functions.

Causes of a bad Oven Temperature Sensor include prolonged exposure to high temperatures, which can degrade its responsiveness over time. Additionally, physical damage or wear and tear can lead to inaccurate temperature readings.

Symptoms of a bad Oven Temperature Sensor include:

• The oven temperature is inconsistent with the setting.
• Food is not cooking evenly or as expected.
• The oven fails to reach the set temperature, or it overshoots it significantly.
• Error codes related to temperature regulation appear on the oven's display.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This support bracket secures and stabilizes appliance panels and internal assemblies where a small mounting brace is required. It restores proper alignment and helps prevent vibration or sagging for a firmer fit and quieter operation. What it does

• Anchors and supports panels, trim, or internal components to the cabinet or frame
• Keeps assemblies aligned to prevent rubbing, gaps, or misalignment
• Reduces rattling and vibration caused by loose or missing bracketry
• Restores proper fit when original bracket is bent, broken, or missing

• Disconnect power to the appliance before beginning any repair
• Inspect mounting location and replace any stripped fasteners or damaged hardware
• Use the correct screws and hand tools to avoid stripping or overtightening

Screw for control panel vent.

The Upper Oven Thermal Fuse is an OEM part compatible with Whirlpool double wall ovens. Located near the upper oven heating element, this safety device protects the upper oven cavity from excessive heat rises. If temperatures get too high, the fuse automatically cuts power to prevent overheating.

Symptoms of a blown upper oven thermal fuse include:

• The upper oven failing to heat or losing total heating function
• Burning smells emanating from the upper oven cavity
• Safety shutdown errors related to over-temperature conditions

Common causes are airflow restriction trapping heat or faulty wiring allowing overheating. Natural aging also deteriorates fuses over extended use cycles.

Compatible brands include KitchenAid, Jenn-Air and some Kenmore wall oven models.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

Color: Black

Color: Black

Color: Stainless

This insulation panel replaces the factory foam that lines the appliance cabinet to help maintain interior temperatures and reduce heat transfer. It supports efficient operation and helps the appliance reach and hold set temperatures. What it does:

• Replaces worn or damaged cabinet insulation to restore thermal barrier performance
• Helps reduce heat gain or loss so the appliance can cool or heat more consistently
• Can reduce noise and vibration transmission from panels around the cabinet
• Helps prevent condensation and improve energy efficiency when installed correctly

• Disconnect power before starting and remove food or contents as needed
• Follow the OEM service manual/diagram for correct placement and orientation
• Handle foam gently to avoid tearing; use gloves to keep adhesive areas clean
• Do not compress insulation excessively; secure with OEM fasteners or adhesives only
