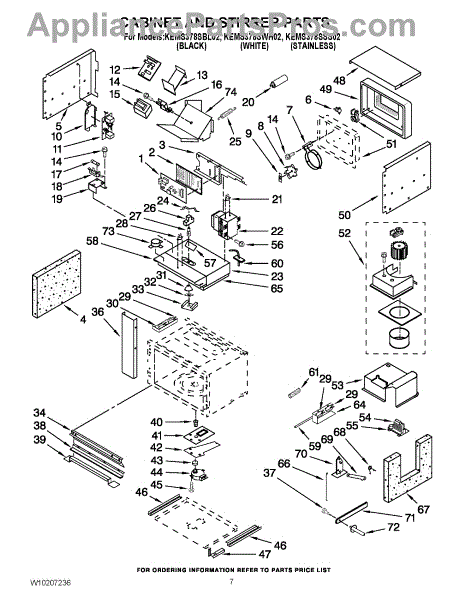

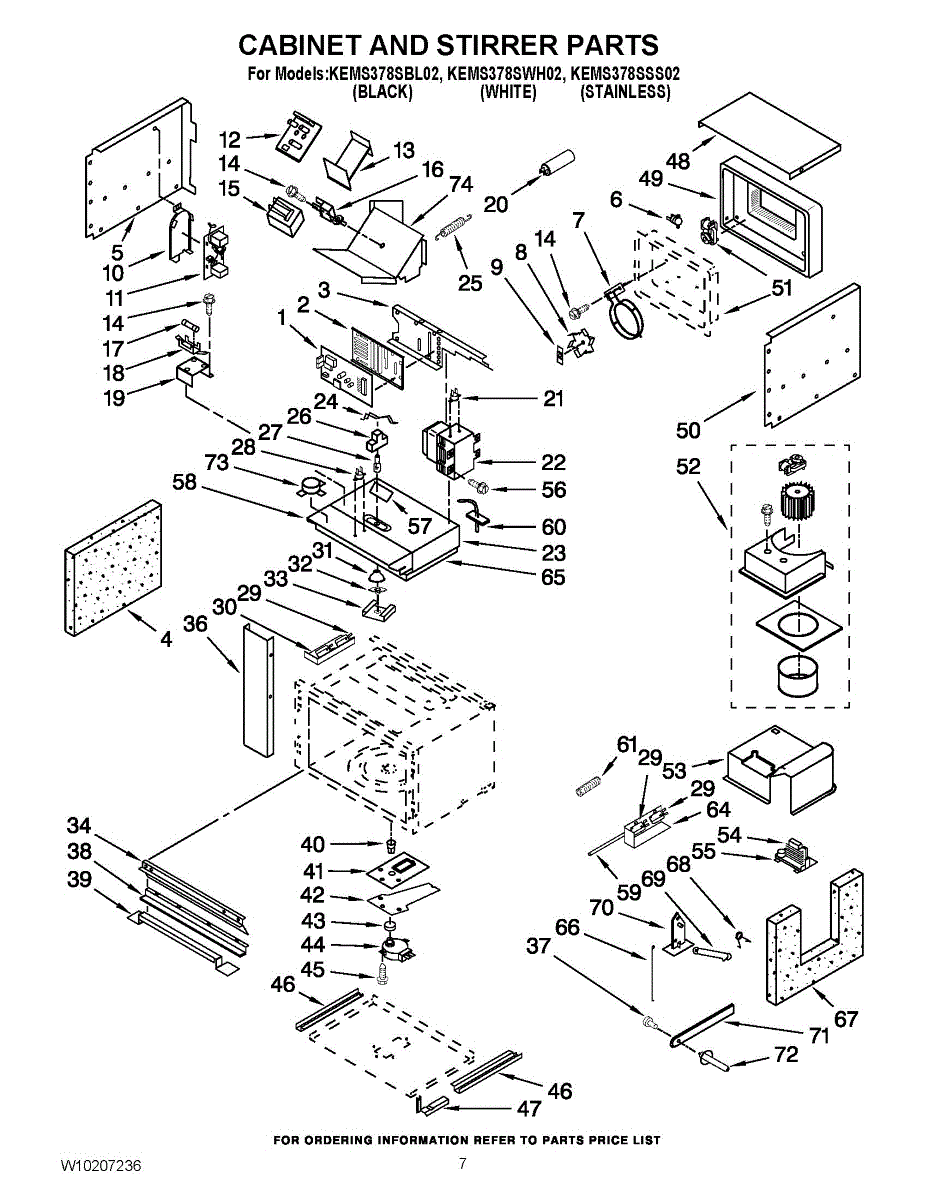

Parts for Kitchenaid KEMS378SBL02: 06 - Cabinet And Stirrer Parts

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

The Support is an OEM part for Whirlpool microwaves, designed to secure the heating element in place. This support ensures the stability and proper functioning of the microwave's heating element, which is essential for cooking and heating food evenly.

Causes of failure can range from normal wear and tear over time, which can weaken the material of the support, to accidental damage during cleaning or use.

Symptoms of a bad Support include:

• The heating element becoming loose or misaligned, leading to uneven cooking or heating.
• Excessive vibration or noise from the microwave during operation, indicating a lack of stability.
• Visible wear or damage to the support, such as cracks or warping from heat exposure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This noise filter reduces electrical interference on the appliance's power line to help prevent buzzing, humming or intermittent operation caused by electrical noise. It restores quieter, more reliable performance when the filter is the worn component. What it does:

• Suppresses electrical noise and interference on the appliance power line
• Helps reduce audible buzzing, humming or intermittent electronic behavior
• Protects sensitive control electronics from stray electrical transients
• Restores normal operation when a damaged filter is the root cause

• Disconnect power before servicing to avoid shock hazard
• Handle and mount the filter per OEM orientation; secure connections firmly

This transformer converts incoming mains power to the low-voltage supply your appliance's control board needs, restoring reliable control and display operation. It's a direct-replacement component for worn or failed transformers. What it does:

• Provides the low-voltage power feed used by the control board and user interface
• Stops intermittent or complete loss of display or control responsiveness
• Prevents erratic cycling or failure to start when the control supply is interrupted
• Helps eliminate buzzing or overheating caused by a failing transformer

• One replacement transformer (exact part number required for compatibility)

• Disconnect all power at the breaker or unplug the appliance before servicing
• Note or photograph original wiring and connector locations for correct reassembly
• Handle with care; avoid touching terminals while energized and secure all covers
• Replace with the exact OEM part number to ensure correct voltage and fit

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This thermostat temperature limiter helps regulate oven temperature and prevents overheating by signaling the control when set limits are reached. It replaces a faulty limiter to restore proper temperature control and safer operation. What it does

• Acts as a temperature-sensitive switch that opens or closes at a set temperature to limit heat.
• Prevents the oven from exceeding safe temperatures by cutting power to the heating circuit when triggered.
• Commonly used when the oven won't reach or maintain set temperatures, or when it overheats and shuts down.
• Works as a safety/limit device in the appliance's temperature control system.

• One thermostat temperature limiter

• Disconnect power at the breaker or unplug the appliance before servicing.
• Handle terminals carefully and secure wiring to original connections; avoid bending or stressing the sensor.

The Magnetron is an OEM replacement part for Whirlpool microwaves. It is the main electronic component responsible for generating microwave energy for cooking and heating foods.

Causes of a bad magnetron can include electrical issues such as power surges, overheating due to blocked ventilation, or internal component wear and tear over time.

Symptoms of a bad magnetron include:

• The microwave not heating food
• Unusual buzzing or humming noises during operation
• A burning smell coming from the microwave
• The microwave shutting down or failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This lamp holder secures and powers the oven/cabinet G4-base bulb so interior lighting works reliably and safely. It restores proper bulb contact and helps prevent flickering or intermittent lighting. What it does:

• Holds the G4-base light bulb in place and provides the electrical connection
• Restores interior lighting when the socket is loose, corroded, or damaged
• Helps stop flickering or intermittent on/off issues caused by a faulty holder
• Compatible with the oven/cabinet light assembly that uses a G4-style bulb

• Disconnect power to the appliance before servicing to avoid shock
• Allow the appliance and bulb to cool before touching components
• Inspect wiring and connectors; replace the holder if terminals are corroded or melted
• Use the correct G4 bulb type and wattage per the appliance manufacturer's instructions

The Microwave Light Bulb is an OEM part for Whirlpool microwaves. It illuminates the interior of the microwave, allowing you to monitor the cooking process and ensuring visibility while using the appliance.

You should replace this light bulb if it burns out or becomes damaged. Causes of a bad light bulb can include natural burnout over time, electrical surges, or damage from accidental impact.

Symptoms of a bad light bulb include:

• The microwave interior remaining dark during operation
• Flickering light inside the microwave
• The light not turning on at all when the door is opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door interlock assembly mounts behind the microwave's front panel and aligns the latch and safety switches. Replacing a worn interlock restores reliable door detection so the microwave only starts when the door is fully closed.

• Holds and actuates the internal door safety switches
• Maintains precise latch alignment to prevent false "door open" signals
• Ensures the microwave will not run with the door open for safety
• Common symptoms: won't start, requires pressing on the door to run, stops when the door is jostled, intermittent "door" message

• Disconnect power before servicing; microwaves contain a high-voltage capacitor that can retain a charge.
• Access typically requires removing the outer cabinet and control panel.
• Position switches correctly in the holder per your service manual and verify smooth latch engagement.
• After reassembly, the unit only operates with the door fully closed.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This lower dishwasher spray arm circulates and directs pressurized water throughout the dishwasher basin to help clean dishes and cookware more evenly. Replacing a worn or damaged spray arm restores spray coverage and reduces spotting. What it does:

• Rotates and distributes water from the lower wash pump to reach bottom and mid-level racks
• Helps remove food soils and rinse away detergent residue for better cleaning results
• Worn, cracked, or clogged spray arms can cause poor cleaning, uneven results, or loud operation
• Compatible with standard lower spray arm mounts and spray patterns for many Whirlpool-style dishwashers

• One lower spray arm

• Disconnect power and water supply before starting any repair
• Remove the lower rack to access and replace the spray arm; hand-tighten retaining nut or clip per OEM guidance
• Inspect for retained debris or mineral buildup in the spray holes and clean before installation
• Do not overtighten plastic fasteners; test a short cycle to ensure proper rotation and no leaks

This turntable drive shaft connects the turntable motor to the coupler and glass tray so the microwave can rotate food for even heating. Replacing a worn or damaged shaft restores smooth, reliable turntable rotation.

• Transfers motor torque to the coupler and tray to spin the turntable
• Helps ensure even cooking and reheating performance
• Common symptoms: turntable not turning, intermittent or jerky rotation, tray wobbling or uneven heating, grinding/clicking from under the tray

• Unplug the appliance before service; microwave components can retain dangerous voltage
• Remove the glass tray and support, then access the shaft from inside the cavity
• Inspect the coupler and motor for wear; replace related parts if damaged
• Align the shaft properly to avoid stripping or noise on startup

This motor cover protects and secures the appliance motor assembly, keeping wiring and components shielded from debris and wear. It restores the motor's protective housing for safer, quieter operation. What it does:

• Shields the motor and wiring from lint, dust, and foreign objects
• Helps maintain proper airflow and component alignment around the motor
• Replaces cracked, broken, or missing housings that leave the motor exposed
• Can reduce rattle or rubbing caused by a damaged motor cover

• Disconnect power to the appliance before beginning any work
• Remove access panels or panels obstructing the motor to reach the mounting location
• Align the cover over the motor and secure with the original fasteners
• Inspect wiring and nearby components while installing; ensure no wires are pinched or contacting moving parts

The Turntable Motor is an OEM part for Whirlpool microwave ovens. It is responsible for rotating the turntable or carousel tray inside the microwave, ensuring even heating and cooking of food.

Causes of a bad Turntable Motor can include wear and tear over time, lack of proper lubrication, or issues with the motor's bearings or electrical connections.

Symptoms of a bad Turntable Motor may include:

• The turntable not rotating or spinning erratically
• Loud grinding or squeaking noises during operation
• Potential uneven heating or hot/cold spots in food

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support is a replacement mounting bracket that stabilizes and secures internal components to prevent movement and wear. It restores proper alignment and reduces vibration and noise caused by a damaged or missing support. What it does

• Provides structural support for internal appliance assemblies to keep parts aligned.
• Reduces vibration and rattling that can occur when a support is cracked or broken.
• Prevents sagging or shifting of panels and components that may lead to further wear.
• Helps maintain normal operation by keeping moving parts properly positioned.

• Disconnect power (and water if applicable) before beginning any repair.
• Remove any panels or components blocking access.
• Verify bracket orientation and mounting hole alignment before tightening fasteners.
• Use appropriate hand tools and avoid overtightening to prevent damage; replace any fasteners that are worn or damaged.

This replacement door hinge restores smooth, stable door movement and proper alignment. Replacing a worn hinge helps the door open and close correctly so the appliance seals as designed and operates safely.

• Provides the pivot point for opening and closing the door
• Helps maintain door alignment for a consistent, reliable seal
• Replaces a bent, loose, or worn hinge that affects door operation
• Common symptoms: door sags, won't close fully, pops open, binds, or squeaks

• Disconnect power; turn off gas or water supply before servicing
• Support the door during removal and installation to prevent damage or injury
• Compare the new hinge to the original and transfer any reusable hardware
• After installation, check door alignment and closure; adjust per your model's service instructions

The Inverter is an OEM replacment part for Whirlpool microwaves. It regulates the magnitude and duration of electromagnetic waves generated during cooking functions.

Causes of a faulty inverter can include general wear from prolonged use or damage from power surges entering the microwave.

Symptoms include:

• Inconsistent or incomplete heating of foods
• Sparking or burning smells emanating from within
• Control panel errors or failure to properly sense wattage settings

This OEM Whirlpool replacement ensures precise electromagnetic wave output. Compatible with KitchenAid, Maytag, Jenn-Air, and select other branded microwaves, the inverter restores consistent cooking performance.

This release rod links the push-button to the latch mechanism so the microwave door opens when pressed. Replacing a bent or broken rod restores smooth, consistent door release and proper latch operation.

• Transfers motion from the door-open button to the latch levers to release the door catch
• Helps ensure the door opens promptly when the button is pressed
• Common symptoms: button does nothing or feels loose, door hard to open, intermittent opening
• Often fails due to wear, misalignment, or a dislodged linkage

• Disconnect power; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Remove the upper grille and control panel to access the latch/button linkage
• Note the rod's routing and any clips; transfer reusable hardware and match original orientation
• After reassembly, verify door switch alignment and test for smooth opening before use

This door interlock assembly mounts behind the microwave's front panel and aligns the latch and safety switches. Replacing a worn interlock restores reliable door detection so the microwave only starts when the door is fully closed.

• Holds and actuates the internal door safety switches
• Maintains precise latch alignment to prevent false "door open" signals
• Ensures the microwave will not run with the door open for safety
• Common symptoms: won't start, requires pressing on the door to run, stops when the door is jostled, intermittent "door" message

• Disconnect power before servicing; microwaves contain a high-voltage capacitor that can retain a charge.
• Access typically requires removing the outer cabinet and control panel.
• Position switches correctly in the holder per your service manual and verify smooth latch engagement.
• After reassembly, the unit only operates with the door fully closed.

This tension spring restores proper movement and tension for the appliance component it secures, helping the part operate smoothly and reliably. It's a simple replacement that fixes common issues caused by worn or broken springs. What it does:

• Provides tension to hold or return a moving component to its correct position
• Helps stop sagging, slipping, or loose operation of doors, latches, or levers
• Can reduce rattling or unusual noises caused by a failed spring
• Restores normal mechanical action when the original spring is stretched or broken

• Disconnect power to the appliance before starting any repair
• Springs can be under tension—use appropriate tools and wear eye/hand protection
• Compare the new spring to the old one for length, coil size, and end fittings before installation

This lower dishwasher spray arm circulates and directs pressurized water throughout the dishwasher basin to help clean dishes and cookware more evenly. Replacing a worn or damaged spray arm restores spray coverage and reduces spotting. What it does:

• Rotates and distributes water from the lower wash pump to reach bottom and mid-level racks
• Helps remove food soils and rinse away detergent residue for better cleaning results
• Worn, cracked, or clogged spray arms can cause poor cleaning, uneven results, or loud operation
• Compatible with standard lower spray arm mounts and spray patterns for many Whirlpool-style dishwashers

• One lower spray arm

• Disconnect power and water supply before starting any repair
• Remove the lower rack to access and replace the spray arm; hand-tighten retaining nut or clip per OEM guidance
• Inspect for retained debris or mineral buildup in the spray holes and clean before installation
• Do not overtighten plastic fasteners; test a short cycle to ensure proper rotation and no leaks

This lower dishwasher spray arm circulates and directs pressurized water throughout the dishwasher basin to help clean dishes and cookware more evenly. Replacing a worn or damaged spray arm restores spray coverage and reduces spotting. What it does:

• Rotates and distributes water from the lower wash pump to reach bottom and mid-level racks
• Helps remove food soils and rinse away detergent residue for better cleaning results
• Worn, cracked, or clogged spray arms can cause poor cleaning, uneven results, or loud operation
• Compatible with standard lower spray arm mounts and spray patterns for many Whirlpool-style dishwashers

• One lower spray arm

• Disconnect power and water supply before starting any repair
• Remove the lower rack to access and replace the spray arm; hand-tighten retaining nut or clip per OEM guidance
• Inspect for retained debris or mineral buildup in the spray holes and clean before installation
• Do not overtighten plastic fasteners; test a short cycle to ensure proper rotation and no leaks

This support is a replacement mounting bracket that secures internal components and restores proper alignment and stability. It helps reduce vibration and prevents loose or sagging parts for safer, quieter operation. What it does:

• Provides a rigid mounting point to hold internal assemblies in place
• Restores correct alignment when panels or components sit unevenly
• Reduces vibration or rattling caused by a broken or missing support
• Helps prevent additional wear on adjoining parts by keeping components stable

• One support mounting bracket

• Recommended for repair by someone comfortable with appliance disassembly
• Disconnect power (and water, if applicable) before starting any repair
• Keep track of mounting hardware and gaskets removed during replacement
• Inspect adjacent parts for wear when installing this support and replace as needed

This lower dishwasher spray arm circulates and directs pressurized water throughout the dishwasher basin to help clean dishes and cookware more evenly. Replacing a worn or damaged spray arm restores spray coverage and reduces spotting. What it does:

• Rotates and distributes water from the lower wash pump to reach bottom and mid-level racks
• Helps remove food soils and rinse away detergent residue for better cleaning results
• Worn, cracked, or clogged spray arms can cause poor cleaning, uneven results, or loud operation
• Compatible with standard lower spray arm mounts and spray patterns for many Whirlpool-style dishwashers

• One lower spray arm

• Disconnect power and water supply before starting any repair
• Remove the lower rack to access and replace the spray arm; hand-tighten retaining nut or clip per OEM guidance
• Inspect for retained debris or mineral buildup in the spray holes and clean before installation
• Do not overtighten plastic fasteners; test a short cycle to ensure proper rotation and no leaks

This oven temperature sensor detects internal oven temperature so the control can regulate heating for even cooking and accurate bake cycles. Replaces a failed or intermittent sensor to restore proper temperature control. What it does

• Senses oven cavity temperature and sends readings to the control board
• Can cause oven to run too hot, too cool, or display temperature-related errors when failing
• Often used when bake/broil cycles are inconsistent or the oven won't reach set temperatures
• Works as the temperature feedback component for electronic oven controls

• Disconnect power to the appliance before testing or replacing the sensor
• Handle the sensor probe and wiring gently; avoid pulling on wires or kinking the lead
• Verify replacement by visually inspecting connections and testing continuity with a multimeter
