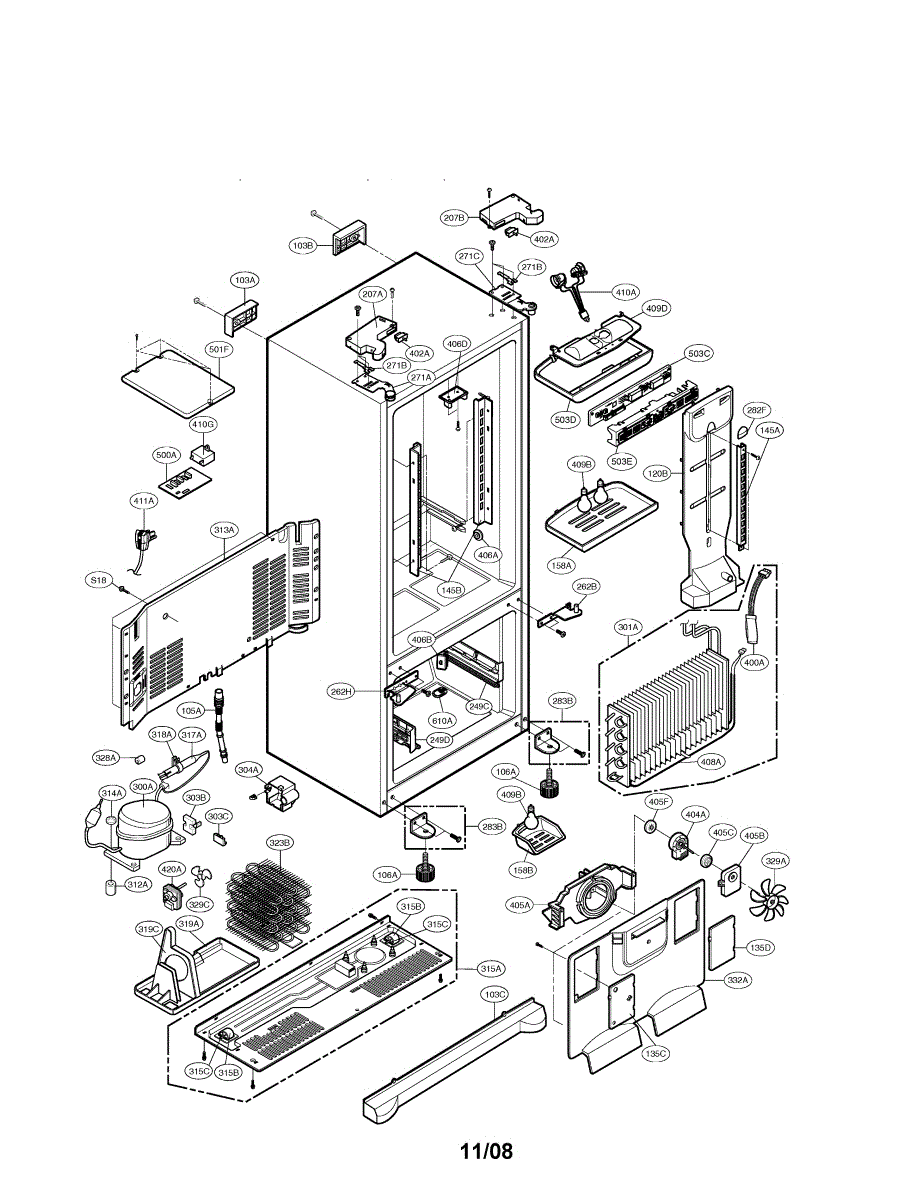

Parts for Lg LFC21760ST/00: Case Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

The LG light lens is an OEM replacement part responsible for protecting and diffusing the light emitted by the refrigerator's interior light bulb. The light lens cover helps create a well-lit interior environment, allowing users to see and access their stored food items clearly. It measures about 15 inches wide by 6 inches deep.

Over time, the light lens can become discolored, cracked, or damaged due to regular use and exposure to temperature changes. Causes of a bad light lens include wear and tear, impact from food items, or damage during cleaning.

Symptoms of a bad light lens include:

• Cracks or breaks in the lens
• Discoloration or clouding that reduces light clarity
• The lens not staying securely in place

This LG part can also be used on Kenmore/Sears appliances.

This center hinge assembly supports and pivots the middle door section to keep doors aligned and operating smoothly. Replace a worn or damaged center hinge to restore proper door movement and help maintain a tight seal. What it does:

• Provides the pivot point and structural support for the center door section to open and close smoothly
• Helps maintain door alignment to prevent rubbing, scraping, or uneven gaps
• Reduces door sag that can interfere with sealing and cooling efficiency
• Prevents binding or sticking during door operation

• One center hinge assembly

• Disconnect power to the appliance before starting any repair
• Doors are heavy—have a second person assist to support doors while removing or installing the hinge
• Remove any trim or covers to access hinge screws; align doors fully before tightening fasteners
• Use manufacturer-recommended torque; do not overtighten screws or force parts into place

This center hinge assembly replaces the refrigerator door center hinge to restore proper door alignment and smooth operation. It supports the door weight and helps maintain correct sealing for reliable cooling performance. What it does:

• Supports the center of the door, keeping it aligned and preventing sagging
• Provides the pivot point for smooth opening and closing
• Helps maintain a consistent door seal to prevent cool-air loss
• Can eliminate shifting, squeaking, or uneven door gaps caused by a worn hinge

• 1 center hinge assembly

• Disconnect power and empty or support the door before removing the hinge
• Use appropriate tools and a second person to safely support the door during replacement
• Inspect adjoining hinges and mounting hardware; replace any damaged fasteners for best results

Right side upper hinge.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser fan assembly circulates air across the condenser coils and compressor to remove heat from the refrigeration system. Replacing a failing fan helps restore efficient cooling performance and protects the compressor from overheating. What it does:

• Draws air through the condenser coils to dissipate heat
• Supports proper system pressures and overall cooling efficiency
• Helps maintain stable temperatures in both compartments
• Common symptoms include the fan not running, loud noise from the rear, warm cabinet temperatures, or a very hot compressor area

• Pre-assembled fan motor with blade and mounting bracket

• Disconnect power before servicing; use gloves to protect against sharp edges
• Access the lower rear compartment and remove the back cover to reach the fan
• Note wire positions; move over any reusable grommets or screws and secure the assembly firmly
• The blade spins freely and is oriented to move air across the condenser; clean coils before restoring power

The Defrost Sensor Assembly is an OEM part for LG refrigerators. This integral component plays a key role in monitoring the temperature within the refrigerator's freezer section, particularly during the defrost cycle. It ensures that the defrost system activates and deactivates at appropriate temperatures to maintain efficient operation and prevent frost buildup.

Symptoms of a faulty defrost sensor assembly include:

• Excessive frost or ice accumulation in the freezer
• Refrigerator or freezer section experiencing temperature fluctuations
• Defrost cycle not running or running too frequently

Causes of defrost sensor failure often involve damage from moisture or ice, electrical faults, or degradation over time, which can lead to inaccurate temperature readings and improper defrost cycle regulation.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is responsible for detecting whether the refrigerator door is open or closed, allowing the appliance to control the interior light and, in some models, the cooling functions accordingly.

Causes of a bad door switch can include wear and tear from frequent use, electrical issues, or physical damage to the switch mechanism. A faulty door switch can lead to improper operation of the refrigerator's light or cooling system, affecting overall performance.

Symptoms of a bad door switch include:

• Interior light not turning on or off properly
• Refrigerator not cooling properly or running continuously
• Door alarm not functioning correctly
• Intermittent or unresponsive switch operation

This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling performance in the refrigerator compartment
• Freezer section cooling properly while the refrigerator remains warm
• Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This bracket holder assembly is a structural mount used to secure an internal component, keeping it properly positioned during operation. Replacing a cracked or loose bracket restores support and helps prevent vibration, rattling, and misalignment.

• Provides a fixed mounting point to hold the supported part in place
• Maintains alignment to reduce vibration, rubbing, or noise
• Helps prevent shifting that can lead to premature wear
• Common symptoms: broken tabs or cracks, loose/misaligned component, rattling noises, visible damage to the old bracket

• Disconnect power; shut off water or gas if applicable
• Note screw locations and orientation; take a photo before removal
• Transfer any reusable clips or hardware from the old bracket
• Tighten fasteners evenly and avoid over-tightening to prevent damage

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

The Freezer Defrost Heater is an OEM part for LG refrigerators. It plays a crucial role in the defrost system by melting any frost or ice buildup on the evaporator coils. This helps maintain the efficiency of the cooling system and ensures the freezer operates properly.

Over time, the defrost heater can wear out or fail due to continuous heating and cooling cycles, electrical issues, or physical damage. Causes of a bad defrost heater include burnouts, electrical faults, and accumulation of frost that hinders its functionality.

Symptoms of a bad freezer defrost heater include:

• Excessive frost buildup in the freezer
• The freezer not maintaining the set temperature
• The refrigerator running continuously or cycling more frequently
• Water leaks inside the freezer from melting ice

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp reflector mounts behind the refrigerator light to direct and spread illumination throughout the compartment. Replacing a cracked, melted, or missing reflector helps restore bright, even lighting so you can clearly see food and shelves. What it does

• Sits behind the interior lamp to reflect light forward into the compartment
• Helps maintain even, consistent illumination and reduces shadows
• Typical symptoms: dim or uneven lighting with a good bulb, yellowed/melted reflector, cracked or missing reflector
• Supports proper visibility around shelves and bins

• 1 lamp reflector

• Disconnect power before servicing to avoid electric shock
• Remove the light lens/cover and bulb to access the reflector
• Reuse existing screws or clips as applicable
• Do not overtighten fasteners; reinstall bulb and lens, restore power, and test

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

The PCB Assembly, Main is an OEM part for LG refrigerators. This main control board, or printed circuit board (PCB), manages and coordinates all the refrigerator's functions, including temperature regulation, defrost cycles, and other essential operations. It acts as the brain of the refrigerator, ensuring efficient and effective performance.

Common causes of a bad PCB include electrical surges, manufacturing defects, or wear and tear over time. These issues can disrupt the refrigerator's normal functions and lead to various operational problems.

Symptoms of a bad PCB assembly include:

• The refrigerator not cooling properly
• Error codes displayed on the control panel
• Unresponsive or malfunctioning controls
• Inconsistent temperatures within the refrigerator compartments

This OEM LG part is also compatible with Sears/Kenmore models.

This display cover protects the appliance's control board and display while keeping the control area visible and clean. It restores the finished look of the control panel and shields buttons and the display from spills and wear. What it does:

• Protects the electronic display and control buttons from moisture, dust, and everyday wear
• Keeps the control area visible and easy to read
• Helps prevent accidental contact with control board components
• Restores a worn, cracked, or discolored control panel for improved appearance

• Disconnect power to the appliance before removing or installing the cover to avoid shock or damage
• Remove any retainers or control panel screws as needed; handle the cover carefully to avoid scratching
• Align the cover to the control panel and secure all fasteners; test controls after reassembly
• Replace those components before installing the cover

This display case is the molded housing for the refrigerator's control panel. It supports and aligns the user interface components and trim, restoring a secure, finished fit when the original case is cracked, broken, or out of shape.

• Positions and supports the display/selector board and buttons in the panel opening
• Provides mounting points for panel trim and fasteners
• Helps shield internal components from dust and incidental moisture
• Common signs it's needed: cracked or broken plastic, missing tabs, loose or misaligned control panel

• Unplug the refrigerator before servicing
• Remove the panel/trim per your model's procedure; note screw and clip locations
• Carefully handle the user interface board and wiring; avoid static discharge and pinched harnesses
• Transfer any brackets or clips from the old case to the new one, then reassemble and test

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.
