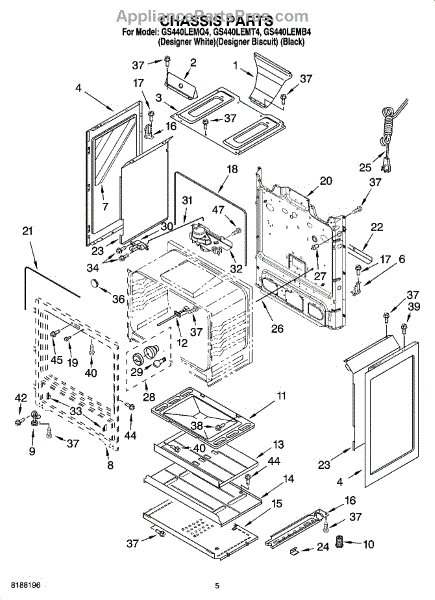

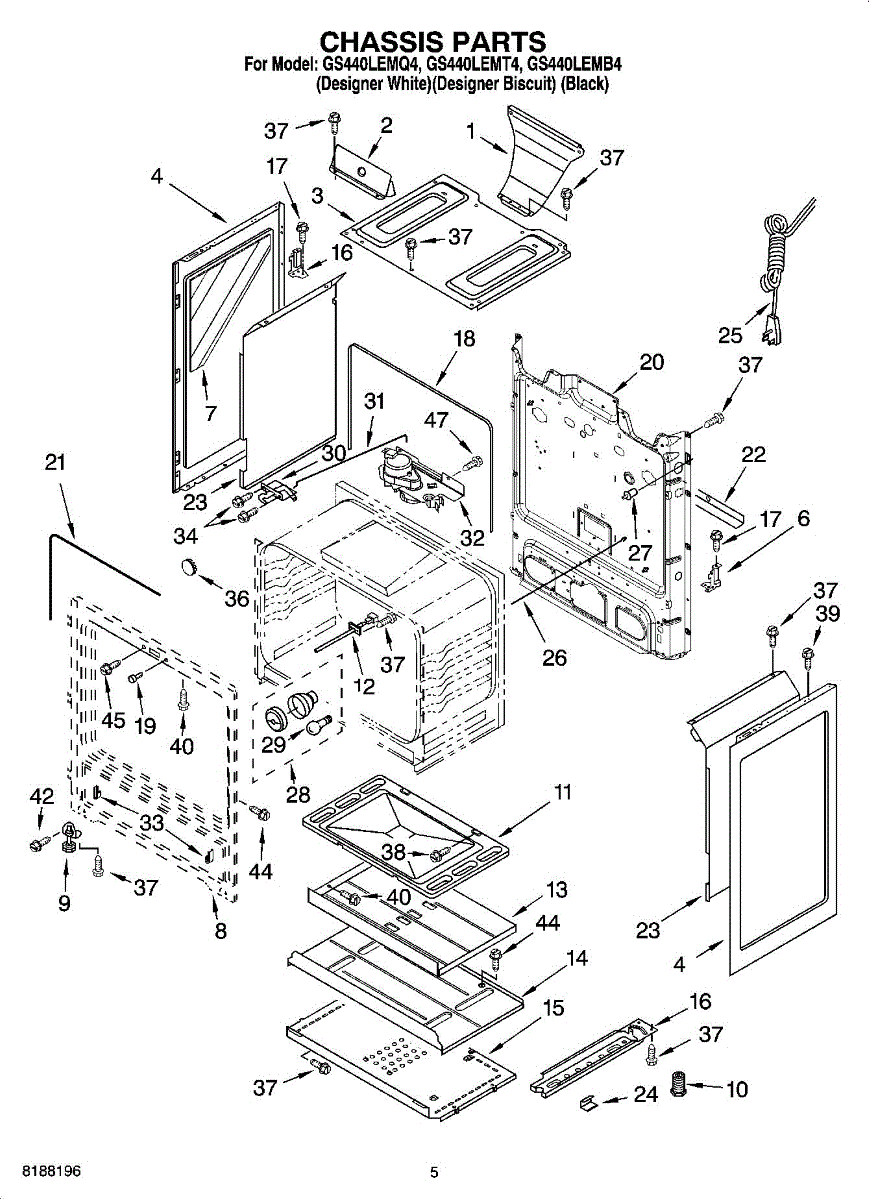

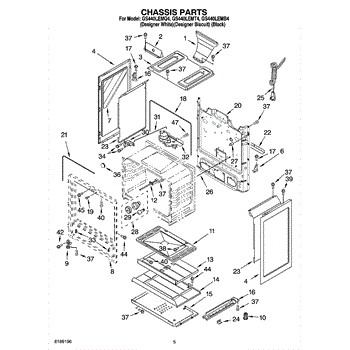

Parts for Whirlpool GS440LEMQ4: 04 - Chassis Parts

If your burner flame is uneven or yellow, or the burner sits loose, the burner box may need replacement. Restores proper gas flow and alignment.

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

Adjustable front leveling leg threads into the base corner of your range to raise or lower the unit. Replace if broken, cracked, or missing to level your range.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

This panel forms the floor of the oven, sitting above the bake element or burner to shield it from spills and provide a smooth, stable surface. Replace a warped or damaged panel to help maintain proper heating and easier cleanup. What it does:

• Forms the oven floor above the bake element or burner
• Shields the heat source from drips and debris to help prevent scorching and odors
• Supports designed airflow and heat distribution in the cavity
• Common replacement signs: warped or dented panel, rust or chipped finish, smoke/odors from spills beneath the panel, or uneven baking results

• 1 oven bottom panel

• Disconnect power (and shut off gas supply for gas ranges) before servicing; allow the oven to cool completely
• Remove oven racks; release front fasteners or clips and lift the old panel out of the rear tabs (method varies by model)
• Seat the new panel into rear tabs, align the front edge, and secure as originally installed
• Verify the panel sits flat and clear of the bake element or burner before reassembling

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Burner baffle installs under your gas range cooktop burner to shield components and direct heat. Replace if cracked, warped, or missing from use.

Protect internal components from excessive heat with this gas range heat shield. Replace if cracked, warped, or missing to maintain safe operation.

Lower heat shield for gas ranges. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

Structural support base for range drawer rail assembly. Replacement needed when original is cracked, broken, or warped causing misalignment or instability.

Seals the gap between your oven door and frame to maintain consistent heat and prevent moisture loss. Replace if worn, cracked, or causing heat escape.

Replacement mounting spacer for ranges. Maintains proper alignment and clearance between components. Replace if missing, cracked, or worn to restore spacing.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

This is the left side insulation retainer. For right side use 3195726.

This is the right side insulation retainer. For left side use 3196523.

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

Replace a broken or missing door switch actuator rod on your range. This small rod engages the door switch to detect open/closed positions and control the interior light.

Oven light not turning on when door opens? This door-activated switch detects door position and controls interior lighting. Easy push-in installation.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Complete front door assembly for electric and gas ranges. Replaces cracked, dented, or misaligned doors that no longer close or secure properly.

Replacement latch rod for range oven doors. Connects the door latch mechanism to enable proper door closing. Order a new rod if yours is broken or missing.

Includes lock latch motor and switch

Replace your range drawer glide when the storage drawer sticks, won't stay up, or slides unevenly. Restores smooth drawer operation. Verify fit by model number.

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

Size: 5/16 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White. Size: 8-18 x 3/8 inch.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black. For biscuit order 98008169. For white order WP98008544.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
