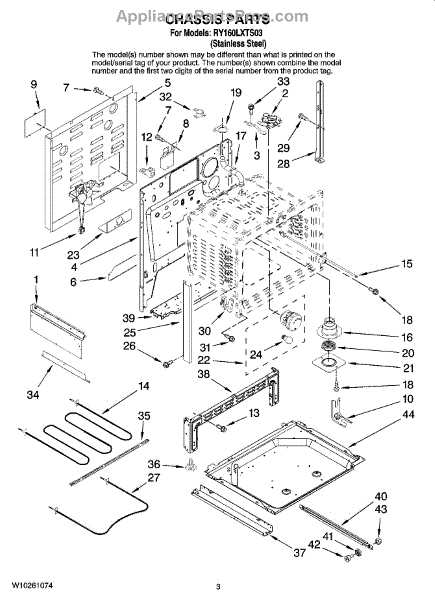

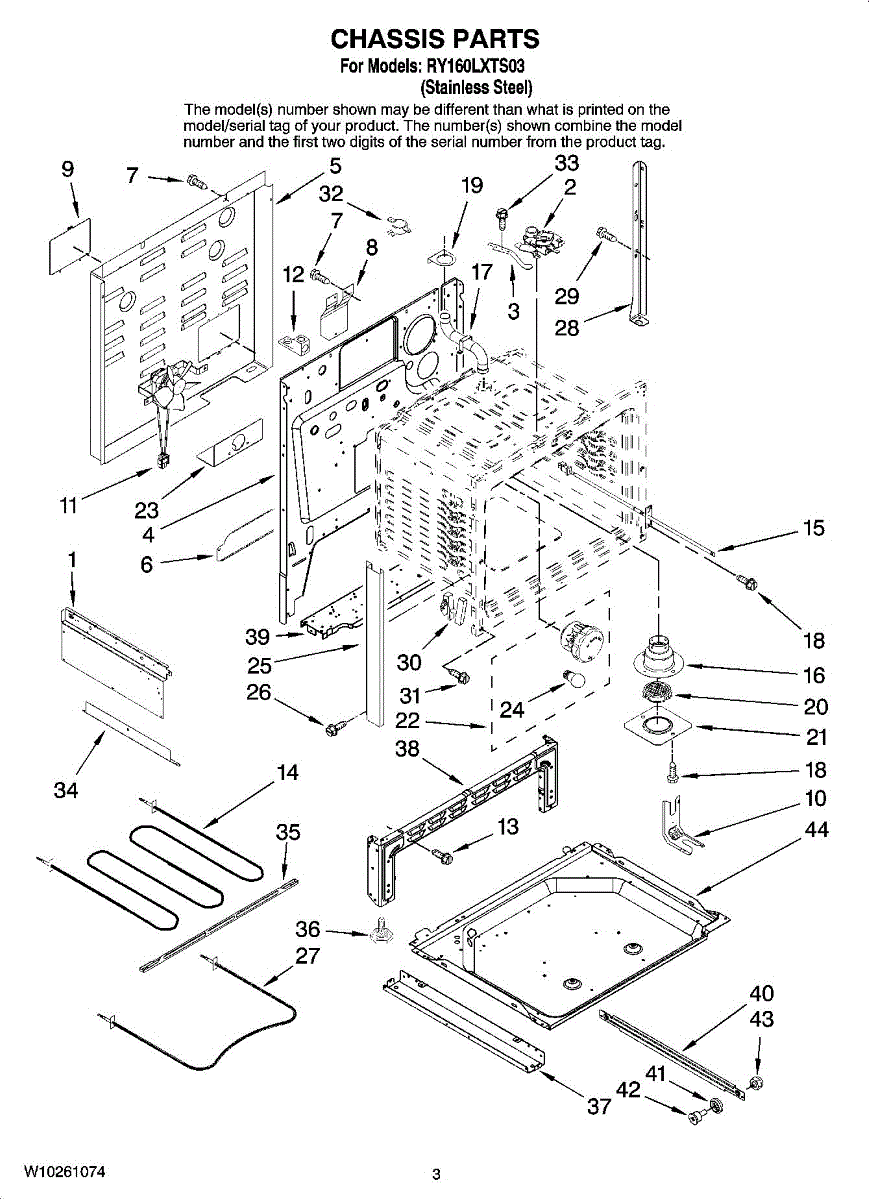

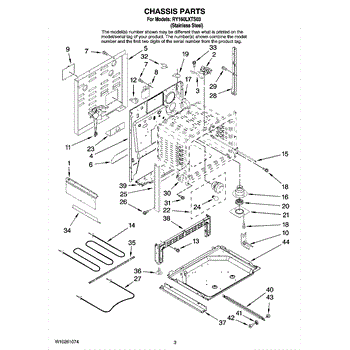

Parts for Whirlpool RY160LXTS03: 03 - Chassis Parts

Replace your range's control panel trim if cracked, chipped, or damaged. This decorative panel covers the control area for a finished appearance.

Replace your range's access cover housing if the original is cracked, broken, or missing. This protective cover installs over internal components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts o

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Fix loose or burnt wire connections in your range with this wire connector. Essential for restoring power to burners or oven elements. Simple repair.

Broiler won't heat or browns unevenly? This broil element delivers intense top-down heat for reliable broiling. Simple DIY fix—just unscrew and replace.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

Snap-in indicator light assembly that illuminates when range functions are active. Replace if indicator fails to light or is damaged. Verify fit with your model.

Replacement bracket for electric and gas ranges. Secures and supports internal components. Order a new one if yours is bent, broken, or missing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Replace cracked, chipped, or missing side trim panels on your range. This decorative trim covers the side edge of the cooktop for a finished look.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

Oven not heating or baking unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair—takes about 10 minutes.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

Left-side oven door hinge that supports and controls door movement. Replace if hinge is cracked, broken, or door won't close flush, allowing heat to escape.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Metal leveling leg screw threads into your range base to adjust height and stabilize the unit. Replace missing, bent, or stripped screws for level footing.

Bottom panel for your range chassis. Replaces cracked, rusted, or damaged base panels. Installs under the appliance to protect internal components.

Supports and guides your range's lower drawer for smooth sliding. Replace worn or broken rollers to restore easy operation and prevent binding or sagging.

Size: 8-32

Cable retainer for electric ranges. Secures and organizes internal wiring. Replace if cracked, broken, or missing to properly route cables inside your range.
