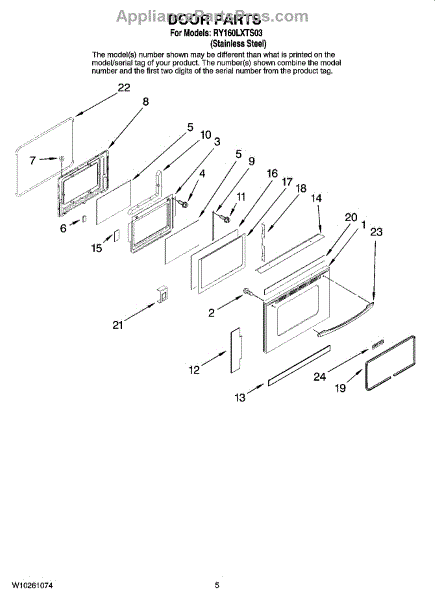

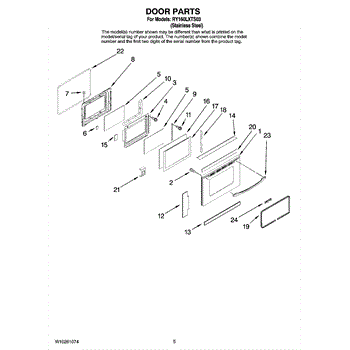

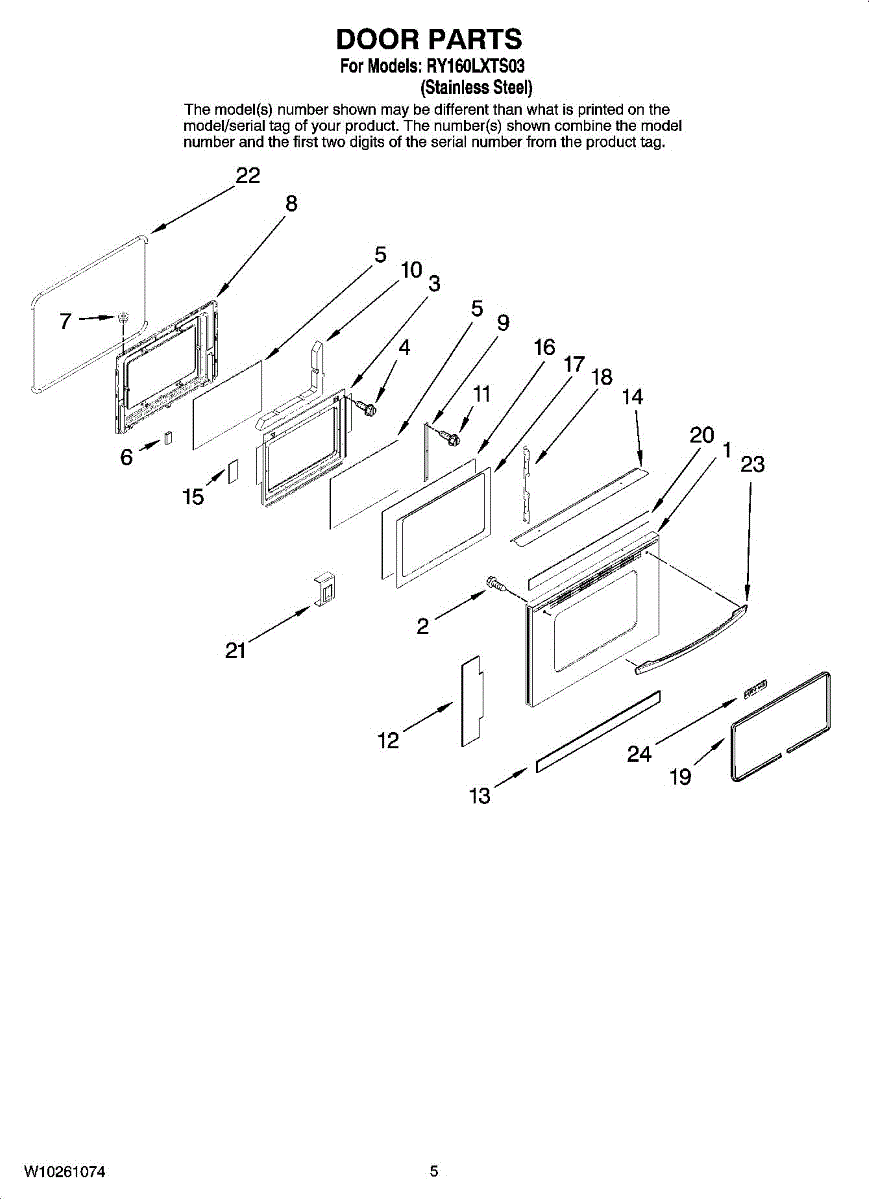

Parts for Whirlpool RY160LXTS03: 04 - Door Parts

The Oven Door Panel Screw is an OEM replacement part for Whirlpool ovens and ranges. It is a component used to fasten the outer panel to the interior metal door frame.

Causes of a bad oven door panel screw can include normal wear from repeated opening and closing of the door, damage such as stripped threads from overtightening, or corrosion over time inhibiting its fastening function.

Symptoms of a bad oven door panel screw include:

• The outer panel becoming loose, wobbly, or detached
• Gaps appearing around the door seam
• Scratches or other damage to the door panel
• Reduced insulation quality of the door assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement inner door glass panel for oven doors. Installs between outer glass and oven cavity. Needed when glass is cracked, broken, or shattered.

Black snap nut secures glass panels to oven door frame. Replace if cracked, broken, or worn during door disassembly. Essential for secure door assembly.

Secures oven door glass to the door frame. Replace this bracket if cracked, broken, or missing to restore proper glass alignment and stability.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Foil insulation for ranges that protects internal components from heat. Replace if torn, damaged, or missing to restore proper heat shielding.

Color: White

Size: 22 3/8 inches x 14 inches. For the glass measuring 20 5/8 inches x 13 1/8 inches order 74003645.

Seals oven door glass to contain heat and prevent steam or smoke from escaping. Replace when dried out, cracked, or no longer sealing properly. Confirm fit by model number.

Seals oven door to prevent heat loss and improve cooking efficiency. Replace when brittle, frayed, or not sealing properly. Verify fit by model number.
