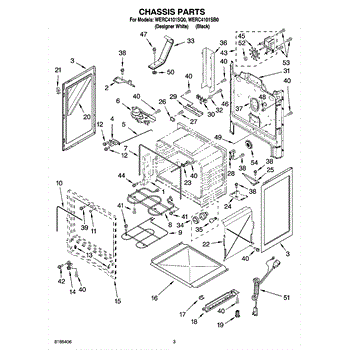

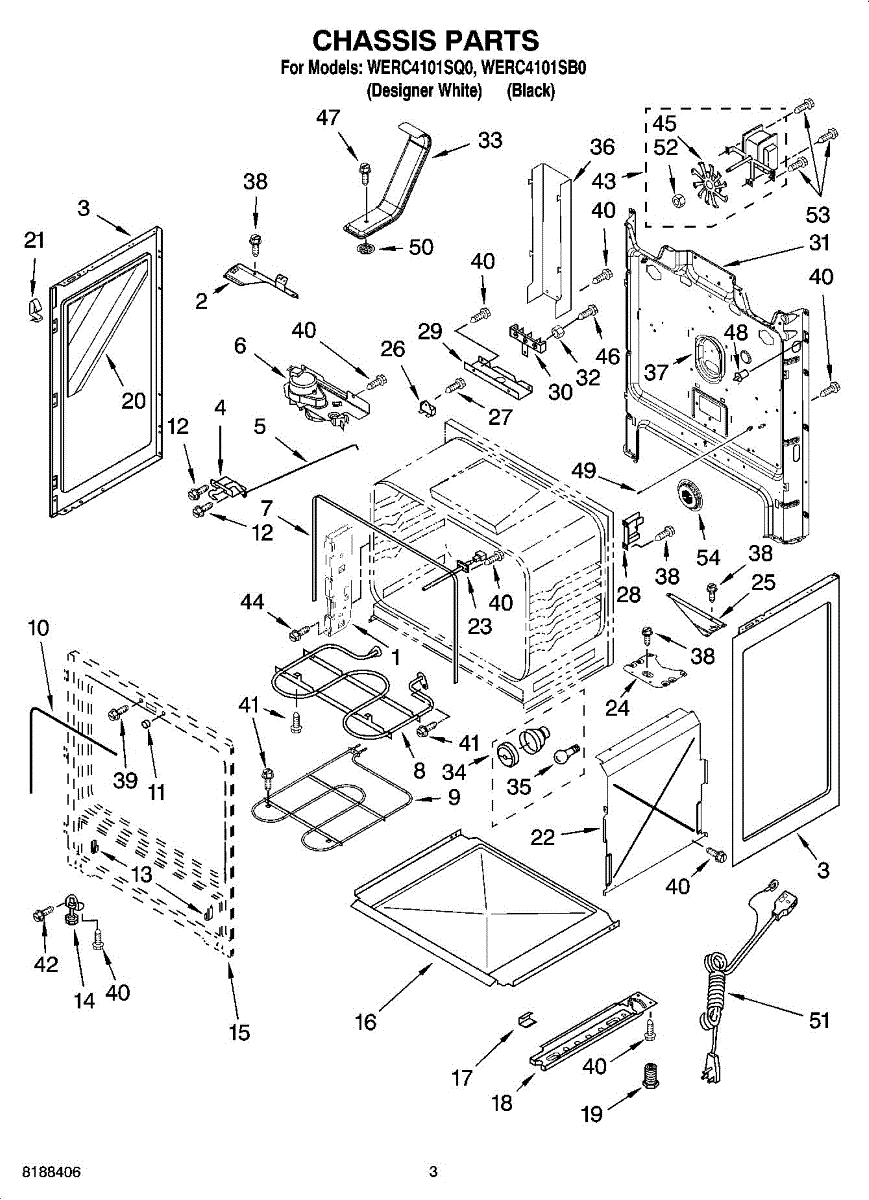

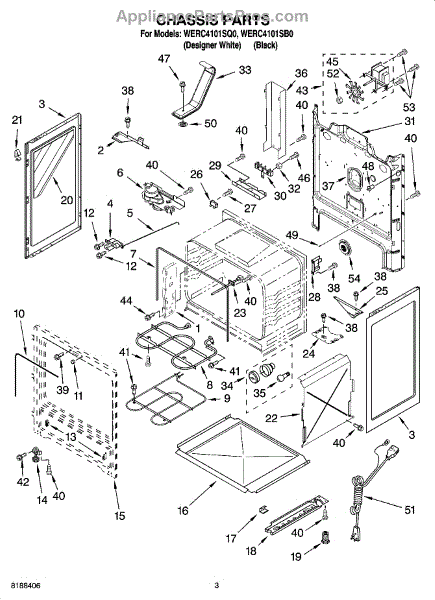

Parts for Whirlpool WERC4101SQ0: 03 - Chassis Parts

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

Replacement front door assembly that restores proper door closure and exterior appearance on compatible Whirlpool appliances. Use this assembly when the original front door is cracked, dented, or no longer secures or aligns properly. What it does:

• Replaces a damaged or warped front door to restore proper fit and appearance.
• Helps resolve doors that won't latch, sit flush, or rub against the cabinet.
• Aligns with original mounting points so the latch and hinges operate correctly.
• Matches the original exterior finish for a consistent look after repair.

• Disconnect power to the appliance before beginning any repair.
• Support the door during removal and installation to prevent drops or damage.
• Handle any glass or trim carefully to avoid breakage and injury.
• Follow the OEM service manual or manufacturer instructions for proper alignment and fastening.

A replacement latch rod that connects and secures the door latch assembly so the appliance door stays closed during use. Restores proper engagement of the latch for safe, reliable operation. What it does

• Links the door latch to the latch mechanism so the door can lock and release correctly
• Helps prevent the door from popping open during operation
• Common fix when the door latch feels loose or the door won't stay closed
• Works with the existing latch assembly to restore normal door function

• One rod-latch

• Disconnect power (or unplug) before starting any repair to avoid electrical or injury risk
• Basic hand tools may be needed; follow the appliance's service manual for access and removal steps
• Inspect the latch and strike for wear; replace any damaged components to ensure proper operation

The Broil Element is an OEM part for Whirlpool ovens. It is located at the top of the oven interior and is responsible for providing intense, direct heat for broiling.

The broil element should be replaced if it becomes damaged or fails to heat properly. Causes of a bad broil element can include regular wear and tear, electrical malfunctions, or physical damage such as cracking or breaking.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven cooking or browning when broiling
• Visible damage or blistering on the element
• Sparking or electrical shorts when the broiler is in use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Bake Element is an OEM part for Whirlpool ovens. It is a component responsible for providing the heat necessary for baking and cooking. This element is located at the bottom of the oven and heats up when electricity is applied, allowing for consistent cooking temperatures.

Symptoms of a bad Oven Bake Element include:

• Uneven baking results or undercooked food
• Lack of heat generation even though the oven is turned on
• Visible damage to the element such as blistering, cracks, or breaks

Causes of a bad element can stem from natural wear and tear, excessive cooking temperatures overextending the element's capacity, or electrical issues causing the element to fail prematurely.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Door Seal is an OEM part specifically designed for Whirlpool wall ovens. It provides an airtight barrier between the door and oven interior during cooking and baking. Made of heat-resistant materials, the door seal withstands high oven temperatures.

Causes of a bad door seal can include normal wear and tear from repeated use over many years of cooking. Exposure to extremely high heat cycles may also degrade the seal prematurely.

Symptoms of a bad door seal include:

• Excess heat loss from the oven when cooking
• Visible cracks, tears, or looseness in the seal material
• Hot or warm air leaking from the sides or bottom of the closed oven door
• Difficulty maintaining optimal oven temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

The Drawer Glide is an OEM part for Whirlpool ovens. This component allows the oven drawer to slide in and out smoothly, providing easy access to the storage area below the oven cavity. The glide supports the drawer, ensuring it operates seamlessly and remains aligned during use.

Causes of a bad drawer glide can include wear and tear from frequent use, damage from overloading the drawer, or accidental impacts that may bend or misalign the glide.

Symptoms of a bad Drawer Glide include:

• Difficulty in opening or closing the drawer
• The drawer not sliding smoothly or getting stuck
• The drawer tilting or not aligning properly
• Unusual noises when operating the drawer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

This oven insulation retainer holds the insulation beneath the oven cavity to help maintain proper heat shielding and support. It replaces damaged or missing retainers to restore correct insulation positioning and reduce heat transfer to surrounding components. What it does:

• Secures oven cavity insulation in place so insulation can't shift or sag
• Helps maintain proper heat shielding around the oven cavity
• Commonly replaced when the retainer is cracked, broken, or missing

• Intended for use with the oven insulation area; fits your model before installing
• Turn off power to the appliance at the breaker before servicing to avoid shock hazard
• Handle gently to avoid damaging surrounding insulation; wear gloves and eye protection
• Use existing mounting hardware when possible; replace any stripped or damaged fasteners

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

This support bracket secures and stabilizes appliance components to reduce movement and maintain proper alignment. A simple replacement that helps stop rattling and supports panels or assemblies so the appliance operates quietly and reliably. What it does

• Provides a stable mounting point to hold panels, housings or internal assemblies in place
• Restores proper alignment to reduce vibration, noise, and rubbing against adjacent parts
• Prevents sagging or movement that can lead to wear on connected components
• Useful when a bent, cracked or missing bracket causes loose panels or intermittent contact

• Turn off power to the appliance and unplug before starting work
• Use appropriate tools and retain all fasteners; replace any damaged clips or screws
• Compare the bracket to the original to confirm orientation and fit before final installation

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Size: 10-32 inch.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This replacement terminal block cover encloses the appliance's incoming power connections. It protects the wire terminals from accidental contact and debris, restoring a safe, finished connection area when the original cover is damaged or missing. What it does:

• Covers and shields the power terminal block where the supply wires connect
• Helps prevent accidental contact with live electrical connections
• Helps keep dust and debris out of the connection area
• Common signs: missing or broken cover, cover won't stay attached, visible heat damage or discoloration on the original cover

• One terminal block cover

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block per your model's service information
• Reuse existing mounting hardware; position and secure the new cover without pinching wires
• Inspect wires/terminals for heat damage or looseness and correct before reassembly

Size: 8-18 x 1/2 inch.

Screw for side trim.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This convection fan blade replaces a damaged or worn blade to restore proper air circulation for more even baking and roasting in convection ovens. It mounts to the oven's convection motor and helps maintain consistent cooking temperatures. What it does:

• Circulates hot air across the oven cavity for even browning and faster cook times
• Replaces cracked, warped or missing blades that cause vibration or scraping noises
• Reduces hot/cold spots that lead to unevenly cooked food
• Helps the convection system maintain stable airflow for consistent results

• Disconnect power to the appliance and allow the oven to cool completely before beginning.
• Remove oven back panel or interior cover per your model's service instructions to access the fan assembly.
• Handle the blade carefully—edges may be sharp; secure blade to motor hub using the original fastener and correct orientation.
• If the fan motor or mounting hardware is damaged, inspect and replace those components as needed.

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This replacement light switch controls the oven/range interior light so you can safely check cooking progress without opening the door. Restores proper on/off function when the original switch fails or becomes intermittent. What it does:

• Replaces the failed oven/range interior light switch to restore on/off control
• Stops flickering or intermittent lighting caused by a worn switch
• Allows the oven light to turn on for safe, clear viewing of food while cooking
• Fits behind the control panel or light housing depending on model

• One replacement light switch

• Turn off power to the appliance at the breaker or unplug before starting
• Remove access panels or control housing to reach the switch; keep track of fasteners
• Disconnect wiring connectors by gently pulling straight off; note wire locations before removal

This rod-style door switch actuator moves the door-mounted switch striker to signal open/closed door positions, restoring proper door-sensing and interior light functions. It's a small replacement part that helps the appliance detect door position reliably. What it does:

• Engages the door switch when the door closes so the appliance recognizes a closed door
• Allows the interior light to turn on/off based on door position
• Prevents intermittent door-open errors and related operation interruptions
• Works with the door latch/switch assembly to ensure consistent door sensing

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the door trim or inner panel—keep fasteners organized
• Align the rod with the switch actuator and door bracket; verify smooth movement before reassembly

This 6mm acorn nut secures exposed threaded studs and protects threads while giving a finished appearance. It's a simple replacement fastener that restores proper fit and helps prevent snagging or corrosion on accessible assemblies. What it does:

• Caps and secures exposed studs or bolts to keep assemblies fastened
• Protects threads from damage, dirt, and moisture
• Restores a finished look to trim, panels, or hardware mounts
• Can stop rattling or looseness when a worn/ missing nut is the cause

• One 6mm acorn nut

• Use the correct 6mm socket or nut driver; tighten until snug—avoid overtightening
• Disconnect power and follow appliance safety procedures before working near electrical or moving components
• Inspect mating threads for damage and replace the mating fastener if stripped

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
