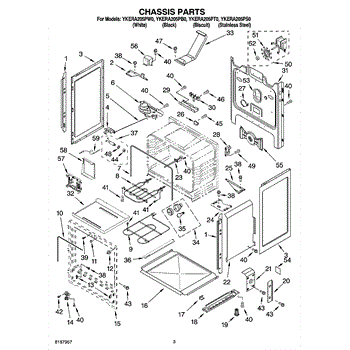

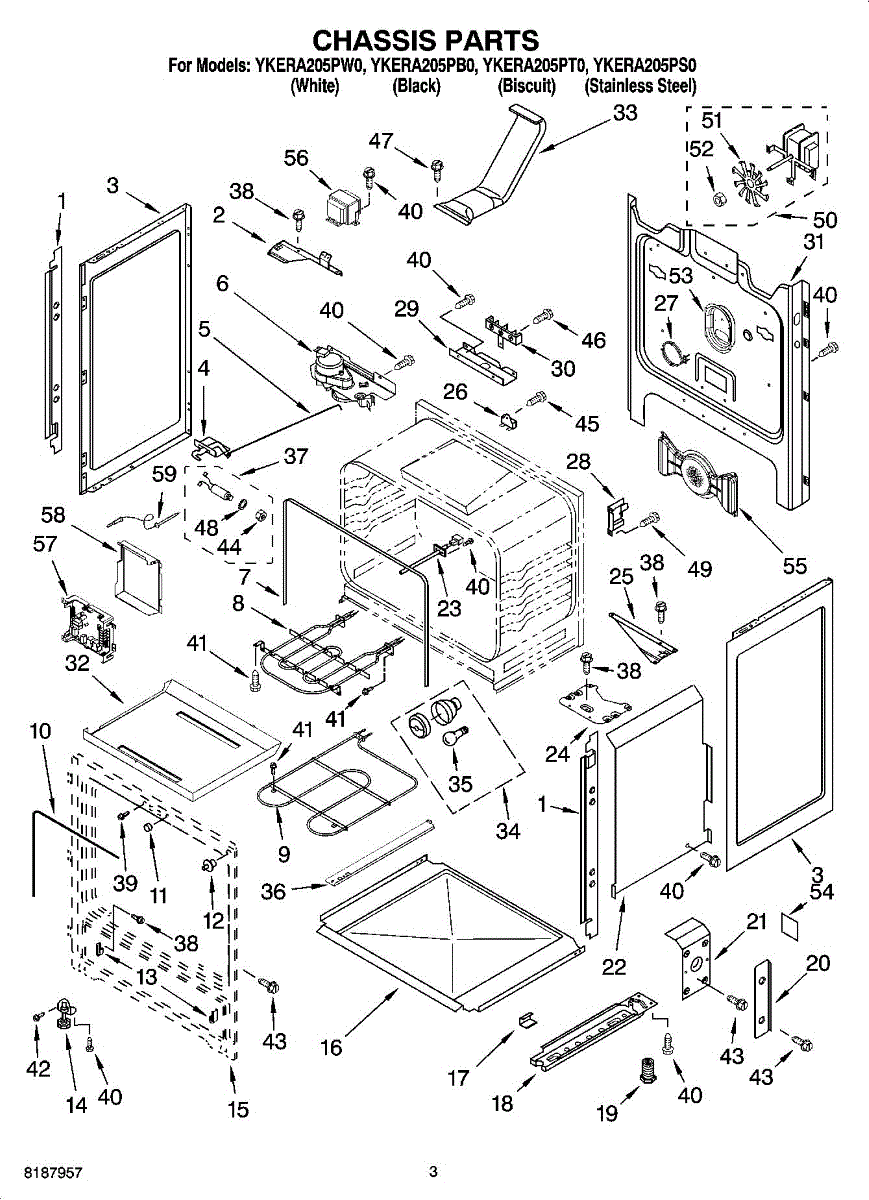

Parts for Whirlpool YKERA205PT0: 03 - Chassis Parts

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

This latch mechanism secures the oven door in the closed position on electric and gas ranges. It engages when the door is shut to hold it firmly against the gasket for proper heat retention. Replace when the oven door won't stay closed, pops open during cooking, or the latch handle feels loose or broken.

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

Seals the gap between your oven door and frame to maintain consistent heat and prevent moisture loss. Replace if worn, cracked, or causing heat escape.

Broil element not heating or sparking? This top heating element restores radiant heat for broiling and browning. DIY repair takes 15-30 minutes.

Oven won't heat or takes too long to preheat? A failed bake element is the most common cause. This lower heating coil restores proper baking temperature.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

Replacement mounting spacer for ranges. Maintains proper alignment and clearance between components. Replace if missing, cracked, or worn to restore spacing.

This replacement door light switch controls the oven interior light so it turns on and off with the door, restoring expected visibility when checking food or performing maintenance. Ideal for ovens with a pyrolytic/self-clean cycle. What it does:

• Opens and closes the circuit to the oven interior light when the door is opened or closed
• Stops the light from staying on or not turning on when the door is operated
• Helps restore normal oven-light operation after a failed or worn switch
• Matches OEM function and mounting for direct-fit replacement on compatible pyro ovens

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or inner door panel—handle glass panels carefully
• Verify correct switch position and wiring before reassembly; test operation after restoring power

Front drawer glide for range broiler or storage drawer. Replace when drawer sags, won't slide smoothly, or glide is broken. Confirm fit with your model.

Adjustable front leveling leg threads into the base corner of your range to raise or lower the unit. Replace if broken, cracked, or missing to level your range.

Metal tray that secures insulation beneath the oven cavity. Replaces damaged, warped, or missing retainers to restore proper insulation support.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

Oven not heating evenly or convection mode not working? This rear convection element restores even baking and roasting. 20-minute DIY repair.

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Size: 8-18 x 1/2 inch.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Size: 8-18 x 1/4 inch. Self tapping.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Replacement screw secures appliance panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

If your oven heats unevenly or convection mode isn't working, this range convection fan motor restores proper air circulation for consistent baking results.

If your oven cooks unevenly or baking results are inconsistent, this convection fan blade restores proper air circulation. Easy 15-minute DIY repair.

6mm acorn nut that caps exposed threaded studs on your oven. Replace when worn, stripped, or missing to protect threads and restore a finished look.

Insulation that wraps around the range vent assembly to dampen sound and reduce heat transfer. Replace if torn, compressed, or missing for proper noise control.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Insulation that wraps around the range vent assembly to dampen sound and reduce heat transfer. Replace if torn, compressed, or missing for proper noise control.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
