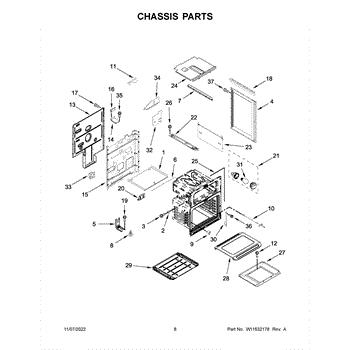

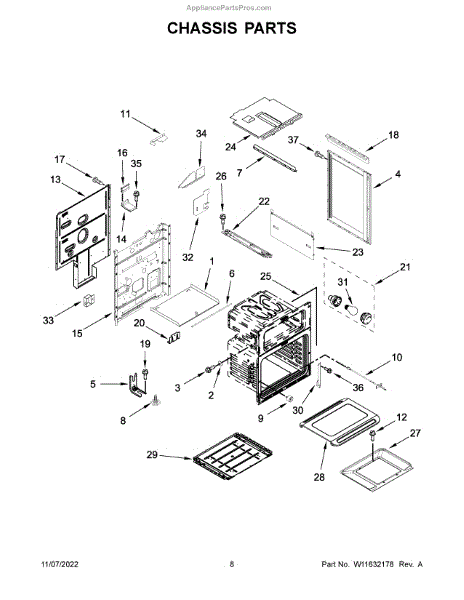

Parts for Kitchenaid KFGD500EBS10: Chassis Parts

Parts for Kitchenaid KFGD500EBS10: Chassis Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: W10319038

Heat shield for gas range. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

More
$79.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: WPW10267456

Replacement screw for electric and gas ranges. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

More
$7.56

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
5
Product photo
4.8 (5)
By: Whirlpool
Part Number: WP3801F656-51

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

More
$8.56

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
6
By: Whirlpool
Part Number: W10319000

Replace your gas range oven door gasket to restore proper heat seal and improve cooking efficiency. Verify fit with your model number before ordering.

More
$88.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
7
By: Whirlpool
Part Number: W10357697
$15.21

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
8
Best Seller
Product photo
4.5 (13)
By: Whirlpool
Part Number: W11665456

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

More
$23.61

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
9
Product photo
By: Whirlpool
Part Number: W10105790

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

More
$4.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Best Seller
Product photo
4.8 (12)
By: Whirlpool
Part Number: WP7430P044-60

Oven displaying error codes or baking unevenly? The temperature sensor monitors cavity heat and signals the control. Moderate DIY repair in 30-45 minutes.

More
$103.33

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
11
By: Whirlpool
Part Number: W10268558
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
By: Whirlpool
Part Number: WPW10261387
$94.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14A
By: Whirlpool
Part Number: W10272519
$59.59

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
By: Whirlpool
Part Number: W11243157

Replace your gas range's oven flue cover if it's cracked, damaged, or missing. Installs at the rear top of the oven under the cooktop area. Essential part.

More
$141.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Whirlpool
Part Number: W10668728
$75.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
By: Whirlpool
Part Number: W10321446
$64.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16A
By: Whirlpool
Part Number: W10321445

Oven flue duct for gas ranges. Vents hot air from the oven cavity to the cooktop. Replace if cracked, damaged, or missing to restore proper ventilation.

More
$87.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
Best Seller
Product photo
4.6 (8)
By: Whirlpool
Part Number: WP90767

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

  • Loose or wobbly components within the appliance
  • Panels or parts that are not securely attached
  • Rattling or unusual noises due to loose parts
  • Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

More
$7.56

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
18
By: Whirlpool
Part Number: W10319087

Secures and stabilizes internal range components, keeping panels and assemblies properly aligned. Replace when your mounting bracket is broken, bent, or missing.

More
$49.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Whirlpool
Part Number: WP7101P485-60

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

More
$28.43

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
20
By: Whirlpool
Part Number: W10863342
$12.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
Product photo
By: Whirlpool
Part Number: W11166856

Oven door won't lock for self-clean cycle? This door lock motor and switch assembly controls locking and detects when the door is shut. Moderate repair.

More
$137.95

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
23
By: Whirlpool
Part Number: W10538516
$46.63

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
By: Whirlpool
Part Number: W10324643
$39.08

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Whirlpool
Part Number: W11507143
$43.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
By: Whirlpool
Part Number: 74003975

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

More
$21.34

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
27
By: Whirlpool
Part Number: W10777398

Flat metal panel forming the floor of your gas range oven cavity. Replace if warped, rusted, cracked, or damaged to restore a stable cooking surface.

More
$93.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
28
Product photo
By: Whirlpool
Part Number: WPW10272546

This broiler pan is the heat-safe tray used for broiling in the oven or broiler drawer. Replace a rusted, warped, or missing pan to maintain safe broiling and simpler cleanup by catching drippings.

  • Holds food for broiling and supports correct placement under the broiler
  • Collects drippings to help reduce flare-ups and smoke
  • Restores safe use when the original pan is rusted, pitted, dented, or warped
  • Seats on the designated rails/supports in the broiler drawer or compartment per model design
Includes: 1 broiler pan Installation notes:
  • Allow the appliance to cool completely; wear cut-resistant gloves
  • Remove the broiler drawer or open the broiler compartment as your model requires
  • Position the pan on the proper rails/supports and verify stable seating before use
  • Follow your model's user guide for broiling setup and care

More
$110.42

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
29
By: Whirlpool
Part Number: W11509400

This base chassis is the lower frame assembly for a 30" gas freestanding range. It provides structural support and alignment for the cooktop, oven cavity, and mounted components to restore safe, stable operation. What it does:

  • Supports and secures the cooktop, oven cavity and internal components
  • Maintains proper alignment for the oven door and drawer assemblies
  • Reduces movement, rattling or sagging of the range base
  • Provides mounting points for panels, brackets and serviceable parts
What's included: One base chassis assembly. Install notes:
  • Disconnect electrical power and shut off gas supply before service.
  • Use proper lifting technique; chassis assemblies can be heavy—two people recommended.
  • Follow OEM service manual for removal and reinstallation steps, torque, and fastener locations.
  • After installation, check connections and test appliance operation and gas fittings for leaks.

More
$171.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30A
By: Whirlpool
Part Number: W10410461
$33.11

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30
By: Whirlpool
Part Number: W10410463
$32.83

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
31
Best Seller
Product photo
4.9 (376)
By: Whirlpool
Part Number: 8009

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

  • Dimming or flickering light
  • Complete lack of illumination inside the appliance
  • Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

More
$19.55

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
32
By: Whirlpool
Part Number: W10626078
$24.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
33
By: Whirlpool
Part Number: W11819303
$7.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
34
By: Whirlpool
Part Number: W10626077
$24.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
35
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
36
Product photo
5.0 (4)
By: Whirlpool
Part Number: WP4449743

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

  • Provides the designated bonding point for the grounding wire/strap
  • Fastens to the frame or terminal area using 8-32 machine threads
  • Helps maintain a consistent ground path for safe operation
  • Typical reasons to replace: stripped head/threads, corrosion, or a missing screw
What's included: 1 ground screw Install notes:
  • Disconnect power at the breaker or unplug the appliance before servicing
  • Route the ground wire/strap to the specified grounding location
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Ensure the ground connection is secure and complies with local electrical codes before restoring power

More
$7.56

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
37
Product photo
4.0 (1)
By: Whirlpool
Part Number: WP98008545

Color: Black. For biscuit order 98008169. For white order WP98008544.

More
$8.94

IN STOCK
Ships Today Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
NI
By: Whirlpool
Part Number: W11684769
$145.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11684919
$55.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11685611
$55.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11688385
$55.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11688777
$33.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
