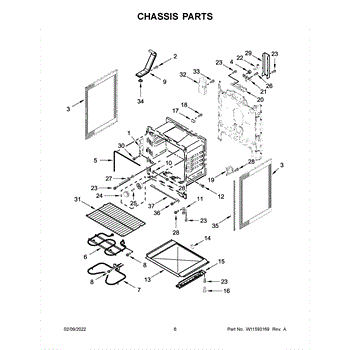

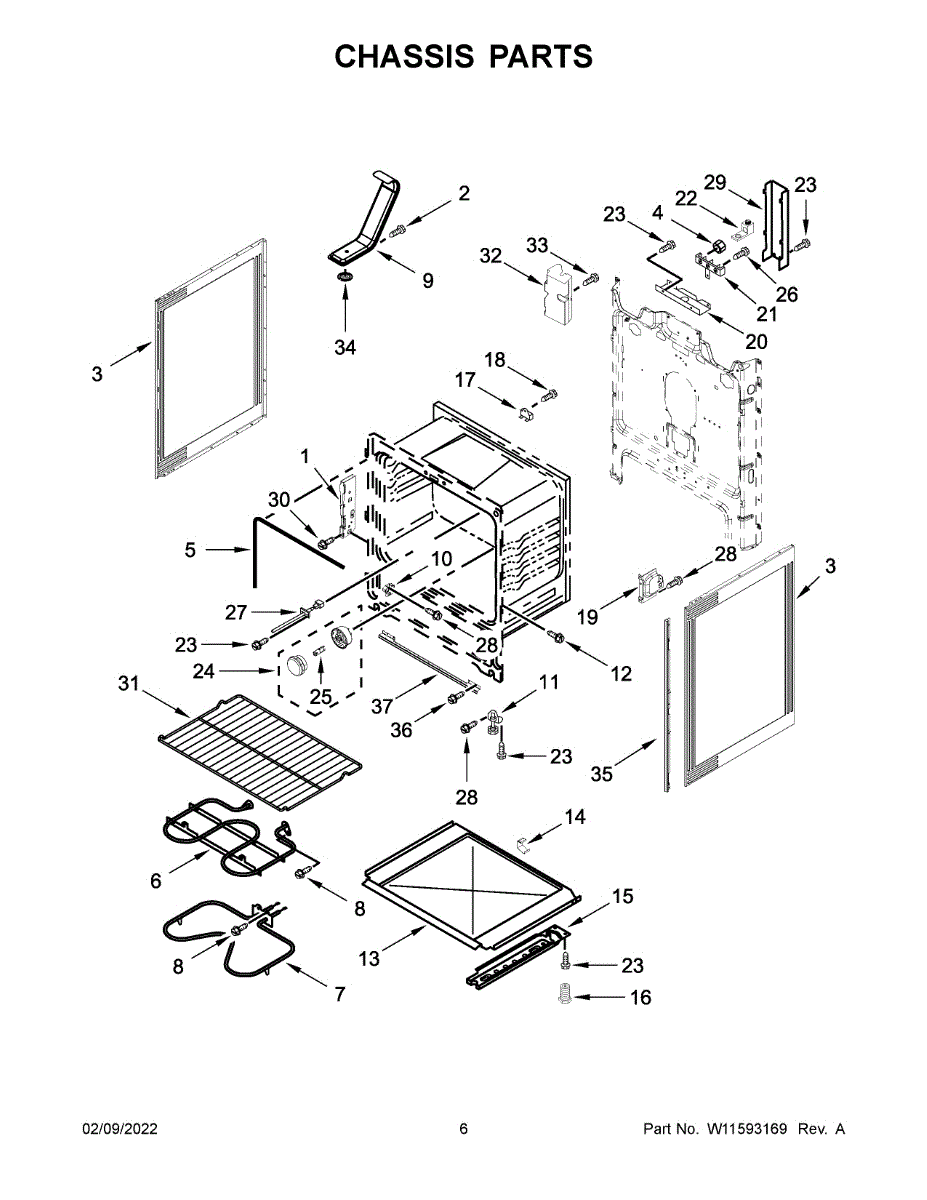

Parts for Whirlpool WFE320M0JS3: Chassis Parts

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This is a ground-wire screw used to attach a grounding conductor to the appliance chassis, ensuring a reliable electrical ground and safer operation. It matches the common 8-32 machine screw thread used on many Whirlpool appliances. What it does:

• Secures the ground wire to the appliance cabinet or grounding point
• Restores or maintains a continuous equipment ground for safe operation
• Helps prevent electrical shock and fault conditions when properly installed
• Fits locations that accept an 8-32 threaded screw for grounding

• One ground-wire screw

• Disconnect power before accessing electrical components or performing service
• Use the correct Phillips driver or nut-driver sized for 8-32 screws to avoid stripping
• Tighten until snug—do not over-torque; ensure the grounding conductor is under the screw head or terminal as intended
• If corrosion or damaged threads are present, clean or replace the mating hardware to ensure a secure ground

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

Size: 10-32

The Oven Door Seal is an OEM part specifically designed for Whirlpool wall ovens. It provides an airtight barrier between the door and oven interior during cooking and baking. Made of heat-resistant materials, the door seal withstands high oven temperatures.

Causes of a bad door seal can include normal wear and tear from repeated use over many years of cooking. Exposure to extremely high heat cycles may also degrade the seal prematurely.

Symptoms of a bad door seal include:

• Excess heat loss from the oven when cooking
• Visible cracks, tears, or looseness in the seal material
• Hot or warm air leaking from the sides or bottom of the closed oven door
• Difficulty maintaining optimal oven temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

The Broil Element is an OEM part for Whirlpool ovens. It is located at the top of the oven interior and is responsible for providing intense, direct heat for broiling.

The broil element should be replaced if it becomes damaged or fails to heat properly. Causes of a bad broil element can include regular wear and tear, electrical malfunctions, or physical damage such as cracking or breaking.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven cooking or browning when broiling
• Visible damage or blistering on the element
• Sparking or electrical shorts when the broiler is in use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bake Element is an OEM replacement part for Whirlpool ranges. Its primary function is to generate heat during baking and cooking.

Causes of a bad ELMNT-BAKE can include normal wear and tear over many bake/cook cycles that degrade insulation and wiring over time. It may also fail if exposed to accidental spills, splatters, or if knocked out of position.

Symptoms of a bad element include:

• Inability to maintain proper baking temperatures, especially on the bottom of the oven
• "Hot" or "Cold" spots developing where food is not cooking evenly
• Diminished baking performance or uneven browning/cooking of dishes
• Smells from dried-on or burnt residue on the faulty element

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Some Kenmore models.

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

This drawer glide replaces a worn or broken slide to help a drawer open and close smoothly and stay aligned. It restores proper drawer movement and reduces sticking, rattling, or binding during use. What it does:

• Guides and supports the drawer as it slides in and out
• Restores smooth travel and proper alignment for heavy or front-loaded drawers
• Reduces noise from loose or damaged sliding hardware
• Helps prevent the drawer from falling out or binding when fully extended

• Disconnect power and remove contents from the drawer before starting
• Remove the drawer and existing glide hardware to inspect mounting points
• Align the replacement glide, secure with existing or OEM screws, and test smooth operation
• Wear gloves and follow basic safety practices;

This leveling foot adjusts the appliance's height at the front to keep the cabinet stable and level. A properly leveled unit helps reduce vibration and noise and ensures doors, drums, and drawers operate smoothly.

• Supports the appliance and provides front height adjustment
• Helps correct rocking, vibration, and excessive noise from an unlevel appliance
• Can improve door alignment and smooth operation when the cabinet is leveled
• Common wear or damage can cause wobbling or difficulty staying level

• Unplug the appliance and, if applicable, turn off the water supply before servicing
• Tip or lift the unit carefully; use a helper to avoid injury
• Thread the new foot into the base and adjust until the cabinet is level and stable
• Tighten any applicable lock nut and recheck level after repositioning the appliance

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This oven insulation retainer holds the insulation beneath the oven cavity to help maintain proper heat shielding and support. It replaces damaged or missing retainers to restore correct insulation positioning and reduce heat transfer to surrounding components. What it does:

• Secures oven cavity insulation in place so insulation can't shift or sag
• Helps maintain proper heat shielding around the oven cavity
• Commonly replaced when the retainer is cracked, broken, or missing

• Intended for use with the oven insulation area; fits your model before installing
• Turn off power to the appliance at the breaker before servicing to avoid shock hazard
• Handle gently to avoid damaging surrounding insulation; wear gloves and eye protection
• Use existing mounting hardware when possible; replace any stripped or damaged fasteners

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

This support bracket secures and stabilizes appliance components to reduce movement and maintain proper alignment. A simple replacement that helps stop rattling and supports panels or assemblies so the appliance operates quietly and reliably. What it does

• Provides a stable mounting point to hold panels, housings or internal assemblies in place
• Restores proper alignment to reduce vibration, noise, and rubbing against adjacent parts
• Prevents sagging or movement that can lead to wear on connected components
• Useful when a bent, cracked or missing bracket causes loose panels or intermittent contact

• Turn off power to the appliance and unplug before starting work
• Use appropriate tools and retain all fasteners; replace any damaged clips or screws
• Compare the bracket to the original to confirm orientation and fit before final installation

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Comes with three connectors per package.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement light bulb restores interior illumination inside your appliance. Swap it in for a burned-out bulb so you can clearly see contents and monitor operation when the door opens or the light button is pressed.

• Provides interior light inside the appliance cavity
• Direct replacement for a failed or broken bulb
• Common symptoms: no light when the door opens, flickering/intermittent light, visibly darkened or broken bulb

• Disconnect power to the appliance before servicing
• Allow the old bulb and nearby surfaces to cool completely
• Remove any lens or cover to access the socket; install the new bulb in the same orientation as the original
• Handle with clean, dry hands or gloves; do not overtighten. Restore power and test

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement terminal block cover encloses the appliance's incoming power connections. It protects the wire terminals from accidental contact and debris, restoring a safe, finished connection area when the original cover is damaged or missing. What it does:

• Covers and shields the power terminal block where the supply wires connect
• Helps prevent accidental contact with live electrical connections
• Helps keep dust and debris out of the connection area
• Common signs: missing or broken cover, cover won't stay attached, visible heat damage or discoloration on the original cover

• One terminal block cover

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block per your model's service information
• Reuse existing mounting hardware; position and secure the new cover without pinching wires
• Inspect wires/terminals for heat damage or looseness and correct before reassembly

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor tip is a small snap-in retainer that secures spring or linkage components and helps keep moving parts aligned. It restores proper anchoring to reduce looseness, rubbing, and rattling for smoother operation. What it does:

• Secures a spring, clip or small linkage to its mounting point so parts stay in place
• Keeps moving components aligned to prevent binding or rubbing
• Helps eliminate rattles or noise caused by a dislodged retainer
• Provides a simple replacement for a damaged or worn plastic anchor

• Disconnect power to the appliance before starting any repair.
• Verify correct orientation and mounting location before snapping the anchor tip into place.
• Use needle-nose pliers for placement if needed; press gently until fully seated. Do not force or deform the part.
• If other components show wear or damage, inspect and replace as required for a complete repair.

A Torx screw replacement used to secure appliance panels and components for stable operation. Designed as a direct-fit fastener to replace stripped or missing screws so panels and assemblies stay properly attached. What it does:

• Replaces damaged, stripped, or missing Torx-head screws that hold appliance parts together
• Restores secure fastening for control panels, trim pieces, brackets, and access covers
• Helps eliminate rattles, loose panels, or gaps caused by missing hardware

• One Torx screw

• Disconnect power and follow appliance safety procedures before servicing
• Use the correct Torx driver bit size to avoid cam-out or head damage
• Tighten until snug; avoid overtightening which can strip threads or damage parts
• Swap all like screws to ensure uniform fit and torque

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

This Q-style FF bracket is a refrigerator mounting bracket that secures the freezer/front frame assembly for stable alignment and operation. It restores proper fit and reduces rattling or misalignment at the freezer front. What it does:

• Provides a secure mounting point for the freezer/front frame to keep panels aligned
• Helps eliminate looseness, rattling or shifting of the freezer front area
• Restores correct positioning after impact or worn mounting points
• Works as a replacement for a cracked, bent or missing bracket

• One Q-style FF mounting bracket

• Disconnect power to the appliance before starting any repair
• Typical installation requires removing exterior panels and existing fasteners
• Handle sharp edges and wear work gloves to protect hands
• Replace with OEM-equivalent screws if fasteners are damaged or missing

The Insulation is an OEM part compatible with Whirlpool ranges. It is made of thick fiberglass material installed behind oven and broiler walls. The insulation works to contain heat within the oven cavity and prevent it from transferring to external surfaces, keeping panels cool for safety.

Symptoms of damaged insulation include:

• Outer range surfaces getting excessively hot during baking
• Inefficient or improper heating of oven or broiler elements
• Potential energy efficiency and component longevity issues

Causes of damage can be deterioration of the fiberglass over time, punctures or compressing of material from cleaning or repairs.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The INSULATION is an OEM component specifically designed for Whirlpool electric ranges. Positioned between inner and outer wall cavities, it efficiently buffers heat.

Fiberglass batting material keeps internal temperatures elevated for cooking while preventing harmful temperatures from spreading outside. Stable temperature control is essential for consistent results.

Causes of damaged insulation could be high heat exposure over time weakening fibers, moisture ingress deteriorating integrity, or physical punctures allowing heat leakage.

Symptoms of insufficient insulation include:

• Oven unable to effectively retain or distribute set temperatures
• Door and exterior surfaces becoming too warm to safely touch
• Higher energy bills from frequent recovery heating cycles

This Whirlpool insulation is also compatible with electric ranges by GE, Frigidaire, Samsung, and some LG kitchen models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
