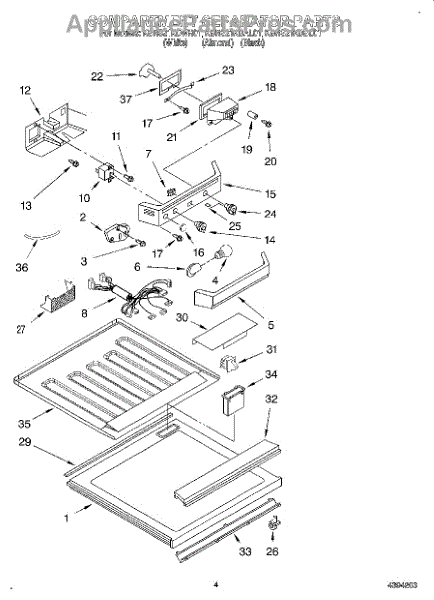

Parts for Kitchenaid KBRS21KDAL01: 03 - Compartment Separator Parts

The Timer is an OEM part for Whirlpool refrigerators. This component is essential for controlling the defrost cycle of the refrigerator, ensuring that the appliance operates efficiently by periodically melting any frost buildup on the evaporator coils. By regulating the defrosting process, the timer helps maintain the optimal temperature and energy efficiency of the refrigerator.

Causes of a bad timer can include electrical malfunctions, wear and tear over time, or exposure to power surges. When the timer fails, the defrost cycle may not run correctly, leading to issues with frost buildup and inefficient cooling.

Symptoms of a bad timer include:

• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils
• The refrigerator being too warm or too cold
• The defrost cycle not initiating or running too frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cold control that regulates cooling cycles to maintain set temperatures in the fresh-food section. Replacing a failed control restores more consistent temperature control and helps prevent food spoilage. What it does:

• Controls compressor/cooling cycles based on the selected temperature setting to maintain cabinet temperature.
• Common symptoms: refrigerator running constantly, not cooling, or temperature cycling irregularly.
• Interfaces with the fridge control housing and wiring to open/close the cooling circuit as needed.

• Disconnect power to the appliance before starting any repair.
• Access the control housing/panel to remove the old control; note wire locations or take a photo for correct reinstallation.
• Handle any attached sensor or capillary tube gently to avoid kinks or damage.
• After installation, restore power and the refrigerator reaches and holds the desired temperature.

Size: 8 x 1/2 ab.

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

Size: 8 x 1-1/4 inch.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
