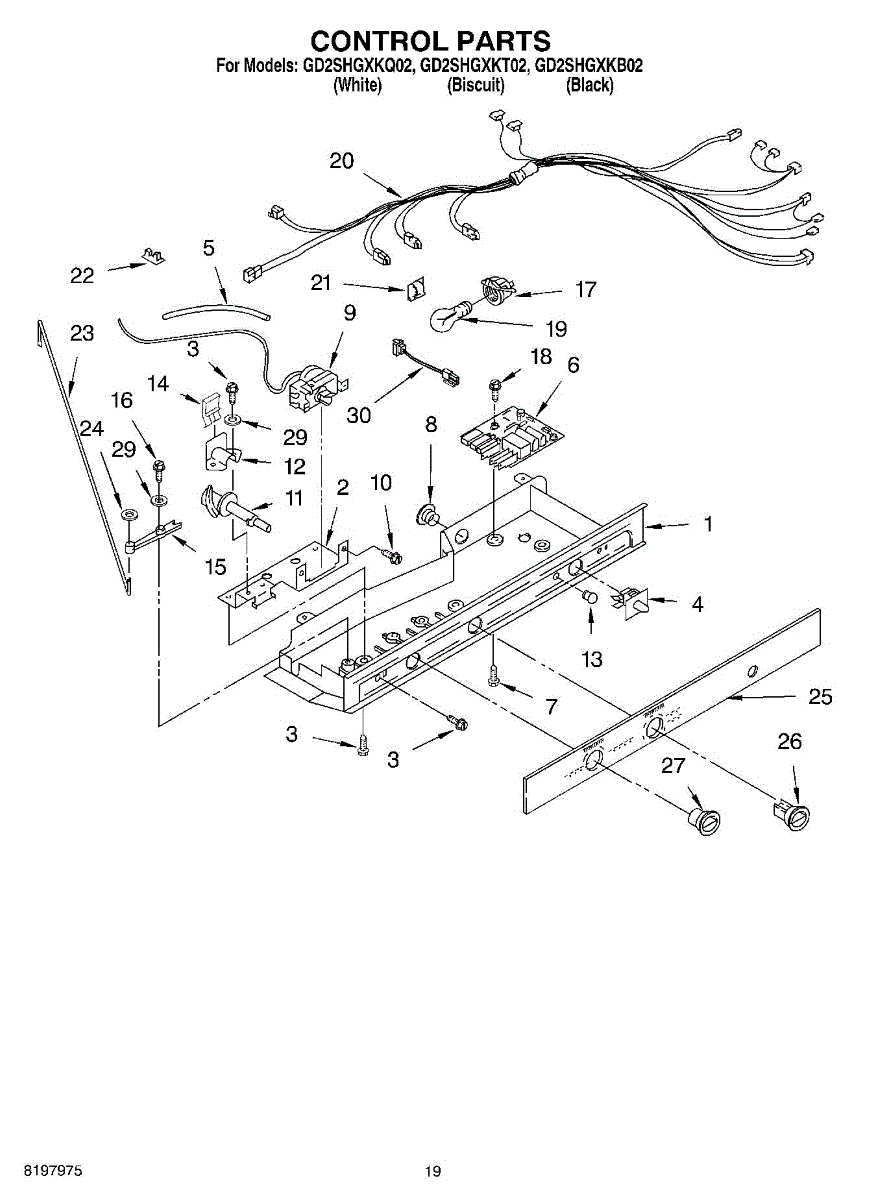

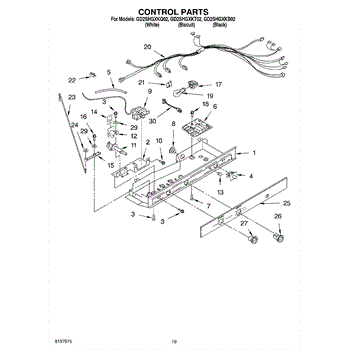

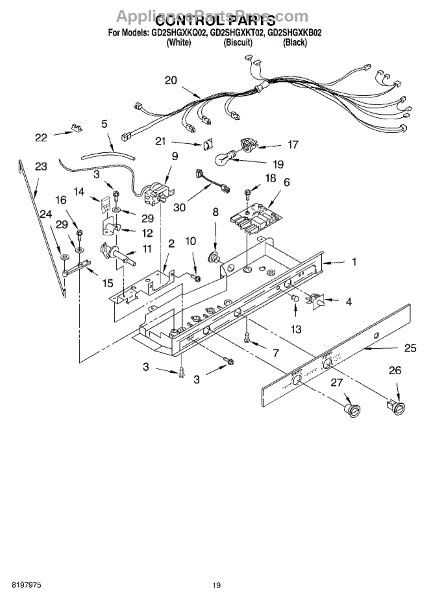

Parts for Whirlpool GD2SHGXKT02: 12 - Control Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Defrost Control Board is an OEM replacement part for Whirlpool refrigerators. This circuit board coordinates defrost heating cycles to remove built-up frost from evaporator coils.

Causes relate to water damage following leaks, component failure due to power surges loosening connectors, or general component wear over time.

Symptoms of issues include:

• Frost accumulation on interior freezer walls reducing capacity
• Food freezing underneath heavy buildup layers
• Inoperable heating element failing to restore airflow

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

The Cold Control is an OEM part for Whirlpool refrigerators, acting as a thermostat that regulates the temperature inside the fridge and freezer compartments. It's a critical component that ensures your refrigerator maintains the desired temperature to keep your food fresh and safe.

Causes of a bad Cold Control may include electrical malfunctions within the control unit, which can prevent accurate temperature sensing. Wear and tear from continuous use may lead to a degradation of the control's responsiveness.

Symptoms of a bad Cold Control include:

• The refrigerator or freezer is too warm or too cold
• Frequent or continuous running of the refrigerator's compressor
• Inability to start the cooling system

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This thermostat knob is the control dial used to set temperature on compatible ranges and ovens, restoring a clear pointer and easy grip when the original knob is cracked, faded, or missing. It provides a simple, user-facing control for the appliance thermostat. What it does:

• Turns the thermostat control shaft to select cooking temperature settings.
• Replaces cracked, worn, broken, loose, or missing knobs that make temperature adjustments difficult.
• Restores a visible pointer/indicator for accurate temperature selection.
• Improves grip and tactile feedback for safer, easier temperature changes.

• Turn appliance controls OFF and cool before replacing the knob.
• Remove the old knob by pulling it straight off the control shaft; align the new knob splines with the shaft and push on until fully seated.
• If the knob is stuck, use gentle rocking while pulling; do not pry on surrounding surfaces or force the shaft.

Epoxy repair kit - aluminum tubing.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This is the complete horizontal ice dispenser bucket assembly with crusher. It fits 22 cubic foot refrigerator models. For 20 cubic foot models order WP2209778. For 25 and 27 cubic foot models order WPW10312300.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
