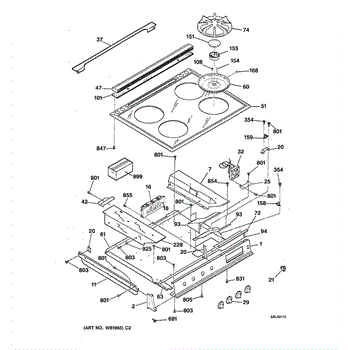

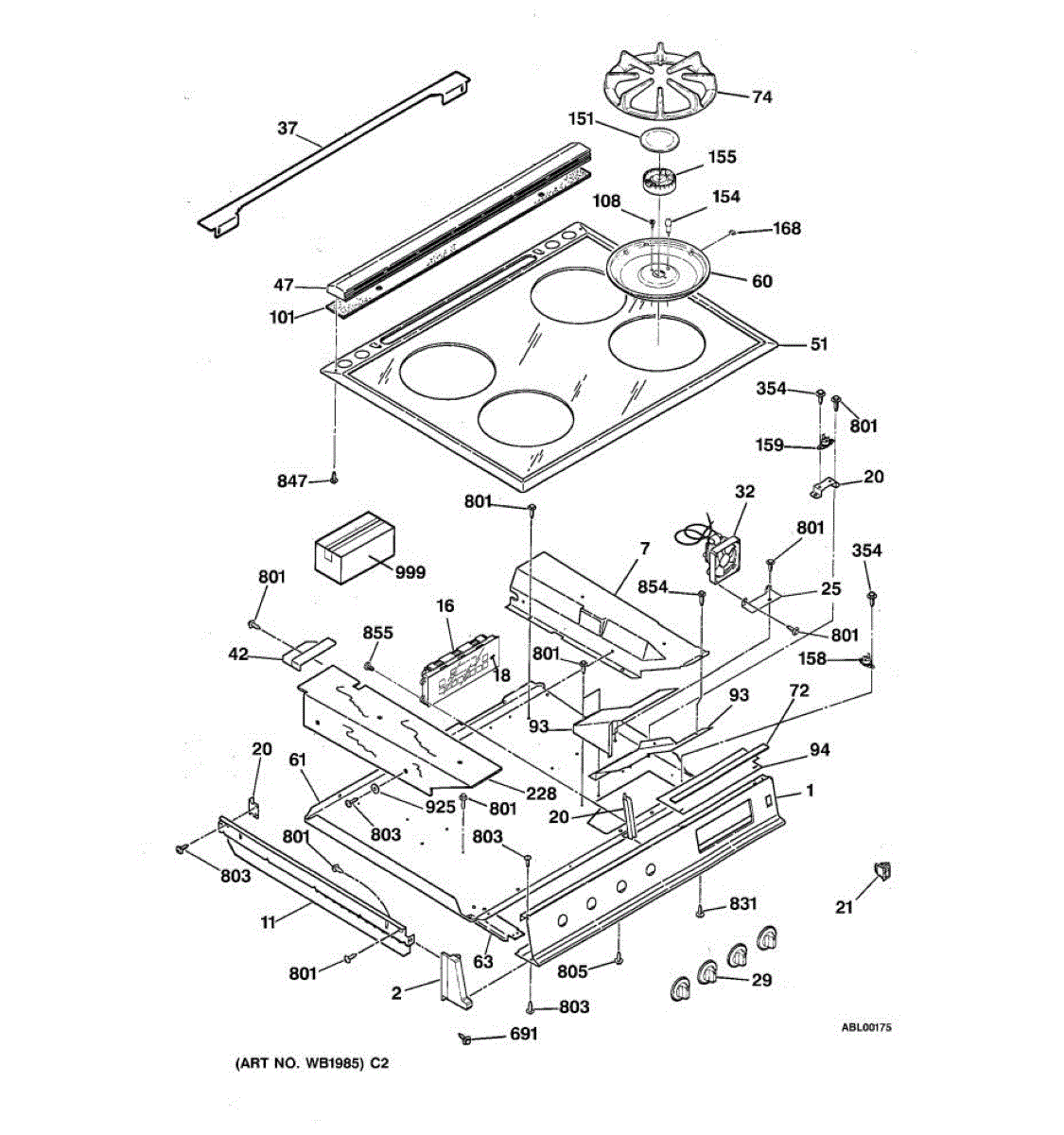

Parts for Ge JGSP33WEV7WW: 01 - Control Panel & Cooktop Parts

This part has been discontinued and is no longer available.

Oven light switch.

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

This is an infinite knob that is used on gas-powered oven ranges. The infinite knob is what the user turns to light the burner and is then used to control the amount of heat. A new infinite knob may be needed if the original is cracked, broken, or damaged in any way. Over time, the white plastic infinite knob may become yellowed and the user may wish to replace it for cosmetic reasons. The infinite knob is very easy to replace and the entire process can take anywhere from 15 to 30 minutes to complete. A screwdriver will be needed for the replacement process. Never perform care and maintenance on an appliance that is powered on.This is a genuine GE part and is sourced directly from the manufacturer. It is sold individually. One infinite knob is included per package. This particular infinite knob is compatible with gas-powered oven ranges that are manufactured by General Electric.

This small burner bowl sits beneath a surface coil element to catch drips and help keep the cooktop clean and protected. Replacing a damaged or stained bowl restores a neat appearance and proper support for the element.

• Collects spills beneath the surface element and shields internal components
• Supports the coil so it sits correctly in the burner opening
• Replace when rusted, warped, discolored, or missing
• Helps make cleanup easier after boilovers and everyday cooking

• Disconnect power before servicing the range
• Allow the surface element to cool completely
• Lift out the surface element and old bowl; position the new bowl, then reconnect the element
• Verify the element is seated firmly and level before restoring power

The Burner Bowl MD is an OEM part for GE ranges and cooktops. It is designed to sit beneath the burner element, catching spills and drips during cooking while also helping to direct heat upwards towards the cookware. This component helps maintain cleanliness and efficiency in the cooking area.

Causes of a bad burner bowl can include wear and tear from frequent use, staining or charring from spills, and corrosion from exposure to moisture and cleaning chemicals. Physical damage or warping from high heat can also impair its functionality.

Symptoms of a bad Burner Bowl MD include:

• Visible rust or corrosion
• Difficulty in properly fitting the burner element
• Accumulation of food debris or stains that are hard to clean
• Heat being unevenly distributed or directed away from cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Bowl Large is an OEM component for GE gas cooktops and ranges. It refers to the metal pan that sits beneath one of the large front burners on the appliance.

Over time and with heavy use, exposed burner bowls can develop warping from intense heat. Grease and food residue buildup inside the bowl is also common and causes reduced performance if not cleaned regularly.

Symptoms of a warped or clogged burner bowl include:

• Uneven or abnormal burner flame patterns
• Slow boiling or heating of cookware placed above
• Potential gas smells if warping allows leaks around the bowl
• Residue that cannot be removed with regular cleaning

This burner bowl is also compatible with some Kenmore, Hotpoint, and RCA gas ranges.

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

Color: Gray.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

The Electrode is an OEM part for GE gas cooktops and ranges. This component is responsible for igniting the surface burners. They are also often referred to as spark igniters.

Causes of a bad electrode can include cracks, mineral deposits, or damage accumulated from regular usage over many heating cycles. Heat exposure degrades the material integrity of the tip.

Symptoms of a bad electrode include:

• Surface burners failing to light or ignite when turned on
• The igniter glows but flames do not ignite
• Intermittent or inconsistent ignition of burners
• Visible wear, cracks or corrosion on the electrode tip

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A limit switch that stops power when temperatures exceed safe levels, preventing overheating and protecting the appliance and its controls. Installs at the heat source to help maintain safe operation and reliable performance. What it does:

• Acts as a temperature-activated safety cutoff to interrupt power when temps climb too high
• Can prevent continuous heating and protect control components from heat damage
• A failed switch may cause intermittent operation, no heat to the element, or a complete shutdown
• Works as a protective device in heating circuits and safety interlocks

• Disconnect power to the appliance before servicing to avoid shock or burns
• Verify correct part placement and wire connections; note terminal locations before removal
• Test continuity with a multimeter to confirm failure before replacing

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Nickel

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage
