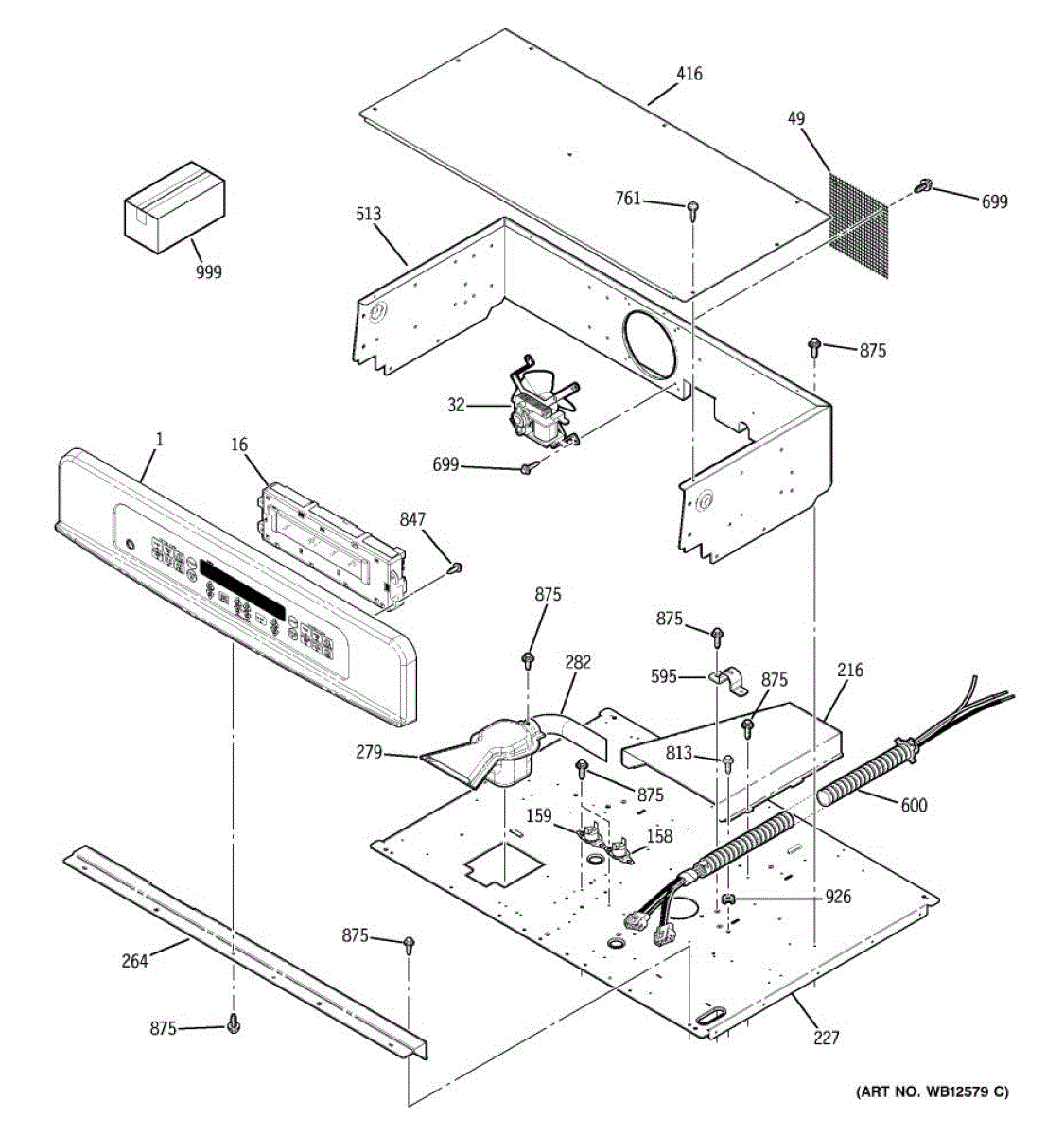

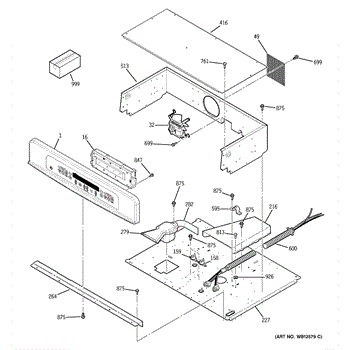

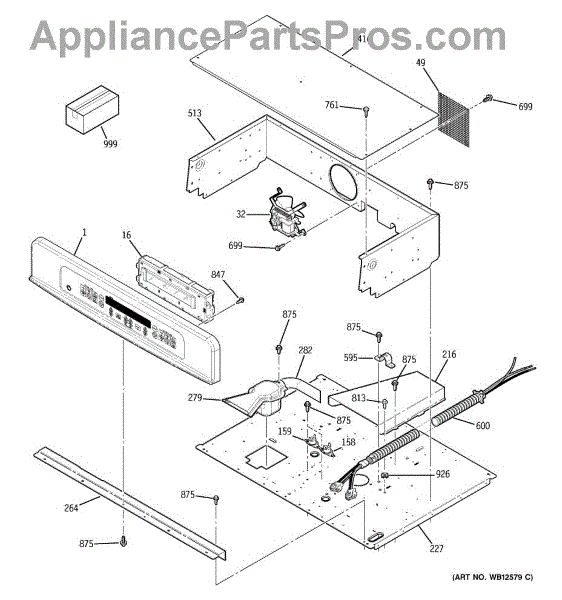

Parts for Ge JTP48BF1BB: 01 - Control Panel & Cooktop Parts

This control panel assembly replaces the oven console user interface so you can restore the range's buttons, display and touch controls for normal cooking operation. It fits into the front console and provides the main input/display surface for oven functions. What it does:

• Houses the push buttons/touch controls and display used to set bake, broil, timers and clock
• Restores responsive control if buttons are cracked, stuck, or the display is obscured
• Provides mounting and electrical connection for the console electronics
• Helps clear user-interface related errors when the physical panel or buttons are damaged

• One control panel assembly

• Disconnect power at the breaker or unplug the appliance before starting.
• Handle the panel and display area carefully to avoid cracking glass or scratching surfaces.
• Keep all mounting hardware; electrical connectors are fully seated during reassembly.
• Test functions after reconnecting power before completing reassembly.

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Package of 12
