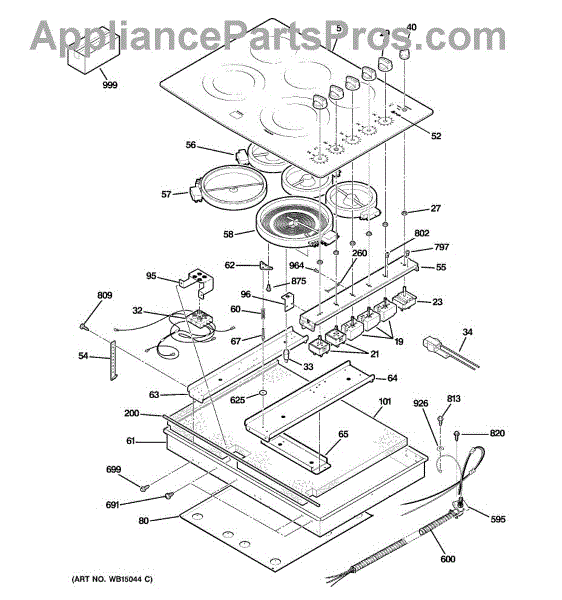

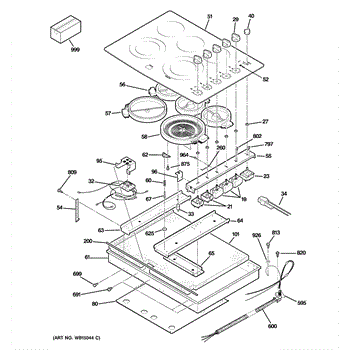

Parts for Ge PP944DT1BB: 01 - Control Panel & Cooktop Parts

1200W Element Control

An infinite switch controls power to an electric range or cooktop surface element, letting you select and maintain heat levels. Replacing a failed switch restores proper on/off cycling and responsive temperature control for consistent burner performance.

• Regulates power to the surface element by cycling current at the setting you choose
• Interfaces with the burner knob to select Low through High heat
• Common failure symptoms: element stuck on high, won't heat, won't shut off, or heats erratically

• Disconnect power at the breaker before servicing
• Access the control panel/backguard; note wire locations and transfer them to the new switch one at a time
• Secure the switch, reinstall the knob/panel, and test burner operation

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

The Selector Knob is an OEM part for GE ranges and cooktops. It allows the user to control various settings such as burner temperature or oven function by turning the knob to the desired position. This knob is essential for the proper operation and user interface of the appliance.

Causes of a bad selector knob can include repeated use leading to wear and tear, accidental impact causing cracks or breakage, and exposure to high heat which can cause the material to degrade.

Symptoms of a bad selector knob include:

• Difficulty in turning the knob
• The knob not staying in the selected position
• Cracks or visible damage to the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This glass maintop assembly replaces a damaged or worn cooktop surface to restore a smooth, stable cooking area and improve appearance. Fits ranges with a removable glass-style cooktop top. What it does:

• Replaces cracked, chipped or deeply scratched cooktop glass that can trap dirt or catch cookware
• Restores a flat, even surface for burner elements to sit and heat properly
• Helps prevent further damage to internal components from gaps or breaks in the top
• Improves the range's appearance when the original maintop is discolored or damaged

• Disconnect power to the range before starting and ensure the cooktop is cool
• Handle the glass carefully; use gloves and protective eyewear to avoid cuts
• Installation typically requires removing burner elements, trim pieces, and screws—keep hardware organized

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

The Element Radiant 9 Dual is an OEM part for GE cooktops and ranges. It provides the heating surface for cooking and is designed to offer two different heating zones, allowing for versatile temperature control depending on the size of the cookware.

Causes of a bad element radiant can include burnouts from excessive use, damage due to spills or impacts, and electrical issues. A faulty heating element can result in uneven cooking or the element failing to heat up at all.

Symptoms of a bad Element Radiant 9 Dual include:

• The element not heating or only partially heating
• Uneven heating across the surface
• Visible damage or discoloration on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support spring secures a stove/oven radiant heating element in place to keep the element aligned and stable during use, helping maintain reliable heating and prevent sagging or poor contact. What it does:

• Holds the radiant heating element firmly to the oven/range chassis for consistent heat distribution
• Prevents the element from shifting, sagging, or losing electrical contact
• Helps reduce arcing or intermittent heating caused by a loose element
• Common symptom: oven or burner element not staying seated, heating inconsistently, or visibly loose

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove oven racks and the heating element as needed for access; handle the element carefully to avoid damage.
• Replace only with the exact part; ensure the spring is seated correctly to secure the element.

The Clear Tape is an OEM part for GE cooktops. This specialized tape is used to secure and protect various components of the cooktop, including glass panels and control assemblies. It ensures that these components stay in place during operation and helps maintain the cooktop's structural integrity.

Causes of a bad cooktop clear tape can include exposure to high temperatures over time, wear and tear from regular use, or accidental damage during cleaning or maintenance.

Symptoms of a bad cooktop clear tape include:

• Loose or shifting glass panels
• Parts of the cooktop not staying securely in place
• Visible deterioration or peeling of the tape
• Difficulty in maintaining a stable cooktop surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

ST10-16 X 7/16"

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
