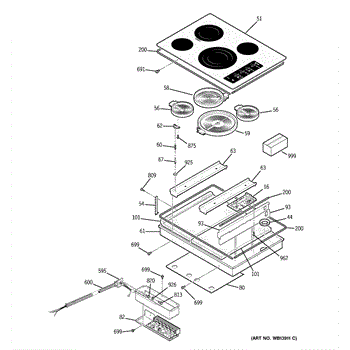

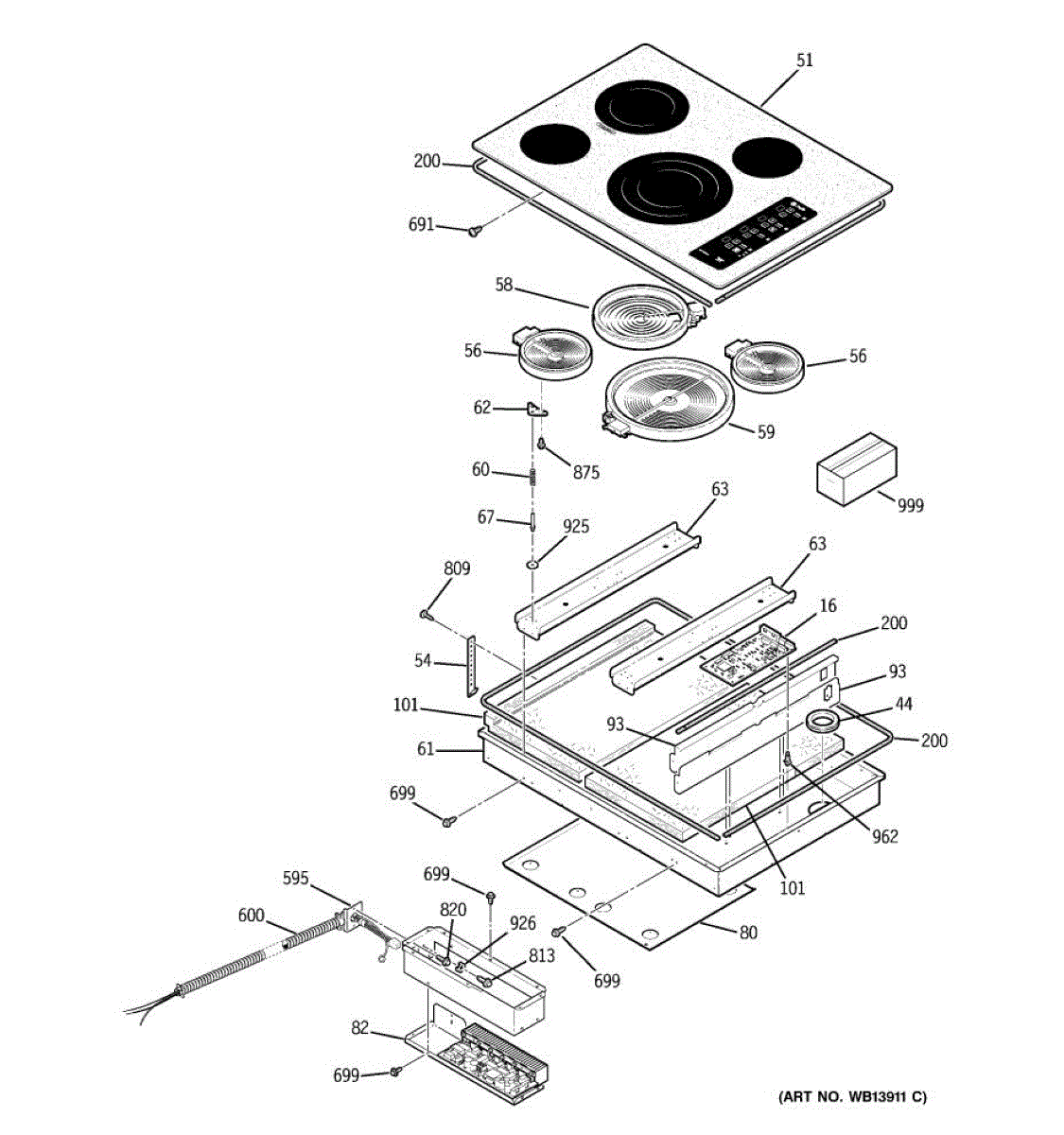

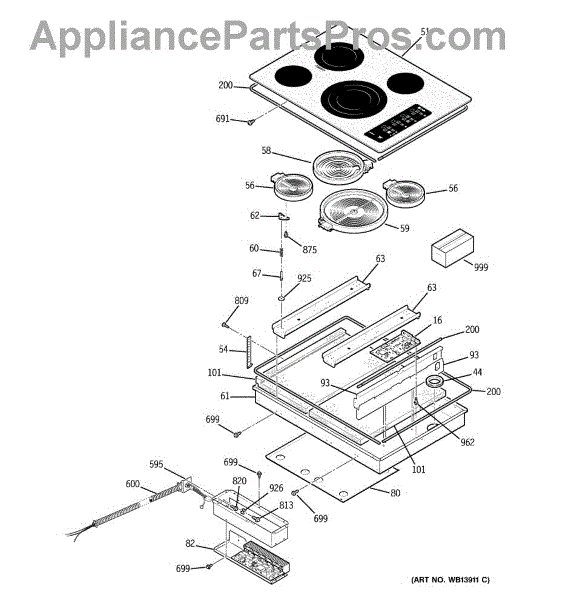

Parts for Ge PP945SM2SS: 01 - Control Panel & Cooktop Parts

This relay board works with the main control to switch power to high-load oven components. Replacing a failing board can restore consistent heating and reliable performance across bake, broil, and convection functions. What it does:

• Switches high-voltage power to oven elements and fans as directed by the control
• Loss of heat in one or more modes (bake/broil/convection) is a common failure symptom
• Intermittent or erratic heating, long preheat, or heat stopping mid-cycle
• Visible burn marks or heat damage on the board

• Disconnect power at the breaker or fuse box before servicing
• Access location varies by model (rear panel or control compartment)
• Photograph wiring and move connectors one at a time to the new board
• Handle by the edges and use anti-static precautions; reuse existing hardware

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An 8-inch Haliant radiant surface element for smooth-top ranges. It replaces a worn or burned-out burner so your cooktop heats evenly and responds correctly, restoring reliable everyday cooking performance. What it does:

• Supplies controlled radiant heat beneath a glass-ceramic cooktop for the 8-inch burner position
• Common fix for a surface element that will not heat
• Helps resolve slow or uneven heating, or when only part of the ring glows
• Appropriate when the element shows visible breaks, hot spots, or burn marks

• 1 8-inch Haliant radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Lift or open the glass top per your service information; handle the element carefully—it is fragile
• Move wires one at a time to matching terminals; transfer any mounting brackets/clips from the old element
• Ensure the element sits flat and centered before reassembly; test operation before cooking

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support spring secures a stove/oven radiant heating element in place to keep the element aligned and stable during use, helping maintain reliable heating and prevent sagging or poor contact. What it does:

• Holds the radiant heating element firmly to the oven/range chassis for consistent heat distribution
• Prevents the element from shifting, sagging, or losing electrical contact
• Helps reduce arcing or intermittent heating caused by a loose element
• Common symptom: oven or burner element not staying seated, heating inconsistently, or visibly loose

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove oven racks and the heating element as needed for access; handle the element carefully to avoid damage.
• Replace only with the exact part; ensure the spring is seated correctly to secure the element.

This bracket element support holds and stabilizes the oven's bake/heat element so it stays properly positioned for reliable heating and safe operation. Durable replacement for a sagging or loose element mounting point. What it does:

• Secures the oven heating element to prevent sagging or contact with the oven cavity
• Helps maintain consistent element placement for even heating
• Reduces stress on the element that can cause buzzing, arcing, or premature failure
• Restores proper element alignment after impact or wear

• One bracket element support

• Disconnect power to the appliance before inspecting or replacing the part
• Handle the heating element and mounting area carefully—sharp edges may be present
• Follow the appliance service manual for step-by-step removal and reassembly

This power board assembly manages and distributes electrical power within the appliance's control and heating circuits. Replacing a failed board can restore consistent power, responsive controls, and reliable heating when the unit won't turn on or behaves erratically.

• Routes incoming power to the appliance's control and load circuits
• Works with the control system to switch relays and energize components as commanded
• Supports reliable operation of powered components during cooking cycles
• Failure signs include: unit won't power up, no heat, dead/unresponsive display, or intermittent shutdowns

• Disconnect power at the breaker or unplug before servicing
• Electronics are static-sensitive—use ESD protection and handle the board by the edges
• Photograph/label all wiring; transfer connectors to the new board one at a time
• Ensure all connectors are fully seated and mounting hardware is secure before restoring power

The Clear Tape is an OEM part for GE cooktops. This specialized tape is used to secure and protect various components of the cooktop, including glass panels and control assemblies. It ensures that these components stay in place during operation and helps maintain the cooktop's structural integrity.

Causes of a bad cooktop clear tape can include exposure to high temperatures over time, wear and tear from regular use, or accidental damage during cleaning or maintenance.

Symptoms of a bad cooktop clear tape include:

• Loose or shifting glass panels
• Parts of the cooktop not staying securely in place
• Visible deterioration or peeling of the tape
• Difficulty in maintaining a stable cooktop surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

This standoff secures and isolates the oven power control module from the range chassis, helping keep the control electronics stable and properly spaced for safe operation. Replaces worn or broken mounting standoffs. What it does:

• Provides a stable mounting point for the power control module or control board
• Maintains proper clearance and insulation between the control and metal chassis
• Prevents movement that can cause loose connections, arcing, or intermittent control faults
• Helps reduce vibration and stress on control board components

• Disconnect power to the appliance before inspecting or replacing the standoff
• Use only the exact replacement standoff to maintain insulation and spacing
• If the control board shows damage, inspect the electronic assembly and wiring for additional issues

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
