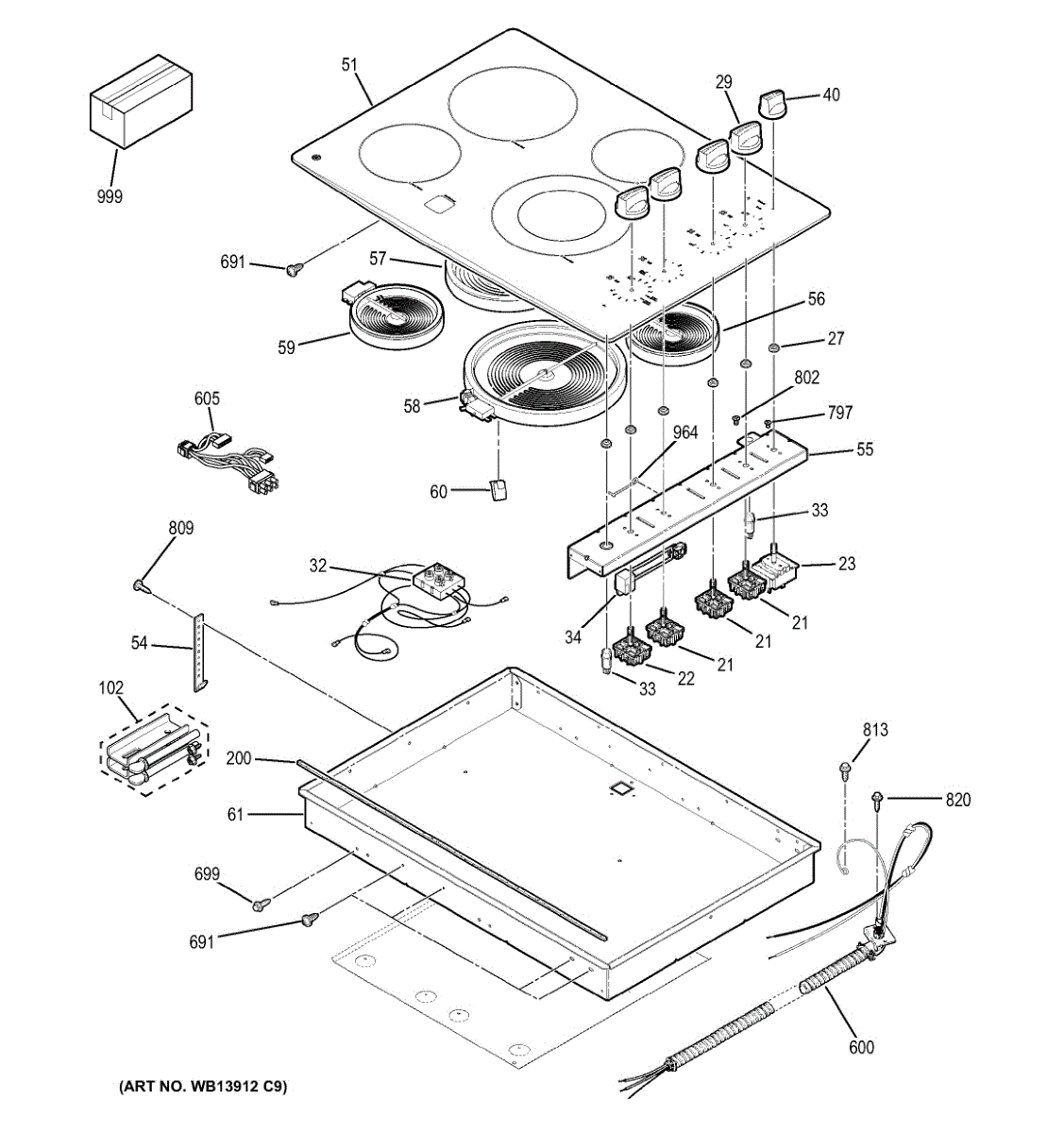

Parts for Ge JP3530DJ1BB: Control Panel & Cooktop Parts

Burner won't heat or stuck on high? This infinite switch and seal kit restores heat control and protects against spill damage. Moderate DIY repair.

Fix grease or moisture getting into your cooktop burner controls with this infinite switch seal. Keeps debris out for reliable temperature control.

Controls won't lock or unlock? This push-button control lock switch restores the child safety lockout feature on your electric cooktop control panel.

Replace a cracked, broken, or missing control knob on your cooktop. Attaches to the control shaft for smooth, reliable heat selection and adjustment.

Controls status lights on your cooktop, providing visual alerts during operation. Replace when indicators fail or become dim. Snaps into place for easy installation. Verify fit with your model number.

Replace your range indicator light when it fails to illuminate. Shows when burners or oven functions are active for safety. Verify fit with your model number.

Replace a faulty cooktop buzzer when alert tones don't sound or buzz continuously. Straightforward fix requiring basic tools. Fits various models.

Black selector knob for cooktop control panels. Replaces worn, cracked, or missing knobs. Restores clear function selection on control shafts.

Replace your cracked or damaged electric cooktop glass surface with frame. This assembly installs as the main cooking surface and frame structure.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Replace a non-heating or weak 8-inch surface burner with this radiant element. Requires lifting the cooktop and Torx screwdriver. Moderate DIY repair.

Burner stopped working or won't heat properly? This dual radiant surface element restores full cooking function. DIY-friendly repair, typically 30 minutes.

Burner won't heat or heats unevenly? This 6 inch radiant element restores consistent cooking performance. Typical DIY repair takes 30-45 minutes.

Replace your electric range's radiant element spring if the heating coil sags or won't glow properly. Simple DIY repair with a flathead screwdriver.

Mounting bracket kit secures your cooktop to the countertop. Replaces lost, damaged, or missing hardware. Includes fasteners for proper alignment and support.

Clear protective tape secures glass panels and components on your cooktop. Replace when tape loses adhesion or during glass panel repairs. Confirm fit.

Wire harness for the main top left section of your cooktop. Replaces damaged, frayed, or disconnected wiring that needs replacement due to wear or damage.

This right-side maintop wire harness supplies connections for the cooktop's right-side controls and components, restoring reliable electrical routing and control signals. It's a direct-replacement-style harness used where the original wiring is damaged or intermittent. What it does:

• Provides the factory routing and connector interfaces for right-side cooktop components
• Restores power and signal continuity to right-side switches, burners or igniters when wiring is damaged
• Helps eliminate intermittent operation caused by frayed, burned, or loose wires
• Maintains correct connector orientation and secure attachment to reduce arcing or poor contacts

• Disconnect power at the breaker or unplug the appliance before beginning work
• Remove the maintop/power assembly per the appliance guide to access harness connections
• Match connectors and routing to the original harness; avoid stretching or pinching wires
• If wiring shows heat damage at terminals, replace affected components and ensure secure, corrosion-free connections

If your cooktop burner won't heat or cycles incorrectly, this infinite switch wiring harness restores proper signal routing. Basic repair skill needed.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Retainer wire secures internal cooktop components. Replaces worn, broken, or missing wire that no longer holds parts in proper position.
