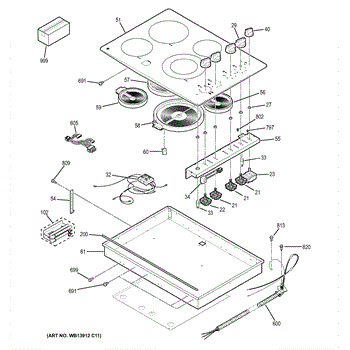

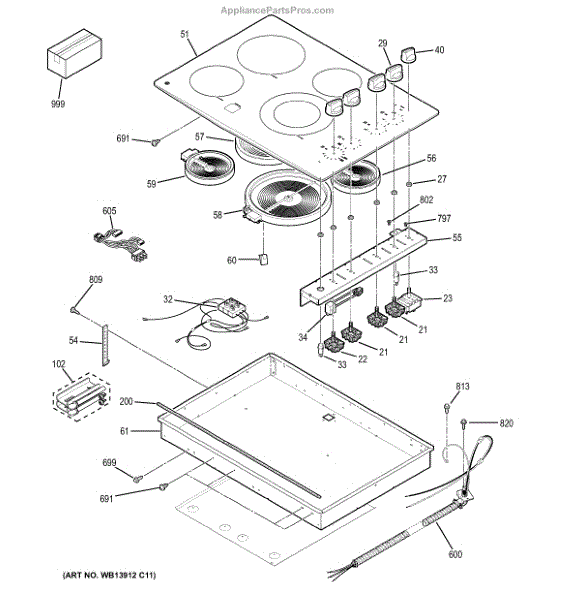

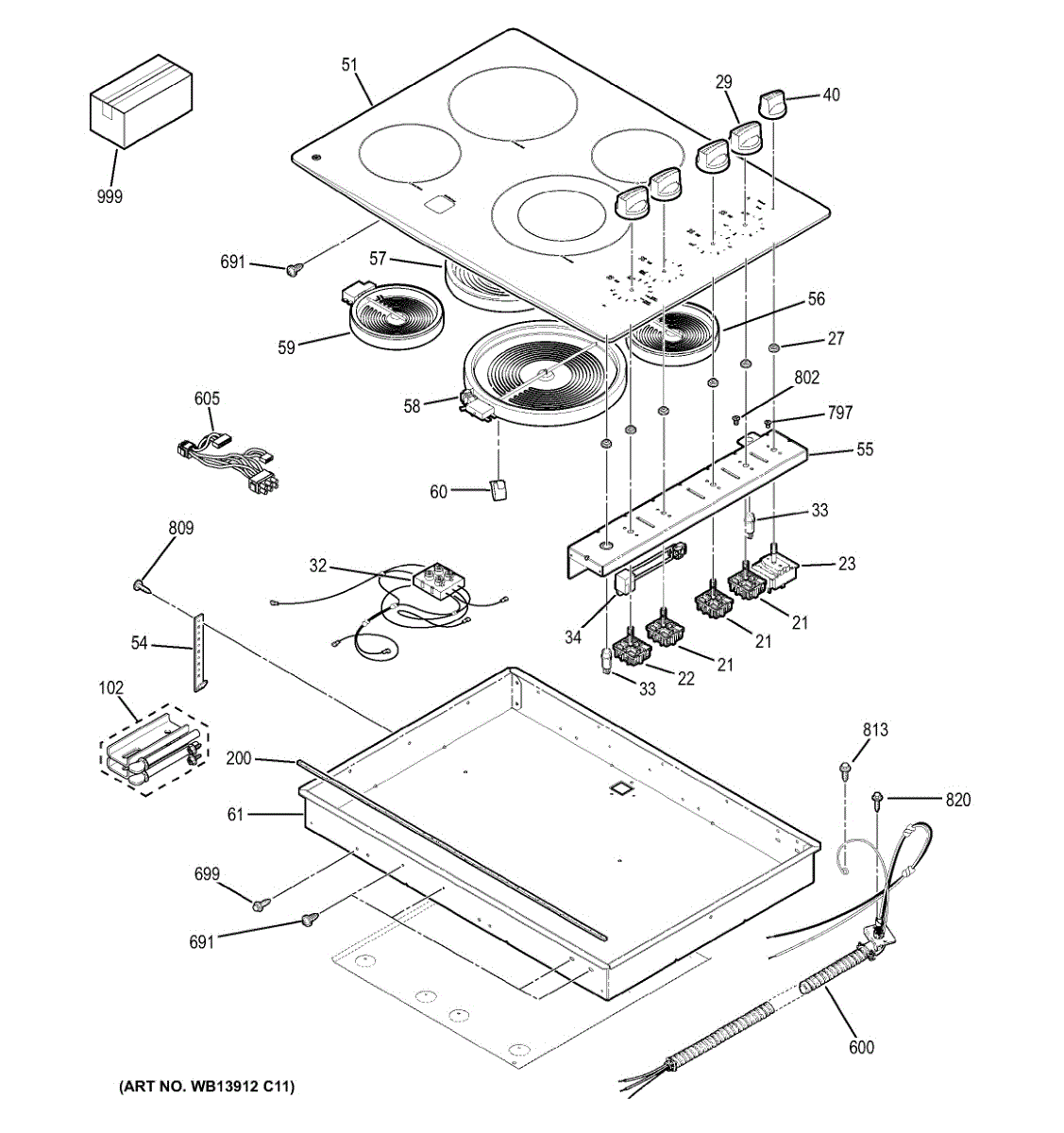

Parts for Ge JP3530TJ2WW: Control Panel & Cooktop Parts

Restore smooth heat control to a surface burner and help protect the control from spills. This kit combines a replacement infinite switch with a protective shaft seal to regulate element power and guard the switch against moisture intrusion.

• Regulates power to the surface element for adjustable heat levels
• Replaces a faulty control that causes no heat, only high heat, won't turn off, or erratic temperatures
• Shaft seal helps block liquids and debris from entering the control shaft area
• Labeled terminals aid in transferring wires from the old switch to the new one

• Disconnect power at the breaker before servicing
• Access the control panel; remove the knob and panel as needed to reach the switch
• Note/photograph wiring; transfer wires to matching terminals on the new switch and install the shaft seal
• Reassemble, restore power, and test burner operation

This replacement seal fits around an electric cooktop infinite switch to help keep moisture, grease and debris out of the switch assembly for more reliable burner control. Simple part to restore proper sealing at the control. What it does:

• Seals the gap between the infinite switch and the cooktop/control panel to help prevent liquid and crumbs from entering the switch cavity.
• Helps reduce intermittent contact, arcing, or corrosion that can cause burners to act erratically.
• Useful when an existing seal is cracked, flattened, missing or soaked with grease.
• Helps maintain cleaner switch operation and can prevent premature switch failure linked to contamination.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Remove the control knob and access the switch per your model's service instructions; replace the old seal with the new seal seated fully around the switch body.
• Inspect the switch and surrounding area for damage or excessive corrosion; replace the switch if damaged.

A push-button lockout switch that engages the appliance's control-lock feature to prevent accidental or child operation of the controls. Restores the control lock function so settings can be secured or released when needed. What it does:

• Acts as the user-accessible control-lock (child lock) switch for the control panel.
• Signals the main control board to enable or disable button and touch-pad input.
• Common symptom fix: control lock won't engage or disengage when pressed.
• Common symptom fix: control buttons appear unresponsive or the lock indicator doesn't change.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Access typically requires removing the control console or panel.
• Handle electrical connectors carefully; replace only with the exact OEM-numbered part.

This white control knob replaces a worn or broken range/stove control knob to restore safe, positive control of burner or oven settings. It fits the original splined shaft for a simple cosmetic and functional repair. What it does:

• Replaces cracked, faded, or missing control knobs so settings can be selected easily
• Provides tactile grip and positive detent feel when turning temperature or burner controls
• Helps prevent accidental changes by securing to the control shaft
• Restores the appliance's original appearance and user interface

• One white control knob

• Ensure all controls are OFF and power/gas to the appliance is turned off before starting
• Remove the old knob by pulling straight off the control shaft; align splines and push the new knob onto the shaft until fully seated
• Do not force the knob; if it does not seat, verify spline alignment or shaft condition

This indicator light module controls the status lights on your range or cooktop, providing clear visual alerts during operation. Replace it to restore reliable, easy-to-see indicators for key functions. What it does:

• Illuminates key status indicators on the appliance's control area
• Helps when functions are active and when conditions require attention
• Common symptoms: lights do not illuminate, stay on continuously, flicker intermittently, or show heat-related damage
• Direct replacement restores normal indicator operation

• Includes: 1 indicator light module

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the module from the control area per your model's service information; note screw and wire locations
• Transfer connectors one at a time to the new module, secure it, reassemble, and test

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

This white selector knob lets you choose settings on compatible GE appliance controls and restores a secure, easy-to-grip interface. It replaces a cracked, faded, or missing control knob so dials turn smoothly and selections register correctly. What it does:

• Fits the control shaft to allow manual selection of cooktop/oven/dryer settings
• Restores grip and control when the original knob is stripped, cracked, loose, or missing
• Provides a visible, color-matched replacement to match the appliance finish
• Helps prevent accidental setting changes by seating firmly on the control shaft

• One white selector knob

• Disconnect power to the appliance before removing or installing the knob to avoid injury
• Remove the old knob by pulling it straight off the control shaft; inspect the shaft for damage
• Align the knob with the splines on the control shaft and push it fully onto the shaft until seated
• If the original knob used a set screw, reuse it and tighten securely.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8-inch Haliant Element is an OEM replacement part for GE ranges. This component is located beneath the glass surface of the stove and is responsible for heating up the cooking area. It glows bright red at its highest setting, providing the necessary heat for cooking or boiling. The 8-inch size indicates its diameter, making it suitable for larger pots and pans.

Symptoms of a bad 8-inch Haliant Element include:

• The element not heating up or only heating intermittently
• Uneven cooking results due to inconsistent heat
• Visible damage to the element, such as burns or breaks
• Error codes on the range’s display indicating a heating issue

Causes for a malfunctioning 8-inch Haliant Element can include a burnt-out element, electrical issues like faulty wiring or connections, or problems with the control board that regulates its operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9" Dual is an OEM part for GE ranges and cooktops. This dual-element radiant burner provides versatile cooking options, offering both a small and large heating area within a single burner. It ensures efficient and even heat distribution for a variety of cooking needs, accommodating different pot and pan sizes.

Causes of a bad radiant element can include normal wear and tear, electrical issues, or damage from heavy cookware or impact. Over time, these factors can lead to the element failing to heat properly or not functioning at all.

Symptoms of a bad radiant element include:

• The burner not heating up or heating inconsistently
• Only one of the dual elements functioning
• Visible damage or discoloration on the element
• The burner cycling on and off more frequently than usual

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side maintop wire harness supplies connections for the cooktop's right-side controls and components, restoring reliable electrical routing and control signals. It's a direct-replacement-style harness used where the original wiring is damaged or intermittent. What it does:

• Provides the factory routing and connector interfaces for right-side cooktop components
• Restores power and signal continuity to right-side switches, burners or igniters when wiring is damaged
• Helps eliminate intermittent operation caused by frayed, burned, or loose wires
• Maintains correct connector orientation and secure attachment to reduce arcing or poor contacts

• Disconnect power at the breaker or unplug the appliance before beginning work
• Remove the maintop/power assembly per the appliance guide to access harness connections
• Match connectors and routing to the original harness; avoid stretching or pinching wires
• If wiring shows heat damage at terminals, replace affected components and ensure secure, corrosion-free connections

This wiring harness connects the oven or range infinite (rotary) control to the appliance's power and selector circuitry, restoring proper control signal routing for temperature or speed settings. Use to replace a damaged or burned harness to regain reliable control operation. What it does:

• Provides the factory wiring connections for an infinite (rotary) control so the control can select heating levels or fan speeds
• Transfers power and control signals between the infinite switch and the appliance wiring
• Commonly replaced when wires are frayed, melted, broken, or when the control does not respond reliably
• Helps eliminate intermittent operation, no-heat or stuck-selector symptoms caused by open or shorted harness wiring

• One infinite switch wiring harness

• Disconnect power to the appliance at the breaker before servicing to avoid shock hazard
• Verify the harness routing and connector orientation with the parts diagram before disconnecting components
• Replace only with the correct harness PN to ensure proper fit and connector compatibility

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

ST10-16 X 7/16"
