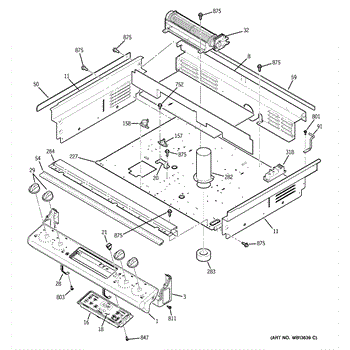

Parts for Ge JGSP28CEK1CC: 06 - Control Panel & Cooling Fan Parts

Color: Bisque

Natural gas. SM 1.07mm

Natural gas. LG 1.68mm

Medium LP orifice

LP Gas. LG .99mm

LP gas. SM .63mm

This electronic oven control board (ERC) governs heating and user-interface functions in gas ranges. Replacing a failed board restores dependable bake/broil operation, accurate temperature control, and correct clock/timer display so your oven performs consistently.

• Directs bake and broil by supplying power to the oven igniter(s) and managing heat relays
• Regulates oven temperature using feedback from the oven temperature sensor
• Controls the clock, timer, and temperature/display indicators
• Monitors for faults and displays error codes when issues are detected
• Failure symptoms include no heat or won't start, blank/unresponsive display, erratic temperatures, or recurring beeps/error codes

• Disconnect power at the breaker and shut off gas before servicing
• Use ESD protection; handle the board by its edges to avoid static damage
• Photograph wiring and transfer connectors one at a time; reuse any mounting hardware from the original board
• After reassembly, restore power, set the clock, and test bake and broil functions

Color: Bisque

This mounting bracket secures the appliance switch in place to maintain reliable switch alignment and operation. It's a simple replacement that restores proper switch positioning and helps prevent intermittent or failed switch contact. What it does

• Holds the switch assembly firmly in the correct position for consistent operation
• Prevents switch movement that can cause intermittent operation or failure to engage
• Commonly replaced when a loose or broken bracket causes the appliance not to start, stops mid-cycle, or has inconsistent controls
• Compatible with the factory switch design to maintain original fit and function

• Disconnect power to the appliance before starting any repair
• Basic hand tools are typically required; keep screws and small parts organized
• Handle the switch and wiring carefully; avoid pulling on wires during replacement
• After installation, restore power and test the switch operation before reassembling panels

Bisque.

This control bracket secures and positions the range/oven control assembly so the console stays stable and the control board is properly aligned. Replacing a damaged bracket restores firm mounting and reliable button/knob operation. What it does:

• Mounts and supports the control board/console to the appliance cabinet
• Keeps the control panel aligned to prevent rubbing, vibration, or mispositioned buttons
• Prevents the control assembly from shifting during use, which can cause intermittent controls
• Helps maintain consistent button/knob actuation and overall console stability

• Disconnect power to the appliance before starting any repair
• Access usually requires removing the console or control panel; keep or note screw/hardware locations
• Handle the control board and wiring gently to avoid connector or component damage

This blower assembly circulates air through the appliance to support drying and venting, restoring proper airflow for consistent performance. It replaces a worn or damaged fan wheel and housing to reduce overheating and poor drying. What it does:

• Moves air through the appliance to aid drying and ventilation
• Restores airflow lost from cracked, warped, or broken blower wheel
• Helps eliminate overheating, long-dry times, or reduced airflow
• Works with the motor and ducting to maintain proper exhaust flow

• One blower assembly

• Disconnect power before servicing to avoid shock or injury
• Inspect motor shaft and mounting before installing; replace any damaged hardware
• Ensure blower is oriented and secured per manufacturer alignment to prevent noise or imbalance
• Verify clear, unrestricted ducting after installation for proper performance

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

This limit switch is a position-sensing safety switch used in cooking appliances. It signals the control when a mechanism reaches the correct position, helping the unit start or stop related functions reliably.

• Detects the position of a latch, cam, or actuator and opens/closes the circuit accordingly
• Allows the control to enable features only when the correct position is reached
• Common symptoms: related feature won't start or finish, motor runs but never "signals done," intermittent operation, or no continuity change when the switch is actuated
• Restores dependable interlock/position feedback to the control

• Disconnect power at the breaker before servicing
• Access point varies by model; the switch is typically mounted near the associated mechanism it monitors
• Move wires over one at a time and note terminal orientation to match the original setup
• The actuator is aligned and the switch clicks/changes continuity when pressed; test operation before reassembly

Restore safe, reliable heating with this bimetal limit switch. It senses excessive temperature inside your range or cooktop and opens the circuit to prevent overheating, then automatically resets once the area cools to a safe level.

• Monitors temperature and interrupts power when a preset limit is reached
• Automatically resets after cooling to resume normal operation
• Helps protect heating components, wiring, and controls from heat damage
• Common signs of failure: little or no heat, intermittent cycling, or overheating; fails continuity testing

• Disconnect power and allow the appliance to cool completely before servicing
• Access the switch location; note wire positions and transfer them one at a time to the new switch
• Mount the new switch in the same orientation; ensure proper thermal contact as designed
• Inspect connectors for heat damage, replace if needed, then reassemble and test operation

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

ST10-16 X 7/16"

Nickel

Black. 8-18 AB HXW 3/8
