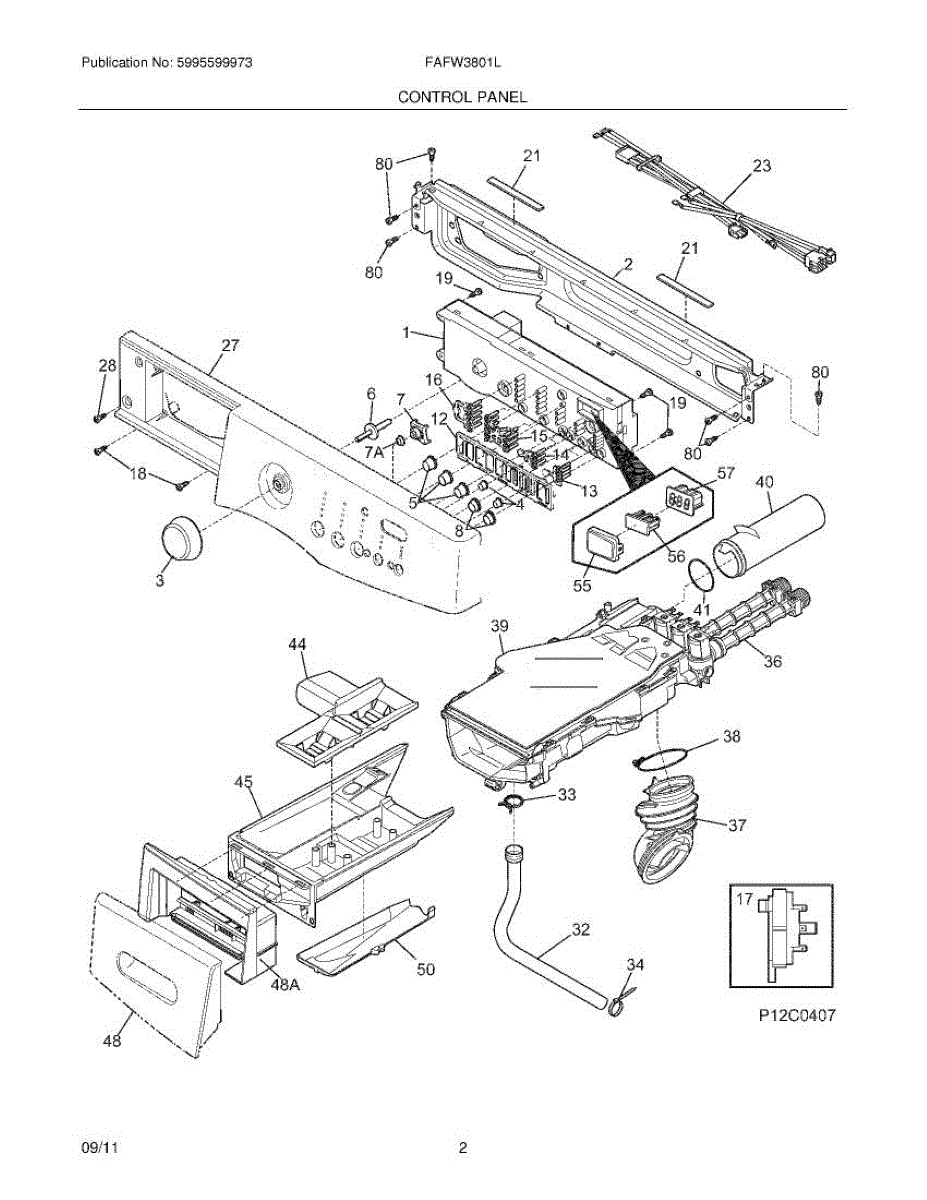

Parts for Frigidaire FAFW3801LB2: 03 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This control board is the appliance's primary printed circuit board. It governs cycle timing, options, and power to key components. Replacing a failed PCB can restore responsive controls and consistent operation across all cycles.

• Coordinates inputs from sensors/controls and directs outputs to motors, valves, pumps, and other loads
• Manages cycle sequencing and option selections as designed by the manufacturer
• Symptoms of a failing board can include no start/no response, cycles that won't advance or end early, intermittent/erratic operation, blank or flickering indicators, or recurring error codes

• Disconnect power before servicing; do not work on a live appliance
• Use ESD protection and handle the board by the edges to avoid damage
• Photograph existing wiring; move connectors one at a time to the matching positions on the new board
• Secure the board and any covers before restoring power; run a test cycle/diagnostic per your model's service information

Mounting bracket for washer and laundry center models. Secures components in place during operation. Replace if cracked, bent, or broken to restore stability.

This small pin secures the program selection knob to the dryer's control panel shaft. Replace if the control knob spins freely without changing settings or falls off the control panel.

Fix E32 error codes or washer stopping during fill with this water level pressure switch. Senses water level and controls fill cycles. DIY-friendly repair.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This replacement screw secures appliance panels and components. With a #10-16 thread and 0.75-inch length, it replaces stripped, rusted, or missing hardware to restore a tight, rattle-free fit and reduce vibration and noise.

• Fastens cabinet panels, brackets, or internal parts in washers and dryers
• Direct replacement for worn or lost screws to keep assemblies aligned and secure
• Helps address loose/vibrating panels, rattling noises, or visible gaps/misalignment
• Spec: #10-16 thread; 0.75-inch length

• Disconnect power; for washers, also shut off water supply
• Match the original screw location; start threads by hand to prevent cross-threading
• Use a driver that fits the screw head properly; tighten snugly without overtightening

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Secures hoses to pumps, tubs, and valves preventing leaks. Replace if worn, loose, or causing drips during cycles. Confirm fit with your model number.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Fix a washer leaking from the top or filling when not in use. This water inlet valve controls hot and cold water flow. Easy 30-minute DIY repair.

Connects the detergent dispenser to the wash tub in your washer. Replace if cracked, leaking, or causing water damage to other components during cycles.

Secures hoses to fittings, preventing leaks in water and drain lines. Replace when connections loosen or leaks appear. Verify fit with your model number.

This dispenser assembly replaces a worn or damaged refrigerator dispenser to restore reliable dispensing of water and ice. It provides the dispenser housing and interface needed for proper user operation and sealing at the door. What it does:

• Houses the dispenser components and provides the push-lever/door opening for water and ice delivery
• Restores a broken, cracked or loose dispenser opening that causes poor engagement or cosmetic damage
• Helps stop minor leaks or drips at the dispenser area when seals and gaskets are intact
• Eliminates sticking or misaligned dispenser operation that prevents normal dispensing

• Disconnect power and shut off the water supply before beginning any work.
• Installation typically requires removing the refrigerator door panel(s) and detaching the old dispenser from the inner door; keep fasteners for reuse unless replacements are provided.
• Handle plastic parts gently to avoid cracking; inspect door seals and gaskets and replace if worn.
• After installation, restore power and water, then test dispenser operation and check for leaks.

Rubber O-ring seal prevents water leaks at hose connections and fittings. Replace when worn or cracked to restore tight seal and stop dripping. Verify fit.

Fix a broken or missing detergent dispenser cover that's cracked or won't guide proper detergent placement. Simple 5-minute replacement repair.

Detergent drawer broken, cracked, or won't open? This drawer holds and dispenses detergent during wash cycles. Simple snap-in replacement, no tools needed.

This dispenser assembly replaces a worn or damaged refrigerator dispenser to restore reliable dispensing of water and ice. It provides the dispenser housing and interface needed for proper user operation and sealing at the door. What it does:

• Houses the dispenser components and provides the push-lever/door opening for water and ice delivery
• Restores a broken, cracked or loose dispenser opening that causes poor engagement or cosmetic damage
• Helps stop minor leaks or drips at the dispenser area when seals and gaskets are intact
• Eliminates sticking or misaligned dispenser operation that prevents normal dispensing

• Disconnect power and shut off the water supply before beginning any work.
• Installation typically requires removing the refrigerator door panel(s) and detaching the old dispenser from the inner door; keep fasteners for reuse unless replacements are provided.
• Handle plastic parts gently to avoid cracking; inspect door seals and gaskets and replace if worn.
• After installation, restore power and water, then test dispenser operation and check for leaks.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

Seals hot and cold water connections to your washer's dispenser. Replace if you notice leaking at the inlet assembly. Confirm fit with your model number.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
