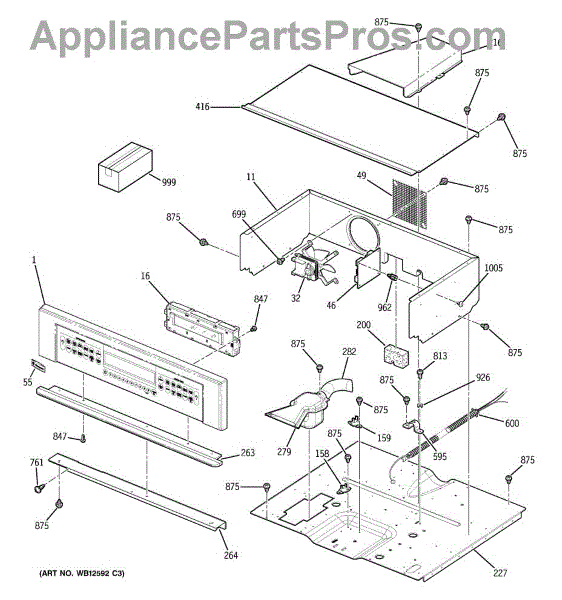

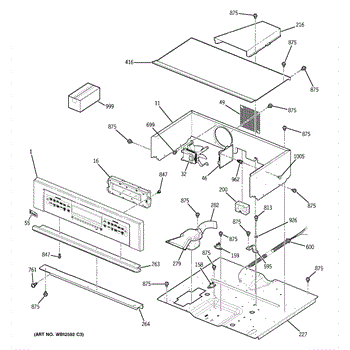

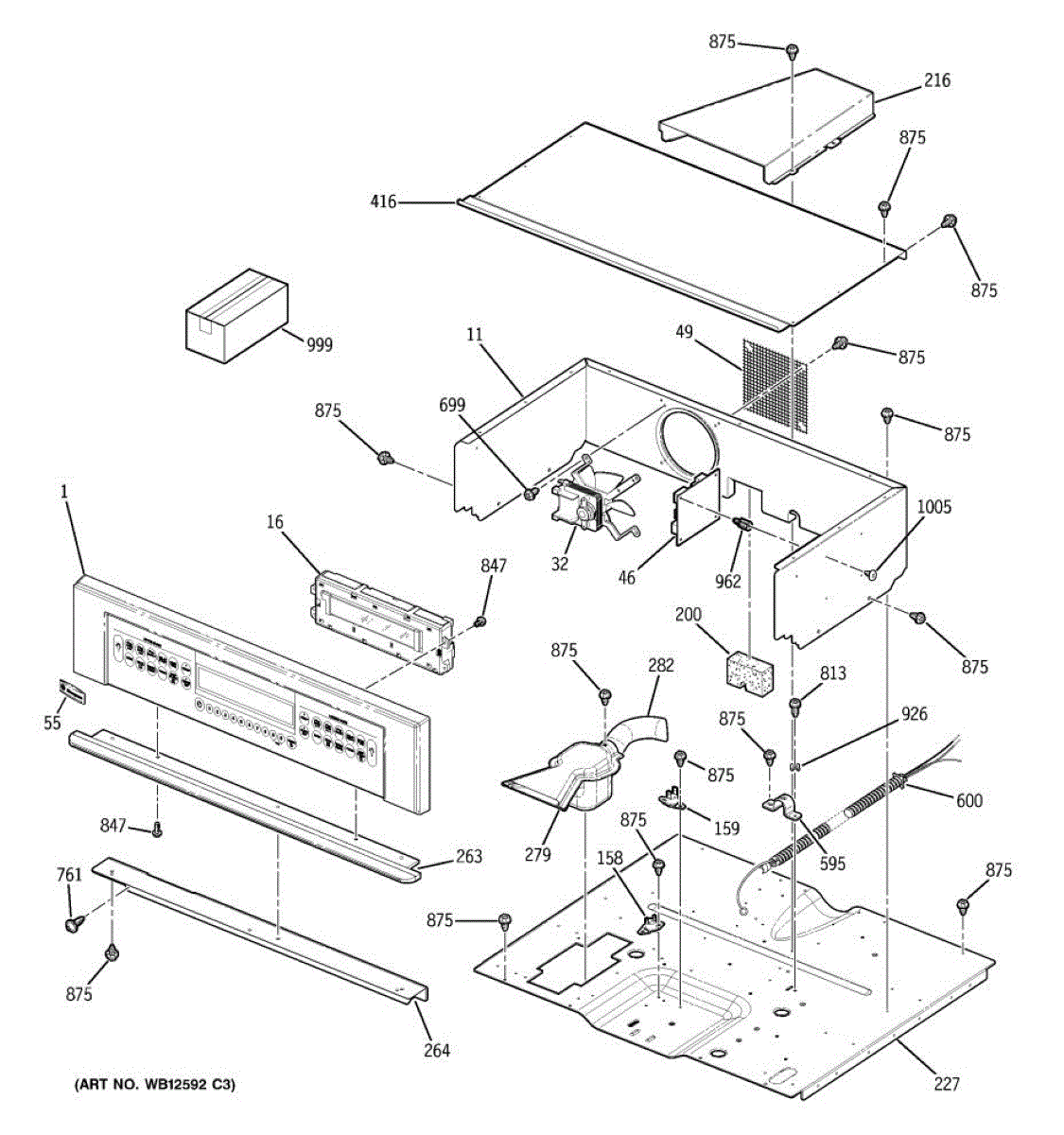

Parts for Ge ZEK958BF5BB: 01 - Control Panel Parts

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This ribbon connector (GLS) is a flat multi-conductor connector used on select appliances to link glass/control assemblies to the main wiring harness, restoring electrical continuity for control functions. Ideal when a broken or corroded connector causes intermittent or no control response. What it does:

• Provides a secure flat cable connection between control/glass assemblies and the main wiring harness
• Restores signals for touch controls, lights, or display functions when a damaged connector is the cause
• Prevents intermittent electrical contact from bent, burned, or corroded terminals
• Compatible with replacement of worn or physically damaged ribbon connectors

• Turn off power to the appliance at the breaker or unplug before starting work
• Handle the flat ribbon and terminals carefully to avoid bending or damaging contacts
• Confirm connector orientation and seating; do not force the connector into place

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
