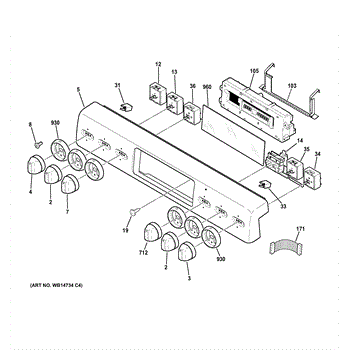

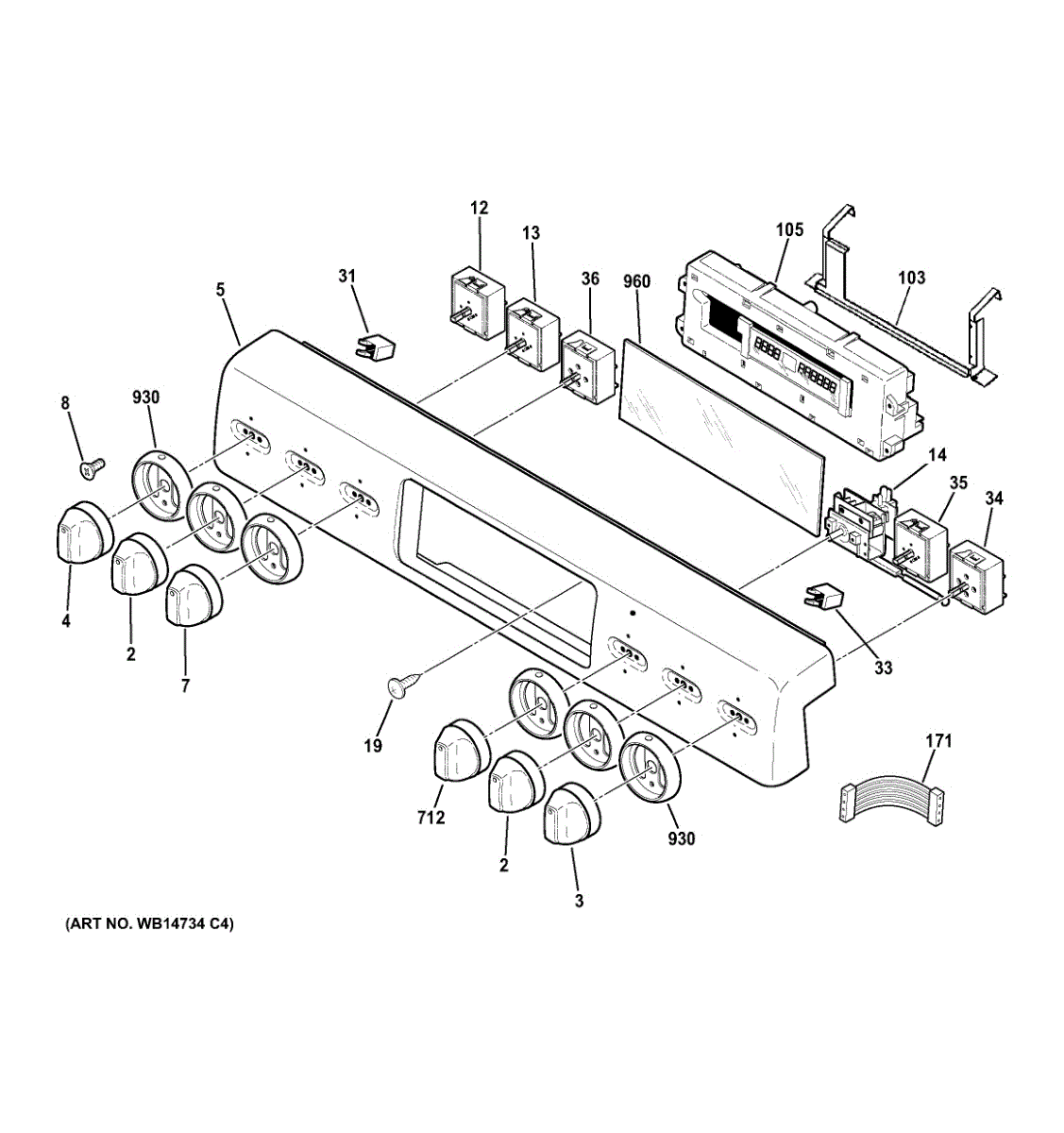

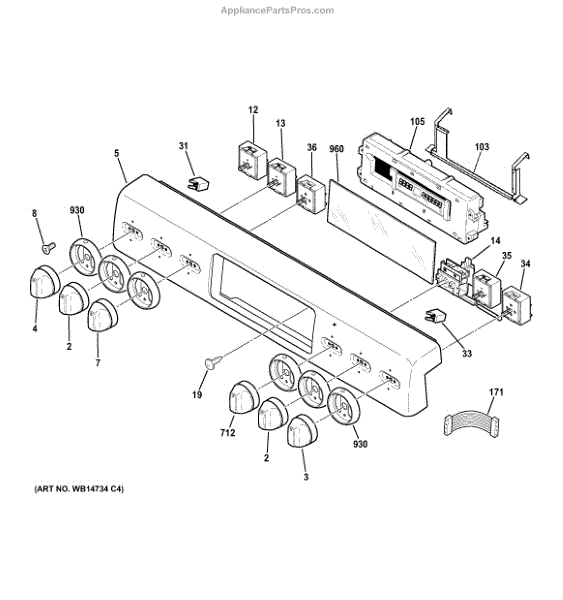

Parts for Ge CS980ST5SS: Control Panel Parts

Replacement burner control knob for your range. Restores control of stovetop burners when original knob is cracked, broken, loose, or missing.

Control knob for range burner selection. Installs on control panel to replace cracked, loose, or missing knobs. Push-on design restores secure turning.

Replaces the worn, cracked, or missing center control knob on your range cooktop. Installs onto the control shaft for secure temperature adjustment.

Fix a burner that won't heat, stays on high, or won't adjust temperature with this range infinite switch. Controls surface element heat levels. DIY repair.

Oven not reaching set temperature or overheating by 10-20 degrees? This range thermostat monitors and regulates heat for consistent baking. 2-hour DIY repair.

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Covers and protects the indicator lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility. Confirm fit with your model number.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Burner won't heat or stays on constantly? The infinite control switch regulates burner temperature. Simple DIY fix with basic tools in under 30 minutes.

This control switch activates the surface-burner spark ignition when you turn the knob to Lite. Replacing a worn switch restores consistent lighting and can stop unwanted, continuous clicking caused by a stuck switch. What it does:

• Closes the ignition circuit to the spark module to light a surface burner when the knob is turned
• Typical symptoms: no spark from a specific knob, intermittent ignition, or continuous clicking with knobs in the Off position
• Heat, spills, and moisture intrusion can damage the switch over time

• 1 control switch

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Remove the knob and front/top panel as needed to access the switch on the burner valve
• Transfer wires one at a time to the new switch; mount in the same orientation and secure
• Restore power and gas; test for proper spark at each burner before reassembly

Burner won't change heat settings or stays on one temperature? This infinite switch restores adjustable control to your range's surface elements.

Oven shuts off mid-cycle or won't heat? This electronic control board manages temperature, timed baking, and broiling. Moderately difficult repair.

Replaces a cracked, broken, or missing range control knob. Restores smooth operation and proper fit on the control shaft for reliable temperature selection.

Decorative trim skirt that fits around range control knobs on the front panel. Replace if cracked, disintegrating, melted, or missing for a clean look.

Replaces cracked, unresponsive, or damaged glass touch control panel on your range. Restores reliable button input and display on the console assembly.
