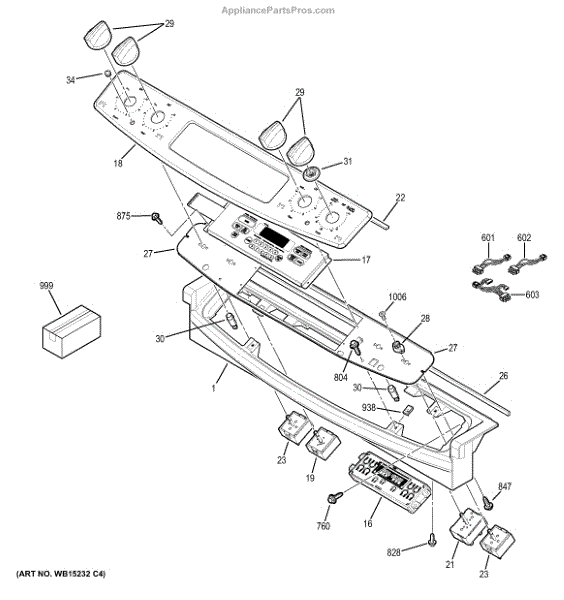

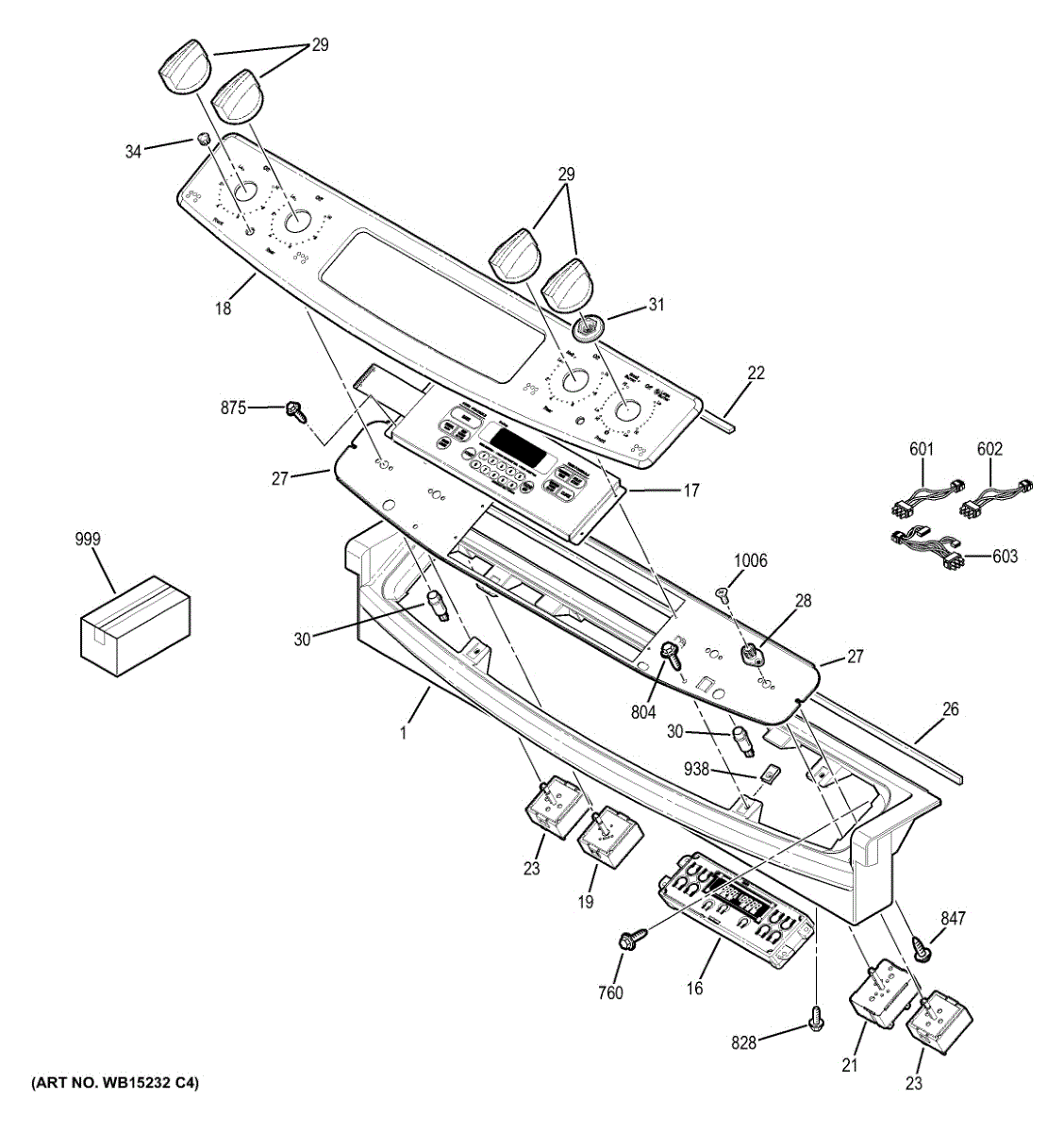

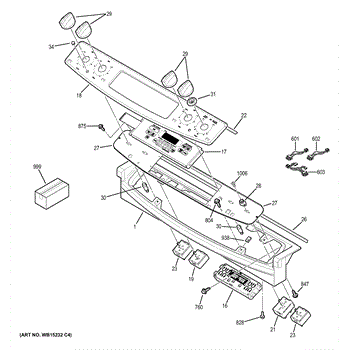

Parts for Ge JD630SF2SS: Control Panel Parts

This control panel assembly replaces the front user-interface panel, restoring a secure, clearly labeled surface for operating your appliance. Install a new panel when the original is cracked, loose, or the control markings have become worn or unreadable. What it does:

• Provides the user-facing interface area for selecting functions and settings
• Houses and aligns buttons/switches and other control components
• Shields the control area from heat, spills, and impact
• Common symptoms: cracked or warped panel, worn/peeling graphics, loose or broken mounting points, sticky or misaligned buttons

• 1 control panel assembly

• Disconnect power at the breaker before servicing.
• Remove knobs/trim and the screws securing the existing panel; carefully lift it away.
• Transfer any reusable parts from the old panel to the new panel.
• Reinstall fasteners and trim, restore power, and test all controls.

This genuine replacement part is an oven control board. The oven control board is the main circuit board that controls the ovens' essential functions. If the oven isn't heating properly, not turning on, or showing an error code on the digital display, it might be time to replace the control board. Replacing a control board may seem like a difficult task, but it is a relatively simple process. Start by unplugging the range. After that, move the appliance away from the wall to gain access to the back. Remove the upper back panel, and locate the control board. Take note of the orientation of the wires using a phone camera. Then detach the wire harness from the old control board. Remove any individual wires with a pair of needle-nose pliers. Then re-attach the wires to the new control board in the correct terminals. Snap the new control board into place and re-install the upper back panel of the range.This OEM replacement part is compatible with General Electric, Hotpoint, and RCA brand ovens.

This replacement keypanel support assembly secures the oven/range control panel and keypad, restoring a stable mounting surface for the controls and helping prevent flexing or misalignment of buttons and display components. What it does:

• Provides a secure mounting point for the front control/keypad and associated trim
• Keeps the control panel aligned and reduces wobble or movement when using buttons
• Helps maintain reliable contact for keypad switches and prevents intermittent button issues caused by loose support
• Supports proper positioning of the display/control board and related hardware

• Disconnect power to the appliance at the breaker before beginning any work.
• Handle trim and glass panels carefully to avoid damage; use proper tools to remove fasteners.
• Expect to remove the control console or backguard to access mounting screws; keep all hardware for reassembly.

This panel overlay assembly replaces a worn or damaged control-panel face to restore button labels and the finished appearance of the range or oven. It provides a clean, readable surface for the control buttons and display. What it does:

• Replaces cracked, peeled, or faded control-panel graphics and labels
• Restores a uniform finish so controls and settings are easy to read
• Supports proper button alignment so user inputs engage correctly
• Helps prevent dirt and moisture from reaching underlying electronics

• One panel overlay assembly

• Disconnect power (unplug or shut off breaker) before starting any repair
• Handle glass, trim, and fasteners carefully to avoid scratching or chipping
• May require removal of the backguard or control bezel and basic hand tools

The Infinite Switch Control is an OEM part compatible with GE ranges and ovens. It is a crucial component that allows users to precisely control and adjust the temperature or heating levels of the cooktop surface burners or oven.

Symptoms of a faulty infinite switch control:

• Erratic temperature regulation or inability to maintain the desired heat setting
• Surface burners or oven not heating properly or not heating at all
• Indicator lights not functioning correctly
• Burnt or melted switch knobs or control panel

Causes of a bad infinite switch control can include electrical malfunctions, physical damage, overheating, or general wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and oven models.

The Infinite Warmer Switch is an OEM part for GE ranges. It is designed to control the temperature settings of the warmer elements, allowing you to adjust the heat level for precise cooking and warming.

Causes of a bad infinite warmer switch can include electrical issues such as short circuits, wear and tear from frequent use, or internal component failure that affects the switch's ability to regulate power.

Symptoms of a bad Infinite Warmer Switch include:

• Inability to adjust the temperature of the warmer element
• Warmer element remains cold or overheats regardless of the setting
• Intermittent functioning or complete failure to operate

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement gasket faceplate that seals the appliance faceplate to help keep out moisture, dust and debris while restoring a snug fit and reducing rattling. Fits select GE appliances as the factory-style replacement. What it does:

• Seals the faceplate to the cabinet, helping prevent drafts and moisture intrusion.
• Replaces worn, cracked or deformed gaskets that cause visible gaps or uneven fit.
• Helps reduce faceplate movement and rattling during operation.
• Use when you see splits, compression set, or persistent gaps around the faceplate.

• Disconnect power to the appliance and remove any panels necessary to access the gasket.
• Carefully remove the old gasket and clean the mating surfaces of adhesive, dirt and debris.
• Align the new gasket in the mounting channel and press into place; replace any damaged clips or fasteners.
• Follow the appliance service manual for model-specific steps.

An infinite switch controls power to an electric range or cooktop surface element, letting you select and maintain heat levels. Replacing a failed switch restores proper on/off cycling and responsive temperature control for consistent burner performance.

• Regulates power to the surface element by cycling current at the setting you choose
• Interfaces with the burner knob to select Low through High heat
• Common failure symptoms: element stuck on high, won't heat, won't shut off, or heats erratically

• Disconnect power at the breaker before servicing
• Access the control panel/backguard; note wire locations and transfer them to the new switch one at a time
• Secure the switch, reinstall the knob/panel, and test burner operation

This control panel gasket seals the appliance console to help keep moisture, grease, and debris out of the control area and maintain a tidy, responsive panel. It replaces worn or damaged seals that let contaminants reach electronics. What it does:

• Creates a protective seal around the control panel to reduce moisture and grime intrusion
• Helps prevent dirt and cooking residue from collecting under buttons and behind the console
• Reduces the chance of control panel corrosion and intermittent button response caused by contamination
• Restores a flush fit and finished appearance to the console area

• Disconnect power to the appliance before starting any repair to avoid shock or unexpected operation.
• Remove the control panel or console per the service manual to access the old gasket; follow OEM disassembly steps.
• Clean mating surfaces of old adhesive or debris before installing the new gasket for a secure fit.
• If adhesive is used, allow proper cure time and verify proper alignment before reassembly.

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

Replace a cracked, stripped, or missing control knob and restore smooth, reliable setting of temperatures and functions. This knob assembly fits the control shaft to provide positive engagement and a refreshed look on the control panel. What it does

• Attaches to the valve or switch shaft to select heat level or function
• Restores proper engagement when the knob is cracked or stripped
• Fixes knobs that spin without turning the control stem
• Replaces loose, hard-to-grip, or missing knobs

• 1 control knob assembly

• Disconnect power and let the appliance cool completely before servicing
• Pull the old knob straight off the control shaft; avoid bending the stem
• Align the new knob's opening with the flat/D-shaped shaft and press firmly until fully seated
• Verify the pointer aligns with the panel markings and test operation

This indicator light installs in the control panel and illuminates to show when the monitored circuit is powered, restoring a clear visual status cue so you know at a glance when the appliance function is active.

• Provides a visible ON indication when the circuit it monitors is energized
• Typically used to indicate a surface unit, oven, or other energized function on the control panel
• Restores clear, reliable status feedback during operation
• Symptoms: light does not illuminate, stays on constantly, flickers intermittently, or lens shows heat damage

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the rear of the control panel; note wire locations or take a photo before removal
• Move wires to the new light and secure it in the panel without pinching leads
• Restore power and test for proper illumination

This crystal retainer secures the clear lens on the appliance's control panel, keeping it properly seated and protected. Replacing a damaged or missing retainer restores a snug fit and helps prevent the lens from shifting or rattling.

• Holds the lens/crystal firmly in place to protect the window over the clock/timer or display
• Maintains proper alignment and a clean, finished appearance around the panel window
• Helps reduce vibration, rattling, or gaps around the lens area
• Failure may show as a loose or missing window, uneven fit, or buzzing from the panel

• Disconnect power at the breaker before servicing
• Access the retainer from behind the control panel; remove covers/screws as needed to reach the lens area
• Support the lens while removing/installing the retainer so it doesn't fall
• Wear gloves and eye protection; sheet-metal edges can be sharp

This snap-in indicator lens covers and diffuses a panel light, restoring clear status visibility while protecting the lamp opening. Replace a cracked, missing, or discolored lens to keep your appliance looking clean and functioning safely. What it does:

• Snaps into the panel to cover and protect the indicator light opening
• Diffuses the lamp for clear, consistent visibility
• Helps keep out dust, grease, and moisture
• Common symptoms: lens missing or cracked, won't stay seated, yellowed/opaque, indicator hard to see

• 1 snap-in indicator lens

• Disconnect power before servicing
• Access the control/backguard area as required by your model
• Release the old lens tabs and remove; align the new lens and press until it snaps flush
• Do not force; ensure correct orientation to avoid damaging the panel

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

Package of 12

Black. 8-18 AB HXW 3/8

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
