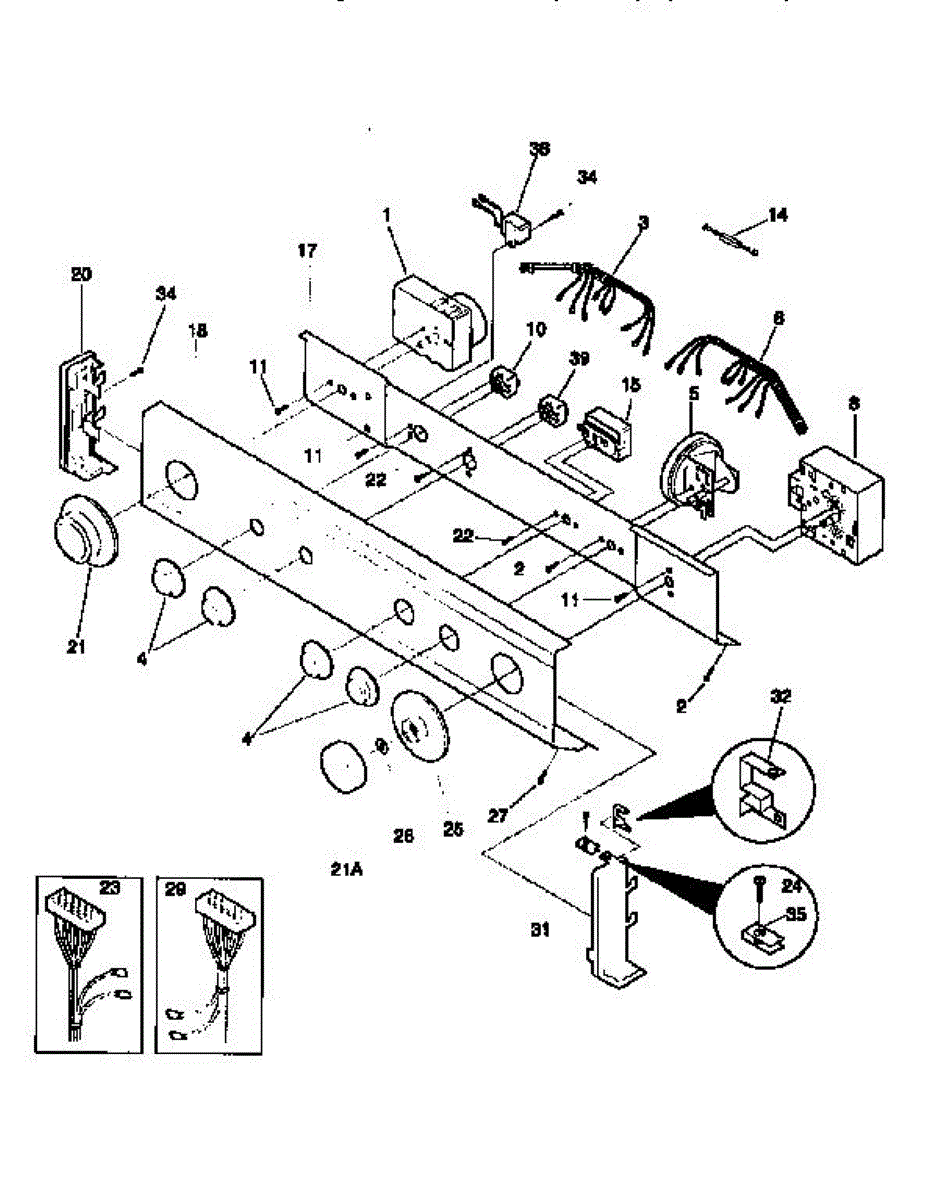

Parts for Kenmore 417.99680200 (41799680200, 417 99680200): Control Panel Parts

Timer won't advance or dryer runs continuously? This timer control restores proper cycle progression in auto and timed modes. DIY-friendly repair.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This wiring harness connects the washer control board to console switches and sensors, restoring reliable electrical communication so the machine can receive user inputs and run cycles correctly. What it does

• Links the control board to door switch, cycle selectors, and other console components so commands register.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Helps stop electrical shorts, error codes, or failure-to-start symptoms related to broken control connections.
• Restores factory routing and connector fit for secure, vibration-resistant connections.

• One wiring harness as shown.

• Always unplug the washer or shut off power at the breaker before servicing.
• Match connector shapes and wire colors to OEM locations; avoid forcing connectors.
• Route harness along original clips and channels to prevent pinching or rubbing.

Fix a washer that won't advance through cycles or stays stuck on one setting. This mechanical timer restores proper cycle sequencing. 1-hour DIY repair.

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Washer not heating water properly or selecting wrong temperatures? This temperature switch controls water temperature settings. Common repair for temperature issues.

White. Left hand side

Replacement timer knob for washer dryer combos. Mounts to the control timer shaft to select cycles and settings. Needed when original is cracked or stripped.

Mounting screw secures panels, trim, or brackets in dryers, washers, and ranges. Replace lost, stripped, or corroded screws to restore stability.

White timer dial for washer dryer combo control panel. Replaces cracked, broken, or missing timer knobs. Installs on front control panel for cycle selection.

PPH ab st/z/ch `6 - 18x.60

White. Right hand side

This energy guide label is the adhesive decal that displays an appliance's estimated energy use and efficiency info. It replaces torn or missing labels so service techs and owners can read official energy guidance at a glance. What it does:

• Reproduces the original energy-use and efficiency information printed on the appliance
• Restores a clear, legible energy guide for appliance inspections or resale
• Helps identify the unit's rated energy consumption without removing panels
• Fits in the original label location for straightforward replacement

• Clean and dry the label area before applying to ensure good adhesion
• Align carefully, then press firmly from one edge to the other to avoid bubbles
• Do not stretch or fold the label during installation; replace if damaged
• For safety, follow manufacturer's instructions for accessing the label area if panels must be removed

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Installation instructions manual for washer dryer combo units. Provides setup guidance and care information. Needed when original manual is lost or damaged.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

Replacement operating manual and care guide for washer dryer combo units. Needed when original documentation is lost, damaged, or missing.

Owner's manual and care guide for washer dryer combo units. Replace lost or damaged documentation with complete operating instructions and maintenance tips.

Owner's care guide manual for washer dryer combo units. Replace lost or damaged documentation to access proper operating instructions and maintenance.

Vertical spring adjuster insert.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.
