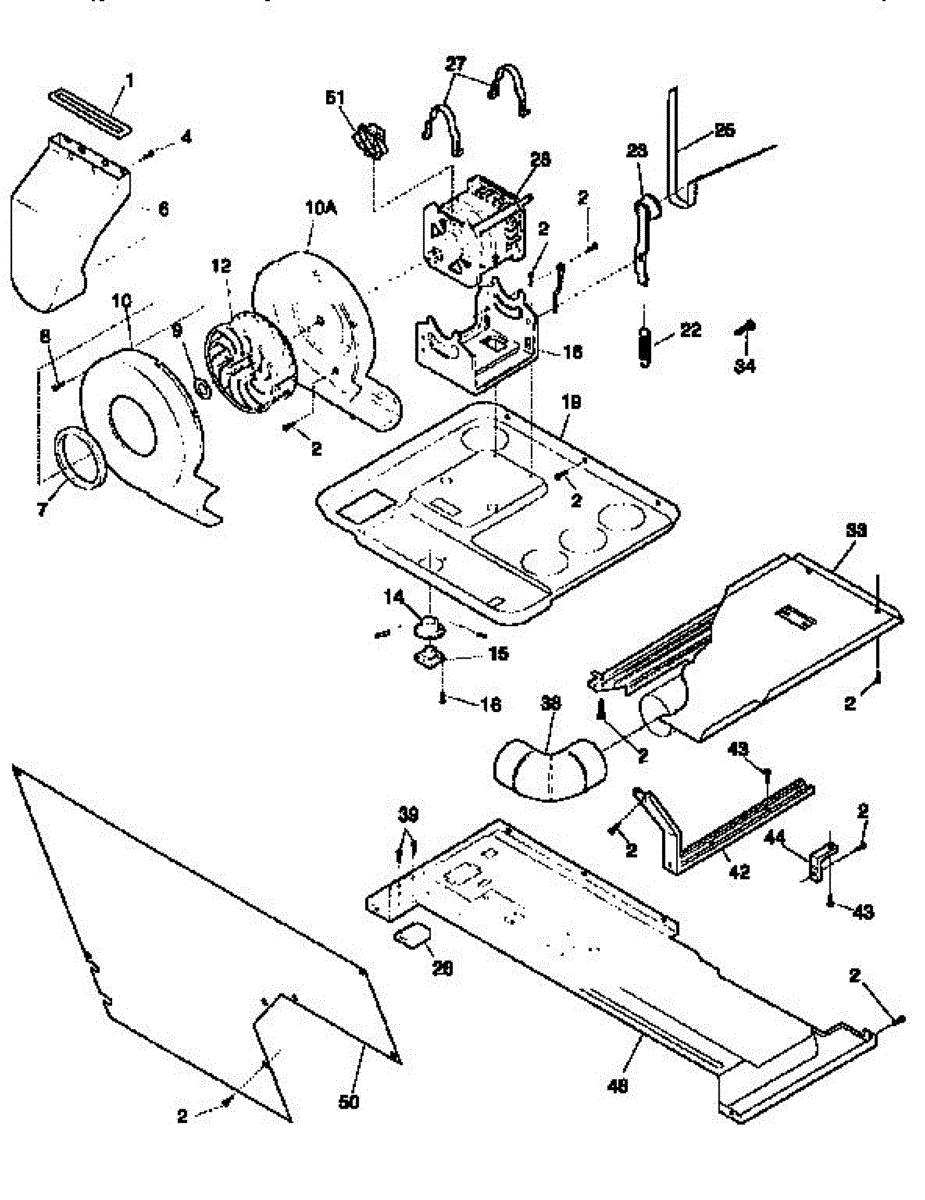

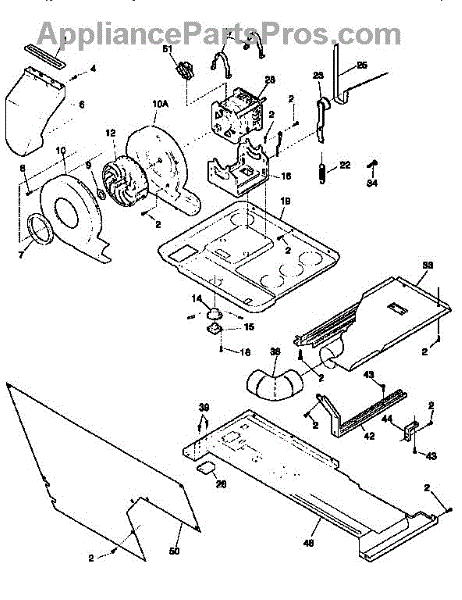

Parts for Kenmore 417.99680200 (41799680200, 417 99680200): Blower And Base Parts

This air duct seal creates a tight barrier between the dryer's lint housing and cabinet. Replacing a worn seal helps prevent air leaks, maintain proper airflow through the lint filter, and restore consistent drying performance.

• Seals the air duct/lint housing to the front panel to direct airflow through the lint screen and drum
• Helps maintain dryer efficiency and temperature control by preventing bypass air leaks
• Common symptoms of a failed seal include longer dry times, weak exhaust airflow, excess lint inside the cabinet, or lint around the door opening
• Replaces a deteriorated or missing seal to restore the intended air path

• Disconnect power; shut off gas supply for gas models
• Access the air duct by removing the lint screen and top/front panels as needed
• Remove the old seal and any residue; clean mating surfaces before installing the new seal
• Seat the duct evenly against the panel when reassembling to ensure a uniform seal

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Replacement mounting screw that fastens panels and components in laundry centers. Needed when original is missing, stripped, or damaged to restore secure fit.

Replacement air duct for laundry center dryer section. Directs heated air from element to drum. Order if your duct is cracked, damaged, or missing.

Seals the blower housing to prevent air leaks and maintain efficient airflow. Replace if torn, damaged, or causing reduced drying performance.

PPH ab st/z/ch `6 - 18x.60

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

The blower housing assembly encloses the blower wheel and channels air through the unit's coils. Replacing a cracked or warped housing helps restore smooth airflow and reduce blower noise caused by rubbing or misalignment.

• Directs and focuses airflow through the heat-exchange coils for proper operation
• Supports and aligns the blower wheel so it spins with correct clearance
• Helps minimize vibration and noise when the housing is intact
• Symptoms of a failed housing may include scraping or rattling noises, weak airflow, vibration, or visible cracks/broken mounts around the blower area

• Disconnect power before servicing; wear cut-resistant gloves and eye protection.
• Remove the front panel/cabinet to access the blower section; note screw and clip locations.
• Transfer the blower wheel, seals, and any reusable hardware from the old housing.
• Before reassembly, spin the blower wheel by hand to ensure free, rub-free rotation.

The Blower Wheel is an OEM part for Frigidaire clothes dryers. This component works to propel hot air through clothes during drying cycles.

Causes of a bad blower wheel involve wear from years of operation, such as bearing deterioration or plastic fan blade cracking/warping. Foreign object damage or improper cleaning techniques pose other risk factors.

Symptoms of a bad blower wheel include:

• Slow or weak drying even on high heat settings
• Loud clanking or grinding noises from inside the duct
• The dryer not activating or functioning when turned on
• Reduced air discharge observable at the vent

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Dryer not heating or overheating? A faulty temperature control thermostat often causes inconsistent heat cycles. This part regulates dryer temperature.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

Keep your dryer tumbling smoothly by restoring proper belt tension. This idler spring attaches to the idler arm and maintains tension on the drive belt so the drum turns reliably without slipping or squealing. What it does:

• Applies constant tension to the idler pulley to keep the drive belt tight around the drum and motor
• Helps resolve a drum that won't turn or tumbles intermittently
• Addresses belt issues such as slipping off, appearing loose, or premature breakage from low tension
• Can reduce squealing/chirping from the idler area caused by belt slip

• 1 idler spring

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel per your model
• Relieve belt tension, unhook the old spring from the idler arm/frame, and install the new spring in the same orientation and holes
• Rotate the drum by hand to check smooth operation before reassembly

The Idler Arm Assembly is an OEM part for Frigidaire dryers. It is an essential component of the dryer's drum support system, responsible for maintaining the proper alignment and smooth rotation of the drum during operation. The idler arm assembly typically consists of an idler arm, pulley, and bearings, working together to support the weight of the drum and facilitate its rotational movement.

Symptoms of a bad idler arm assembly in a dryer include:

• Loud squeaking or grinding noises during operation
• Excessive vibration or shaking of the dryer
• Difficulty in starting or maintaining the drum's rotation
• Potential damage to other components due to misalignment

Causes of a bad idler arm assembly can include wear and tear over time, damage from foreign objects entering the drum, or issues with the bearings or pulley components. A faulty idler arm assembly can lead to improper drum alignment, increased friction, and potential damage to other parts of the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Dryer drum won't turn or making loud banging noises? A broken drum belt is the likely cause. This belt connects the motor to the drum for rotation.

Secure dryer hose clamp prevents air leaks and improves venting efficiency. Replace if loose, damaged, or during hose maintenance. Confirm fit with model.

Includes motor, motor pulley and housing. Motor pulley no longer available separate

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

External mounting bracket for laundry center units. Secures and supports the appliance frame. Replace if bent, cracked, or missing for proper installation.

This energy guide label is the adhesive decal that displays an appliance's estimated energy use and efficiency info. It replaces torn or missing labels so service techs and owners can read official energy guidance at a glance. What it does:

• Reproduces the original energy-use and efficiency information printed on the appliance
• Restores a clear, legible energy guide for appliance inspections or resale
• Helps identify the unit's rated energy consumption without removing panels
• Fits in the original label location for straightforward replacement

• Clean and dry the label area before applying to ensure good adhesion
• Align carefully, then press firmly from one edge to the other to avoid bubbles
• Do not stretch or fold the label during installation; replace if damaged
• For safety, follow manufacturer's instructions for accessing the label area if panels must be removed

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

Vertical spring adjuster insert.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.

Owner's care guide manual for washer dryer combo units. Replace lost or damaged documentation to access proper operating instructions and maintenance.

Installation instructions manual for washer dryer combo units. Provides setup guidance and care information. Needed when original manual is lost or damaged.

Replacement operating manual and care guide for washer dryer combo units. Needed when original documentation is lost, damaged, or missing.

Owner's manual and care guide for washer dryer combo units. Replace lost or damaged documentation with complete operating instructions and maintenance tips.
