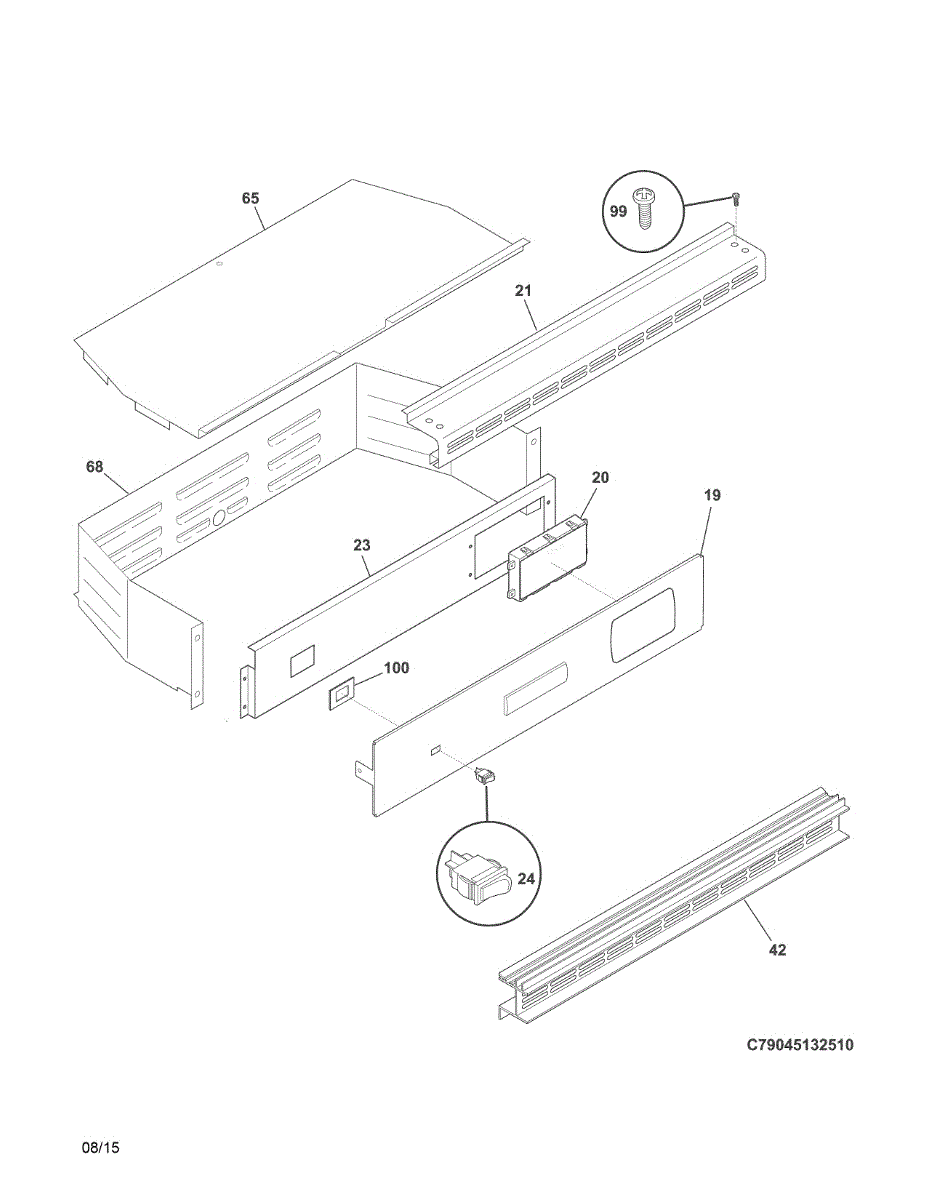

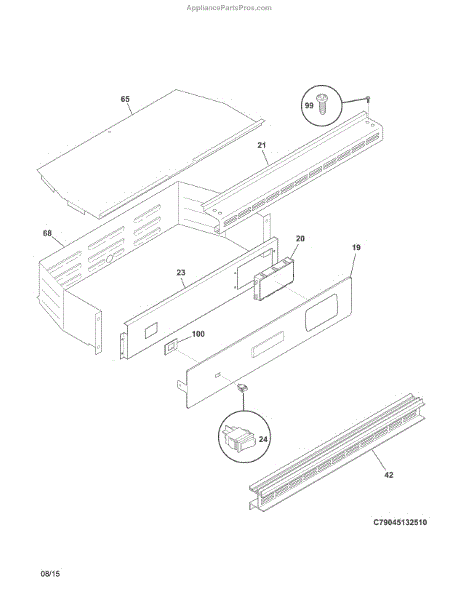

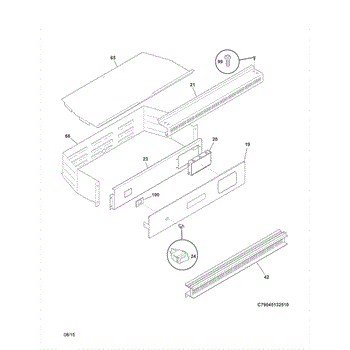

Parts for Kenmore 790.45139510 (79045139510, 790 45139510): Control Panel Parts

This is the electronic clock/timer that controls the oven's timekeeping, display, and cooking functions. A failing control can stop bake or broil from working and make the display or keypad unresponsive.

• Governs oven functions such as bake/broil through internal relays
• Provides the time display, kitchen timer, and programmable settings
• Faulty unit can cause no heat, dead or dim display, unresponsive buttons, or error codes
• Intermittent beeping or failure to start/stop cycles can also indicate a bad control

• Disconnect power at the breaker before servicing—high voltage present
• Take a photo of wire locations; transfer connectors one at a time to the new control
• Handle the board carefully and avoid static discharge; do not touch relay contacts
• After installation, restore power and set the clock before testing oven functions

This clock timer is the electronic control that runs your range or wall oven's display, timer, and cooking functions. Replacing a failed control restores the clock/timer and reliable bake/broil operation when the display or controls stop working.

• Manages the clock, timer, and user interface; processes keypad/touchpad inputs
• Controls bake and broil elements via internal relays to reach and maintain set temperatures
• Coordinates preheat and temperature regulation using sensor feedback
• Common symptoms of failure: blank or erratic display, unresponsive buttons, oven won't start or heat, or unexpected error codes

• Disconnect power at the breaker before servicing; verify no voltage at the appliance
• Photograph/label wire connections and move harnesses one at a time to the new control
• Transfer any model-specific mounting hardware or faceplate as needed
• Handle the board by the edges and protect from static discharge

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Specs: 10-32 X 0.375

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Overlay is an OEM part for Frigidaire ranges. This part serves as a protective and decorative cover for the control panel, providing clear markings for the various buttons and settings. It's essential for ensuring users can accurately select and monitor cooking settings, contributing to the usability and functionality of the range.

Causes of damage to the range overlay can range from excessive cleaning, use of harsh chemicals, to simple wear and tear over time.

Symptoms of a bad Range Overlay include:

• Fading or wear of the markings, making it difficult to read settings.
• Peeling or bubbling of the overlay material.
• Damage or tears that interfere with the function or aesthetics of the control panel.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
