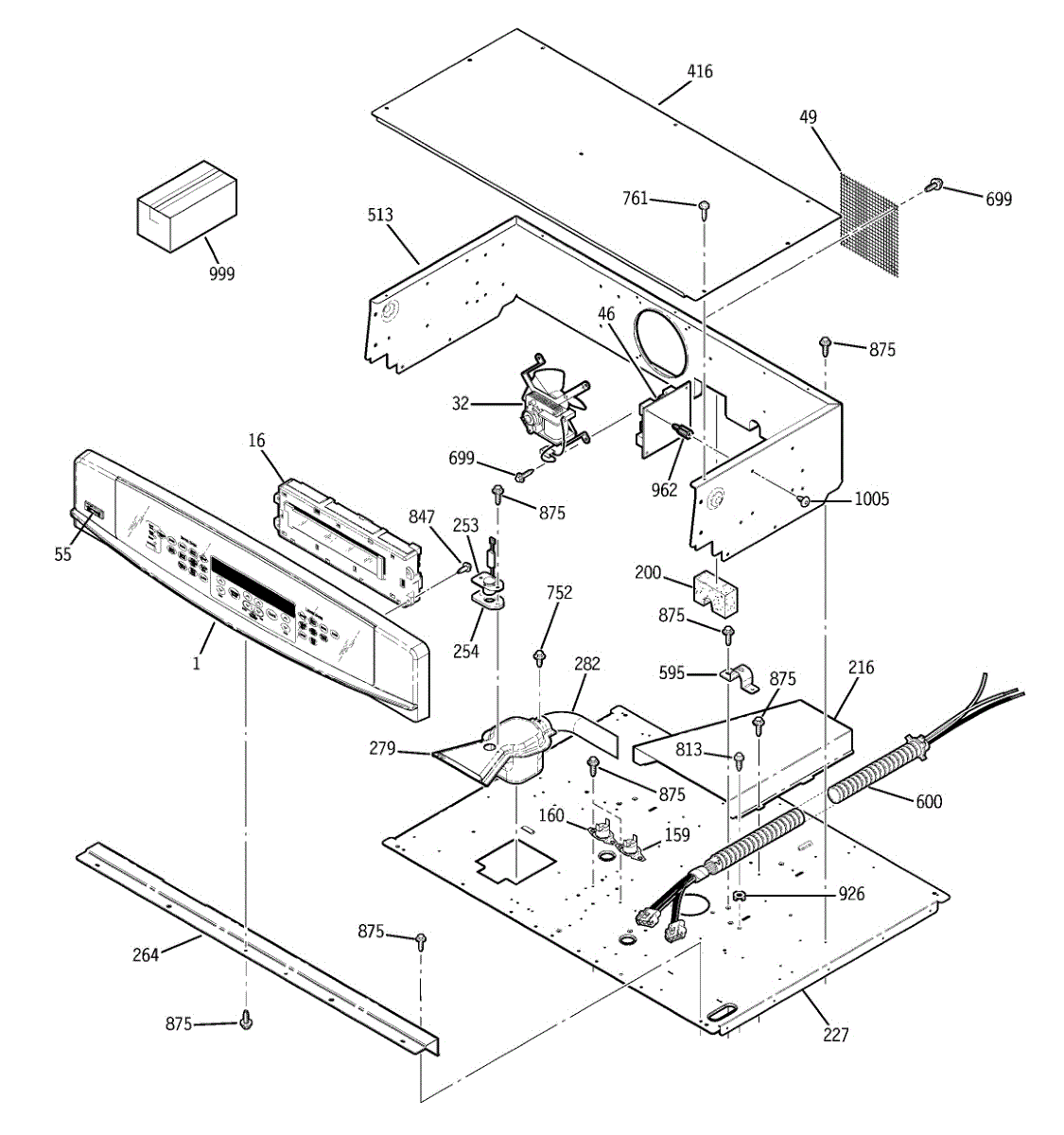

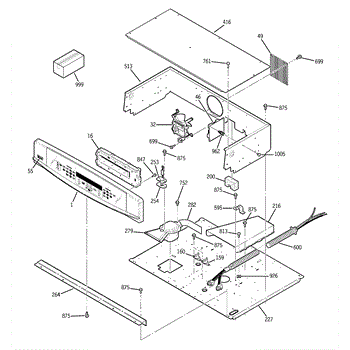

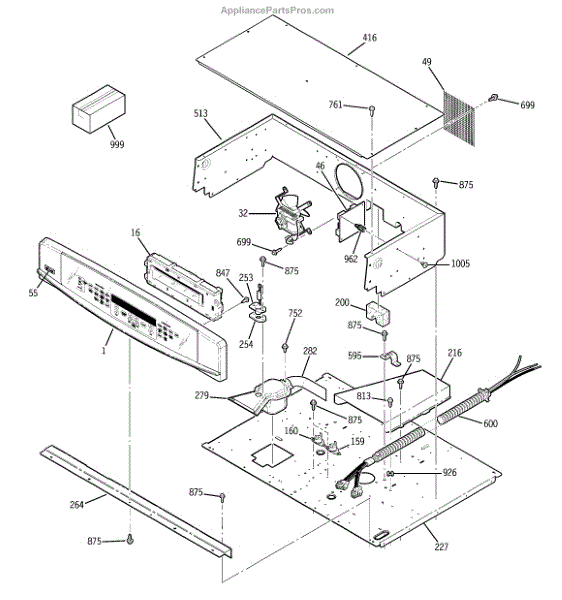

Parts for Kenmore 911.49052202 (91149052202, 911 49052202): Control Panel Parts

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves air across the control area to dissipate heat from the board, wiring, and trim
• Runs during/after bake or broil to maintain safe cabinet temperatures
• Typical failure signs: fan doesn't run, loud vibration/squeal, control area feels very hot, or heat-related shutdowns
• Purpose-built for the control compartment; distinct from the convection fan inside the oven cavity

• Disconnect power at the breaker and allow the appliance to cool; wear cut-resistant gloves
• Access is typically from the rear or top; remove panels/guards per your model's service information
• Transfer any required brackets or ducts; secure so the wheel spins freely with no rubbing
• Reconnect wiring as originally routed, keeping harnesses clear of the blade; test operation before reassembly

This electronic oven control (ERC) is the main user interface and control board that manages oven functions and timing, restoring reliable cycle control and display feedback for affected ranges. What it does:

• Receives input from the touchpad/knobs and controls bake/ broil cycles, timers and display functions
• Regulates oven heating commands sent to the relay/line outputs (symptoms: oven won't heat or maintains incorrect temperature)
• Restores display/clock functionality and control responsiveness when the original board is faulty
• Can resolve issues like unresponsive controls, blank or erratic display, or error codes tied to the control electronics

• One electronic oven control (ERC) board

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board carefully and avoid touching circuit traces or connectors; use ESD precautions where possible
• Follow the appliance service manual for access steps—installation typically requires removing the console or rear access panel and disconnecting ribbon/plug connectors

This bimetal limit thermostat is a temperature-safety control that interrupts power when oven temperature rises above its design point, protecting the appliance and helping maintain safe operation. What it does:

• Acts as an over-temperature cutoff that opens when the internal sensor reaches its trip temperature
• Prevents continued heating during an overheat condition
• Can stop heating element operation or clock/regulator cycling when the limit is open
• Common symptom: oven or broil element stops coming on or oven heats uncontrollably before shutting down

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the oven back panel or control housing; follow the service manual for your model
• Note and label wiring before removal to ensure correct reconnection

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Black. 8-18 AB HXW 3/8
