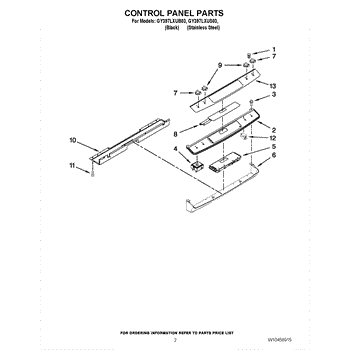

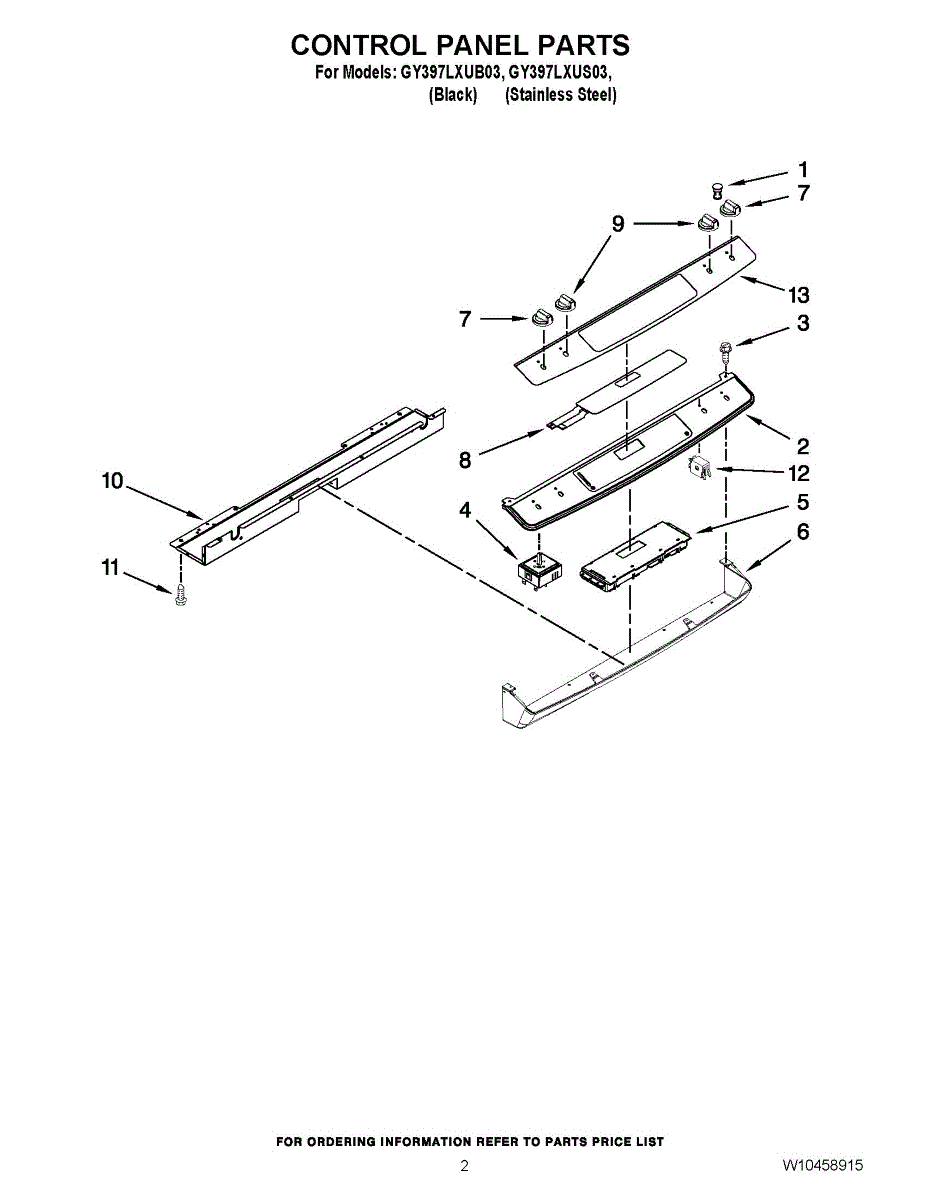

Parts for Whirlpool GY397LXUS03: 02 - Control Panel Parts

To order indicator light use WP903115.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops, intricately designed to regulate the heat of the burners. This essential component allows for precise temperature control, enabling users to adjust the heat setting from low to high with infinite variability, hence its name.

The primary causes for these issues often stem from electrical problems within the switch itself, such as worn contacts or internal components failing.

Symptoms of a malfunctioning Infinite Switch include:

• The burner not heating up or only reaching a single temperature, regardless of the setting
• The burner heating intermittently or not turning on at all
• Unpredictable temperature fluctuations, making cooking difficult and unreliable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This is a control panel that is used on many ovens. It is an interior part located near the buttons a user can press to turn on the oven, change the temperature, and select cooking methods. The control panel is the component that controls the oven based on which buttons are pressed. It includes a small display screen that shows the temperature, time, or error codes if a part of the appliance is not working correctly.It's important to be sure the range is unplugged before replacing the control panel. A Phillips screwdriver can unthread the screws holding the rear access panel. Pull the panel down and note where the wires are connected to the damaged control panel. Remove the old control panel and position the new one before securing it with screws. Replace the wires on the correct terminals before tightening the screws and replacing the access panel. Turn back on the power and push back the oven before use.This is a genuine OEM replacement control panel used for a variety of Whirlpool ovens. It is sold on an individual basis. A pair of work gloves and basic tools may be required for the replacement process.

Color: Black

The Oven Membrane Switch is an OEM part for Whirlpool ovens. It serves as the interface for selecting and controlling various cooking functions. The membrane switch panel responds to touch inputs, allowing users to set temperatures, timers, and other oven settings efficiently.

Over time, the membrane switch can become faulty due to regular wear and tear, exposure to heat and moisture, or accidental damage. These factors can lead to malfunctions in the touchpad or its responsiveness.

Symptoms of a bad membrane switch include:

• Unresponsive or intermittent touch controls
• Error codes displayed on the oven
• Inability to set or adjust cooking functions
• Some buttons not working at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows for easy adjustment of temperature settings, ensuring that you can accurately select the desired level of heat for your cooking needs.

Causes of a bad Knob can include physical damage from impact or excessive force, wear and tear from regular use, or environmental factors that cause the material to degrade over time.

Symptoms of a malfunctioning Knob include:

• Difficulty in turning or adjusting the knob
• The knob not engaging with the control mechanism properly
• Visible wear, damage, or breakage that affects functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.


The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation
