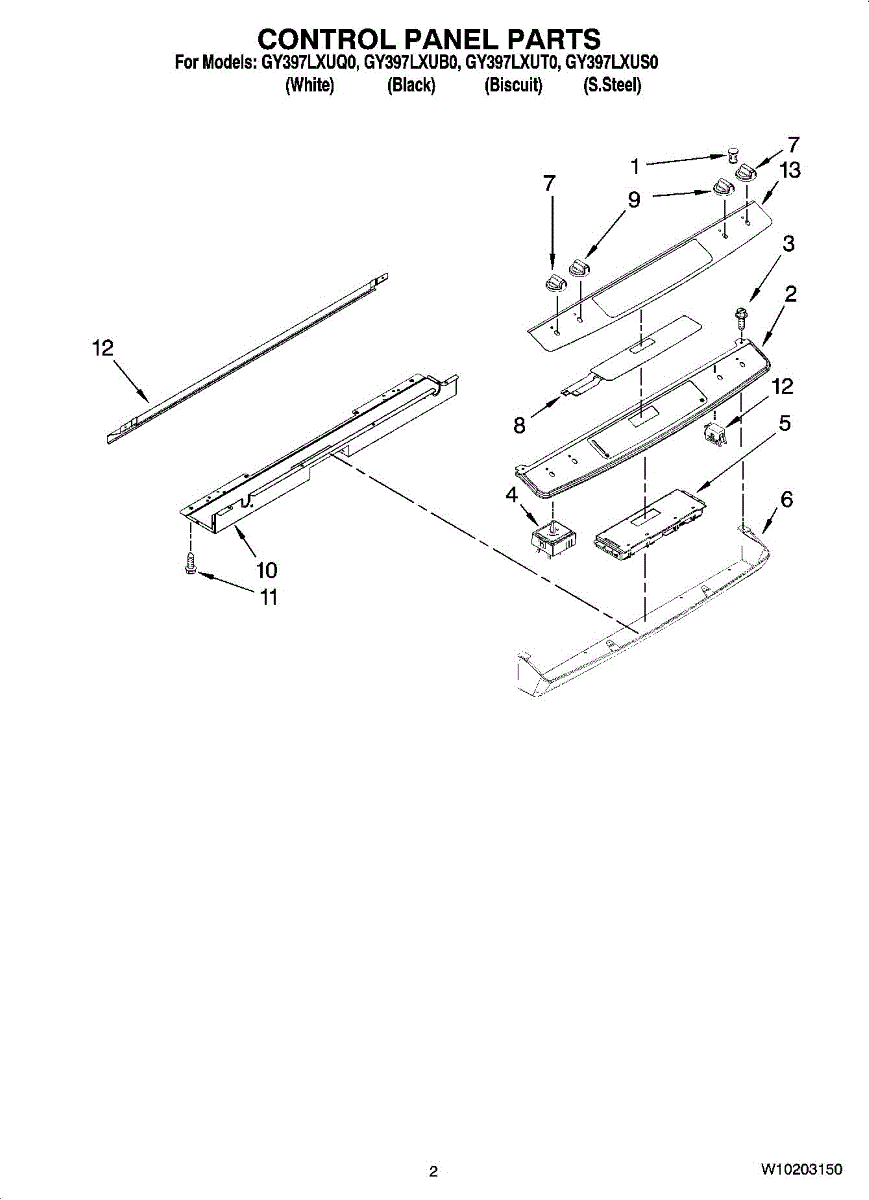

Parts for Whirlpool GY397LXUT0: 02 - Control Panel Parts

To order indicator light use WP903115.

This control panel is the appliance's front user interface that lets you select settings and start cycles, restoring normal button and display operation for responsive control. It replaces a worn, damaged or unresponsive panel to recover normal user input. What it does:

• Provides the front-facing buttons and display used to select cycles and options
• Sends user commands to the appliance's control board for start/stop and setting changes
• Commonly replaces panels that are cracked, have stuck or unresponsive buttons, or show a blank or intermittent display
• Restores tactile feedback and readable indicators so settings can be entered reliably

• Disconnect power to the appliance before beginning any work to avoid shock
• Handle the panel and ribbon/connector areas carefully; avoid bending contacts or pulling on wires
• Install with the original fasteners and connectors; ensure all connectors are fully seated before restoring power

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This is a control panel that is used on many ovens. It is an interior part located near the buttons a user can press to turn on the oven, change the temperature, and select cooking methods. The control panel is the component that controls the oven based on which buttons are pressed. It includes a small display screen that shows the temperature, time, or error codes if a part of the appliance is not working correctly.It's important to be sure the range is unplugged before replacing the control panel. A Phillips screwdriver can unthread the screws holding the rear access panel. Pull the panel down and note where the wires are connected to the damaged control panel. Remove the old control panel and position the new one before securing it with screws. Replace the wires on the correct terminals before tightening the screws and replacing the access panel. Turn back on the power and push back the oven before use.This is a genuine OEM replacement control panel used for a variety of Whirlpool ovens. It is sold on an individual basis. A pair of work gloves and basic tools may be required for the replacement process.

Color: White

Color: Black

This membrane switch touch pad replaces a worn or unresponsive control panel overlay, restoring tactile button response and reliable user input for your appliance. Designed to fit the original control assembly and match the OEM button layout. What it does:

• Provides the external button interface for cycle selection, start/stop, and other user commands
• Restores responsive touch actuation when buttons are sticky or unresponsive
• Helps prevent false inputs caused by worn or damaged keypad surfaces
• Works with the existing control board and housing to transmit user commands

• One membrane switch touch pad

• Disconnect power before servicing to avoid shock or damage
• Handle the membrane gently; avoid folding or creasing the conductive traces
• Align carefully with the control housing and connectors; replace any adhesive or foam pads as needed
• If the control still fails after replacing the pad, the issue may be with the underlying control board or connector

The membrane switch is the low-profile keypad behind your microwave's control panel. It registers button presses so you can select settings and start cooking. Replace it if keys stop responding or require excessive pressure.

• Converts keypad presses into signals for the electronic control
• Enables selection of power levels, cook times, and options
• Common symptoms: some or all keys don't work, intermittent response, must press very hard
• If the unit won't start/stop from the keypad, the membrane switch may be faulty

• Disconnect power at the breaker before servicing
• Remove the control panel to access the keypad; note ribbon orientation and routing
• Handle the flexible ribbon carefully—don't crease it—and fully seat/lock the connector

The Oven Membrane Switch is an OEM part for Whirlpool ovens. It serves as the interface for selecting and controlling various cooking functions. The membrane switch panel responds to touch inputs, allowing users to set temperatures, timers, and other oven settings efficiently.

Over time, the membrane switch can become faulty due to regular wear and tear, exposure to heat and moisture, or accidental damage. These factors can lead to malfunctions in the touchpad or its responsiveness.

Symptoms of a bad membrane switch include:

• Unresponsive or intermittent touch controls
• Error codes displayed on the oven
• Inability to set or adjust cooking functions
• Some buttons not working at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control knob restores safe, reliable user control of a stove or oven's front panel. It provides a secure grip and clear position feedback so you can set temperatures and functions with confidence. What it does:

• Replaces a cracked, stripped, missing or loose control knob to restore manual control of burner/temperature settings
• Fits onto the range/oven control shaft to allow precise selection of heat and function positions
• Helps eliminate slipping or spinning that prevents accurate adjustments
• Restores the appliance's normal user interface when the original knob is damaged or worn

• One control knob

• High-level push-on replacement for direct-fit control shafts; align splines and press firmly into place
• Disconnect power or switch appliance off before servicing to prevent injury
• Inspect the control shaft for damage before installing a new knob; damaged shafts may require additional parts
• If knob feels loose after installation, stop use and verify correct part and fit to avoid operational hazards

Color: White

Color: Black

The Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows for easy adjustment of temperature settings, ensuring that you can accurately select the desired level of heat for your cooking needs.

Causes of a bad Knob can include physical damage from impact or excessive force, wear and tear from regular use, or environmental factors that cause the material to degrade over time.

Symptoms of a malfunctioning Knob include:

• Difficulty in turning or adjusting the knob
• The knob not engaging with the control mechanism properly
• Visible wear, damage, or breakage that affects functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.


The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation
