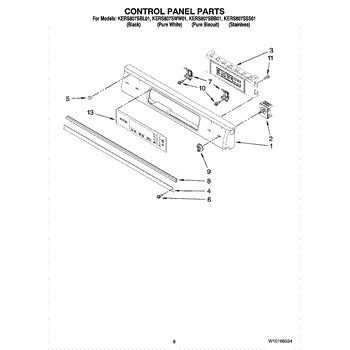

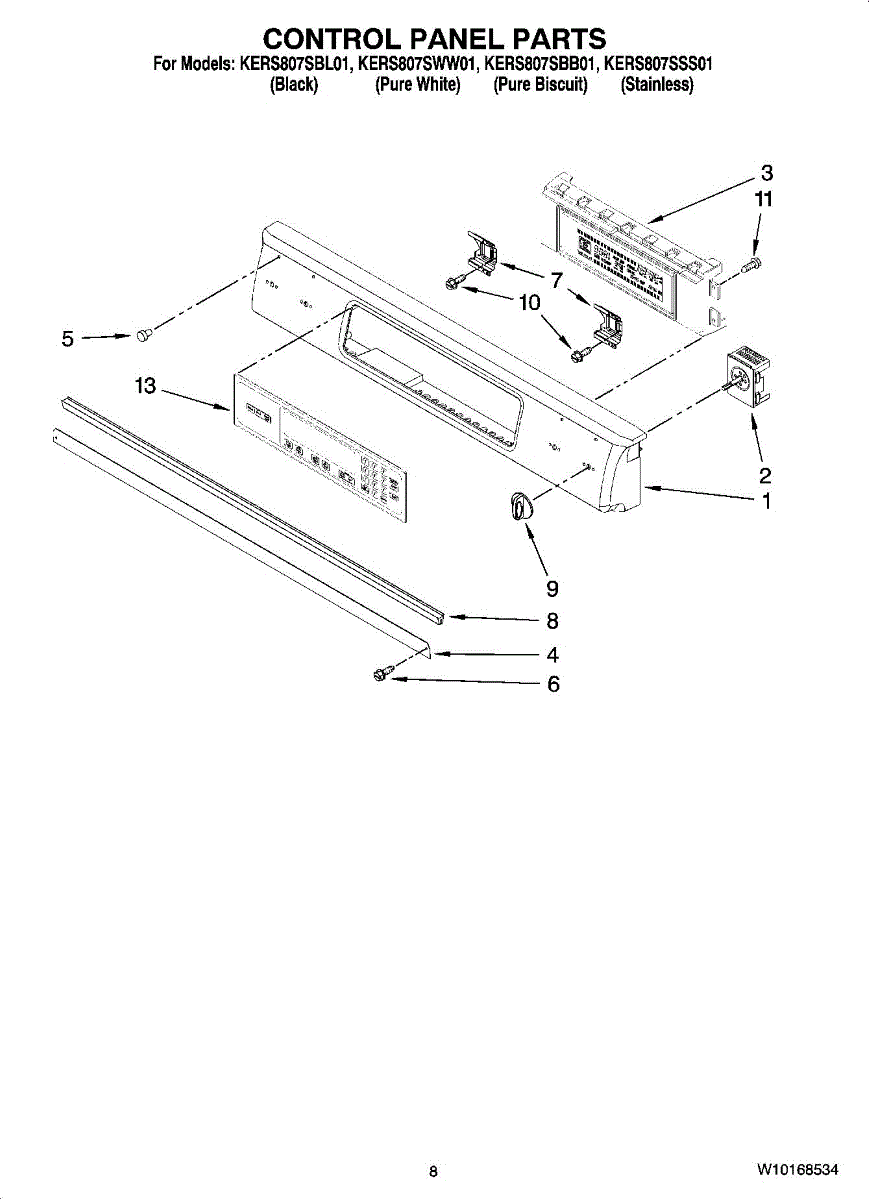

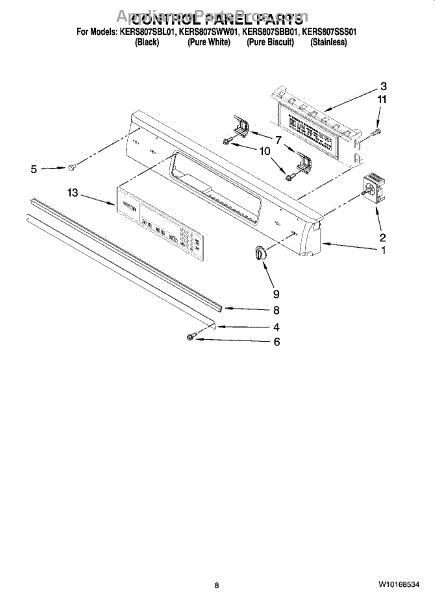

Parts for Kitchenaid KERS807SBB01: 05 - Control Panel Parts

This surface burner infinite switch controls power to an electric range or cooktop element, letting you set precise heat levels. Replacing a failed switch restores consistent heating and ensures the burner shuts off at the Off position.

• Regulates power to the surface element by cycling on and off for variable heat settings
• Interfaces with the control knob to adjust temperature from low to high
• Helps ensure the burner turns fully off at the Off position
• Common fix for a surface element that won't heat, only heats on High, won't shut off, or has erratic temperatures

• Disconnect power to the appliance before servicing
• Access the control panel, remove the knob, and unmount the old switch
• Move wires to the same labeled terminals on the new switch; transfer one at a time or use a photo for reference
• Secure the switch, reinstall the panel/knob, restore power, and test burner operation

This surface element infinite switch controls power to a cooktop burner so you can set and maintain cooking heat. Replace a faulty switch to restore smooth, adjustable heating and reliable on/off cycling on your range's top burner.

• Regulates power by cycling the surface element on and off to reach the selected heat level
• Works with the burner knob to adjust heat from low to high
• Common symptoms: burner won't heat, won't shut off, only runs on high, or has erratic temperature
• Restores consistent, controllable surface cooking performance

• Disconnect power at the breaker or unplug the range before servicing
• Remove the control panel/backguard to access the switch, then pull the knob off the shaft
• Photograph and move wires one at a time to matching terminals (e.g., L1, L2, H1, H2, P) on the new switch
• Mount the switch, reassemble, restore power, and test all heat settings

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Range Burner Knob is an OEM replacement part for Whirlpool electric ranges. Due to regular use, high temperatures, or accidental impact, the knob can degrade over time, resulting in issues like slipping, cracking, or improper alignment with the infinite switch.

Color: Stainless

Symptoms of a faulty Range Burner Knob include:

• Difficulty in adjusting burner settings
• Slippage or looseness when turning the knob
• Cracks, breaks, or a missing knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

RF White

LF, LR, RR Stainless

RF Black

LF, LR, RR Black

The Knob is an OEM part for Whirlpool ranges. Offers precise control over your temperature settings. This part is essential for the accurate operation of your range, allowing you to set and adjust cooking temperatures with ease.

A common cause for the need to replace the oven knob can be attributed to physical damage or wear over time. With repeated use, knobs can become loose, making it hard to select the correct temperature settings.

Symptoms of a bad Oven Knob include:

• Difficulty in turning the knob, which may feel stuck or overly tight
• The knob slipping or not catching onto the spindle, preventing accurate temperature adjustments
• Visible wear or damage, such as cracks or melting, which can occur from exposure to high temperatures or accidental impact

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

This genuine OEM replacement part is a switch membrane touchpad made for ovens. The switch membrane touchpad is the plastic display piece on the oven that holds the buttons that control the oven's essential functions. If the touchpad is worn out and the buttons are no longer responding when pushed, it might be time to replace the touchpad. Luckily replacing this part is not a difficult repair.To replace a damaged touchpad, make sure to turn off all power to the oven by unplugging the appliance or shutting off the circuit breaker. After the power to the oven is turned off, take a putty knife to pry off the old touchpad cover. Gently pull it away from the stove's control panel until it comes off. There should be enough adhesive left over to place the new touchpad back to its original place. Be sure to line up the touchpad so that it fits perfectly. This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ovens.
